B2578, B2579 IN-VEHICLE SENSOR
DescriptionINFOID:0000000003884744
In-vehicle Sensor

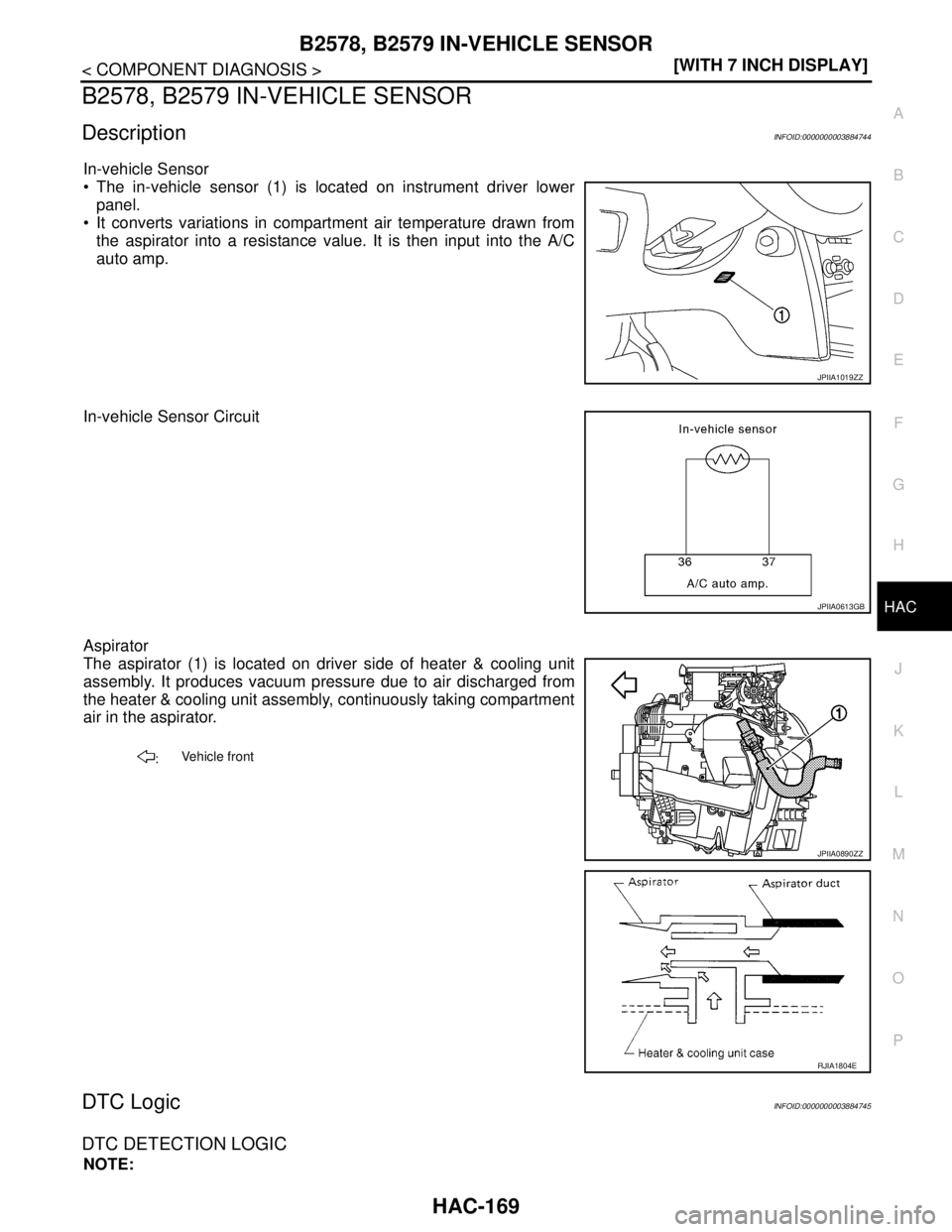

 The in-vehicle sensor (1) is located on instrument driver lower
panel.
 It converts variations in compartment air temperature drawn from
the aspirator into a resistance value. It is then input into the A/C
auto amp.
In-vehicle Sensor Circuit
Aspirator
The aspirator (1) is located on driver side of heater & cooling unit
assembly. It produces vacuum pressure due to air discharged from
the heater & cooling unit assembly, continuously taking compartment
air in the aspirator.
DTC LogicINFOID:0000000003884745
DTC DETECTION LOGIC
NOTE:
JPIIA1019ZZ
JPIIA0613GB
:Vehicle front
JPIIA0890ZZ
RJIA1804E

HAC-170
< COMPONENT DIAGNOSIS >[WITH 7 INCH DISPLAY]
B2578, B2579 IN-VEHICLE SENSOR
If DTC is displayed along with DTC U1000 or U1010, first diagnose the DTC U1000 or U1010. Refer to HAC-
164, "DTC Logic" or HAC-165, "DTC Logic".
DTC CONFIRMATION PROCEDURE
1.CHECK WITH SELF-DIAGNOSIS FUNCTION OF CONSULT-III
1. Using CONSULT-III, perform “SELF-DIAGNOSIS RESULTS” of HVAC.
2. Check if any DTC is displayed in the self-diagnosis results.
NOTE:
If DTC is displayed along with DTC U1000 or U1010, first diagnose the DTC U1000 or U1010. Refer to HAC-
164, "DTC Logic" or HAC-165, "DTC Logic".
Is DTC
“B2578” or “B2579” displayed?
YES >> Perform trouble diagnosis for the in-vehicle sensor. Refer to HAC-170, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000003884746
1.CHECK VOLTAGE BETWEEN IN-VEHICLE SENSOR AND GROUND
1. Disconnect in-vehicle sensor connector.
2. Turn ignition switch ON.
3. Check voltage between in-vehicle sensor harness connector and ground.
Is the inspection result normal?
YES >> GO TO 2.
NO >> GO TO 4.
2.CHECK CIRCUIT CONTINUITY BETWEEN IN-VEHICLE SENSOR AND A/C AUTO AMP.
1. Turn ignition switch OFF.
2. Disconnect A/C auto amp. connector.
3. Check continuity between in-vehicle sensor harness connector and A/C auto amp. harness connector.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair harness or connector.
3.CHECK IN-VEHICLE SENSOR
Check in-vehicle sensor. Refer to HAC-171, "
Component Inspection".
Is the inspection result normal?
YES >> Replace A/C auto amp.
NO >> Replace in-vehicle sensor.
DTCItems
(CONSULT-III screen terms)Diagnostic item is detected when... Possible cause
B2578IN CAR SENSOR (OUT OF RANGE
[LOW])Detected temperature at in-vehicle
sensor −44°C (−47°F) or less In-vehicle sensor
 A/C auto amp.
 Harness and connector
(In-vehicle sensor circuit is open,
or there is a short in the circuit) B2579IN CAR SENSOR (OUT OF RANGE
[HI])Detected temperature at in-vehicle
sensor 100°C (212°F) or more
(+) (−)
Vol tag e In-vehicle sensor
—
Connector Terminal
M41 1 Ground Approx. 5 V
In-vehicle sensor A/C auto amp.
Continuity
Connector Terminal Connector Terminal
M41 2 M50 37 Existed

B2578, B2579 IN-VEHICLE SENSOR
HAC-171
< COMPONENT DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
4.CHECK CIRCUIT CONTINUITY BETWEEN IN-VEHICLE SENSOR AND A/C AUTO AMP.
1. Turn ignition switch OFF.
2. Disconnect A/C auto amp. connector.
3. Check continuity between in-vehicle sensor harness connector and A/C auto amp. harness connector.
4. Check continuity between in-vehicle sensor harness connector and ground.
Is the inspection result normal?
YES >> Replace A/C auto amp.
NO >> Repair harness or connector.
Component InspectionINFOID:0000000003884747
1.CHECK IN-VEHICLE SENSOR
1. Turn ignition switch OFF.
2. Disconnect in-vehicle sensor connector. Refer to VTL-83, "
Exploded View".
3. Check resistance between in-vehicle sensor terminals.
Is the inspection result normal?
YES >> END.
NO >> Replace in-vehicle sensor.
In-vehicle sensor A/C auto amp.
Continuity
Connector Terminal Connector Terminal
M41 1 M50 36 Existed
In-vehicle sensor
—Continuity
Connector Terminal
M41 1 Ground Not existed
Te r m i n a lCondition
Resistance kΩ
Temperature °C (°F)
12−15 (5) 12.73
−10 (14) 9.92
−5 (23) 7.80
0 (32) 6.19
5 (41) 4.95
10 (50) 3.99
15 (59) 3.24
20 (68) 2.65
25 (77) 2.19
30 (86) 1.81
35 (95) 1.51
40 (104) 1.27
45 (113) 1.07

HAC-172
< COMPONENT DIAGNOSIS >[WITH 7 INCH DISPLAY]
B2581, B2582 INTAKE SENSOR
B2581, B2582 INTAKE SENSOR
DescriptionINFOID:0000000003884748
Intake Sensor
 The intake sensor (2) is located on the evaporator (1).
 It converts air temperature after it passes through the evaporator
into a resistance value which is then input to the A/C auto amp.
Intake Sensor Circuit
DTC LogicINFOID:0000000003884749
DTC DETECTION LOGIC
NOTE:
If DTC is displayed along with DTC U1000 or U1010, first diagnose the DTC U1000 or U1010. Refer to HAC-
164, "DTC Logic" or HAC-165, "DTC Logic".
DTC CONFIRMATION PROCEDURE
1.CHECK WITH SELF-DIAGNOSIS FUNCTION OF CONSULT-III
1. Using CONSULT-III, perform “SELF-DIAGNOSIS RESULTS” of HVAC.
2. Check if any DTC is displayed in the self-diagnosis results.
NOTE:
If DTC is displayed along with DTC U1000 or U1010, first diagnose the DTC U1000 or U1010. Refer to HAC-
164, "DTC Logic" or HAC-165, "DTC Logic".
Is DTC
“B2581” or “B2582” displayed?
YES >> Perform trouble diagnosis for the intake sensor. Refer to HAC-172, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000003884750
1.CHECK VOLTAGE BETWEEN INTAKE SENSOR AND GROUND
JPIIA0907ZZ
JPIIA0614GB
DTCItems
(CONSULT-III screen terms)Diagnostic item is detected when... Possible cause
B2581 EVAP TEMP SEN (SHORT)Detected temperature at intake sensor
−33°C (−27°F) or less Intake sensor
 A/C auto amp.
 Harness and connector
(Intake sensor circuit is open, or there is a
short in the circuit) B2582 EVAP TEMP SEN (OPEN)Detected temperature at intake sensor
69°C (156°F) or more

B2581, B2582 INTAKE SENSOR
HAC-173
< COMPONENT DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
1. Disconnect intake sensor connector.
2. Turn ignition switch ON.
3. Check voltage between intake sensor harness connector and ground.
Is the inspection result normal?
YES >> GO TO 2.
NO >> GO TO 4.
2.CHECK CIRCUIT CONTINUITY BETWEEN INTAKE SENSOR AND A/C AUTO AMP.
1. Turn ignition switch OFF.
2. Disconnect A/C auto amp. connector.
3. Check continuity between intake sensor harness connector and A/C auto amp. harness connector.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair harness or connector.
3.CHECK INTAKE SENSOR
Check intake sensor. Refer to HAC-173, "
Component Inspection".
Is the inspection result normal?
YES >> Replace A/C auto amp.
NO >> Replace intake sensor.
4.CHECK CIRCUIT CONTINUITY BETWEEN INTAKE SENSOR AND A/C AUTO AMP.
1. Turn ignition switch OFF.
2. Disconnect A/C auto amp. connector.
3. Check continuity between intake sensor harness connector and A/C auto amp. harness connector.
4. Check continuity between intake sensor harness connector and ground.
Is the inspection result normal?
YES >> Replace A/C auto amp.
NO >> Repair harness or connector.
Component InspectionINFOID:0000000003884751
1.CHECK INTAKE SENSOR
1. Turn ignition switch OFF.
2. Disconnect intake sensor connector.
3. Check resistance between intake sensor terminals.
(+) (−)
Vo l ta g e Intake sensor
—
Connector Terminal
M42 2 Ground Approx. 5 V
Intake sensor A/C auto amp.
Continuity
Connector Terminal Connector Terminal
M42 1 M50 37 Existed
Intake sensor A/C auto amp.
Continuity
Connector Terminal Connector Terminal
M42 2 M50 16 Existed
Intake sensor
—Continuity
Connector Terminal
M42 2 Ground Not existed

HAC-174
< COMPONENT DIAGNOSIS >[WITH 7 INCH DISPLAY]
B2581, B2582 INTAKE SENSOR
Is the inspection result normal?
YES >> END.
NO >> Replace intake sensor.
Te r m i n a lCondition
Resistance kΩ
Temperature °C (°F)
12−15 (5) 17.73
−10 (14) 13.46
−5 (23) 10.33
0 (32) 8.00
5 (41) 6.26
10 (50) 4.93
15 (59) 3.92
20 (68) 3.14
25 (77) 2.54
30 (86) 2.06
35 (95) 1.69
40 (104) 1.39
45 (113) 1.15

B262A, B262B, B2657, B2658 GAS SENSOR
HAC-175
< COMPONENT DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
B262A, B262B, B2657, B2658 GAS SENSOR
WITH INTELLIGENT AIR CONDITIONER SYSTEM
WITH INTELLIGENT AIR CONDITIONER SYSTEM : DescriptionINFOID:0000000003884752
COMPONENT DESCRIPTION
Gas Sensor
The gas sensor (1) is attached on the bumper upper retainer. It
detects smell of exhaust gas and converts it into a duty ratio which is
then input into the A/C auto amp.
Gas Sensor Circuit
SMELL OF EXHAUST GAS INPUT PROCESS
Gas sensor detects ambient atmospheric CO and NO2, and converts them to values of resistance. The values
are converted to signals with the gas sensor internal circuit, then auto amp. inputs the signals.
Gas sensor has a construction that detects CO and NO
2 by gas sensor element from the air intake of the case
through a filter (waterproof sheet). It sends output signals to auto amp. in response to a resistance value con-
version by gas sensor elements. Output signals prevent a smell of exhaust gas from getting into vehicle by
performing corrections according to various driving conditions.
WITH INTELLIGENT AIR CONDITIONER SYSTEM : DTC LogicINFOID:0000000003884753
DTC DETECTION LOGIC
JPIIA0900ZZ
JPIIA1009GB
PJIA0049E

HAC-176
< COMPONENT DIAGNOSIS >[WITH 7 INCH DISPLAY]
B262A, B262B, B2657, B2658 GAS SENSOR
NOTE:
If DTC is displayed along with DTC U1000 or U1010, first diagnose the DTC U1000 or U1010. Refer to HAC-
164, "DTC Logic" or HAC-165, "DTC Logic".
DTC CONFIRMATION PROCEDURE
1.CHECK WITH SELF-DIAGNOSIS FUNCTION OF CONSULT-III
1. Using CONSULT-III, perform “SELF-DIAGNOSIS RESULTS” of HVAC.
2. Check if any DTC is displayed in the self-diagnosis results.
NOTE:
If DTC is displayed along with DTC U1000 or U1010, first diagnose the DTC U1000 or U1010. Refer to HAC-
164, "DTC Logic" or HAC-165, "DTC Logic".
Is DTC
“B262A”, “B262B”, “B2657” or “B2658” displayed?
YES >> Perform trouble diagnosis for the gas sensor. Refer to HAC-176, "WITH INTELLIGENT AIR CON-
DITIONER SYSTEM : Diagnosis Procedure".
NO >> INSPECTION END
WITH INTELLIGENT AIR CONDITIONER SYSTEM : Diagnosis ProcedureINFOID:0000000003884754
1.ADJUST GAS SENSOR SENSITIVITY AND CLEAN SWITCH INTERLOCKING CHANGE
1. Turn ignition switch ON.
2. Adjust the gas sensor sensitivity and clean switch interlocking change. Refer to HAC-116, "
WITH INTEL-
LIGENT AIR CONDITIONER SYSTEM : Gas Sensor Sensitivity Adjustment Function (With Intelligent Air
Conditioner System)" and HAC-116, "WITH INTELLIGENT AIR CONDITIONER SYSTEM : Clean Switch
Interlocking Movement Change Function (With Intelligent Air Conditioner System)".
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 2.
2.CHECK POWER SUPPLY FOR GAS SENSOR
1. Turn ignition switch OFF.
2. Disconnect gas sensor connector.
3. Turn ignition switch ON.
4. Check voltage between gas sensor harness connector and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Check power supply circuit and 10A fuse (No. 3, located in the fuse block). Refer to PG-101,
"Fuse, Connector and Terminal Arrangement".
 If fuse is OK, check harness for open circuit. Repair or replace if necessary.
 If fuse is NG, check harness for short circuit and replace fuse.
3.CHECK GROUND CIRCUIT FOR GAS SENSOR
1. Turn ignition switch OFF.
2. Check continuity between gas sensor harness connector and ground.
DTCItems
(CONSULT-III screen terms)Diagnostic item is detected when... Possible cause
B262A GAS SENSOR (SHORT) Gas sensor duty 10% or less
 Gas sensor
 A/C auto amp.
 Harness and connector
(Gas sensor circuit is open, or
there is a short in the circuit) B262B GAS SENSOR (OPEN) Gas sensor duty 90% or more
B2657 GAS SENSOR CIRCUIT (SHORT) Gas sensor duty 0%
B2658 GAS SEN CIRCUIT (OPEN) Gas sensor duty 100%
(+) (−)
Vol tag e Gas sensor
—
Connector Terminal
E351 1 Ground Battery voltage
