ELECTRIC IGNITION SYSTEM
EC-39
< FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
1. Mass air flow sensor (with intake air
temperature sensor)2. Electric throttle control actuator
: Vehicle front
1. Ignition coil (with power transistor)
and spark plug (bank 1)2. Fuel injector (bank 1) 3. Fuel injector (bank 2)
4. Ignition coil (with power transistor)
and spark plug (bank 2)5. EVAP canister
: Vehicle front
1. Knock sensor (bank 1) 2. Knock sensor (bank 2) 3. Knock sensor
: Vehicle front
JMBIA1374ZZ
JMBIA1375ZZ
JMBIA1376GB
JMBIA1377ZZ
Page 1501 of 5121
EC-40
< FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE]
ELECTRIC IGNITION SYSTEM
1. Crankshaft position sensor (POS) 2. Camshaft position sensor (PHASE)
(bank 2)3. Camshaft position sensor (PHASE)
(bank 1)
: Vehicle front
1. Refrigerant pressure sensor 2. Battery current sensor
: Vehicle front
1. ECM 2. Fuel pump fuse 3. IPDM E/R
: Vehicle front
JMBIA1378ZZ
JMBIA1379ZZ
PBIB1686E
Page 1502 of 5121
ELECTRIC IGNITION SYSTEM
EC-41
< FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
1. A/F sensor 1 (bank 1) harness con-
nector2. A/F sensor 1 (bank 1) 3. A/F sensor 1 (bank 2) harness con-
nector
4. A/F sensor 1 (bank 2)
: Vehicle front
1. HO2S2 (bank 1) 2. HO2S2 (bank 2) 3. HO2S2 (bank 2) harness connector
4. Tie-rod (RH) 5. Power steering pressure sensor 6. HO2S2 (bank 1) harness connector
: Vehicle front
1. Electronic controlled engine mount
control solenoid valve2. VIAS control solenoid valve 1 3. VIAS control solenoid valve 2
4. EVAP canister purge volume control
solenoid valve
JMBIA1116ZZ
JMBIA1380ZZ
JMBIA1381GB
Page 1503 of 5121
EC-42
< FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE]
ELECTRIC IGNITION SYSTEM
1. Electronic controlled engine mount
control solenoid valve2. VIAS control solenoid valve 3. EVAP canister purge volume control
solenoid valve
1. Intake valve timing control solenoid
valve (bank 1)2. Intake valve timing control solenoid
valve (bank 2)3. Data link connector
1. Stop lamp switch 2. ASCD brake switch 3. Accelerator pedal position sensor
1. ASCD steering switch 2. CANCEL switch 3. RESUME/ACCELERATE switch
4. SET/COAST switch 5. MAIN switch
JMBIA1382GB
JMBIA1383ZZ
JMBIA1384ZZ
JMBIA1120ZZ
Page 1504 of 5121
ELECTRIC IGNITION SYSTEM
EC-43
< FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Component DescriptionINFOID:0000000003856472
1. Fuel level sensor unit and fuel pump
harness connector2. Fuel pressure regulator 3. Fuel level sensor unit and fuel pump
: Vehicle front
JMBIA1385ZZ
Component Reference
Accelerator pedal position sensorEC-304, "
Description"
Camshaft position sensor (PHASE)EC-222, "Description"
Crankshaft position sensor (POS)EC-218, "Description"
Engine coolant temperature sensorEC-157, "Description"
Ignition signalEC-341, "Description"
Knock sensorEC-215, "Description"
Mass air flow sensorEC-149, "Description"
Park/neutral position switchEC-245, "Description"
Throttle position sensorEC-160, "Description"
Page 1505 of 5121
![NISSAN TEANA 2008 Service Manual EC-44
< FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE]
AIR CONDITIONING CUT CONTROL
AIR CONDITIONING CUT CONTROL
System DiagramINFOID:0000000003856473
System DescriptionINFOID:0000000003856474
INPUT/OUTPUT SIGN NISSAN TEANA 2008 Service Manual EC-44
< FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE]
AIR CONDITIONING CUT CONTROL
AIR CONDITIONING CUT CONTROL
System DiagramINFOID:0000000003856473
System DescriptionINFOID:0000000003856474
INPUT/OUTPUT SIGN](/manual-img/5/57391/w960_57391-1504.png)
EC-44
< FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE]
AIR CONDITIONING CUT CONTROL
AIR CONDITIONING CUT CONTROL
System DiagramINFOID:0000000003856473
System DescriptionINFOID:0000000003856474
INPUT/OUTPUT SIGNAL CHART
*1: This signal is sent to the ECM through CAN communication line.
*2: ECM determines the start signal status by the signals of engine speed and battery voltage.
SYSTEM DESCRIPTION
This system improves engine operation when the air conditioner is used.
Under the following conditions, the air conditioner is turned OFF.
When the accelerator pedal is fully depressed.
When cranking the engine.
At high engine speeds.
When the engine coolant temperature becomes excessively high.
When operating power steering during low engine speed or low vehicle speed.
When engine speed is excessively low.
When refrigerant pressure is excessively low or high.
JMBIA1414GB
Sensor Input Signal to ECM ECM function Actuator
BCM
Air conditioner ON signal*
1
Air conditioner
cut controlAir conditioner relay Accelerator pedal position sensor Accelerator pedal position
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)Engine speed*
2
Engine coolant temperature sensor Engine coolant temperature
Battery
Battery voltage*
2
Refrigerant pressure sensor Refrigerant pressure
Power steering pressure sensor Power steering operation
ABS actuator and electric unit (control unit)
Vehicle speed*
1
Page 1506 of 5121
![NISSAN TEANA 2008 Service Manual AIR CONDITIONING CUT CONTROL
EC-45
< FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Component Parts LocationINFOID:0000000003857773
1. Intake valve timing control solenoid
valve NISSAN TEANA 2008 Service Manual AIR CONDITIONING CUT CONTROL
EC-45
< FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Component Parts LocationINFOID:0000000003857773
1. Intake valve timing control solenoid
valve](/manual-img/5/57391/w960_57391-1505.png)
AIR CONDITIONING CUT CONTROL
EC-45
< FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Component Parts LocationINFOID:0000000003857773
1. Intake valve timing control solenoid
valve (bank 1)2. Intake valve timing control solenoid
valve (bank 2)3. Electronic controlled engine mount
control solenoid valve

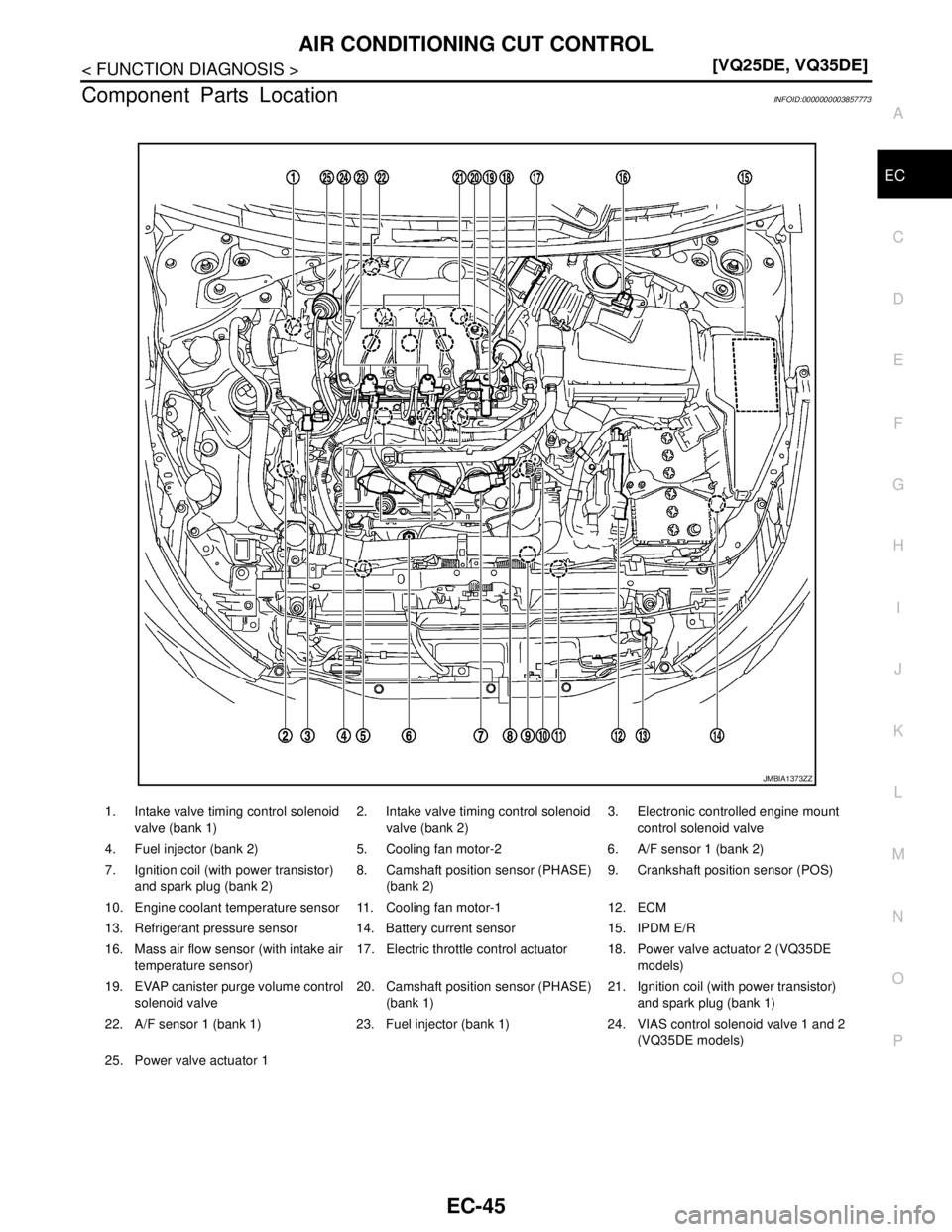

4. Fuel injector (bank 2) 5. Cooling fan motor-2 6. A/F sensor 1 (bank 2)
7. Ignition coil (with power transistor)
and spark plug (bank 2)8. Camshaft position sensor (PHASE)
(bank 2)9. Crankshaft position sensor (POS)
10. Engine coolant temperature sensor 11. Cooling fan motor-1 12. ECM
13. Refrigerant pressure sensor 14. Battery current sensor 15. IPDM E/R
16. Mass air flow sensor (with intake air
temperature sensor)17. Electric throttle control actuator 18. Power valve actuator 2 (VQ35DE
models)
19. EVAP canister purge volume control
solenoid valve20. Camshaft position sensor (PHASE)
(bank 1)21. Ignition coil (with power transistor)
and spark plug (bank 1)
22. A/F sensor 1 (bank 1) 23. Fuel injector (bank 1) 24. VIAS control solenoid valve 1 and 2
(VQ35DE models)
25. Power valve actuator 1
JMBIA1373ZZ
Page 1507 of 5121
EC-46
< FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE]
AIR CONDITIONING CUT CONTROL
1. Mass air flow sensor (with intake air
temperature sensor)2. Electric throttle control actuator
: Vehicle front
1. Ignition coil (with power transistor)
and spark plug (bank 1)2. Fuel injector (bank 1) 3. Fuel injector (bank 2)
4. Ignition coil (with power transistor)
and spark plug (bank 2)5. EVAP canister
: Vehicle front
1. Knock sensor (bank 1) 2. Knock sensor (bank 2) 3. Knock sensor
: Vehicle front
JMBIA1374ZZ
JMBIA1375ZZ
JMBIA1376GB
JMBIA1377ZZ
