< SYMPTOM DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
KEY REMINDER FUNCTION DOES NOT OPERATE
KEY REMINDER FUNCTION DOES NOT OPERATE
DescriptionINFOID:0000000003795014
NOTE:
 Before performing the diagnosis in the following procedure, check “Work Flow”. Refer to DLK-7, "
Work
Flow".
 Understand how the operation when properly functions. Refer to DLK-28, "
KEY REMINDER FUNCTION :
System Description".
Diagnosis ProcedureINFOID:0000000003795015
1.CHECK “ANTI KEY LOCK IN FUNCTI” SETTING IN “WORK SUPPORT”
Check “ANTI KEY LOCK IN FUNCTI” setting in “WORK SUPPORT”.
Refer to DLK-43, "
INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)".
Is the inspection result normal?
YES >> GO TO 2.
NO >> Set “ANTI KEY LOCK IN FUNCTI” setting in “WORK SUPPORT”.
2.CHECK DOOR SWITCH
Check door switch.
Refer to DLK-57, "
ComponentFunctionCheck".
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair or replace the malfunctioning parts.
3.CHECK INSIDE KEY ANTENNA
Check inside key antenna.
Refer to DLK-50, "
DTC Logic" (instrument center).
Refer to DLK-52, "
DTC Logic" (console).
Refer to DLK-54, "
DTC Logic" (trunk room).
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair or replace the malfunctioning parts.
4.CHECK UNLOCK SENSOR
Check unlock sensor.
Refer to DLK-78, "
ComponentFunctionCheck".
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair or replace the malfunctioning parts.
5.CONFIRM THE OPERATION
Confirm the operation again.
Is the result normal?
YES >> Check intermittent incident. Refer to GI-35, "Intermittent Incident".
NO >> GO TO 1.

DLK-196
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
RADIATOR CORE SUPPORT
RADIATOR CORE SUPPORT
Exploded ViewINFOID:0000000003795070
Removal and InstallationINFOID:0000000003795071
REMOVAL
1. Use refrigerant collecting equipment to discharge the refrigerant. Refer to HA-24, "Collection and
Charge".
2. Remove front under cover. Refer to EXT-28, "
Removal and Installation".
3. Drain engine coolant from radiator. Refer to CO-8, "
Draining".
4. Remove front bumper fascia, energy absorber and bumper reinforcement. Refer to EXT-12, "
Removal
and Installation".
5. Remove mounting clips and remove air duct cover.
6. Remove hood lock opener and hood lock. Refer to DLK-220, "
Removal and Installation".
7. Disconnect connector of horn (HIGH/LOW), and then remove horn (HIGH/LOW). Refer to HRN-6,
"Removal and Installation".
8. Disconnect connector of gas sensor, and then remove gas sensor (with intelligent air conditioner system).
Refer to VTL-82, "
WITH INTELLIGENT AIR CONDITIONER SYSTEM : Removal and Installation".
9. Remove bumper retainer assembly. Refer to EXT-12, "
Removal and Installation".
10. Remove air guide (RH/LH).
11. Remove front combination lamp (RH/LH). Refer to EXL-181, "
Removal and Installation" (XENON TYPE)
or EXL-343, "
Removal and Installation" (HALOGEN TYPE).
12. Disconnect connector of ambient sensor. Refer to VTL-24, "
Removal and Installation" (WITHOUT 7 INCH
DISPLAY) or VTL-81, "
Removal and Installation" (WITH 7 INCH DISPLAY).
1. Radiator upper hose bracket 2. Hood switch bracket 3. Air duct cover
4. Air guide (RH/LH) 5. Radiator core support
: Pawl
JMKIA2382ZZ

RADIATOR CORE SUPPORT
DLK-197
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P

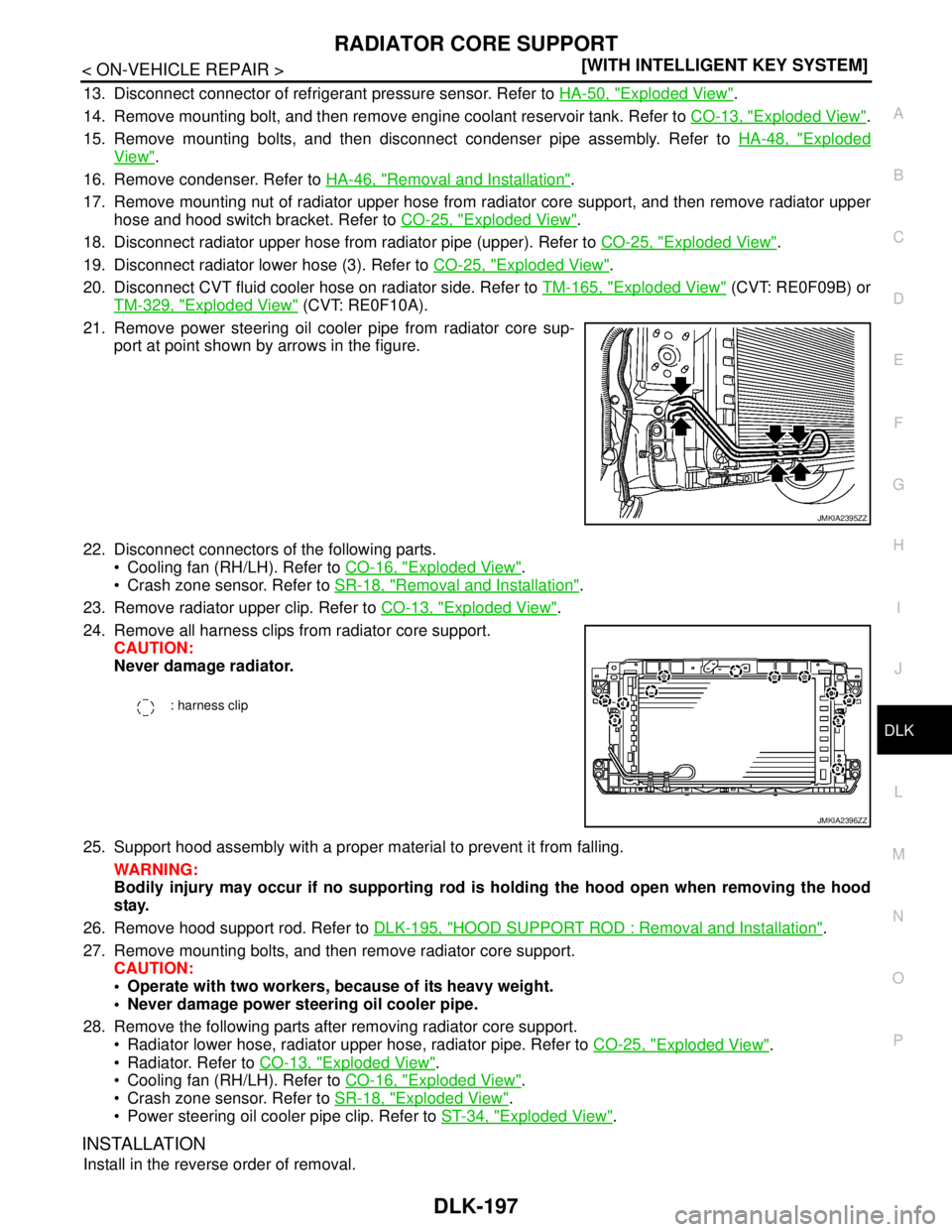

13. Disconnect connector of refrigerant pressure sensor. Refer to HA-50, "Exploded View".
14. Remove mounting bolt, and then remove engine coolant reservoir tank. Refer to CO-13, "
Exploded View".
15. Remove mounting bolts, and then disconnect condenser pipe assembly. Refer to HA-48, "
Exploded
View".
16. Remove condenser. Refer to HA-46, "
Removal and Installation".
17. Remove mounting nut of radiator upper hose from radiator core support, and then remove radiator upper
hose and hood switch bracket. Refer to CO-25, "
Exploded View".
18. Disconnect radiator upper hose from radiator pipe (upper). Refer to CO-25, "
Exploded View".
19. Disconnect radiator lower hose (3). Refer to CO-25, "
Exploded View".
20. Disconnect CVT fluid cooler hose on radiator side. Refer to TM-165, "
Exploded View" (CVT: RE0F09B) or
TM-329, "
Exploded View" (CVT: RE0F10A).
21. Remove power steering oil cooler pipe from radiator core sup-
port at point shown by arrows in the figure.
22. Disconnect connectors of the following parts.
 Cooling fan (RH/LH). Refer to CO-16, "
Exploded View".
 Crash zone sensor. Refer to SR-18, "
Removal and Installation".
23. Remove radiator upper clip. Refer to CO-13, "
Exploded View".
24. Remove all harness clips from radiator core support.
CAUTION:
Never damage radiator.
25. Support hood assembly with a proper material to prevent it from falling.
WARNING:
Bodily injury may occur if no supporting rod is holding the hood open when removing the hood
stay.
26. Remove hood support rod. Refer to DLK-195, "
HOOD SUPPORT ROD : Removal and Installation".
27. Remove mounting bolts, and then remove radiator core support.
CAUTION:
 Operate with two workers, because of its heavy weight.
 Never damage power steering oil cooler pipe.
28. Remove the following parts after removing radiator core support.
 Radiator lower hose, radiator upper hose, radiator pipe. Refer to CO-25, "
Exploded View".
 Radiator. Refer to CO-13, "
Exploded View".
 Cooling fan (RH/LH). Refer to CO-16, "
Exploded View".
 Crash zone sensor. Refer to SR-18, "
Exploded View".
 Power steering oil cooler pipe clip. Refer to ST-34, "
Exploded View".
INSTALLATION
Install in the reverse order of removal.
JMKIA2395ZZ
: harness clip
JMKIA2396ZZ
