2008 MITSUBISHI SHOGUN display

Instruments and controls
3-49
3
3. After setting, press the “INF
O” button to return to the
information display.
Changing the language It is possible to set the display language of the centre informa- tion display to English, Spanish, French, German, or Italian (Portuguese).Depending on the regions, this may be set to Italian or Portu- guese. • To change the display language to English1. Press the “
←” or “
→ ” function button to select “ENG-
LISH”. Then press the “SET
” function button. The dis-
play will flash twice, and th
en the setting is completed to
the language selected.
NOTE●
You can return to the previous display by pressing the “BACK” function button.
BK-BK2008E1ENUK.en-uk-Section6.fm Page
49 Wednesday, January 9, 2008 4:32 PM

3-50 Instruments and controls
3

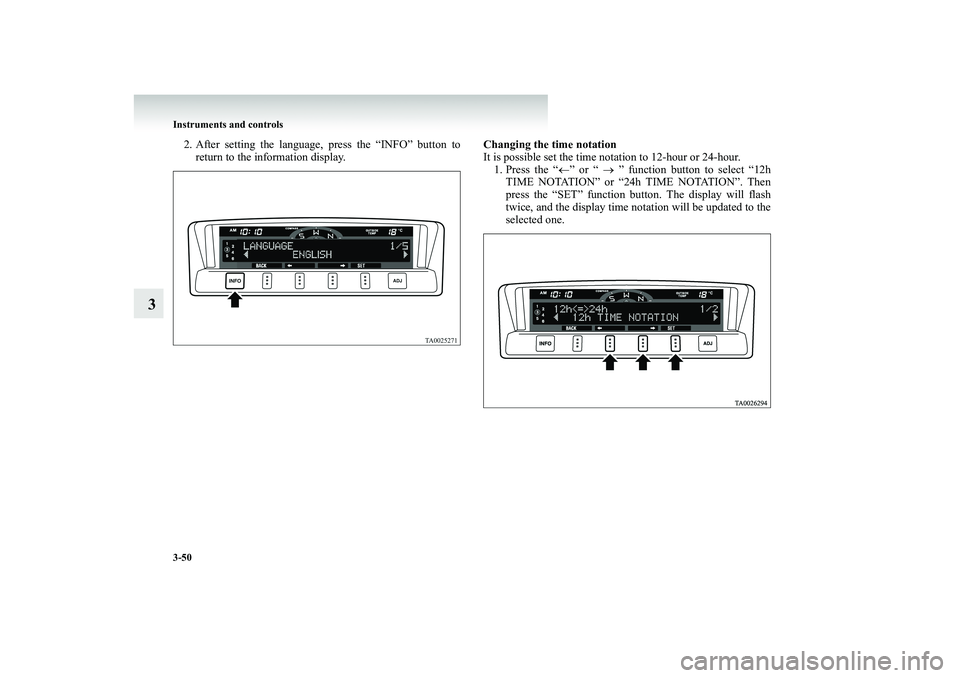

2. After setting the language, press the “INFO” button to
return to the information display.
Changing the time notation It is possible set the time notation to 12-hour or 24-hour. 1. Press the “
←” or “
→ ” function button to select “12h
TIME NOTATION” or “24h TIME NOTATION”. Thenpress the “SET” function button. The display will flash twice, and the display time notation will be updated to the selected one.
BK-BK2008E1ENUK.en-uk-Section6.fm Page
50 Wednesday, January 9, 2008 4:32 PM

Instruments and controls
3-51
3
NOTE●
You can return to the previous display by pressing the “BACK” function button.
2. After setting the time notati
on, press the “INFO” button to
return to the information display.
12-hour 24-hour
BK-BK2008E1ENUK.en-uk-Section6.fm Page
51 Wednesday, January 9, 2008 4:32 PM

3-52 Instruments and controls
3
Returning display items to
their factory settings
You can return to the setting of each item to the factory default settings.NOTE●
The factory settings are as follows: • Fuel consumption: L/100km • Driving range: km • Average speed: km/h• Outside temperature: °C • Elevation: m • Atmospheric pressure: hPa• Display language: English • Time notation: 12-hour
1. Push the “SELECT” function button.
2. Press the “
←” function button to select “YES”.
3. Press the “SELECT” function button.
BK-BK2008E1ENUK.en-uk-Section6.fm Page
52 Wednesday, January 9, 2008 4:32 PM

Instruments and controls
3-53
3

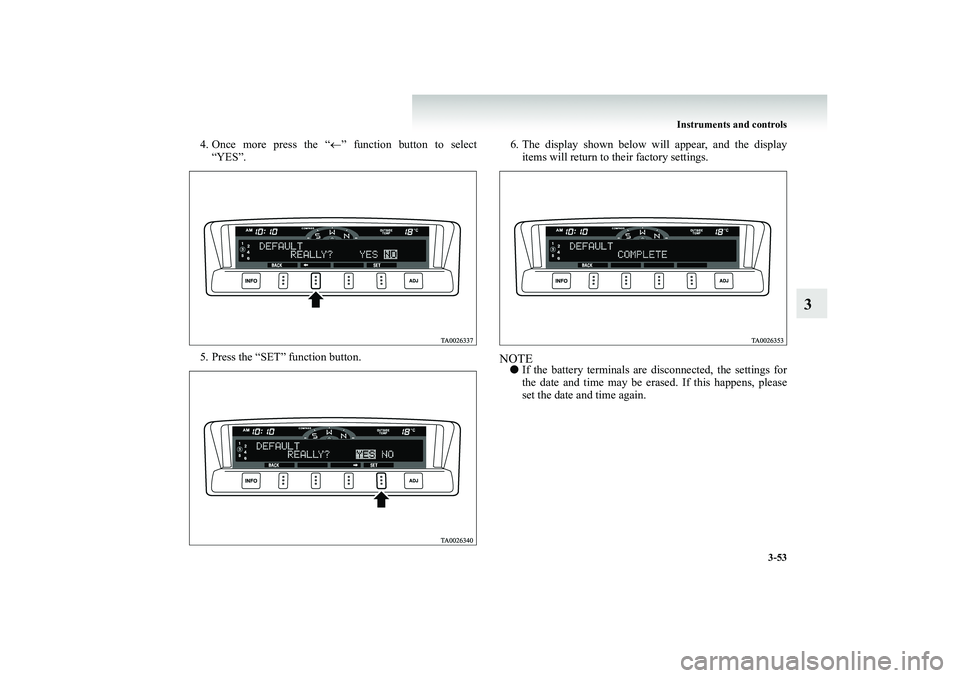

4. Once more press the “
←” function button to select
“YES”.
5. Press the “SET” function button.
6. The display shown below will appear, and the display
items will return to their factory settings.
NOTE●
If the battery terminals are di
sconnected, the settings for
the date and time may be erased. If this happens, please set the date and time again.
BK-BK2008E1ENUK.en-uk-Section6.fm Page
53 Wednesday, January 9, 2008 4:32 PM

3-54 Instruments and controls
3
Adjusting the barometer
E00524400017
It is possible to adjust the barometer indication and return it to the factory setting.NOTE●
It is not necessary to adjust the barometer because it has been adjusted at the factory. However, if you wish, adjust it using an accurate barome- ter.
To adjust the barometer 1. Press the “ADJ” button to select the barometer adjustment
display.
BK-BK2008E1ENUK.en-uk-Section6.fm Page
54 Wednesday, January 9, 2008 4:32 PM

Instruments and controls
3-55
3
2. Press the “
←” or “
→” function button to select the
“BAROMETER ADJUST” display. Then press the “SELECT” function button.
3. Adjust the barometer by pressing the function buttons.NOTE●
You can return to the previous display by pressing the “BACK” function button.“+”- To adjust the barometer
Each gentle press of the “+” function button willincrease the indicated barometer by 2 hPa. If you con-tinue pressing the button for about 2 seconds or longer,the indication is fast-forwarded
“-”- To adjust the barometer
Each gentle press of the “-” function button willdecrease the indicated barometer by 2 hPa. If you con-tinue pressing the button for about 2 seconds or longer,the indication is fast-forwarded.
“SET”- To set the barometer
Press the “SET” function button. The display will flashtwice, and the new setting will be established.
BK-BK2008E1ENUK.en-uk-Section6.fm Page
55 Wednesday, January 9, 2008 4:32 PM

3-56 Instruments and controls
3
4. After setting the barometer adjust, press the “INFO” but-
ton to return to the information display.
Resetting to the factory setting 1. Press the “ADJ” button to select the barometer adjustment
display. Press the “
←” or “
→” function button to select the
“BAROMETER DEFAULT” display. Then press the “SELECT” function button.
BK-BK2008E1ENUK.en-uk-Section6.fm Page
56 Wednesday, January 9, 2008 4:32 PM
