For pleasant driving
5-41
5

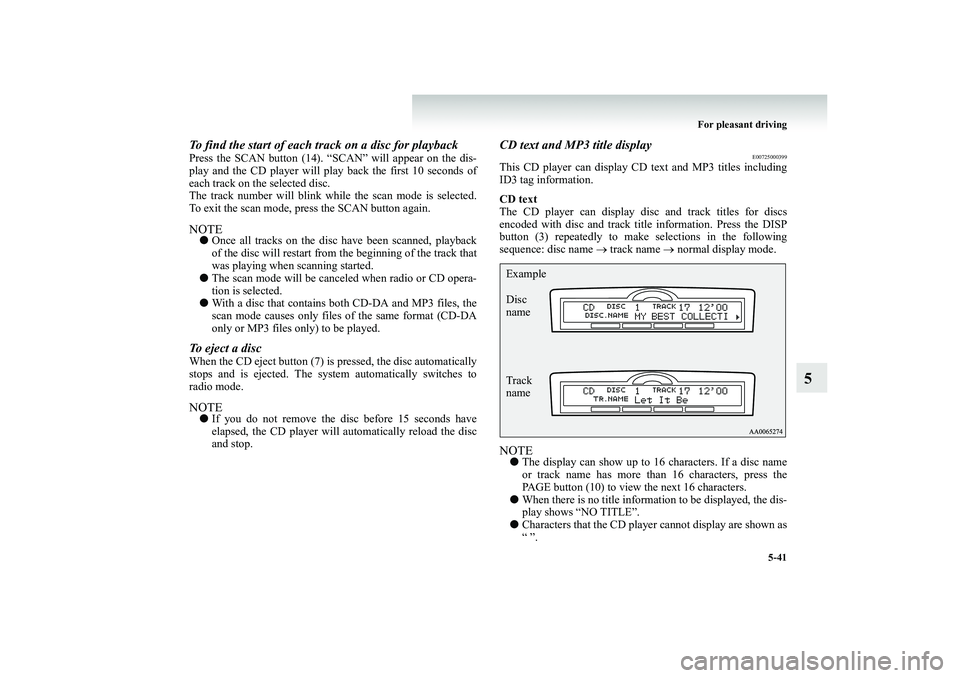

To find the start of each track on a disc for playbackPress the SCAN button (14). “SCAN” will appear on the dis- play and the CD player
will play back th
e first 10 seconds of
each track on the selected disc. The track number will blink while the scan mode is selected.To exit the scan mode, press the SCAN button again.NOTE●
Once all tracks on the disc have been scanned, playback of the disc will restart from the beginning of the track thatwas playing when scanning started.
●
The scan mode will be canceled when radio or CD opera- tion is selected.
●
With a disc that contains both CD-DA and MP3 files, the scan mode causes only files of the same format (CD-DA only or MP3 files only) to be played.
To eject a discWhen the CD eject button (7) is
pressed, the disc automatically
stops and is ejected. The syst
em automatically switches to
radio mode.NOTE●
If you do not remove the disc before 15 seconds have elapsed, the CD player will
automatically reload the disc
and stop.
CD text and MP3 title display
E00725000399
This CD player can display CD text and MP3 titles including ID3 tag information. CD text The CD player can display di
sc and track titles for discs
encoded with disc and track title information. Press the DISP button (3) repeatedly to make selections in the followingsequence: disc name
→ track name
→ normal display mode.
NOTE●
The display can show up to 16
characters. If a disc name
or track name has more than 16 characters, press thePAGE button (10) to view
the next 16 characters.
●
When there is no title information to be displayed, the dis- play shows “NO TITLE”.
●
Characters that the CD player
cannot display are shown as
“ ”.
Example Disc name Track name
BK-BK2008E1ENUK.en-uk-Section8.fm Page
41 Wednesday, January 9, 2008 4:41 PM

5-42 For pleasant driving
5
MP3 title The CD player can display fold
er and track titles for discs
encoded with folder and track
information. Press the DISP but-
ton (3) for less than 1 second re
peatedly to make selections in
the following sequence: folder name
→ track name
→ normal
display mode.
ID3 tag information The CD player can display ID3 tag information for files that have been recorded with ID3 tag information. 1. Press the DISP button (3) for 2 seconds or longer to
switch to the ID3 tag information. “TAG” indicator will appear on the display.
2. Then press the DISP button for less than 1 second repeat-
edly to make selections in
the following sequence: album
name
→ track name
→ artist name
→ normal display
mode.
NOTE●
To return from ID3 tag info
rmation to the folder name,
press the DISP button (3) again for 2 seconds or longer.
●
When there is no title informat
ion to be displayed, the dis-
play shows “NO TITLE”.
●
The display can show up to
16 characters. If a folder
name, track name, or item of ID3 tag information hasmore than 16 characters, press the PAGE button (10) to view the next 16 characters.
●
Folder names and track names can each be displayed up to a length of 32 characters. Items of ID3 tag information can each be displayed up to a length of 30 characters.
●
Characters that the CD player
cannot display are shown as
“ ”.
Example Folder name Track name
BK-BK2008E1ENUK.en-uk-Section8.fm Page
42 Wednesday, January 9, 2008 4:41 PM

For pleasant driving
5-43
5
LW/MW/FM electronic tuning radio with
CD autochanger
*
E00708500706
The audio system can be used when the ignition switch is in the “ON” or “ACC” position.NOTE●
To listen to the audio system while the engine is stopped, turn the ignition key to the “ACC” position.
●
If a cellular phone is used in
side the vehicle, it may create
noise from the audio equipment. This does not mean thatanything is wrong with your audio equipment. In such a case, use the cellular phone at a place as far as possible from the audio equipment.
●
If foreign objects or water get into the audio equipment, or if smoke or a strange odour comes from it, immediately turn off the audio system. We recommend you to have itchecked. Never try to repair it by yourself. Avoid continu- ous usage without inspection by a qualified person.
Volume and tone control panel
E00708600433
1- PWR (On-Off) button 2- VOL (Volume control) button 3- Memory select buttons4- MENU button 5- Sound adjust button 6- Display
BK-BK2008E1ENUK.en-uk-Section8.fm Page
43 Wednesday, January 9, 2008 4:41 PM

5-44 For pleasant driving
5
To adjust the volume
E00708700274
VOL (Volume control)Press the VOL button (2) until th
e desired volume is reached.
The status will be displayed in the display (6).
To adjust the tone
E00708800666
AUDIO CONTROL ADJUSTMENT MODE1. Press the MENU button (4) repeatedly to select your
desired sound customization setting to change. The order is: AUDIO CONTROL/SURROUND CONTROL
→
SUBWOOFER GAIN
→ EQUALIZER TYPE
→ LIS-
TENER SIDE
→ SOUND FIELD
→ BASS
→ MID
→
TREBLE
→ FA D E R
→ BALANCE
→ Sound customiza-
tion mode off. The status will be displayed in the display (6).
NOTE●
The AUDIO CONTROL/SURROUND CONTROL, SUBWOOFER GAIN can only
be adjusted on vehicles
with a premium sound system. On vehicles without a premium sound system, when youpress the MENU button (4), the display starts from EQUALIZER TYPE.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
44 Wednesday, January 9, 2008 4:41 PM

5-46 For pleasant driving
5
BASS (Bass tone control) To select the desired bass level. MID (Midrange tone control) To select the desired midrange level. TREBLE (Treble tone control) To select the desired treble level. FADER (Front/Rear balance control) To balance the volume from th
e F (front) and the R (rear)
speakers. BALANCE (Left/Right balance control) To balance the volume from th
e L (left) and the R (right)
speakers.
SURROUND CONTROL ADJUSTMENT MODE (for premium sound system)1. Press the MENU button (4). The display will show
“AUDIO CONTROL/SURROUND CONTROL”.
2. Press the sound adjust button(5) to align the cursor with
“SURROUND CONTROL”. Then press the MENU but-ton (4) to select the surround control adjustment mode.
3. Press the MENU button (4) repeatedly to select your
desired sound customization setting to change. The orderis: SURROUND CONTROL
→ SURROUND MODE
→
SOUND TYPE
→ LISTENING POSITION
→ Sound
customization mode off.The status will be displayed in the display (6).
4. Press the sound adjust button
(5) to adjust the sound cus-
tomization features.
CONCERT
Utilizing sound reflections in the Digital Signal Processor, CONCERT gives the impression that the listener is at concert hall performance.
Sound field type
Description
Cursor
BK-BK2008E1ENUK.en-uk-Section8.fm Page
46 Wednesday, January 9, 2008 4:41 PM

For pleasant driving
5-47
5
SURROUND MODE (Surround mode select) (for pre- mium sound system)To select the desired surround mode.NOTE●
5.1ch DOLBY DIGITAL · DTS can be selected only when DVDs recorded with Dolby Digital or DTS 5.1- channel surround are played in the rear-seat display. Withsuch DVDs, DOLBY PRO LOGIC II cannot be selected.
●
Dolby Digital systems are
manufactured under license
from Dolby Laboratories Licensing Corporation. “Dolby”and the double-D symbol are
trademarks of Dolby Labo-
ratories Licensing Corporation. DTS systems are manu- factured under license from
Digital Theater Systems.
“DTS” and “Digital Surround” are trademarks of Digital Theater Systems.
SOUND TYPE (Sound type
select) (for premium sound
system)To select the desired sound type.LISTENING POSITION (Listeni
ng position select) (for
premium sound system)To select the desired listening position.
SURROUND
MODE
Description
5.1ch DOLBY DIGITAL · DTS
Creates a realistic three-dimensional sound field using 5.1ch technology. Gives clear surround-sound with rich presence from dig-ital sound sources.
DOLBY PRO LOGIC II
Creates a three-dimensional listening envi- ronment from CDs and other typical sound sources. Gives surround-sound with rich presence.
2CH STEREO
SOUND
Gives high-quality stereo sound using a 12- speaker system.
SOUND TYPE
Description
CINEMA The optimal setting for watching a movie MUSIC The optimal setting for listening to music
LISTENING POSITION
Description
1ST SEATS
The optimal setting for enjoying surround sound in the first-row seats
2ND SEATS
The optimal setting for enjoying surround sound in the second-row seats
ALL SEATS
The optimal setting for enjoying surround sound in all seats
BK-BK2008E1ENUK.en-uk-Section8.fm Page
47 Wednesday, January 9, 2008 4:41 PM

5-48 For pleasant driving
5
NOTE●
Depending on the selected t
one adjustment mode, certain
other adjustment modes cannot be used. Adjustments are not possible as follows: • When the surround mode menu setting is “STEREO”:→ The sound type menu and listening position menu cannot be used. • When the surround mode menu setting is “5.1chDOLBY DIGITAL · DTS” or “DOLBY PRO LOGIC II”: → The sound field menu cannot be used.
• When the sound type menu setting is “CINEMA”: → The equalizer type menu and sound field menu can- not be used.
Speed Compensated Volume function
E00726800280
Speed Compensated Volume functi
on is a feature that automat-
ically adjusts the VOL, BASS, MID, and TREBLE settings in accordance with the vehicle speed.
It is possible to turn this
function ON-OFF using the following method:1. If you are presently pushing the MENU button (4) and
making a tone adjustment, finish making the tone adjust- ment.
2. Push the MENU button (4) for at least about 2 seconds.
The system will switch to
MENU mode. Press the MENU
button (4) repeatedly until “SCV SETTING” appears onthe display. Refer to “Function setup mode” on page 5-57.
3. Press the sound adjust button (5) to turn the “SCV SET-
TING” ON and OFF.
4. To exit the menu mode, press the MENU button for 2 sec-
onds or longer.
NOTE●
The MENU mode will automati
cally shut off when either
the radio or CD is selected
or the user does not operate
any of the switches for 10 seconds.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
48 Wednesday, January 9, 2008 4:41 PM

For pleasant driving
5-49
5
Radio control panel and display
E00708900436
1- AM/FM (FM/MW/LW selection) button 2- PWR (On-Off) button3- Memory select button 4- SEEK (Down-seek) button 5- SEEK (Up-seek) button6- TUNE (Down-step) button 7- TUNE (Up-step) button 8- FM (FM1/FM2/FM3) indicator9- ST (Stereo) indicator 10- Preset memory number display 11- Display
