2008 MERCEDES-BENZ CLS COUPE Owners Manual

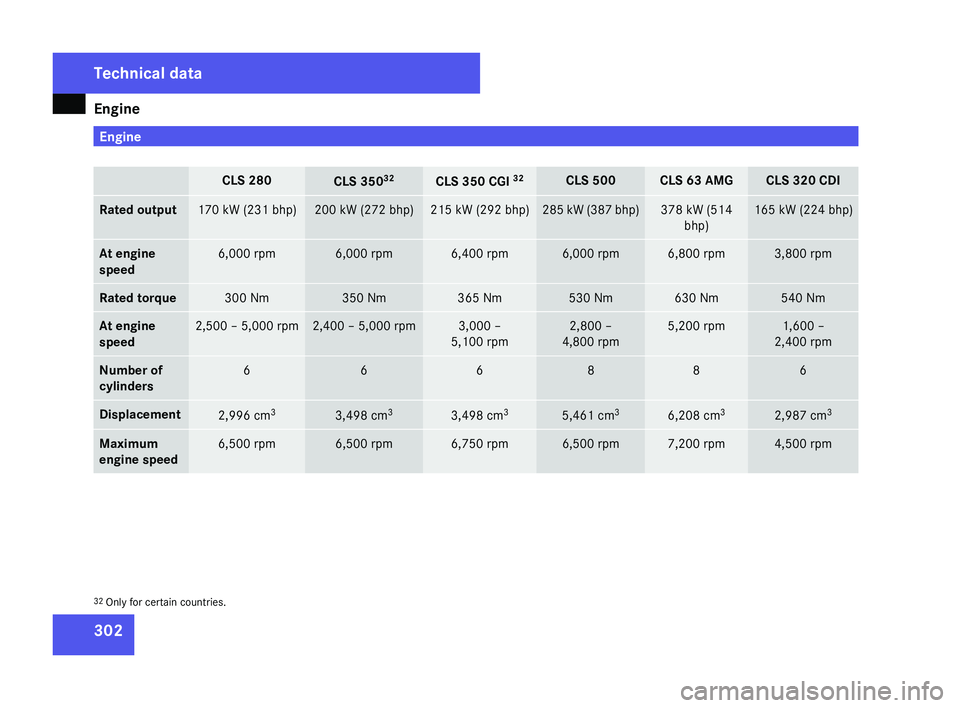

Engine
302 Engine
CLS 280
CLS 350
32 CLS 350 CGI
32 CLS 500 CLS 63 AMG CLS 320 CDI
Rated output 170 kW (231 bhp) 200 kW (272 bhp) 215 kW (292 bhp) 285 kW (387 bhp) 378 kW (514
bhp) 165 kW (224 bhp)
At engine
speed 6,000 rpm 6,000 rpm 6,400 rpm 6,000 rpm 6,800 rpm 3,800 rpm
Rated torque 300 Nm 350 Nm 365 Nm 530 Nm 630 Nm 540 Nm
At engine
speed 2,500 – 5,000 rpm 2,400 – 5,000 rpm 3,000 –
5,100 rpm 2,800 –
4,800 rpm 5,200 rpm 1,600 –
2,400 rpm Number of
cylinders 6 6 6 8 8 6
Displacement
2,996 cm
3 3,498 cm
3 3,498 cm
3 5,461 cm
3 6,208 cm
3 2,987 cm
3 Maximum
engine speed 6,500 rpm 6,500 rpm 6,750 rpm 6,500 rpm 7,200 rpm 4,500 rpm
32
Only for certain countries. Technical data
219_AKB; 2; 4, en-GB
mkalafa,
2007-11-13T09:28:36+01:00 - Seite 302

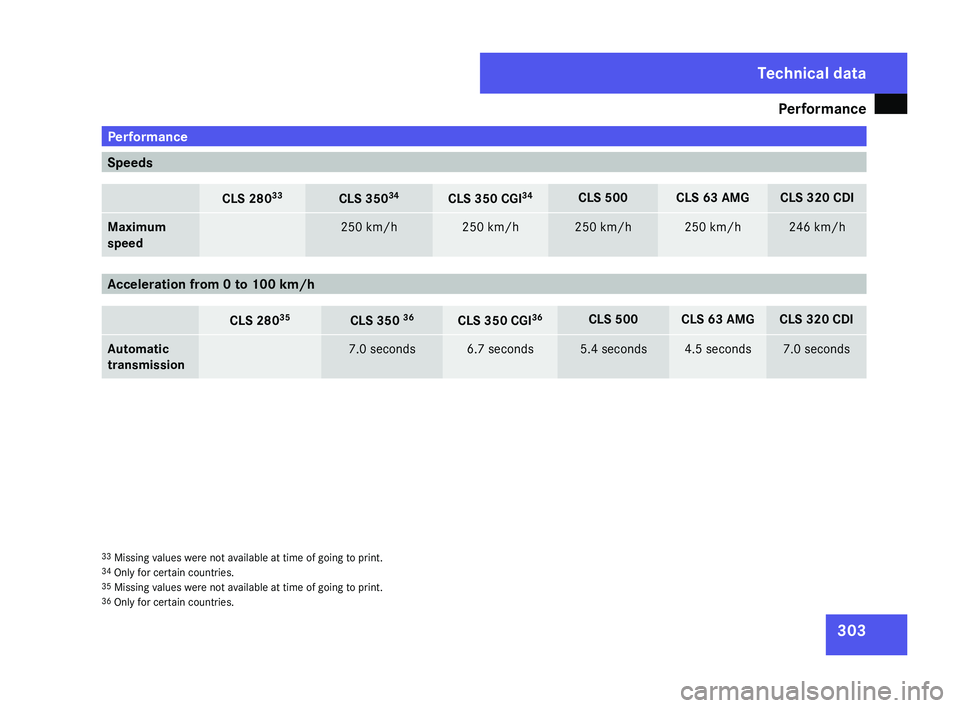

Performance
303Performance
Speeds
CLS 280
33 CLS 350
34 CLS 350 CGI
34 CLS 500 CLS 63 AMG CLS 320 CDI
Maximum
speed 250 km/h 250 km/h 250 km/h 250 km/h 246 km/h
Acceleration from 0 to 100 km/h
CLS 280
35 CLS 350
36 CLS 350 CGI
36 CLS 500 CLS 63 AMG CLS 320 CDI
Automatic
transmission 7.0 seconds 6.7 seconds 5.4 seconds 4.5 seconds 7.0 seconds
33
Missing values were not available at time of going to print.
34 Only for certain countries.
35 Missing values were not available at time of going to print.
36 Only for certain countries. Technical data
219_AKB; 2; 4, en-GB
mkalafa,
2007-11-13T09:28:36+01:00 - Seite 303

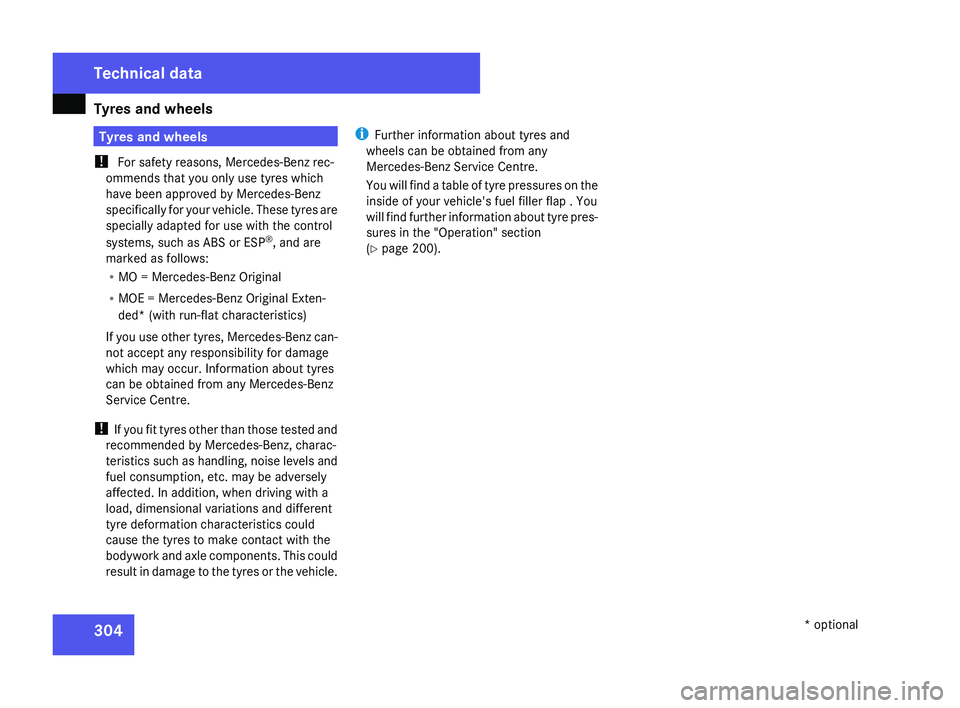

Tyres and wheels
304 Tyres and wheels
! For safety reasons, Mercedes-Benz rec-
ommends that you only use tyres which
have been approved by Mercedes-Benz
specifically
for your vehicle. These tyres are
specially adapted for use with the control
systems, such as ABS or ESP ®
, and are
marked as follows:
R MO = Mercedes-Benz Original
R MOE = Mercedes-Benz Original Exten-
ded* (with run-flat characteristics)
If you use other tyres, Mercedes-Benz can-
not accept any responsibility for damage
which may occur. Information about tyres
can be obtained from any Mercedes-Benz
Service Centre.
! If you fit tyres other than those tested and
recommended by Mercedes-Benz, charac-
teristics such as handling, noise levels and
fuel consumption, etc. may be adversely
affected. In addition, when driving with a
load, dimensional variations and different
tyre deformation characteristics could
cause the tyres to make contact with the
bodywork and axle components. This could
result in damage to the tyres or the vehicle. i
Further information about tyres and
wheels can be obtained from any
Mercedes-Benz Service Centre.
You
will find a table of tyre pressures on the
inside of your vehicle's fuel filler flap . You
will find further information about tyre pres-
sures in the "Operation" section
(Y page 200). Technical data
* optional
219_AKB; 2; 4, en-GB
mkalafa,
2007-11-13T09:28:36+01:00 - Seite 304

Tyres and wheels

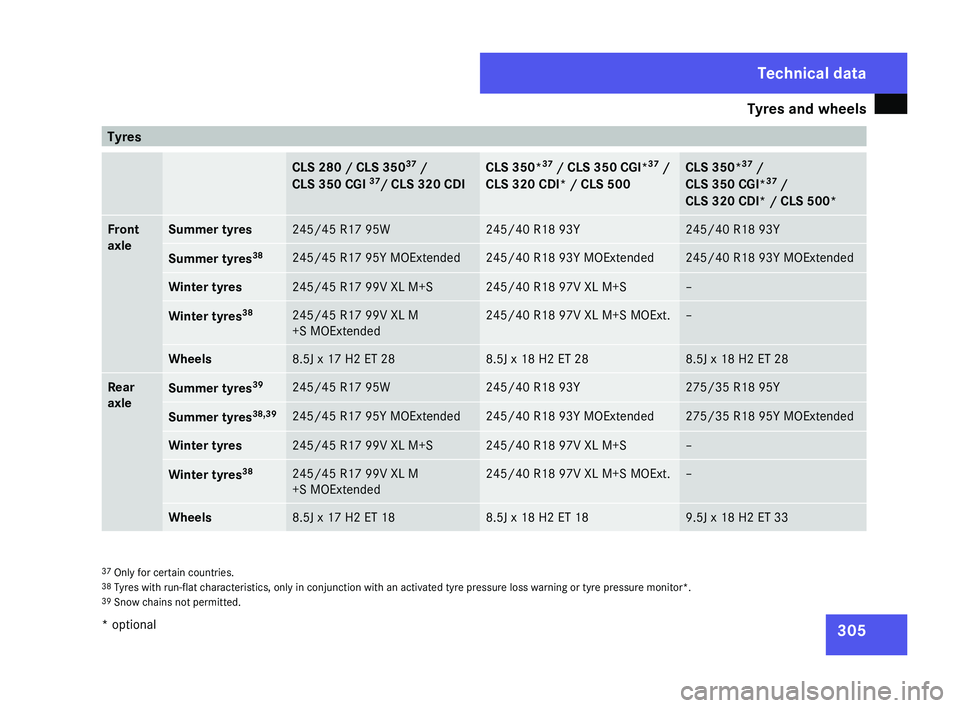

305Tyres
CLS 280 / CLS 350
37
/
CLS 350 CGI 37
/ CLS 320 CDI CLS 350*
37
/ CLS 350 CGI* 37
/
CLS 320 CDI* / CLS 500 CLS 350*
37
/
CLS 350 CGI* 37
/
CLS 320 CDI*
/ CLS 500* Front
axle Summer tyres 245/45 R17 95W 245/40 R18 93Y 245/40 R18 93Y
Summer tyres
38 245/45 R17 95Y MOExtended 245/40 R18 93Y MOExtended 245/40 R18 93Y MOExtended
Winter tyres 245/45 R17 99V XL M+S 245/40 R18 97V XL M+S –
Winter tyres
38 245/45 R17 99V XL M
+S MOExtended 245/40 R18 97V XL M+S MOExt. –
Wheels 8.5J x 17 H2 ET 28 8.5J x 18 H2 ET 28 8.5J x 18 H2 ET 28
Rear
axle
Summer tyres
39 245/45 R17 95W 245/40 R18 93Y 275/35 R18 95Y
Summer tyres
38,39 245/45 R17 95Y MOExtended 245/40 R18 93Y MOExtended 275/35 R18 95Y MOExtended
Winter tyres 245/45 R17 99V XL M+S 245/40 R18 97V XL M+S –
Winter tyres
38 245/45 R17 99V XL M
+S MOExtended 245/40 R18 97V XL M+S MOExt. –
Wheels 8.5J x 17 H2 ET 18 8.5J x 18 H2 ET 18 9.5J x 18 H2 ET 33
37
Only for certain countries.
38 Tyres with run-flat characteristics, only in conjunction with an activated tyre pressure loss warning or tyre pressure monitor*.
39 Snow chains not permitted. Technical data
* optional
219_AKB; 2; 4, en-GB
mkalafa,
2007-11-13T09:28:36+01:00 - Seite 305

Tyres and wheels

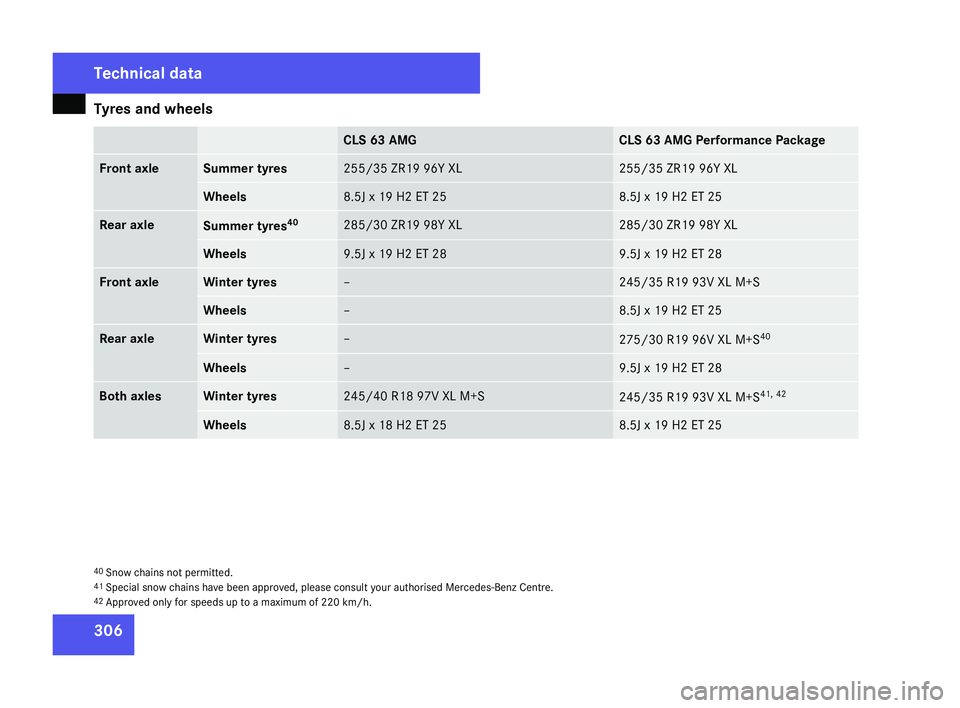

306 CLS 63 AMG CLS 63 AMG Performance Package
Front axle Summer tyres 255/35 ZR19 96Y XL 255/35 ZR19 96Y XL
Wheels 8.5J x 19 H2 ET 25 8.5J x 19 H2 ET 25
Rear axle
Summer tyres
40 285/30 ZR19 98Y XL 285/30 ZR19 98Y XL
Wheels 9.5J x 19 H2 ET 28 9.5J x 19 H2 ET 28
Front axle Winter tyres – 245/35 R19 93V XL M+S
Wheels – 8.5J x 19 H2 ET 25
Rear axle Winter tyres –
275/30 R19 96V XL M+S
40 Wheels – 9.5J x 19 H2 ET 28
Both axles Winter tyres 245/40 R18 97V XL M+S
245/35 R19 93V XL M+S
41,
42 Wheels 8.5J x 18 H2 ET 25 8.5J x 19 H2 ET 25
40
Snow chains not permitted.
41 Special snow chains have been approved, please consult your authorised Mercedes-Benz Centre.
42 Approved only for speeds up to a maximum of 220 km/h. Technical data
219_AKB; 2; 4, en-GB
mkalafa,
2007-11-13T09:28:36+01:00 - Seite 306

Tyres and wheels

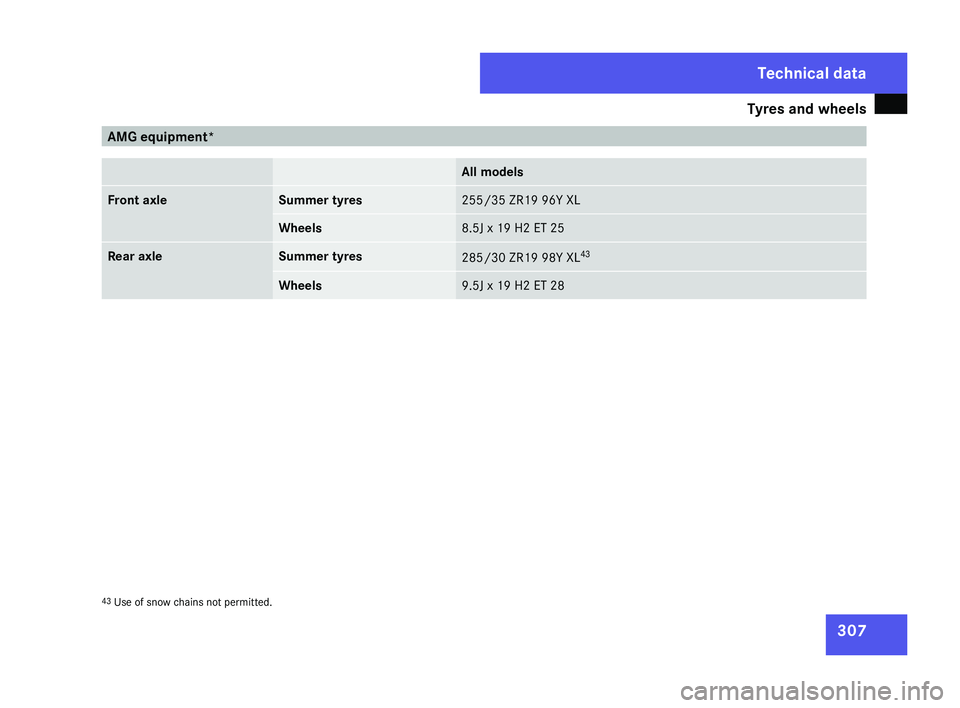

307AMG equipment*
All models
Front axle Summer tyres 255/35 ZR19 96Y XL
Wheels 8.5J x 19 H2 ET 25
Rear axle Summer tyres
285/30 ZR19 98Y XL
43 Wheels 9.5J x 19 H2 ET 28
43
Use of snow chains not permitted. Technical data
219_AKB; 2; 4, en-GB
mkalafa,
2007-11-13T09:28:36+01:00 - Seite 307

Tyres and wheels

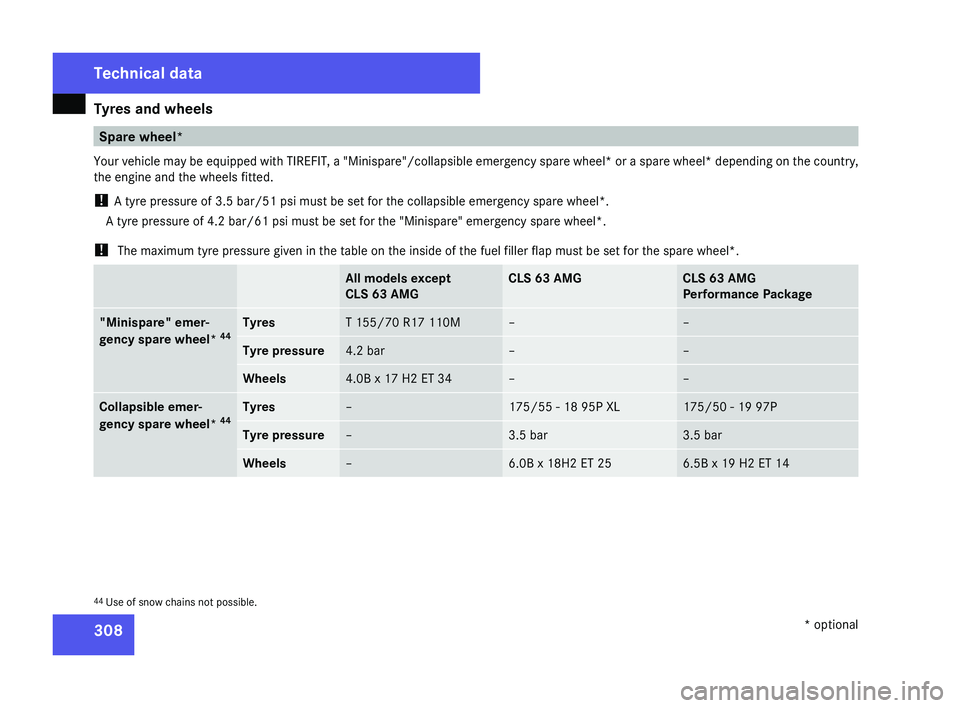

308 Spare wheel*
Your vehicle may be equipped with TIREFIT, a "Minispare"/collapsible emergency spare wheel* or a spare wheel* depending on the country,
the engine and the wheels fitted.
! A tyre pressure of 3.5 bar/51 psi must be set for the collapsible emergency spare wheel* .
A tyre pressure of 4.2 bar/61 psi must be set for the "Minispare" emergency spare wheel*.
! The maximum tyre pressure given in the table on the inside of the fuel filler flap must be set for the spare wheel*. All models except
CLS 63 AMG CLS 63 AMG CLS 63 AMG
Performance Package
"Minispare" emer-
gency spare wheel*

44 Tyres T 155/70 R17 110M – –
Tyre pressure 4.2 bar – –
Wheels 4.0B x 17 H2 ET 34 – –
Collapsible emer-
gency spare wheel*

44 Tyres – 175/55 - 18 95P XL 175/50 - 19 97P
Tyre pressure – 3.5 bar 3.5 bar
Wheels – 6.0B x 18H2 ET 25 6.5B x 19 H2 ET 14
44
Use of snow chains not possible. Technical data
* optional
219_AKB; 2; 4, en-GB
mkalafa,
2007-11-13T09:28:36+01:00 - Seite 308

Vehicle dimensions
309Vehicle dimensions
CLS 280
CLS 350
45 CLS 350 CGI
45 CLS 500 CLS 63 AMG CLS 320 CDI
Vehicle length
(ECE) 4,917 mm 4,917 mm 4,917 mm 4,917 mm 4,915 mm 4,917 mm
Vehicle width
with exterior
mirrors
folded
out 2,107 mm 2,107 mm 2,107 mm 2,107 mm 2,107 mm 2,107 mm
Vehicle height 1,430 mm 1,430 mm 1,430 mm 1,415 mm 1,389 mm 1,430 mm
Wheelbase 2,854 mm 2,854 mm 2,854 mm 2,854 mm 2,854 mm 2,854 mm
45
Only for certain countries. Technical data
