2008 MERCEDES-BENZ CL-Class Comand Manual

608 Practical hintsWhat to do if …?Lamps in instrument cluster
General information:
If any of the following lamps in the instru-
ment cluster fails to come on during the
bulb self-check when switching on the igni-
tion, have the respective bulb checked and
replaced if necessary.Problem
Possible cause/consequence
Suggested solution
-
The yellow Antilock
Brake System (ABS)
indicator lamp comes on
while the engine is run-
ning.
The ABS has detected a malfunction and
has switched off. The BAS, ESP
®, EBP and
PRE-SAFE
® are also switched off (see mes-
sages in multifunction display).
The brake system is still functioning nor-
mally but without the ABS available.
If the ABS control unit is malfunctioning,
other systems such as Parktronic*,
DISTRONIC Plus*, navigation system, Park
Assist* and the automatic transmission
may also be malfunctioning.

Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.

Read and observe messages in the mul-
tifunction display (
page 622).

Have the system checked at an autho-
rized Mercedes-Benz Center as soon as
possible.
Failure to follow these instructions increas-
es the risk of an accident.

609 Practical hints
What to do if …?
Problem
Possible cause/consequence
Suggested solution
-
The yellow Antilock
Brake System (ABS)
indicator lamp comes on
while the engine is run-
ning.
The charging voltage has fallen below
10 volts. The ABS has switched off.
The battery may not be charged sufficiently.
When the voltage is above this value again,
the ABS is operational again and the ABS in-
dicator lamp should go out.
If the ABS indicator lamp does not go out:
Have the generator (alternator) and the
battery checked.
When the voltage is above this value again,
the ABS is operational again.
;(USA only)3(Canada only)-
v
The red brake warning
lamp comes on while the
engine is running. In addi-
tion, the yellow ABS mal-
function indicator lamp,
and the yellow ESP
®
warning lamp come on
and an acoustic warning
sounds.
A malfunction in the Electronic Brake Pro-
portioning (EBP) was detected. The ABS,
BAS, ESP
® and PRE-SAFE
® are also
switched off (see messages in multifunction
display).
The brake system continues to function
normally, but without electronic support.

Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.

Read and observe messages in the mul-
tifunction display (
page 622).

Have the system checked at an autho-
rized Mercedes-Benz Center as soon as
possible.
Failure to follow these instructions increas-
es the risk of an accident.

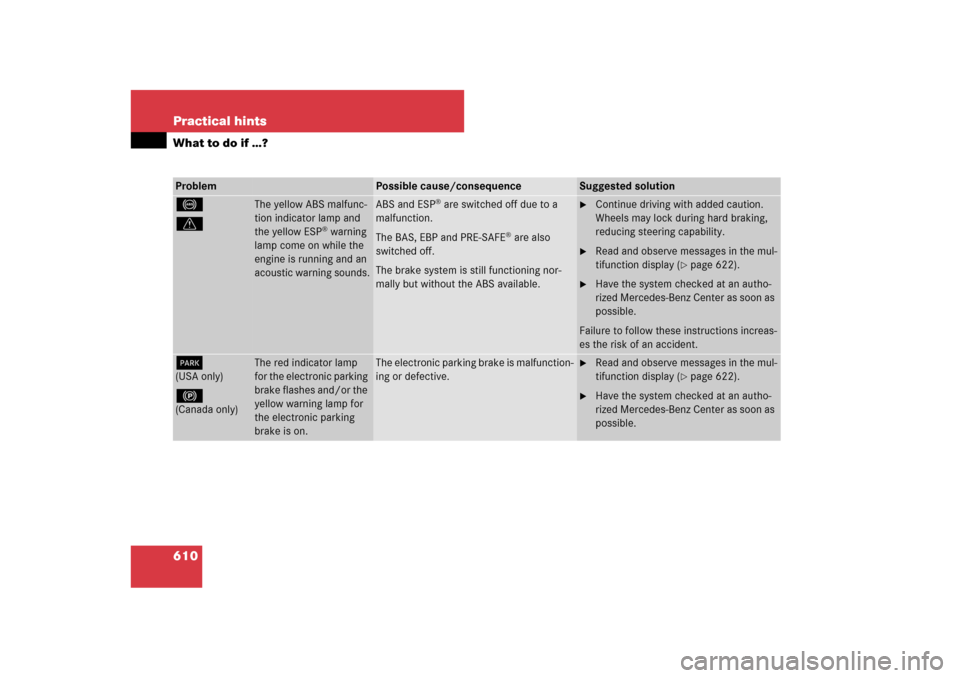

610 Practical hintsWhat to do if …?Problem
Possible cause/consequence
Suggested solution
-
v
The yellow ABS malfunc-
tion indicator lamp and
the yellow ESP
® warning
lamp come on while the
engine is running and an
acoustic warning sounds.
ABS and ESP
® are switched off due to a
malfunction.
The BAS, EBP and PRE-SAFE
® are also
switched off.
The brake system is still functioning nor-
mally but without the ABS available.

Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.

Read and observe messages in the mul-
tifunction display (
page 622).

Have the system checked at an autho-
rized Mercedes-Benz Center as soon as
possible.
Failure to follow these instructions increas-
es the risk of an accident.
0(USA only)!(Canada only)
The red indicator lamp
for the electronic parking
brake flashes and/or the
yellow warning lamp for
the electronic parking
brake is on.
The electronic parking brake is malfunction-
ing or defective.

Read and observe messages in the mul-
tifunction display (
page 622).

Have the system checked at an autho-
rized Mercedes-Benz Center as soon as
possible.

611 Practical hints
What to do if …?
Problem
Possible cause/consequence
Suggested solution
;(USA only)3(Canada only)
The red brake warning
lamp comes on while the
engine is running and an
acoustic warning sounds.
There is insufficient brake fluid in the reser-
voir.
Risk of accident!
Carefully stop the vehicle in a safe loca-
tion or as soon as it is safe to do so.

Engage the electronic parking brake
(page 412).

Contact an authorized Mercedes-Benz
Center.

Do not add brake fluid! This will not
solve the problem.
Warning!
G
Driving with the brake warning lamp illumi-
nated can result in an accident. Have your
brake system checked immediately if the
brake warning lamp stays on. Do not add
brake fluid before checking the brake
system. Overfilling the brake fluid reservoir
can result in spilling brake fluid on hot en-
gine parts and the brake fluid catching fire.
You can be seriously burned.
!
If you find that the brake fluid in the brake
fluid reservoir has fallen to the minimum mark or
below, have the brake system checked for brake
pad thickness and leaks.

612 Practical hintsWhat to do if …?Problem
Possible cause/consequence
Suggested solution
±
The yellow engine malfunc-
tion indicator lamp comes
on while driving.
There is a malfunction in:

The fuel management system


The ignition system


The emission control system


Systems which affect emissions
Such malfunctions may result in excessive
emissions values and may switch the en-
gine to Limp-Home Mode (emergency oper-
ation).

Have the vehicle checked as soon as
possible by an authorized
Mercedes-Benz Center.
An on-board diagnostic connector is
used by the service station to link the
vehicle to the shop diagnostics system.
It allows the accurate identification of
system malfunctions through the read-
out of diagnostic trouble codes. It is lo-
cated in the front left area of the
footwell.
i
Some states may by law require you to visit
a workshop as soon as the engine malfunction
indicator lamp comes on. Check local require-
ments.

613 Practical hints
What to do if …?
Problem
Possible cause/consequence
Suggested solution
±
The yellow engine malfunc-
tion indicator lamp comes
on while driving.
A loss of pressure has been detected in the
fuel system. The fuel cap may not be closed
properly or the fuel system may be leaky.

Check the fuel cap.
If it is not closed properly:

Close the fuel cap.
If it is closed properly:

Have the fuel system checked by an au-
thorized Mercedes-Benz Center.
Your fuel tank is empty.

After refueling, start, turn off, and re-
start the engine three or four times in
succession.
The Limp-Home Mode is canceled. You do
not need to have your vehicle checked.

614 Practical hintsWhat to do if …?Problem
Possible cause/consequence
Suggested solution
l
PRE-SAFE
® Brake*: The red dis-
tance warning lamp comes on
while driving.
You are too close to the vehicle in front of
you to maintain selected speed.

Apply the brakes immediately to in-
crease the following distance.
l
DISTRONIC Plus* or PRE-SAFE
®
Brake*: The red distance warn-
ing lamp comes on while driving
and an acoustic warning
sounds.You are gaining too rapidly on the vehicle
ahead of you.

Apply the brakes immediately.
DISTRONIC Plus* or PRE-SAFE
® Brake* has
recognized a stationary obstacle on your
probable line of travel.

Apply the brakes immediately.

Carefully observe the traffic situation.
You may need to brake or maneuver to
avoid hitting an obstacle.
v
The yellow ESP
® warning lamp
flashes while driving.
The ESP
® or electronic traction system has
come into operation because of detected
traction loss in at least one tire.
Cruise control and DISTRONIC Plus* are de-
activated.

When driving off, apply as little throttle
as possible.

While driving, ease up on the accelera-
tor.

Adapt your speed and driving to the pre-
vailing road and weather conditions.

Do not deactivate the ESP
®. Exceptions:
(
page 72).
Failure to follow these instructions increas-
es the risk of an accident.

615 Practical hints
What to do if …?
Problem
Possible cause/consequence
Suggested solution
v
The yellow ESP
® warning lamp
comes on while the engine is
running.
The ESP
® is deactivated.
Risk of accident!
Adapt your speed and driving to the prevail-
ing road, weather, and traffic conditions.

Switch the ESP
® back on (
page 70).
Exceptions: (
page 72).
If the ESP
® cannot be switched back on:

Have the system checked at an autho-
rized Mercedes-Benz Center as soon as
possible.
ESP
® is switched off due to a malfunction.
Risk of accident!
Adapt your speed and driving to the prevail-
ing road, weather, and traffic conditions.

Continue driving with added caution.

Read and observe messages in the mul-
tifunction display (
page 622).

Have the system checked at an autho-
rized Mercedes-Benz Center as soon as
possible.
<
The red seat belt telltale comes
on for a maximum of 6 seconds
after starting the engine.
The seat belt telltale reminds you and your
passengers to fasten your seat belts before
driving off.

Fasten your seat belts.
Regardless of whether the seat belts are
fastened or not, the seat belt telltale al-
ways comes on and remains lit for
6 seconds after starting the engine.
