2008 MERCEDES-BENZ C300 4MATIC Owner's Manual

176 Controls in detail
Audio system
Audio and telephone, operation
These instructions are intended to help
you become familiar with your
Mercedes-Benz audio system. They con-
tain useful tips and a detailed description
of the user functions.Audio system overview
Warning!G
In order to avoid distraction which could
lead to an accident, the driver should enter
system settings with the vehicle at a
standstill and operate the system only when
road and traffic conditions permit. Always
pay full attention to traffic conditions first
before operating system controls while
driving.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your car is
covering a distance of 44 feet
(approximately 14 m) every second.
ItemPage
1Audio display180
2Opening button180
3Audio control unit177
ItemPage
4Delete button184
5Audio controller182
6Back button184

177 Controls in detail
Audio system
Operating safetyAudio system components
With the audio system you can operate the
following main functions:

audio function with the radio, Sat*,
disc (CD audio or MP3 mode)

the telephone* with the phone book

various system settings
The audio system consists of the following:

audio control unit

audio display

audio controller with back and delete
button
In addition, the audio system can also be
operated with the multifunction steering
wheel (
page 152).
In these instructions, the keypad (right
side of audio control unit) and the function
buttons are referred to as “buttons”.Audio control unit
With the audio control unit you can:

switch the audio system on/off

adjust the volume

select the operating modes

enter telephone numbers and accept,
reject, initiate and end telephone calls

load and eject CDs
Warning!G
Any alterations made to electronic
components can cause malfunctions.
The radio, amplifier, CD changer*, satellite
radio*, and telephone* are interconnected.
When one of the components is not opera-
tional or has not been removed/replaced
properly, the function of other components
may be impaired.
This condition might seriously impair the
operating safety of your vehicle.
We recommend that you have any service
work on electronic components carried out
at an authorized Mercedes-Benz Center.

178 Controls in detail
Audio system

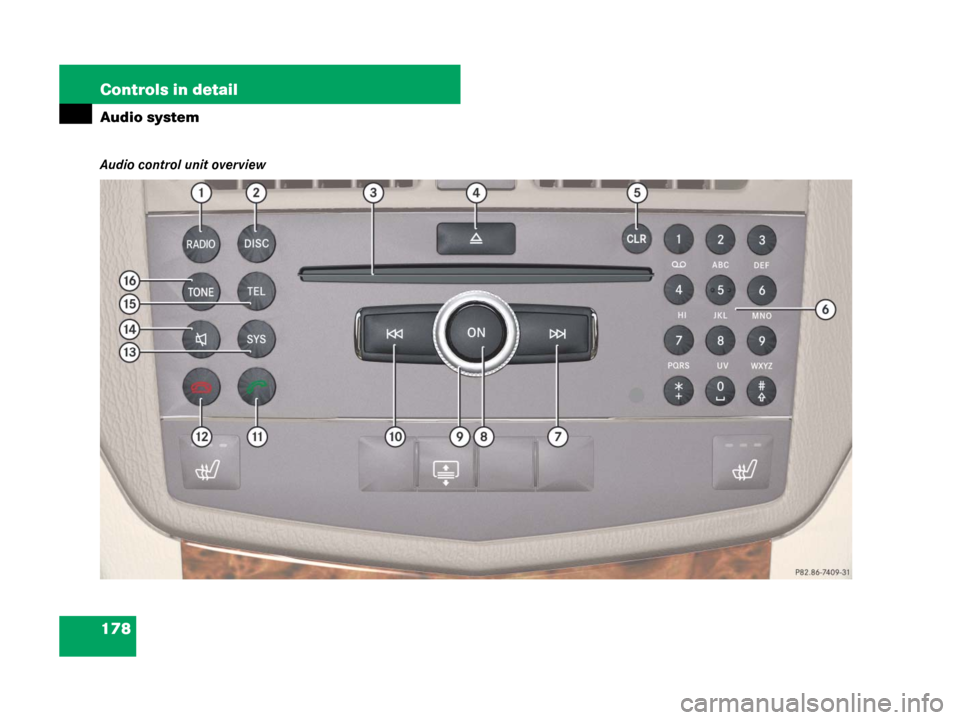

Audio control unit overview

179 Controls in detail
Audio system

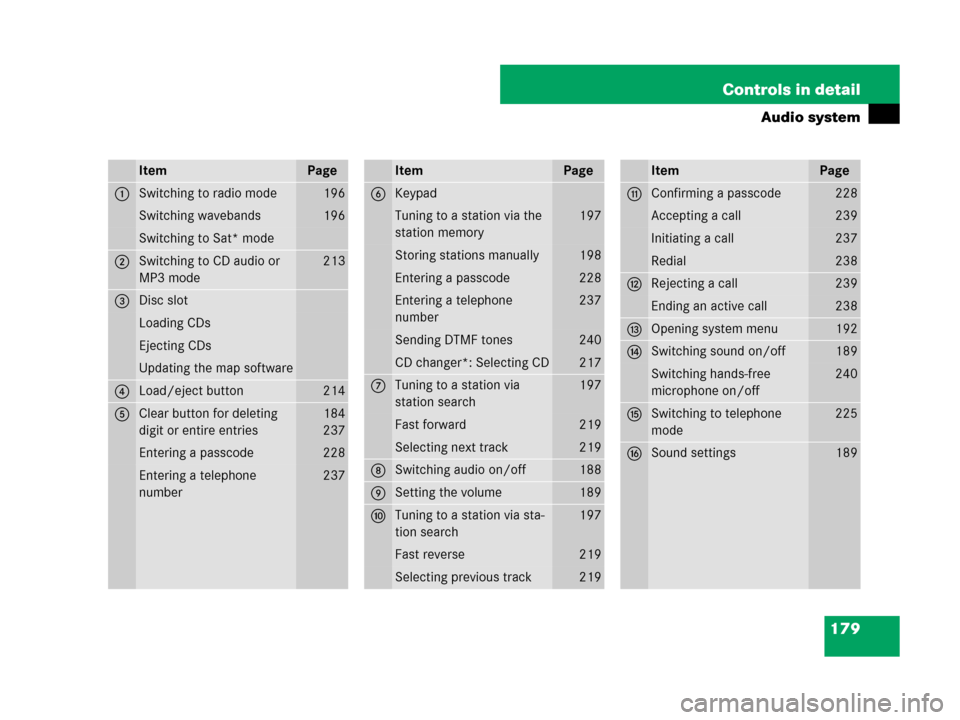

ItemPage
1Switching to radio mode196
Switching wavebands196
Switching to Sat* mode
2Switching to CD audio or
MP3 mode213
3Disc slot
Loading CDs
Ejecting CDs
Updating the map software
4Load/eject button214
5Clear button for deleting
digit or entire entries184
237
Entering a passcode228
Entering a telephone
number237
ItemPage
6Keypad
Tuning to a station via the
station memory197
Storing stations manually198
Entering a passcode228
Entering a telephone
number237
Sending DTMF tones240
CD changer*: Selecting CD217
7Tuning to a station via
station search197
Fast forward219
Selecting next track219
8Switching audio on/off188
9Setting the volume189
aTuning to a station via sta-
tion search197
Fast reverse219
Selecting previous track219
ItemPage
bConfirming a passcode228
Accepting a call239
Initiating a call237
Redial238
cRejecting a call239
Ending an active call238
dOpening system menu192
eSwitching sound on/off189
Switching hands-free
microphone on/off240
fSwitching to telephone
mode225
gSound settings189

180 Controls in detail
Audio system
Audio display
The audio display has a protective cover.Audio display cover
1Opening buttonOpening: Press opening button1.
The audio display cover opens, the au-
dio display is visible, and the audio sys-
tem switched on.
Closing: Press the audio display cover
down until it engages.
If the audio system is still switched on,
you can continue to listen to the radio
or a CD and operate the device via the
buttons on the audio control panel.
!Do not place any objects on the cover of the
audio display. This may obstruct the movement
when the cover is being opened/closed. The
cover could be damaged. Do not place any ob-
jects in front of the audio display and/or secure
any objects to the audio display itself. The audio
display could be damaged.
Avoid touching the audio display at all times. The
display has a very sensitive high-gloss surface,
there is a risk of it being scratched. Do not press
directly in the display face. Otherwise, the audio
display will be damaged.
iFor information about cleaning and care of
the audio display, see “Audio display”
(
page 371).
iYou cannot operate the audio system via the
audio controller when the protective cover is
closed.

181 Controls in detail
Audio system
Display
The currently selected mode and the asso-
ciated menus are shown on the audio dis-
play. The audio display is divided into
several areas.
For example, radio selected
1Menu bar
2Main area
3Status lineThe status line3 displays the time and
the current settings for radio and
telephone mode.
You can request the required function
using the menu bar1.
The selection is made using the audio con-
troller.Mobile phone readiness is indicated by
additional information being shown in the
status line:

In the main menu TEL: Name of the
Bluetooth® device (calls made and re-
ceived via the Bluetooth® interface).

Mobile phone network signal
strengthI. This information will
only be shown with suitable tele-
phones.

Receiver symbol 4 ö
In this example, the audio main function is
set to the radio mode and the main
area2 is active.
iThe layout of the menus may vary depending
on your vehicle’s equipment. This manual shows
the menus for a fully equipped vehicle.

182 Controls in detail
Audio system
Instrument cluster multifunction
display
This section describes features and con-
trols via the audio control unit, display and
controller only.
Please refer to the “Instrument cluster
control system” section of this manual
(
page 151) for function descriptions and
operation of the instrument cluster multi-
function display and multifunction steering
wheel buttons as they relate to audio func-
tions described in this section.Audio controller
1Audio controller
The menu functions are selected on the
audio display using the audio controller.
For this purpose, a selector bar is moved.
In this way, you can open menus or lists,
move within menus or lists, and quit
menus or lists.
Operating audio controller
The audio controller features the following
options:

press briefly or press and hold n

rotate to the left or right ymz

slide to the left or right omp

slide up or down qmr
iYou cannot operate the audio system via the
audio controller when the protective cover is
closed.

183 Controls in detail
Audio system

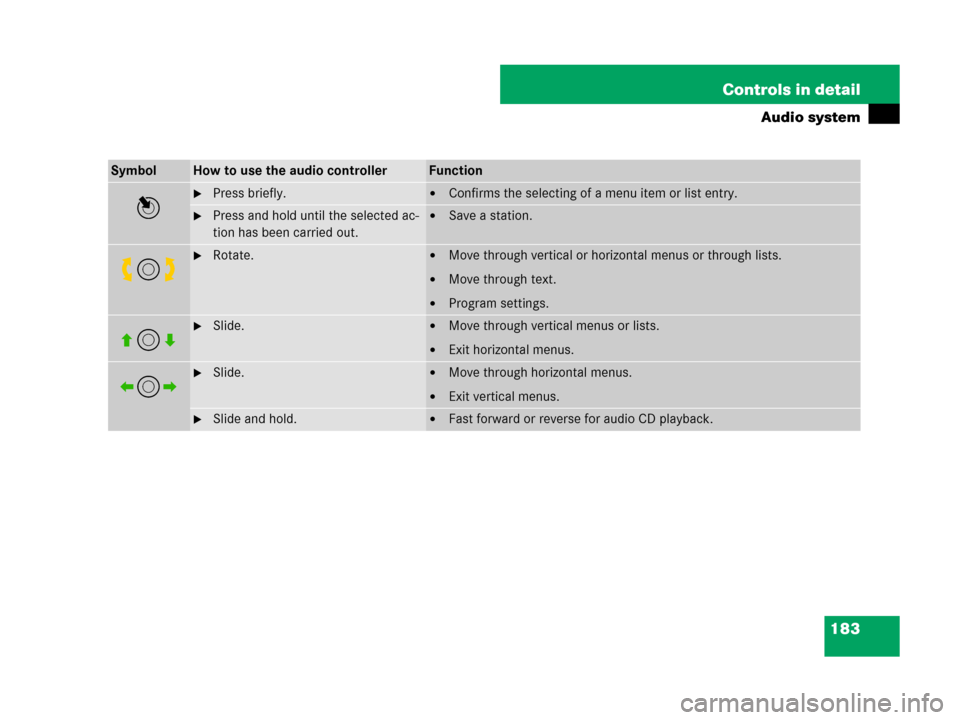

SymbolHow to use the audio controllerFunction
n
Press briefly.
Confirms the selecting of a menu item or list entry.
Press and hold until the selected ac-
tion has been carried out.
Save a station.
ymz
Rotate.
Move through vertical or horizontal menus or through lists.

Move through text.

Program settings.
qmr
Slide.
Move through vertical menus or lists.

Exit horizontal menus.
omp
Slide.
Move through horizontal menus.

Exit vertical menus.
Slide and hold.
Fast forward or reverse for audio CD playback.
