2008 MERCEDES-BENZ C300 4MATIC Owner's Manual

104 Controls in detail
Memory function* (Canada only)
Storing exterior rear view mirror
parking position*
For easier parking, you can adjust the pas-
senger-side exterior rear view mirror so
that you can see the right rear wheel as
soon as you engage the reverse gear.
For information on activating the parking
position, see “Activating exterior rear view
mirror parking position* (Canada only)”
(
page 101).1 Driver’s side exterior rear view
mirror button
2Passenger-side exterior rear view
mirror button
3Adjustment button
4Memory button
Stop the vehicle.
Switch on the ignition.
Press button2.
The passenger-side exterior rear view
mirror is selected.
Adjust the passenger-side exterior rear
view mirror with button3 so that you
see the rear wheel and the road curb.
Press memory button4.
Within 3 seconds, press one of the ar-
rows of adjustment button3.
The parking position is stored if the
mirror does not move.
iIf the mirror does move, repeat the above
steps. After the setting is stored, you can move
the mirror again.

105 Controls in detail
Fastening the seat belts
Fastening the seat belts
For additional information on children in
the vehicle, see “Children in the vehicle”
(
page 51).

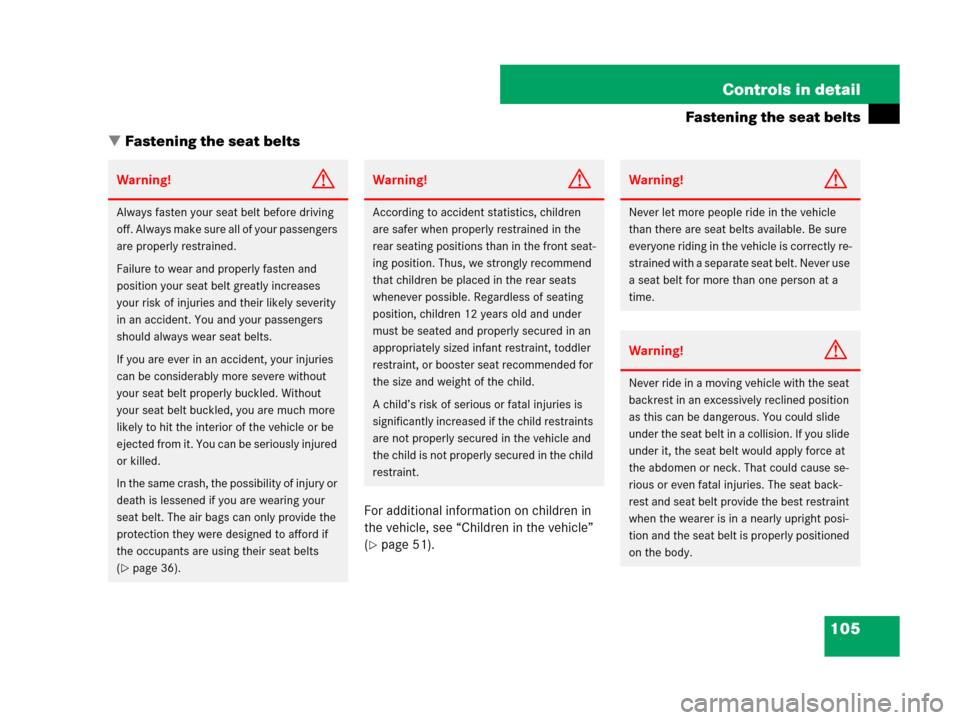

Warning!G
Always fasten your seat belt before driving
off. Always make sure all of your passengers
are properly restrained.
Failure to wear and properly fasten and
position your seat belt greatly increases
your risk of injuries and their likely severity
in an accident. You and your passengers
should always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are wearing your
seat belt. The air bags can only provide the
protection they were designed to afford if
the occupants are using their seat belts
(
page 36).
Warning!G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriately sized infant restraint, toddler
restraint, or booster seat recommended for
the size and weight of the child.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
Warning!G
Never let more people ride in the vehicle
than there are seat belts available. Be sure
everyone riding in the vehicle is correctly re-
strained with a separate seat belt. Never use
a seat belt for more than one person at a
time.
Warning!G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the seat belt would apply force at
the abdomen or neck. That could cause se-
rious or even fatal injuries. The seat back-
rest and seat belt provide the best restraint
when the wearer is in a nearly upright posi-
tion and the seat belt is properly positioned
on the body.

106 Controls in detail
Fastening the seat belts
1Seat belt outlet
2Latch plate
3Release button
4Buckle
Pull the seat belt smoothly from the
seat belt outlet1.
Place the shoulder portion of the seat
belt across the top of your shoulder
and the lap portion across your hips.
Push latch plate2 into buckle4 until
it clicks.
If necessary, adjust the seat belt to the
correct height (
page 107).
If necessary, tighten the lap portion to
a snug fit by pulling shoulder portion
up.
To release the seat belt, press release
button3 and guide latch plate2
back to seat belt outlet1.
Proper use of seat belts

Do not twist the seat belt when fasten-
ing.

Adjust seat belt so that the shoulder
portion is located as close as possible
to the middle of the shoulder (it should
not touch the neck). Never pass the
shoulder portion of the seat belt under
your arm.

Position the lap belt as low as possible
on your hips (over hip joint) and not
across the abdomen.

Place the seat backrest in a nearly up-
right position.

Never use a seat belt for more than one
person at a time.

Do not fasten a seat belt around a per-
son and another object at the same
time. When using a seat belt to secure
infant restraints or toddler restraints or
children in booster seats, always follow
the child seat manufacturer’s instruc-
tions.
Warning!G
Read and observe the additional warning no-
tices printed in the “Safety and Security”
section.

107 Controls in detail
Fastening the seat belts

Check your seat belt during travel to
make sure it is properly positioned.

Make sure the seat belt is always fitted
snugly. Take special care of this when
wearing loose clothing.For more information, see “Seat belts”
(
page 46).
Seat belt height adjustment
You can adjust the height of the seat belt
for the driver’s and front passenger seat.
1Release button
Raising: Slide the seat belt height ad-
juster upward.
The seat belt height adjuster engages
in different positions.
Lowering: Press and hold release
button1.
Slide the seat belt height adjuster
downward.
Release button1 and make sure the
seat belt height adjuster engages into
place.
Warning!G
Do not pass seat belts over sharp edges.
They could tear.
Do not allow the seat belt to get caught in
the door or in the seat adjustment mecha-
nism. This could damage the seat belt.
Never attempt to make modifications to
seat belts. This could impair the effective-
ness of the seat belts.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash, they may
not be able to provide adequate protection.
Damaged seat belts or seat belts that were
highly stressed in an accident must be re-
placed. Contact an authorized
Mercedes-Benz Center.

108 Controls in detail
Lighting
Exterior lamp switch
Low beam headlamps
The low beam headlamps can be switched
on and off with the exterior lamp switch us-
ing the manual headlamp mode.
Switching on: Turn the exterior lamp
switch to positionB.
The green indicator lampC in the
exterior lamp switch comes on.
iIf you drive in countries where vehicles drive
on the other side of the road than the country in
which the vehicle is registered, you must have
the headlamps modified for symmetrical low
beams. Relevant information can be obtained at
your authorized Mercedes-Benz Center.1‚Standing lamps, left (turn left two
stops)
2ˆStanding lamps, right (turn left
one stop)
3MOff
Daytime running lamp mode
(
page 110)
4*Automatic headlamp mode
Daytime running lamp mode
(
page 110)
5CParking lamps (also side marker
lamps, tail lamps, license plate
lamps, instrument panel lamps)
6BLow beam headlamps or high
beam headlamps
7‡Front fog lamps
8†Rear fog lamp
iIf you hear a warning signal you have
forgotten to switch off the low beam headlamps
or the parking lamps before opening the driver’s
door.
In addition the message
Switch Off Lights
appears in the multifunction display.
Switch off the low beam headlamps or the park-
ing lamps.
If the message
Switch Off Lights or Re-
move Key
appears in the multifunction display
remove the SmartKey from the starter switch or
switch off the automatic headlamp mode.
!Failure to switch off the exterior lamps when
leaving the vehicle may result in a discharged
battery.

109 Controls in detail
Lighting
The following lamps switch on:

Low beam headlamps

Tail and parking lamps

License plate lamps

Side marker lamps
Switching off: Turn the exterior lamp
switch to positionM.
The green indicator lampC in the
exterior lamp switch goes out.
Automatic headlamp mode
The following lamps switch on and off au-
tomatically depending on the brightness of
the ambient light:

Low beam headlamps

Tail and parking lamps

License plate lamps

Side marker lamps
Turn the exterior lamp switch to
position*.
With the SmartKey in starter switch
position1 or the KEYLESS-GO*
start/stop button (Canada only)
pressed once, the tail and parking
lamps, the license plate lamps and the
side marker lamps will switch on and
off depending on the brightness of the
ambient light.
When the engine is running, the low
beam headlamps, the tail and parking
lamps, the license plate lamps, and the
side marker lamps will switch on and
off depending on the brightness of the
ambient light.
Warning!G
If the exterior lamp switch is set to*,
the headlamps will not be automatically
switched on under foggy conditions.
To minimize risk to you and to others,
activate headlamps by turning exterior lamp
switch to positionB when driving or
when traffic and/or ambient lighting condi-
tions require you to do so.
In low ambient lighting conditions, only
switch from position * to B with the
vehicle at a standstill in a safe location.
Switching from position* to B will
briefly switch off the headlamps. Doing so
while driving in low ambient lighting condi-
tions may result in an accident.
The automatic headlamp feature is only an
aid to the driver. The driver is responsible for
the operation of the vehicle’s lights at all
times.
iCanada only:
High beam headlamps are only available with the
exterior lamp switch in position B.

110 Controls in detail
Lighting
Daytime running lamp mode
In Canada the daytime running lamp mode
is mandatory and therefore in a constant
mode.
In the USA the daytime running lamp mode
is deactivated by default. Activate the day-
time running lamp mode using the control
system, see “Setting daytime running lamp
mode (USA only)” (
page 171).
Turn exterior lamp switch to
positionM or*.
When the engine is running, the low
beam headlamps are switched on.
In low ambient light conditions, the fol-
lowing lamps will switch on additional-
ly:

Tail and parking lamps

License plate lamps

Side marker lampsCanada only
Vehicles with automatic transmission*:
When the engine is running and you shift
from a driving position to positionN orP,
with the vehicle at a standstill the low
beam headlamps will switch off with a de-
lay of 3-minutes.
When the engine is running, and you

turn the exterior lamp switch to
positionC, the low beam head-
lamps, the tail and parking lamps, the
license plate lamp and the side marker
lamps switch on.

turn the exterior lamp switch to
positionB, the manual headlamp
mode has priority over the daytime run-
ning lamp mode.The corresponding exterior lamps
switch on (
page 108).
USA only
When the engine is running, and you turn
the exterior lamp switch to position C
orB, the manual headlamp mode has
priority over the daytime running lamp
mode.
The corresponding exterior lamps switch
on (
page 108).
iWith the daytime running lamp mode activat-
ed and the engine running, the low beam head-
lamps cannot be switched off manually.
iWith the exterior lamp switch in
positionM or *, you cannot switch on the
high beam headlamps.
The high beam flasher is available at all times.
For nighttime driving you should turn the exterior
lamp switch to positionB to permit activa-
tion of the high beam headlamps.
iWith the daytime running lamp mode
activated and the exterior lamp switch in
position M, you cannot switch on the high
beam headlamps.
The high beam flasher is available at all times.
For nighttime driving you should turn the exterior
lamp switch to positionB or * to permit
activation of the high beam headlamps.

111 Controls in detail
Lighting
Locator lighting and interior lighting
delayed shut-off
The locator lighting and night security illu-
mination are described in the “Control sys-
tem” section, see “Setting locator lighting”
(
page 172) and “Setting interior lighting
delayed shut off” (
page 173).
Fog lampsFront fog lampsTurn the exterior lamp switch to
positionC orB (
page 108).
Pull out exterior lamp switch to first
stop.
The front fog lamps are switched on.
The green indicator lamp‡ in the
exterior lamp switch comes on
(
page 108).
Push in the exterior lamp switch.
The front fog lamps are switched off.
The green indicator lamp‡ in the
exterior lamp switch goes out.Rear fog lamp (driver’s side only)
Turn the exterior lamp switch to
positionB (
page 108).
Pull out exterior lamp switch to second
stop.
The front fog lamps and the rear fog
lamp switch on.
The yellow indicator lamp† in the
exterior lamp switch comes on
(
page 108).
Push in the exterior lamp switch to first
stop.
The rear fog lamp switches off.
The yellow indicator lamp† in the
exterior lamp switch goes out.
The front fog lamps remain lit.
Warning!G
In low ambient lighting or foggy conditions,
only switch from position * to B with
the vehicle at a standstill in a safe location.
Switching from position* to B will
briefly switch off the headlamps. Doing so
while driving in low ambient lighting condi-
tions may result in an accident.
iFog lamps will operate with the parking
lamps and/or the low beam headlamps on. Fog
lamps should only be used in conjunction with
low beam headlamps. Consult your State or
Province Motor Vehicle Regulations regarding
permissible lamp operation.
iFog lamps cannot be switched on manually
with exterior lamp switch in position*. To
activate the fog lamps, turn exterior lamp switch
to positionB first.
