2008 MERCEDES-BENZ C300 4MATIC Owner's Manual

240 Controls in detail
Audio system
Functions during a single call
Switching hands-free microphone on or
off
The menu bar changes when you make or
receive a call. Instead of the
Call Lists
menu item,
Mic Off or Mic On will appear.
To switch off: Select Mic Off.
The following message will flash up on
the display:
The microphone is off.
When the microphone is switched off
the symbol > appears in the main
area.
To switch on: Select Mic On.
The following message will flash up on
the display:
The microphone is on.
The microphone is switched on and the
symbol > disappears in the main area. Sending DTMF tones
Answering machines or other devices can
be controlled via DTMF tones, e.g. for re-
mote query functions.
To transmit individual characters:
During a call select the required char-
acters.
or
Press the corresponding button on the
audio control unit.
Every selected character is transmitted
immediately.
Transmitting a phone number of a
phone book entry as a sequence of
characters: Select
Name.
Select the desired phone book entry.
The entry is transmitted immediately as
a sequence of characters.
To switch back to call display: Select
Back.
iThis function is not possible with all mobile
phones.

241 Controls in detail
Driving systems
Driving systems
The driving systems of your vehicle are de-
scribed on the following pages:

Cruise control, with which the vehicle
can maintain a preset speed.

Hill start assist system which helps you
to start off smoothly on a hill.
For information on the ABS, Adaptive
Brake, BAS, EBP, ESP
®, and 4MATIC, see
“Driving safety systems” (
page 59).
Cruise control
The cruise control automatically maintains
the speed you set for your vehicle.
The use of the cruise control is recom-
mended for driving at a constant speed for
extended periods of time.
You can set or resume the cruise control at
any speed over 20 mph (30 km/h).
The cruise control function is operated by
means of the cruise control lever.
Warning!G
The cruise control is a convenience system
designed to assist the driver during vehicle
operation. The driver is and must always
remain responsible for the vehicle’s speed
and for safe brake operation.
Only use the cruise control if the road,
traffic, and weather conditions make it
advisable to travel at a steady speed.

The use of the cruise control can be
dangerous on winding roads or in heavy
traffic because conditions do not allow
safe driving at a steady speed.

The use of the cruise control can be
dangerous on slippery roads. Rapid
changes in tire traction can result in
wheel spin and loss of control.

Deactivate the cruise control when
driving in fog.
The “Resume” function should only be
operated if the driver is fully aware of the
previously set speed and wishes to resume
this particular preset speed.
Warning!G
The cruise control brakes automatically so
that the set speed is not exceeded. The
brake pedal depresses when the cruise con-
trol engages the brakes.
Keep driver’s foot area clear at all times, in-
cluding the area under the brake pedal. Ob-
jects stored in this area may impair pedal
movement which could interfere with the
braking ability of the cruise control system.
Do not place your foot under the brake pedal
– your foot could become caught.
Keep in mind that the cruise control is a con-
venience system designed to assist the driv-
er during vehicle operation. The driver is and
must always remain responsible for the ve-
hicle’s speed and for safe brake operation.

242 Controls in detail
Driving systems
1Setting current or higher speed
Adjustment in 1 mph increments (to re-
sistance point) or 5 mph increments
(past resistance point)
(Canada: 1 km/h or 10 km/h)
2Setting current or lower speed
Adjustment in 1 mph increments (to re-
sistance point) or 5 mph increments
(past resistance point)
(Canada: 1 km/h or 10 km/h)
3Cancel cruise control
4Resume to last set speedActivating cruise control
You can activate the cruise control if the
vehicle speed is above 20 mph (30 km/h).
In the following cases you cannot activate
the cruise control:

when you brake

the vehicle is secured with the parking
brake

Vehicles with automatic transmission*:
when the gear selector lever is set to
positionP, R, or N

when ESP® is switched offSetting current speed
Accelerate or decelerate to the desired
speed.
Briefly lift the cruise control lever in
direction of arrow1 or depress in
direction of arrow2.
The current speed is set.
Remove your foot from the accelerator
pedal.
The cruise control is activated.

The last set speed appears in the
multifunction display for approxi-
mately 5 seconds.

The corresponding speedometer
segments from the selected speed
to the vehicle maximum speed in
the multifunction display are illumi-
nated.iThe vehicle speed displayed in the speedom-
eter can briefly vary from the speed setting for
the cruise control system.

243 Controls in detail
Driving systems
1SegmentsCanceling cruise control
There are several ways to cancel the cruise
control:
Step on the brake pedal.
The cruise control is canceled. The last
speed set is stored for later use.
or
Briefly push the cruise control lever in
direction of arrow3 (
page 242).
The cruise control is canceled. The last
speed set is stored for later use.
iOn uphill grades, the cruise control may not
be able to maintain the set speed. Once the
grade eases, the set speed will be resumed.
On downhill grades, the cruise control maintains
the set speed by braking with the vehicle’s
braking system. In addition, on longer downhill
grades the automatic transmission* will down-
shift automatically.
iVehicles with manual transmission:
If you depress the clutch pedal when shifting into
another gear, the engine speed may increase.

Always drive at sufficient, but not excessive,
engine speed.

Shift gear in a timely manner.

Avoid shifting down more than one gear if at
all possible.
iThe last stored set speed is canceled when
the engine is turned off.
iThe cruise control switches off
automatically and the segments in the multifunc-
tion display go out when

you step on the brake pedal.

you press the parking brake pedal.
The cruise control switches off automatically,
the segments in the multifunction display go out
and an acoustic warning sounds when

the vehicle speed is below 20 mph
(30 km/h).

the ESP® is in operation or switched off with
the ESP® switch (page 63).

Vehicles with manual transmission:
you engage neutral or depress the clutch
pedal for more than 6 seconds during shift-
ing into another gear.

Vehicles with automatic transmission*:
you move the gear selector lever to
positionN while driving.
Observe additional messages in the
multifunction display that may appear.

244 Controls in detail
Driving systems
Setting a higher speed
You can increase the set speed in two
ways.
Adjustment in 1 mph (Canada: 1 km/h)
incrementsBriefly lift the cruise control lever to the
resistance point in direction of
arrow1 (
page 242).
Release the cruise control lever.
The vehicle set speed increases in in-
crements 1 mph (Canada: 1 km/h).
Adjustment in 5 mph
(Canada: 10 km/h) increments
Briefly lift the cruise control lever past
the resistance point in direction of
arrow1 (
page 242).
Release the cruise control lever.
The vehicle set speed increases in in-
crements 5 mph (Canada: 10 km/h).
!Vehicles with automatic transmission*:
Setting the automatic transmission toN while
driving cancels the cruise control. However, the
gear selector lever should not be moved to
positionN while driving except to coast when
the vehicle is in danger of skidding (e.g. on icy
roads).
iDepressing the accelerator pedal does not
deactivate the cruise control. After brief acceler-
ation (e.g. for passing), the cruise control will re-
sume the last speed set.
Warning!G
If you increase the set vehicle speed, keep in
mind that it may take a brief moment until
the vehicle has reached the set speed.
Increase the set vehicle speed to a value
that the prevailing road conditions and legal
speed limits permit. Otherwise, sudden and
unexpected acceleration of the vehicle
could cause an accident and/or serious
injury to you and others.
iThe set speed value is increased in 1 mph
(Canada: 1 km/h) increments each time you lift
the cruise control lever up to the resistance
point.
iThe set speed value is increased in 5 mph
(Canada: 10 km/h) increments each time you lift
the cruise control lever up past the resistance
point.
iThe new speed is set and the vehicle will ac-
celerate. Keep in mind that it may take a brief
moment until the vehicle has reached the set
speed.

245 Controls in detail
Driving systems
Setting a lower speed
You can reduce the set speed in two ways.Adjustment in 1 mph (Canada: 1 km/h)
increments
Briefly press the cruise control lever
down to the resistance point in direc-
tion of arrow2 (
page 242).
Release the cruise control lever.
The vehicle set speed decreases in in-
crements 1 mph (Canada: 1 km/h).
Adjustment in 5 mph
(Canada: 10 km/h) increments
Briefly press the cruise control lever
down past the resistance point in
direction of arrow2 (
page 242).
Release the cruise control lever.
The vehicle set speed decreases in in-
crements 5 mph (Canada: 10 km/h).
Setting to last stored speed
(“Resume” function)
Warning!G
If you decrease the set vehicle speed, keep
in mind that it may take a brief moment until
the vehicle has the vehicle has reached the
set speed.
Decelerate the set vehicle speed to a value
that the prevailing road conditions and legal
speed limits permit. Otherwise, sudden and
unexpected deceleration of the vehicle
could cause an accident and/or serious in-
jury to you and others.
iWhen you use the cruise control lever to de-
celerate, the brake system will automatically
brake the vehicle if the engine’s braking power
does not brake the vehicle sufficiently.
iThe set speed value is decreased in 1 mph
(Canada: 1 km/h) increments each time you
press the cruise control lever down to the resis-
tance point.
iThe set speed value is decreased in 5 mph
(Canada: 10 km/h) increments each time you
press the cruise control lever down past the re-
sistance point.
iThe new speed is set and the vehicle will de-
celerate. Keep in mind that it may take a brief
moment until the vehicle has reached the set
speed.
Warning!G
The set speed stored in memory should only
be set again if prevailing road conditions
permit. Possible acceleration or decelera-
tion differences arising from returning to the
preset speed could cause an accident
and/or serious injury to you and others.

246 Controls in detail
Driving systems
Briefly pull the cruise control lever in
the direction of arrow4 (
page 242).
The cruise control resumes to the last
set speed or if no speed is stored, it will
set and store the current speed.
Remove your foot from the accelerator
pedal.
The last set speed appears in the multi-
function display for approximately
5 seconds, and the corresponding
speedometer segments from the se-
lected speed to the vehicle maximum
speed are illuminated.
Hill start assist system
On uphill grades with a gradient angle of
more than 5°, the hill start assist system
maintains the pressure in the brake sys-
tem for approximately 1 second after you
have released the brake pedal. Therefore,
you can start off smoothly without the
vehicle moving immediately after releasing
the brake pedal.
Depress the brake pedal
Manual transmission: Engage for-
ward or reverse gear.
Slowly release the clutch pedal, remov-
ing your foot from the brake pedal at
the same time, and carefully depress
the accelerator pedal.
Automatic transmission*: Move the
gear selector lever to position Dor R.
Remove your foot from the brake pedal
and carefully depress the accelerator
pedal.
The hill start assist system is inactive

when starting off on a level road or
downhill grades

vehicles with automatic transmission*
with the gear selector lever in
positionN

with the parking brake depressed

if the ESP® has switched off due to a
malfunction
iThe last stored set speed is deleted when
the engine is turned off.
Warning!G
The hill start assist system is not designed
to function as an parking brake and does not
prevent the vehicle from moving when
parked on an incline.
Always depress the parking brake in
addition to shifting to park positionP.
iWhen you remove your foot from the accel-
erator, the vehicle will remain stationary for ap-
prox. 1 second.

247 Controls in detail

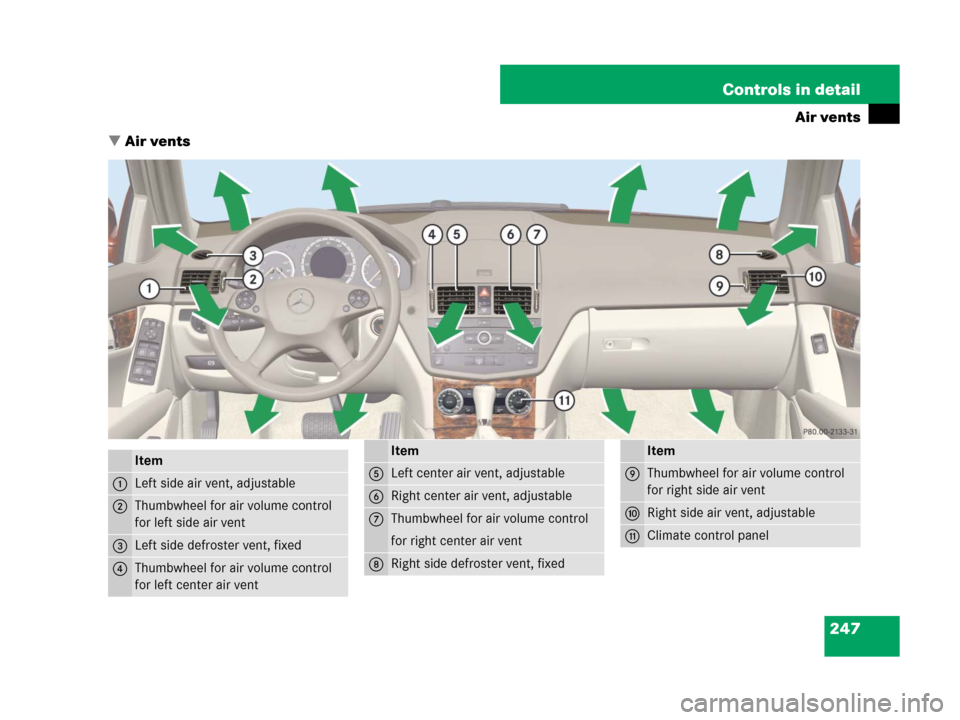

Air vents
Air vents
Item
1Left side air vent, adjustable
2Thumbwheel for air volume control
for left side air vent
3Left side defroster vent, fixed
4Thumbwheel for air volume control
for left center air vent
Item
5Left center air vent, adjustable
6Right center air vent, adjustable
7Thumbwheel for air volume control
for right center air vent
8Right side defroster vent, fixed
Item
9Thumbwheel for air volume control
for right side air vent
aRight side air vent, adjustable
bClimate control panel
