CONSUMER INFORMATION
EAU26351
Identification numbersRecord the key identification number,
vehicle identification number and model
label information in the spaces provided
below for assistance when ordering
spare parts from a Yamaha dealer or
for reference in case the vehicle is sto-
len.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION: Identification numbers
Key identification number
Vehicle identification number
EAU26381
Key identification numberZAUM00**
1
1. Key identification numberThe key identification number is
stamped into the key tag.
Record this number in the space pro-
vided and use it for reference when or-
dering a new key.
EAU26342
CONSUMER INFORMATION
EAU26410
Vehicle identification numberZAUM00**
1
1. Vehicle identification numberThe vehicle identification number is
stamped into the frame.NOTE:
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcycle
with the licensing authority in your area.
15P-F8199-E0_ch9ind.pmd2007/06/16, 16:02 1

9-2
1
2
3
4
5
6
7
8
9
CONSUMER INFORMATION
EAUT1440
Model labelZAUM00**
1

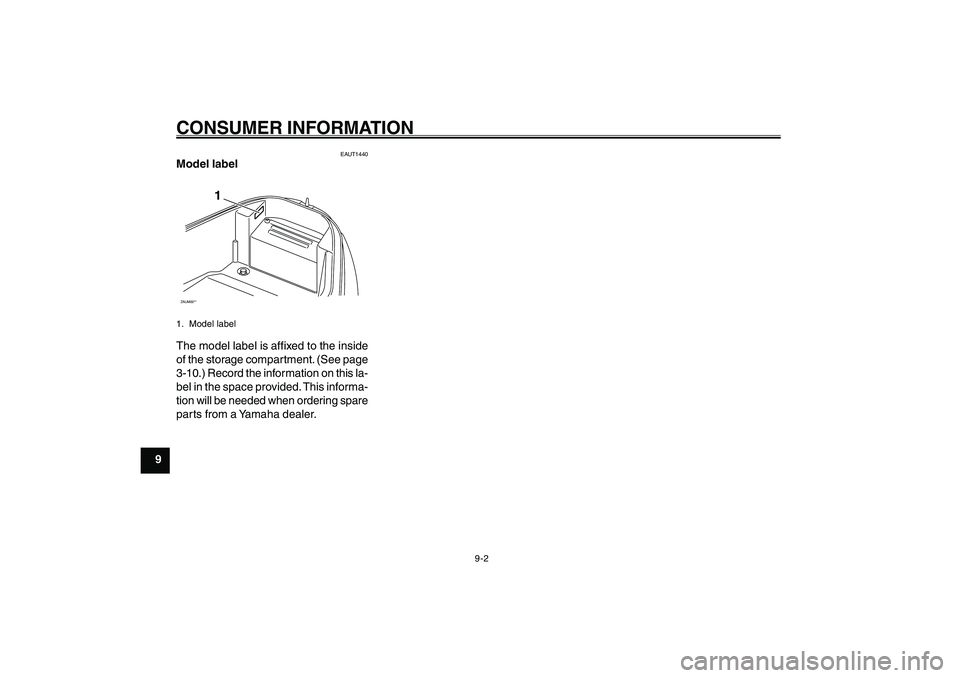

1. Model labelThe model label is affixed to the inside
of the storage compartment. (See page
3-10.) Record the information on this la-
bel in the space provided. This informa-
tion will be needed when ordering spare
parts from a Yamaha dealer. Model label
15P-F8199-E0_ch9ind.pmd2007/06/16, 16:02 2

INDEX
AAcceleration and deceleration ................. 5-2
Air filter element, replacing .................... 6-12BBattery.................................................... 6-20
Brake lever free play, adjusting .............. 6-15
Brake lever, front ...................................... 3-6
Brake lever, rear ....................................... 3-6
Brake levers, lubricating......................... 6-17
Brake shoes, checking ........................... 6-16
Braking..................................................... 5-2CCare .......................................................... 7-1
Catalytic converter ................................... 3-8
Centerstand, checking and lubricating .. 6-18
Coolant................................................... 6-10
Coolant temperature warning light ........... 3-3DDimmer switch.......................................... 3-5EEngine break-in........................................ 5-3
Engine oil................................................. 6-7
Engine trouble warning light .................... 3-3FFinal transmission oil............................... 6-9
Front fork, checking............................... 6-18
Fuel .......................................................... 3-7
Fuel gauge............................................... 3-4
Fuel tank cap........................................... 3-6
Fuse, replacing ...................................... 6-21HHandlebar switches .................................. 3-5
Headlight bulb, replacing....................... 6-22
Helmet holder........................................... 3-9High beam indicator light ......................... 3-3
Horn switch .............................................. 3-5
IIdentification numbers.............................. 9-1
Indicator and warning lights ..................... 3-2KKey identification number ......................... 9-1
Keyhole cover ........................................... 3-2
Kickstarter ................................................ 3-8LLuggage hook.......................................... 3-9MMain switch/steering lock ......................... 3-1
Maintenance, periodic .............................. 6-1
Model label............................................... 9-2PPanels, removing and installing............... 6-5
Parking..................................................... 5-3
Part locations........................................... 2-1
Periodic maintenance and lubrication
chart ....................................................... 6-2
Pre-operation check list ........................... 4-2RRear brake lever free play, adjusting ..... 6-16SSafe-riding points ..................................... 1-4
Safety information .................................... 1-1
Seat.......................................................... 3-9
Spark plug, checking ............................... 6-6
Specifications........................................... 8-1
Speedometer unit..................................... 3-4
Start switch .............................................. 3-5
Starting off ................................................ 5-2
Starting the engine ................................... 5-1Steering, checking ................................. 6-19
Storage ..................................................... 7-3
Storage compartment ............................ 3-10
TTail/brake light bulb, replacing................ 6-23
Throttle cable free play, checking .......... 6-12
Throttle grip and cable, checking and
lubricating............................................ 6-17
Tires ....................................................... 6-13
Troubleshooting...................................... 6-24
Troubleshooting charts ........................... 6-25
Turn signal indicator light......................... 3-3
Turn signal light bulb, replacing............. 6-24
Turn signal switch ..................................... 3-5VValve clearance ...................................... 6-12
Vehicle identification number ................... 9-1WWheel bearings, checking ...................... 6-19
Wheels................................................... 6-15
