Page 41 of 72
6-9
1
2
3
4
5
6
7
8
9
EAU17226
PERIODIC MAINTENANCE AND MINOR REPAIR
NOTE:
Make sure that the O-ring is properly
seated.7. Install engine oil drain bolt A, and
then tighten both drain bolts to their
specified torques.Tightening torque:
Engine oil drain bolt A:
Engine oil drain bolt B:
ZAUM00**
1
1. Oil filler hole
8. Add the specified amount of the
recommended engine oil, and then
install and tighten the oil filler cap.Recommended engine oil:
See page 8-1.
Oil change quantity:
0.78 L (0.82 US qt) (0.69 Imp.qt)
ECA11670
cC● ●● ●
●
Do not use oils with a diesel
specification of “CD” or oils of a
higher quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.
● ●● ●
●
Be sure no foreign material en-
ters the crankcase.
9. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking,
immediately turn the engine off and
check for the cause.
10. Turn the engine off, and then check
the oil level and correct it if neces-
sary.
EAUT1560
Final transmission oilThe final transmission case must be
checked for oil leakage before each ride.
If any leakage is found, have a Yamaha
dealer check and repair the scooter. In
addition, the final transmission oil must
be changed as follows at the intervals
specified in the periodic maintenance
and lubrication chart.
1. Start the engine, warm it up by
riding the scooter for several min-
utes, and then stop the engine.
2. Place the scooter on the
centerstand.
3. Place an oil pan under the final
transmission case to collect the
used oil. Final transmission oil
15P-F8199-E0_ch6.pmd2007/06/21, 11:09 9
Page 42 of 72
6-10
1
2
3
4
5
6
7
8
9
EAU17226
PERIODIC MAINTENANCE AND MINOR REPAIRZAUM00**
1
2
1. Final transmission oil filler bolt
2. Final transmission oil drain bolt4. Remove the oil filler bolt and drain
bolt to drain the oil from the final
transmission case.
5. Install the final transmission oil
drain bolt, and then tighten it to the
specified torque.Tightening torque:
Final transmission oil drain bolt:
6. Add the specified amount of the
recommended final transmission
oil, and then install the oil filler bolt
and tighten it to the specified
torque.
Tightening torque:
Final transmission oil filler bolt:
Recommended final transmission
oil:
See page 8-1.
Oil quantity:
0.10 L (0.11 US qt) (0.09 Imp.qt)
EWA11310
w● ●● ●
●
Make sure that no foreign mate-
rial enters the final transmission
case.
● ●● ●
●
Make sure that no oil gets on the
tire or wheel.
7. Check the final transmission case
for oil leakage. If oil is leaking,
check for the cause.
EAU20070
CoolantThe coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart. Coolant
EAUT1522
To check the coolant level
The coolant level should be checked as
follows before each ride. In addition, the
coolant must be changed at the inter-
vals specified in the periodic mainte-
nance and lubrication chart.
1. Place the vehicle on the
centerstand.NOTE:●
The coolant level must be checked
on a cold engine since the level
varies with engine temperature.
●
Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to the
side can result in a false reading.
2. Check the coolant level in the cool-
ant reservoir.
15P-F8199-E0_ch6.pmd2007/06/21, 11:09 10
Page 43 of 72
6-11
1
2
3
4
5
6
7
8
9
EAU17226
PERIODIC MAINTENANCE AND MINOR REPAIR
NOTE:
The coolant should be between the
minimum and maximum level marks.ZAUM00**
12
1. Maximum level mark
2. Minimum level markZAUM00**
1
1. Coolant reservoir cap
3. If the coolant is at or below the mini-
mum level mark, remove panel B
and the reservoir cap. (See page
6-5.)
4. Add coolant or distilled water to
raise the coolant to the maximum
level mark, and install the coolant
reservoir cap and the panel.Coolant reservoir capacity:
0.26 L (0.27 US qt) (0.23 Imp.qt)
ECA10471
cC● ●● ●
●
If coolant is not available, use
distilled water or soft tap water
instead. Do not use hard water
or salt water since it is harmful
to the engine.
● ●● ●
●
If water has been used instead
of coolant, replace it with cool-
ant as soon as possible, other-
wise the cooling system will not
be protected against frost and
corrosion.
● ●● ●
●
If water has been added to the
coolant, have a Yamaha dealer
check the antifreeze content of
the coolant as soon as possible,otherwise the effectiveness of
the coolant will be reduced.
EWA10380
wNever attempt to remove the radia-
tor cap when the engine is hot.NOTE:
If the engine overheats, see page 6-26
for further instructions.
15P-F8199-E0_ch6.pmd2007/06/21, 11:09 11
Page 44 of 72
6-12
1
2
3
4
5
6
7
8
9
EAU17226
PERIODIC MAINTENANCE AND MINOR REPAIR
EAUT1990
Replacing the air filter elementThe air filter element must be replaced
and the check hoses must be cleaned
at the intervals specified in the periodic
maintenance and lubrication char t.
Have a Yamaha dealer replace the air
filter element. Air filter element, replacing
Throttle cable free play, checking
Valve clearance
EAU21401
Valve clearanceThe valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this from
occurring, the valve clearance must be
adjusted by a Yamaha dealer at the in-
tervals specified in the periodic mainte-
nance and lubrication chart.
EAU21382
Checking the throttle cable
free playThe throttle cable free play should mea-
sure 1.5 ~ 3.5 mm (0.06 ~ 0.14 in) at
the throttle grip. Periodically check the
throttle cable free play and, if necessary,
have a Yamaha dealer adjust it.
15P-F8199-E0_ch6.pmd2007/06/21, 11:09 12
Page 45 of 72

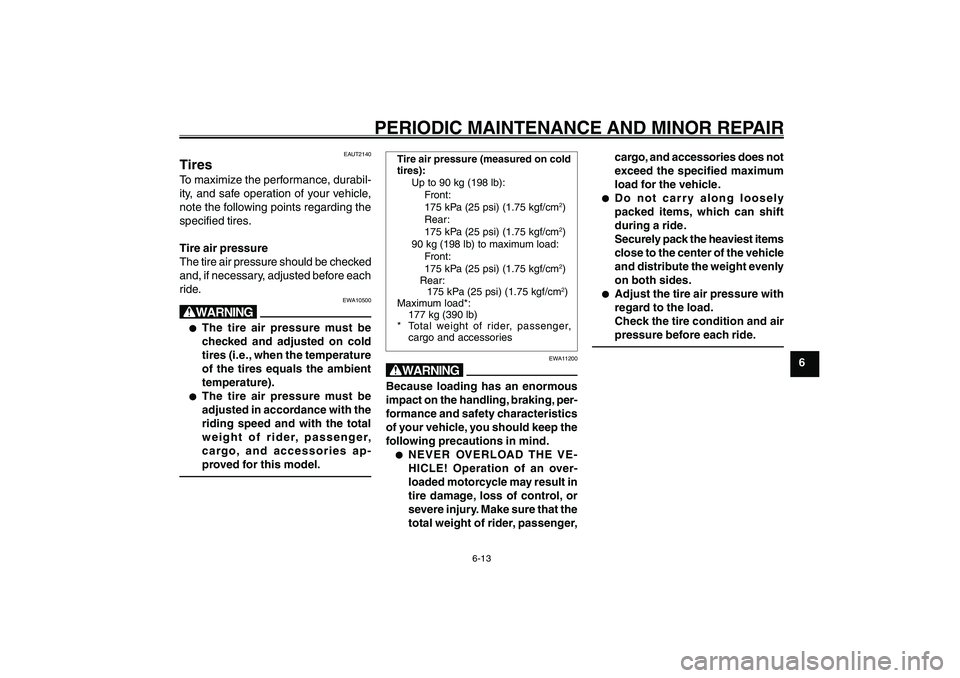

6-13
1
2
3
4
5
6
7
8
9
EAU17226
PERIODIC MAINTENANCE AND MINOR REPAIR
Tires
EAUT2140
TiresTo maximize the performance, durabil-
ity, and safe operation of your vehicle,
note the following points regarding the
specified tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
EWA10500
w● ●● ●
●
The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).
● ●● ●
●
The tire air pressure must be
adjusted in accordance with the
riding speed and with the total
weight of rider, passenger,
cargo, and accessories ap-
proved for this model.
Tire air pressure (measured on cold
tires):
Up to 90 kg (198 lb):
Front:
175 kPa (25 psi) (1.75 kgf/cm
2)
Rear:
175 kPa (25 psi) (1.75 kgf/cm2)
90 kg (198 lb) to maximum load:
Front:
175 kPa (25 psi) (1.75 kgf/cm2)
Rear:
175 kPa (25 psi) (1.75 kgf/cm2)
Maximum load*:
177 kg (390 lb)
* Total weight of rider, passenger,
cargo and accessories
EWA11200
wBecause loading has an enormous
impact on the handling, braking, per-
formance and safety characteristics
of your vehicle, you should keep the
following precautions in mind.● ●● ●
●
NEVER OVERLOAD THE VE-
HICLE! Operation of an over-
loaded motorcycle may result in
tire damage, loss of control, or
severe injury. Make sure that the
total weight of rider, passenger,cargo, and accessories does not
exceed the specified maximum
load for the vehicle.
● ●● ●
●
Do not carry along loosely
packed items, which can shift
during a ride.
Securely pack the heaviest items
close to the center of the vehicle
and distribute the weight evenly
on both sides.
● ●● ●
●
Adjust the tire air pressure with
regard to the load.
Check the tire condition and air
pressure before each ride.
15P-F8199-E0_ch6.pmd2007/06/21, 11:09 13
Page 46 of 72

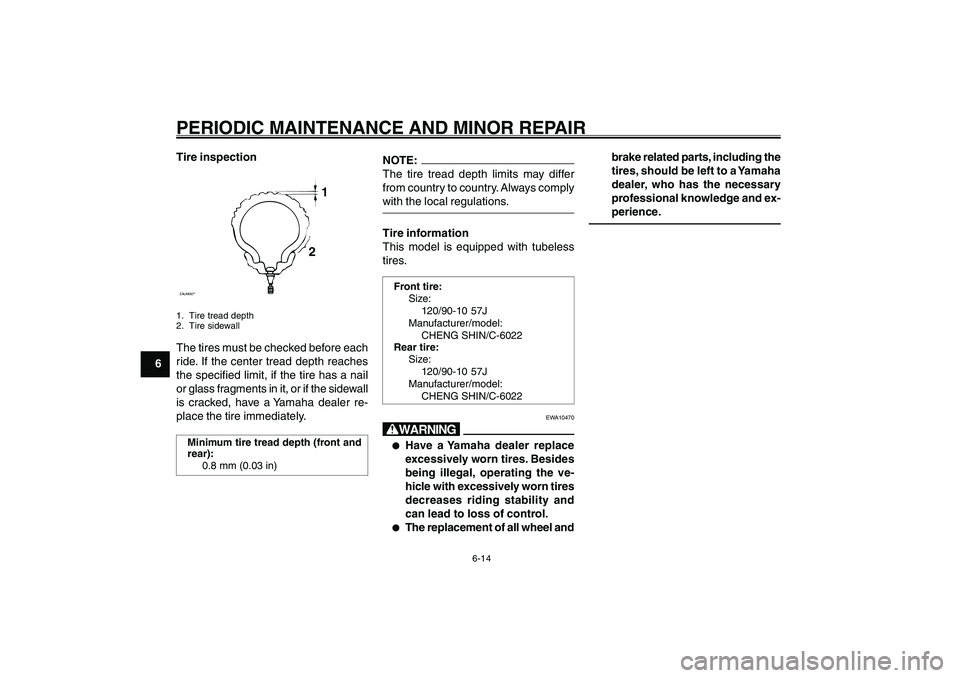

6-14
1
2
3
4
5
6
7
8
9
EAU17226
PERIODIC MAINTENANCE AND MINOR REPAIRTire inspectionZAUM00**
1
2
1. Tire tread depth
2. Tire sidewallThe tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail
or glass fragments in it, or if the sidewall
is cracked, have a Yamaha dealer re-
place the tire immediately.Minimum tire tread depth (front and
rear):
0.8 mm (0.03 in)
NOTE:
The tire tread depth limits may differ
from country to country. Always comply
with the local regulations.Tire information
This model is equipped with tubeless
tires.Front tire:
Size:
120/90-10 57J
Manufacturer/model:
CHENG SHIN/C-6022
Rear tire:
Size:
120/90-10 57J
Manufacturer/model:
CHENG SHIN/C-6022
EWA10470
w● ●● ●
●
Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the ve-
hicle with excessively worn tires
decreases riding stability and
can lead to loss of control.
● ●● ●
●
The replacement of all wheel andbrake related parts, including the
tires, should be left to a Yamaha
dealer, who has the necessary
professional knowledge and ex-
perience.
15P-F8199-E0_ch6.pmd2007/06/21, 11:09 14
Page 47 of 72

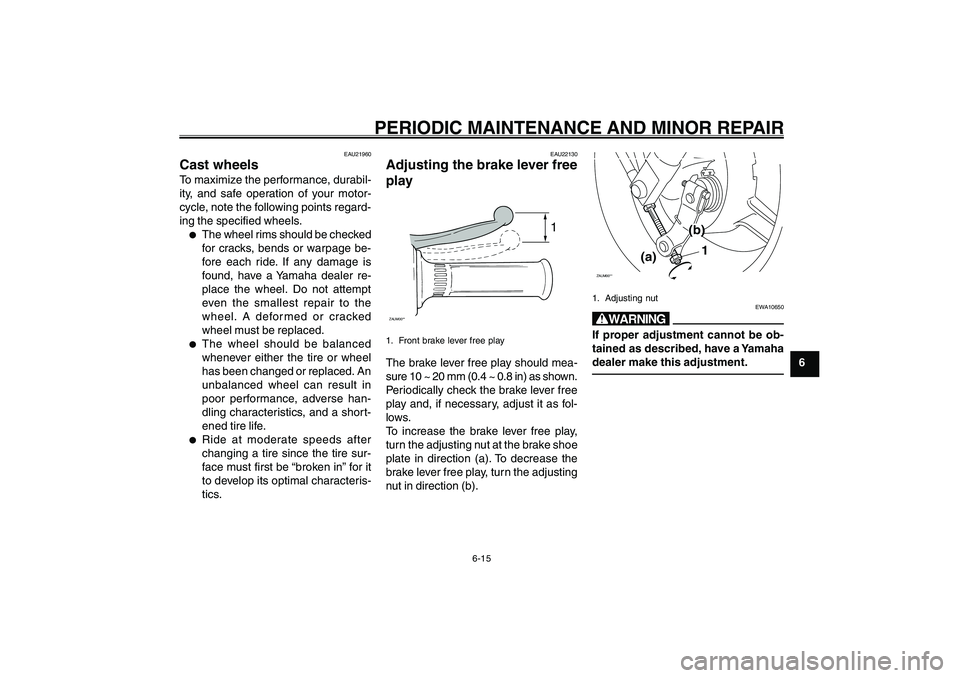

6-15
1
2
3
4
5
6
7
8
9
EAU17226
PERIODIC MAINTENANCE AND MINOR REPAIR
Wheels
Brake lever free play, adjusting
EAU22130
Adjusting the brake lever free
play
1
ZAUM00**1. Front brake lever free playThe brake lever free play should mea-
sure 10 ~ 20 mm (0.4 ~ 0.8 in) as shown.
Periodically check the brake lever free
play and, if necessary, adjust it as fol-
lows.
To increase the brake lever free play,
turn the adjusting nut at the brake shoe
plate in direction (a). To decrease the
brake lever free play, turn the adjusting
nut in direction (b).
ZAUM00**
1
(b)
(a)
1. Adjusting nut
EWA10650
wIf proper adjustment cannot be ob-
tained as described, have a Yamaha
dealer make this adjustment.
EAU21960
Cast wheelsTo maximize the performance, durabil-
ity, and safe operation of your motor-
cycle, note the following points regard-
ing the specified wheels.●
The wheel rims should be checked
for cracks, bends or warpage be-
fore each ride. If any damage is
found, have a Yamaha dealer re-
place the wheel. Do not attempt
even the smallest repair to the
wheel. A deformed or cracked
wheel must be replaced.
●
The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.
●
Ride at moderate speeds after
changing a tire since the tire sur-
face must first be “broken in” for it
to develop its optimal characteris-
tics.
15P-F8199-E0_ch6.pmd2007/06/21, 11:09 15
Page 48 of 72

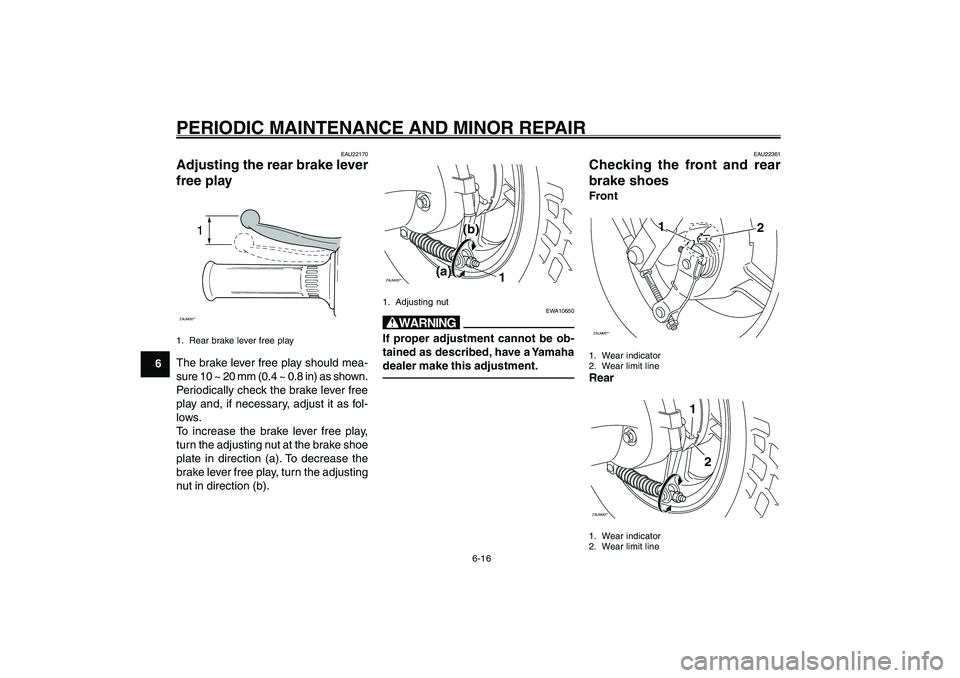

6-16
1
2
3
4
5
6
7
8
9
EAU17226
PERIODIC MAINTENANCE AND MINOR REPAIR
ZAUM00**
1
(b)
(a)
1. Adjusting nut
EWA10650
wIf proper adjustment cannot be ob-
tained as described, have a Yamaha
dealer make this adjustment.
EAU22361
Checking the front and rear
brake shoesFrontZAUM00**
2
1
1. Wear indicator
2. Wear limit lineRearZAUM00**
1
2
1. Wear indicator
2. Wear limit line
Rear brake lever free play, adjusting
Brake shoes, checking
EAU22170
Adjusting the rear brake lever
free play
1
ZAUM00**1. Rear brake lever free playThe brake lever free play should mea-
sure 10 ~ 20 mm (0.4 ~ 0.8 in) as shown.
Periodically check the brake lever free
play and, if necessary, adjust it as fol-
lows.
To increase the brake lever free play,
turn the adjusting nut at the brake shoe
plate in direction (a). To decrease the
brake lever free play, turn the adjusting
nut in direction (b).
15P-F8199-E0_ch6.pmd2007/06/21, 11:09 16
