2007 TOYOTA YARIS Owners Manual

252007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
Be sure to remove the ignition key
or turn the ignition switch to the
“LOCK” position when you leave
your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
Back door
PS12525
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.
To open the back door, push the button.
Vehicles with the power door lock sys-
tem—Operating the power door lock
switch or wireless remote control simulta-
neously locks or unlocks the back door
(see “Side doors” on page 20).
When closing the back door, make sure
it is securely closed.See “—Stowage precautions” on page 202
in Section 2 for precautions when loading
luggage.

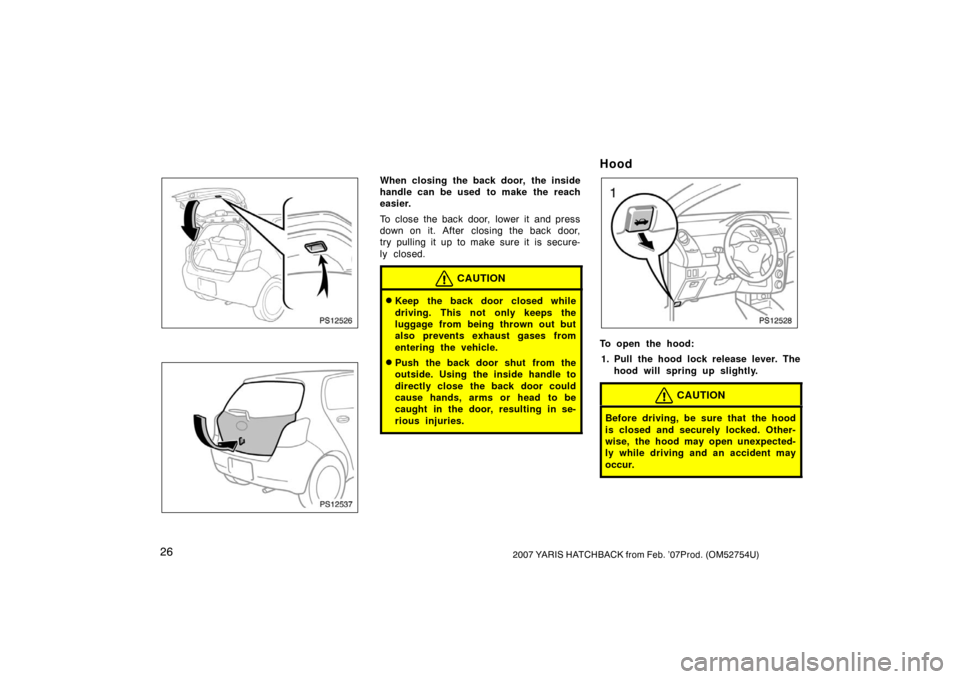

262007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
PS12526
PS12537
When closing the back door, the inside
handle can be used to make the reach
easier.
To close the back door, lower it and press
down on it. After closing the back door,
try pulling it up to make sure it is secure-
ly closed.
CAUTION
Keep the back door closed while
driving. This not only keeps the
luggage from being thrown out but
also prevents exhaust gases from
entering the vehicle.
Push the back door shut from the
outside. Using the inside handle to
directly close the back door could
cause hands, arms or head to be
caught in the door, resulting in se-
rious injuries.
Hood
PS12528
To open the hood:1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.

272007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
PS12040
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
PS12530
3. Hold the hood open by inserting the support rod into the slot.
To insert the support rod into the slot,
move it straight up. If it is moved to the
side or toward the inside of the vehicle,
it may become detached.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its clip−
this prevents rattles. Then lower the hood
and make sure it locks into place. If nec-
essary, press down gently on the front
edge to lock it.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood security from falling down
on to your head or body.
NOTICE
Be sure to return the support rod to
its clip before closing the hood. Clos-
ing the hood with the support rod up
could cause the hood to bend.

282007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
PS12531
To deter vehicle theft, the system is
designed to sound an alarm if any of
the side doors, back door or hood is
forcibly unlocked and opened.
The alarm blows the horn intermittently
and flashes the headlights, tail lights and
turn signal lights, and turns on the interior
light.
PS12511
SETTING THE SYSTEM1. Turn the ignition key to the “LOCK” position and remove it.
2. Have all passengers get out of the vehicle.
3. Close and lock all the side doors, back door and hood.
Use the key to lock the last door.
When the back door is the last, turn
the key to the unlock position and then
turn to the door lock position.
The indicator light will remain on when all
the side doors, back door and hood are
closed and locked. The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing.
4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
WHEN THE SYSTEM IS SET
Activating the system
The system will sound the alarm if any of
the side doors is unlocked or if the back
door or hood is forcibly opened without
the key.
The indicator light will come on when the
system is activated.
After one minute, the alarm will automati-
cally stop and the indicator light will starts
flashing again.
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
“Activating the system”.
Theft deterrent system
(vehicles sold in Puerto Rico
only)

292007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
Stopping the alarm
The alarm will be stopped by the following
two ways:
Turn the ignition key from the “LOCK”
to “ON” position.
Unlock any of the doors with the key.
CANCELLING THE SYSTEM
The system will be cancelled by the
above mentioned 2 ways.
If the tail lights come on for 2 seconds,
the theft deterrent system has been
alarmed. Check to see if there is any
abnormality with your vehicle.
TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above. The doors should be locked with the
key. Be sure to wait until the indicator
light goes off or starts flashing.
3. Unlock any side door from the inside. The system should activate the alarm.
4. Stop the alarm as described above.
5. Repeat this operation for the other doors, back door and hood.
If the system does not work properly,
have it checked by your Toyota dealer.
Fuel tank cap
PS12533
With tachometer
PS12534
Without tachometer
This indicates that the fuel filler door
is on the left side of your vehicle.

302007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
PS12535
1. To open the fuel filler door, pull thelever up.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
PS12536
2. To remove the fuel tank cap, turnthe cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang the
tether as shown in the illustration.
It is not unusual to hear a slight swoosh
when the cap is opened.
When installing the cap, turn it clock-
wise until one click is heard, in order
to fully close it. The cap returns slight-
ly when your hand is released from the
cap after closure, however this does
not cause any problems.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely. The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is installed se-
curely to prevent fuel sp
illage in
the event of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.

312007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Occupant restraint systems
Seats32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Front seats 32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Rear seats 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Fold −down rear seat 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Head restraints 41
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Seat belts 42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
SRS driver and front passenger airbags 56
. . . . . . . . . . . . . . . . . . . . . . . .
SRS side airbags and curtain shield airbags 62
. . . . . . . . . . . . . . . . . . . .
Front passenger occupant classification system 70
. . . . . . . . . . . . . . . .
Child restraint 74
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 1 3

322007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
Seats
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.
CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow any passengers to sit on
top of a foldeddown seatback, or
in the luggage compartment or car-
go area. Persons not properly
seated and/or not properly re-
strained by seat belts can be se-
verely injured in the event of emer-
gency braking or a collision.
During driving, do not allow any
passengers to stand up or move
around between seats. Otherwise,
severe injuries can occur in the
event of emergency braking or a
collision.
Driver seat
CAUTION
The SRS driver airbag deploys with
considerable force, and can cause
death or serious injury especially if
the driver is very close to the airbag.
The National Highway Traffic Safety
Administration (“NHTSA”) advises:
Since the risk zone for driver airbag
is the first 50—75 mm (2—3 in.) of
inflation, placing yourself 250 mm (10
in.) from your driver airbag provides
you with a clear margin of safety.
This distance is measured from the
center of the steering wheel to your
breastbone. If you sit less than 250
mm (10 in.) away now, you can
change your driving position in sever-
al ways:
Move your seat to the rear as far
as you can while still reaching the
pedals comfortably.
Slightly recline the back of the
seat. Although vehicle designs vary,
many drivers can achieve the 250
mm (10 in.) distance, even with the
driver seat all the way forward, sim-
ply by reclining the back of the
seat somewhat. If reclining the back
of your seat makes it hard to see
the road, raise yourself by using a
firm, nonslippery cushion, or raise
the seat if your vehicle has that
feature.
If your steering wheel is adjustable,
tilt it downward. This points the air-
bag toward your chest instead of
your head and neck.
The seat should be adjusted as rec-
ommended by NHTSA above, while
still maintaining control of the foot
pedals, steering wheel, and your view
of the instrument panel controls.
Front seats—
—Front seat precautions
