2007 TOYOTA YARIS Owners Manual

732007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)

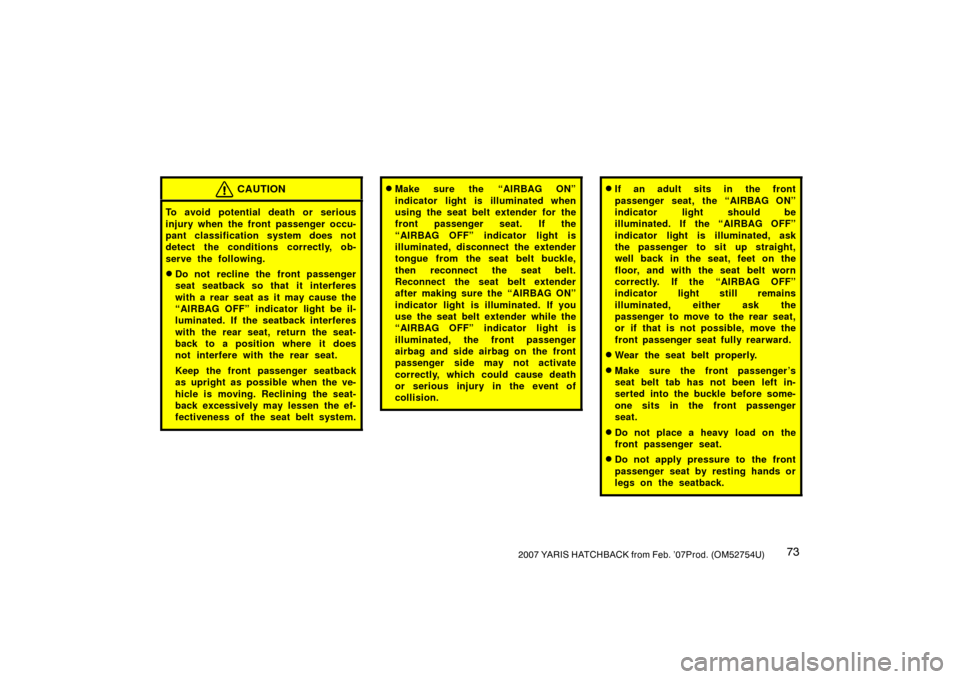

CAUTION
To avoid potential death or serious
injury when the front passenger occu-
pant classification system does not
detect the conditions correctly, ob-
serve the following.
Do not recline the front passenger
seat seatback so that it interferes
with a rear seat as it may cause the
“AIRBAG OFF” indicator light be il-
luminated. If the seatback interferes
with the rear seat, return the seat-
back to a position where it does
not interfere with the rear seat.
Keep the front passenger seatback
as upright as possible when the ve-
hicle is moving. Reclining the seat-
back excessively may lessen the ef-
fectiveness of the seat belt system.
Make sure the “AIRBAG ON”
indicator light is illuminated when
using the seat belt extender for the
front passenger seat. If the
“AIRBAG OFF” indicator light is
illuminated, disconnect the extender
tongue from the seat belt buckle,
then reconnect the seat belt.
Reconnect the seat belt extender
after making sure the “AIRBAG ON”
indicator light is illuminated. If you
use the seat belt extender while the
“AIRBAG OFF” indicator light is
illuminated, the front passenger
airbag and side airbag on the front
passenger side may not activate
correctly, which could cause death
or serious injury in the event of
collision.If an adult sits in the front
passenger seat, the “AIRBAG ON”
indicator light should be
illuminated. If the “AI RBAG OFF”
indicator light is illuminated, ask
the passenger to sit up straight,
well back in the seat, feet on the
floor, and with the seat belt worn
correctly. If the “AIRBAG OFF”
indicator light still remains
illuminated, either ask the
passenger to move to the rear seat,
or if that is not possible, move the
front passenger seat fully rearward.
Wear the seat belt properly.
Make sure the front passenger ’s
seat belt tab has not been left in-
serted into the buckle before some-
one sits in the front passenger
seat.
Do not place a heavy load on the
front passenger seat.
Do not apply pressure to the front
passenger seat by resting hands or
legs on the seatback.

742007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
Do not let a rear passenger lift the
front passenger seat with their feet
or press on the seatback with their
legs.
Do not put objects under the front
passenger seat.
Do not attach a commercial seat-
back table or other heavy item to
the back of the front passenger
seat.
Child restraint systems installed on
the rear seat should not contact the
front seatbacks.
When it is unavoidable to install the
forwardfacing child restraint sys-
tem on the front passenger seat,
install the child restraint system on
the front passenger seat in the
proper order. (As for the installation
order, see “—Installation with seat
belt” on page 77 in this Section.)
Do not modify or remove the front
seats.
Do not kick the front passenger
seat or subject it to severe impact.
Otherwise, the SRS warning light
may come on to indicate a malfunc-
tion of the detection system. In this
case, contact your Toyota dealer im-
mediately.
The “AIRBAG ON” indicator light may be
illuminated (the front passenger airbag and
side airbag on the front passenger seat
may deploy) even if observing the above
cautions, when a child sits in, or a for-
ward−facing child restraint system is
installed on the front passenger seat. Re-
fer to all the cautions in this Section and
“Child restraint” on page 74 in this Sec-
tion. Toyota strongly urges the use of ap-
propriate child restraint systems for
children.
The laws of all 50 states in the U.S.A.
and Canada now require the use of a
child restraint system.
Your vehicle conforms to SAE J1819.
If a child is too large for a child restraint
system, the child s
hould sit in the rear
seat and must be restrained using the
vehicle’s seat belt. See “Seat belts” on
page 42 in this Section for details.
CAUTION
For effective protection in automo-
bile accidents and sudden stops, a
child must be properly restrained,
using a seat belt or child restraint
system depending on the age and
size of the child. Holding a child in
your arms is not a substitute for a
child restraint system. In an acci-
dent, the child can be crushed
against the windshield, or between
you and the vehicle’s interior.
Child restraint—
—Child restraint precautions

752007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)

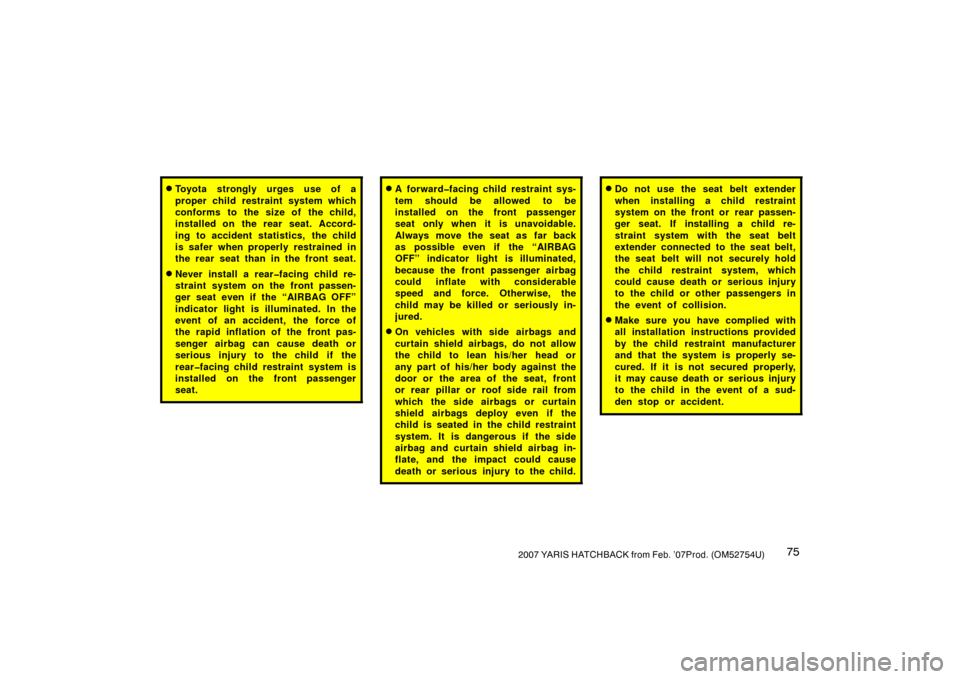

Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child,
installed on the rear seat. Accord-
ing to accident statistics, the child
is safer when properly restrained in
the rear seat than in the front seat.
Never install a rearfacing child re-
straint system on the front passen-
ger seat even if the “AIRBAG OFF”
indicator light is illuminated. In the
event of an accident, the force of
the rapid inflation of the front pas-
senger airbag can cause death or
serious injury to the child if the
rearfacing child restraint system is
installed on the front passenger
seat.
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible even if the “AIRBAG
OFF” indicator light is illuminated,
because the front passenger airbag
could inflate with considerable
speed and force. Otherwise, the
child may be killed or seriously in-
jured.
On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean his/her head or
any part of his/her body against the
door or the area of the seat, front
or rear pillar or roof side rail from
which the side airbags or curtain
shield airbags deploy even if the
child is seated in the child restraint
system. It is dangerous if the side
airbag and curtain shield airbag in-
flate, and the impact could cause
death or serious injury to the child.
Do not use the seat belt extender
when installing a child restraint
system on the front or rear passen-
ger seat. If installing a child re-
straint system with the seat belt
extender connected to the seat belt,
the seat belt will not securely hold
the child restraint system, which
could cause death or serious injury
to the child or other passengers in
the event of collision.
Make sure you have complied with
all installation instructions provided
by the child restraint manufacturer
and that the system is properly se-
cured. If it is not secured properly,
it may cause death or serious injury
to the child in the event of a sud-
den stop or accident.

762007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
—Child restraint system
A child restraint system for a small
child or baby must itself be properly
restrained on the seat with the lap por-
tion of the lap/shoulder belt. You must
carefully consult the manufacturer ’s
instructions which accompany the child
restraint system.
To provide proper restraint, use a child
restraint system following the manufactur-
er ’s instructions about the appropriate age
and size of the child for the child restraint
system.
Install the child restraint system correctly
following the instructions provided by its
manufacturer. General directions are also
provided under the following illustrations.
The child restraint system should be
installed on the rear seat. According to
accident statistics, the child is safer when
properly restrained in the rear seat than
in the front seat.
When not using the child restraint system,
keep it secured with the seat belt or place
it somewhere other than the passenger
compartment. This will prevent it from in-
juring passengers in the event of a sud-
den stop or accident.Child restraint systems are classified into
the following 3 types depending on the
child’s age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufac-
turer.
Your vehicle has anchor brackets for se-
curing the top strap of a child restraint
system.
For instructions about how to use the an-
chor bracket, see “—Using a top strap” on
page 89 in this Section.
The child restraint lower anchorages
approved for your vehicle may also be
used. See “—Installation with child
restraint lower anchorages” on page 92 in
this Section.

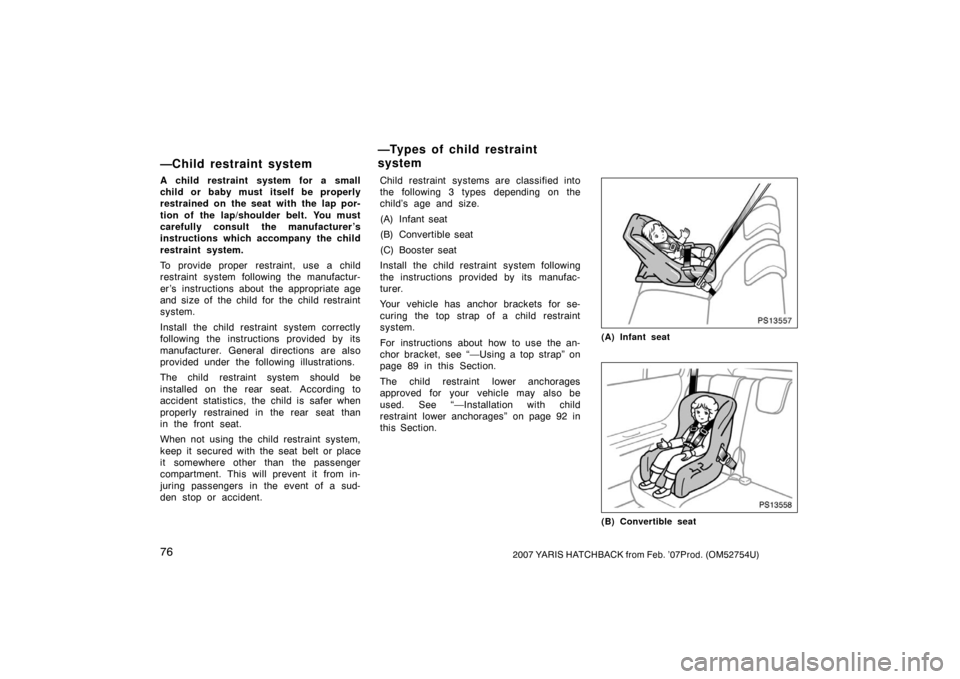

PS13557
(A) Infant seat
PS13558
(B) Convertible seat
—Types of child restraint
system

772007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)

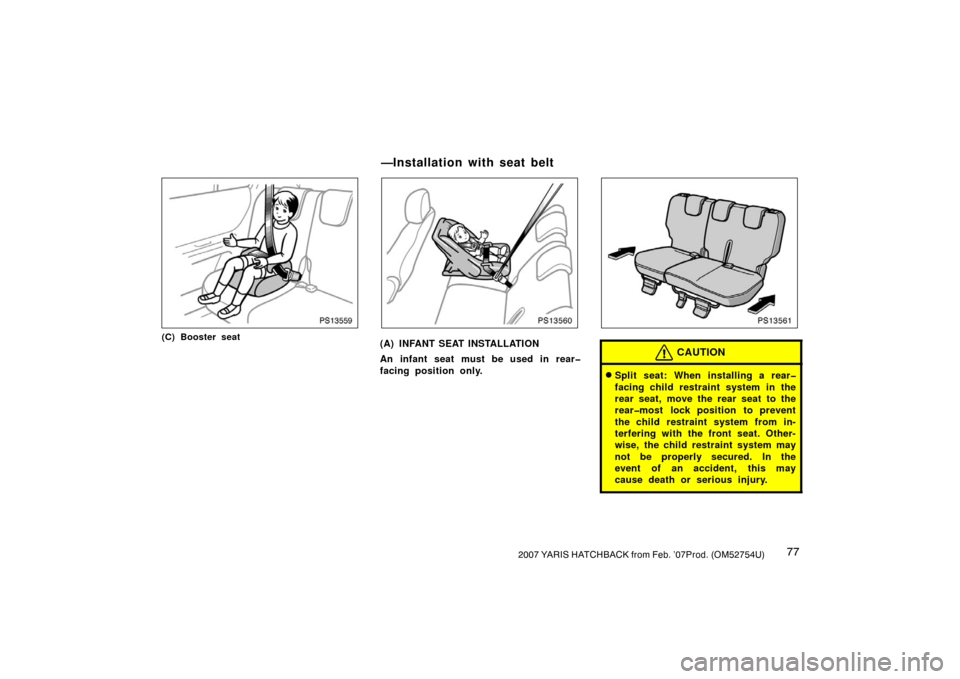

PS13559
(C) Booster seat
PS13560
(A) INFANT SEAT INSTALLATION
An infant seat must be used in rear
facing position only.
PS13561
CAUTION
Split seat: When installing a rear
facing child restraint system in the
rear seat, move the rear seat to the
rearmost lock position to prevent
the child restraint system from in-
terfering with the front seat. Other-
wise, the child restraint system may
not be properly secured. In the
event of an accident, this may
cause death or serious injury.
—Installation with seat belt

782007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
PS13562
CAUTION
Never install a rearfacing child re-
straint system on the front passen-
ger seat even if the “AIRBAG OFF”
indicator light is illuminated. In the
event of an accident, the force of
the rapid inflation of the front pas-
senger airbag can cause death or
serious injury to the child if the
rearfacing child restraint system is
installed on the front passenger
seat.
PS13563
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the rear right
seat.
PS13564
Same angleSame position
Split seat: When installing a child
restraint system in the rear seat
center position, adjust both seat
cushions to the same position and
align both seatbacks at the same
angle. Otherwise, the child restraint
system cannot be securely re-
strained and this may cause death
or serious injuries in a collision.

792007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)

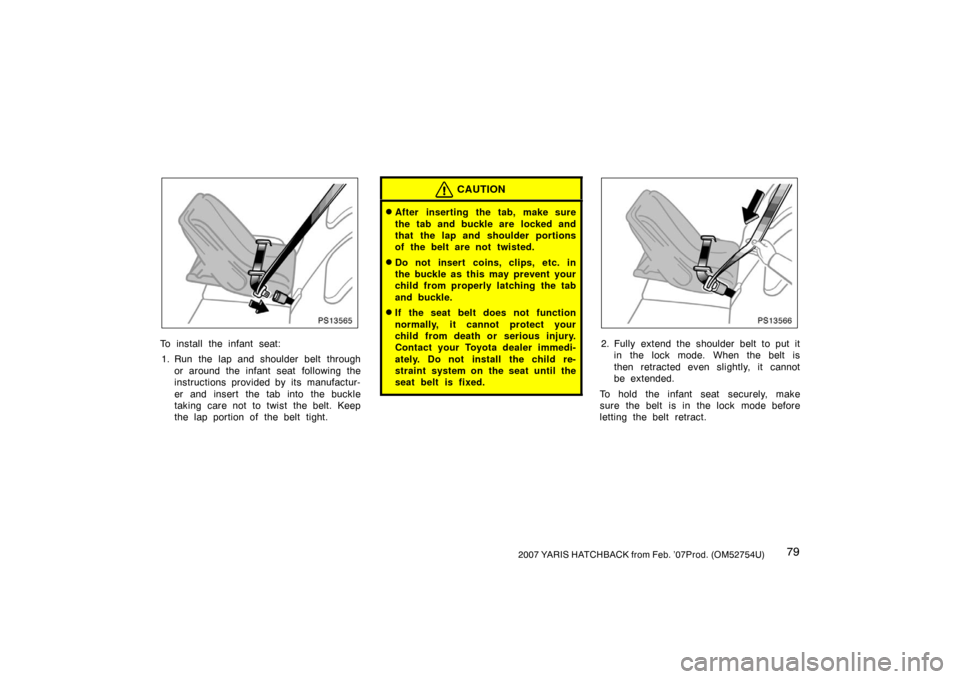

PS13565
To install the infant seat:1. Run the lap and shoulder belt through or around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child re-
straint system on the seat until the
seat belt is fixed.
PS13566
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.

802007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)

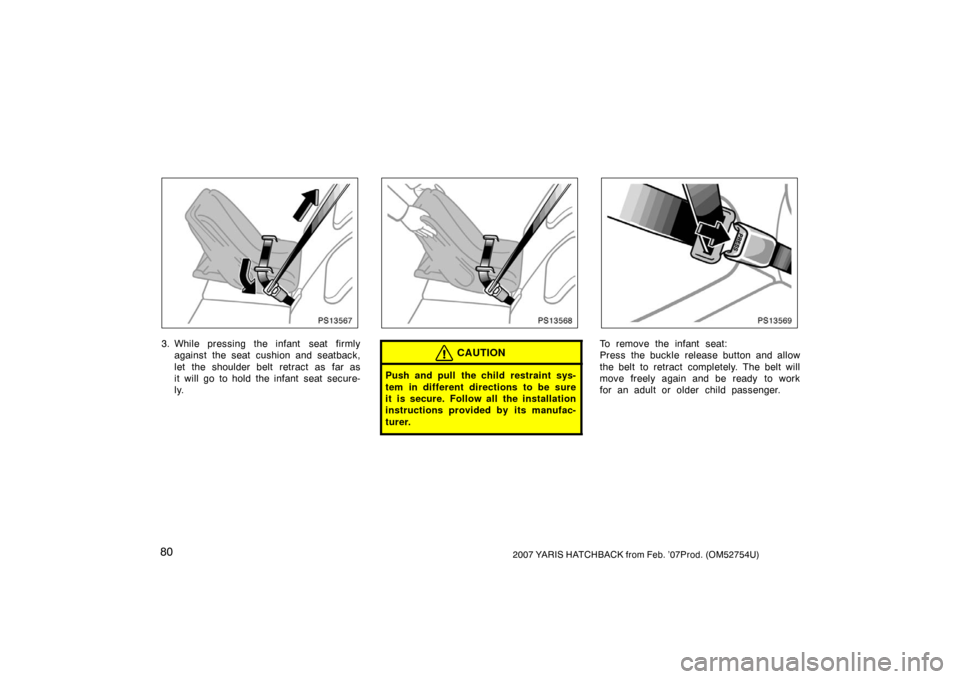

PS13567
3. While pressing the infant seat firmlyagainst the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat secure-
ly.
PS13568
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
PS13569
To remove the infant seat:
Press the buckle release button and allow
the belt to retract completely. The belt will
move freely again and be ready to work
for an adult or older child passenger.
