2007 TOYOTA YARIS Owners Manual

1692007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Clock170
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Power outlet 171
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Glove boxes 171
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Auxiliary boxes 172
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Cup holders 173
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Bottle holders 174
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Luggage storage box 175
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Luggage cover 175
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Floor mat 176
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 10

1702007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)

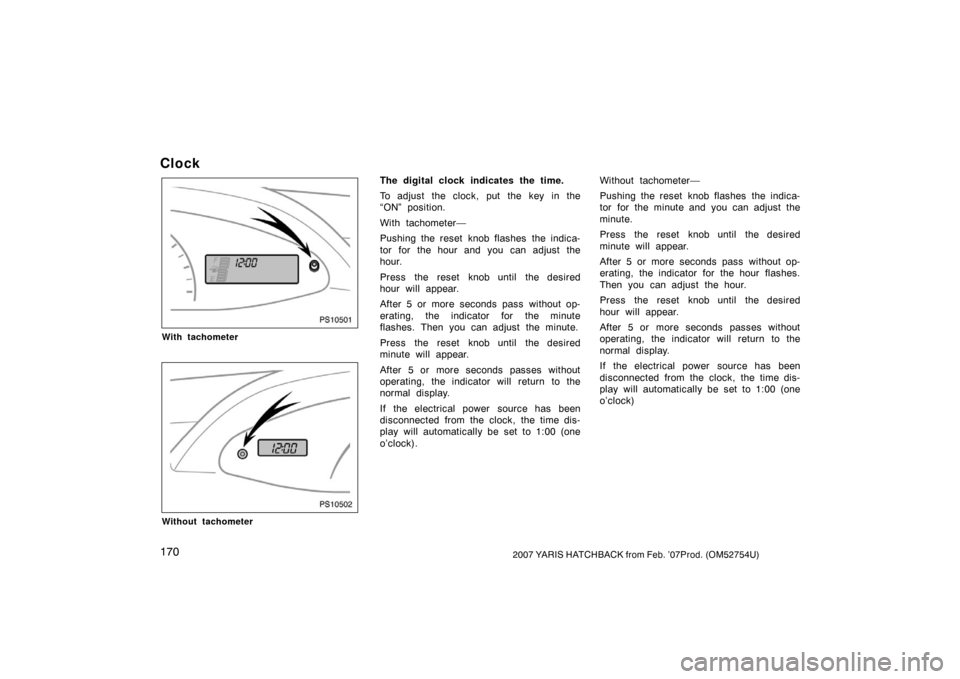

Clock
PS10501
With tachometer
PS10502
Without tachometer
The digital clock indicates the time.
To adjust the clock, put the key in the
“ON” position.
With tachometer—
Pushing the reset knob flashes the indica-
tor for the hour and you can adjust the
hour.
Press the reset knob until the desired
hour will appear.
After 5 or more seconds pass without op-
erating, the indicator for the minute
flashes. Then you can adjust the minute.
Press the reset knob until the desired
minute will appear.
After 5 or more seconds passes without
operating, the indicator will return to the
normal display.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).Without tachometer—
Pushing the reset knob flashes the indica-
tor for the minute and you can adjust the
minute.
Press the reset knob until the desired
minute will appear.
After 5 or more seconds pass without op-
erating, the indicator for the hour flashes.
Then you can adjust the hour.
Press the reset knob until the desired
hour will appear.
After 5 or more seconds passes without
operating, the indicator will return to the
normal display.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock)

1712007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
Power outlet
PS10503
The power outlet is designed for power
supply for car accessories. To use the
power outlet, open as shown in the il-
lustration.
The key must be in the “ACC” or “ON”
position for the power outlet to be used.
NOTICE
To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of
12V/120W.
 To prevent the battery from being
discharged, do not use the power
outlet longer than necessary when
the engine is not running.
Close the power outlet lid when the
power outlet is not in use. Inserting
anything other than an appropriate
plug that fits the outlet, or allowing
any liquid to get into the outlet may
cause electrical failure or short cir-
cuits.
Glove boxes
PS10504
Upper glove box
PS10505
Lower glove box

1722007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
To open the glove boxes, pull the lever.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
NOTICE
Upper glove box: During hot weather,
the interior of the vehicle becomes
very hot. Do not leave anything flam-
mable or deformable such as a light-
er, glasses, etc. inside.
Auxiliary boxes
To use the auxiliary boxes, open the
lids as shown in the following illustra-
tions.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
NOTICE
Type A: During hot weather, the inte-
rior of the vehicle becomes very hot.
Do not leave anything flammable or
deformable such as a lighter, glasses,
etc. inside.
PS10506
Ty p e A
PS10507
Ty p e B

1732007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)

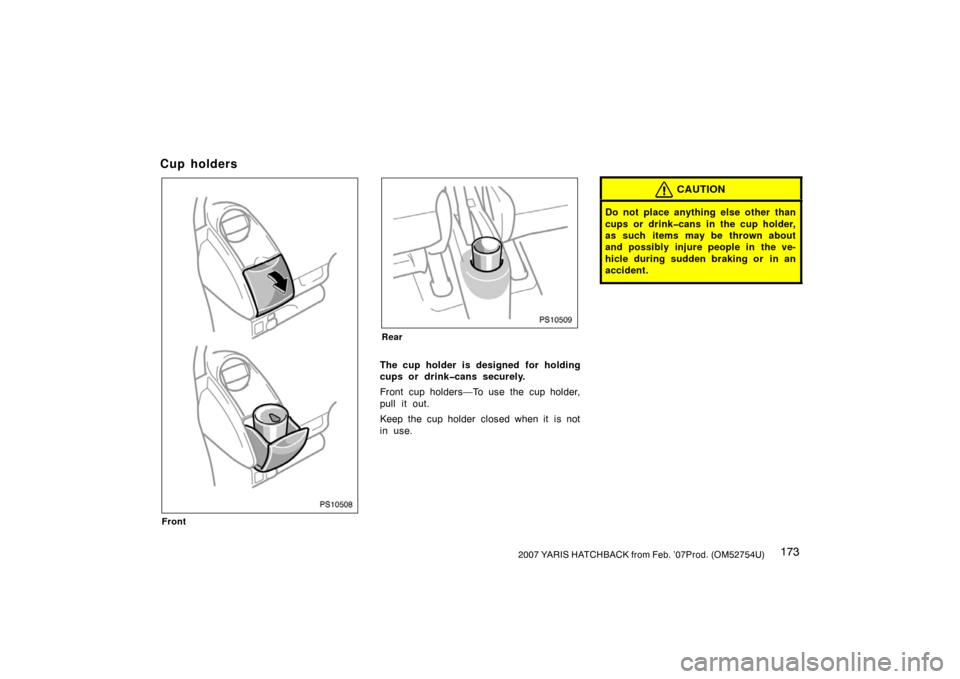

Cup holders
PS10508
Front
PS10509
Rear
The cup holder is designed for holding
cups or drinkcans securely.
Front cup holders—To use the cup holder,
pull it out.
Keep the cup holder closed when it is not
in use.
CAUTION
Do not place anything else other than
cups or drinkcans in the cup holder,
as such items may be thrown about
and possibly injure people in the ve-
hicle during sudden braking or in an
accident.

1742007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
Bottle holders
PS10510
Front doors
PS10511
Rear doors (5door models only)
PS10512
Rear side (3door models only)
The bottle holders are designed to hold
bottles securely.
CAUTION
Do not attempt to use the holder for
any other purpose for which it was
intended. Inappropriately sized or
shaped objects may be thrown about
in the compartment and possibly in-
jured people in the vehicle during a
sudden braking or an accident.
NOTICE
Do not put a cup or open bottle in
the bottle holder because the con-
tents may spill when the door opens
or closes.

1752007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)

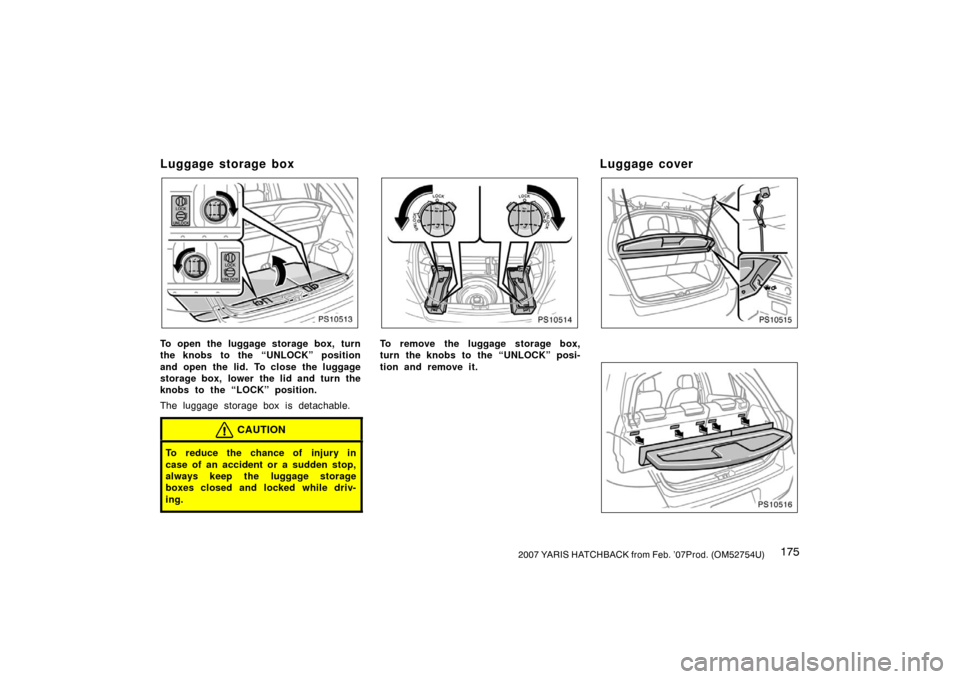

Luggage storage box
PS10513
To open the luggage storage box, turn
the knobs to the “UNLOCK” position
and open the lid. To close the luggage
storage box, lower the lid and turn the
knobs to the “LOCK” position.
The luggage storage box is detachable.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the luggage storage
boxes closed and locked while driv-
ing.
PS10514
To remove the luggage storage box,
turn the knobs to the “UNLOCK” posi-
tion and remove it.
Luggage cover
PS10515
PS10516

1762007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
When you open the back door, the lug-
gage cover tilts up for easy access to
the luggage area.
For additional luggage space, unhook the
cords, remove the luggage cover from the
seatback and lift the cover out of the
retainers.

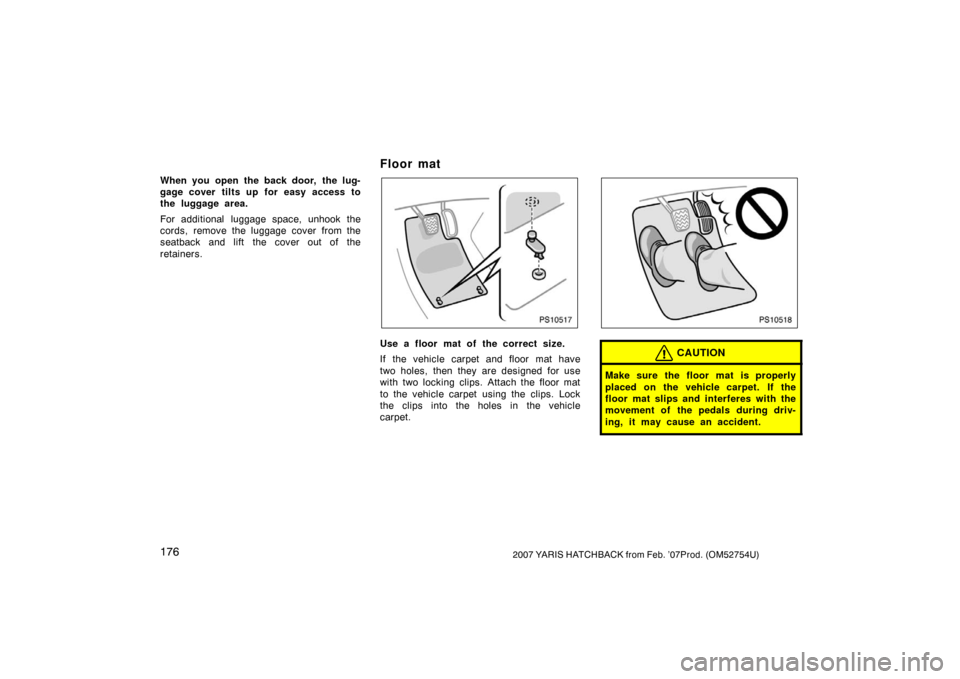

Floor mat
PS10517
Use a floor mat of the correct size.
If the vehicle carpet and floor mat have
two holes, then they are designed for use
with two locking clips. Attach the floor mat
to the vehicle carpet using the clips. Lock
the clips into the holes in the vehicle
carpet.
PS10518
CAUTION
Make sure the floor mat is properly
placed on the vehicle carpet. If the
floor mat slips and interferes with the
movement of the pedals during driv-
ing, it may cause an accident.
