2007 TOYOTA YARIS Owners Manual

892007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)

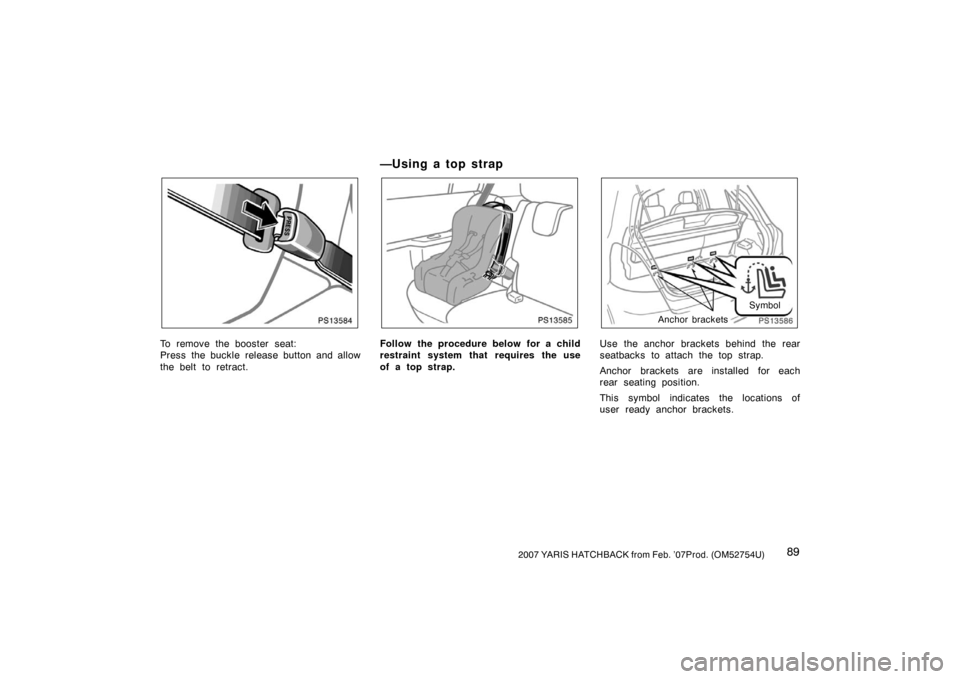

PS13584
To remove the booster seat:
Press the buckle release button and allow
the belt to retract.
—U sin g a to p st rap
PS13585
Follow the procedure below for a child
restraint system that requires the use
of a top strap.
PS13586
Symbol
Anchor brackets
Use the anchor brackets behind the rear
seatbacks to attach the top strap.
Anchor brackets are installed for each
rear seating position.
This symbol indicates the locations of
user ready anchor brackets.

902007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
TO USE THE ANCHOR BRACKET:1. Remove the deck board and luggage storage box. (See “Luggage storage
box” on page 175 in Section 110.)
2. Remove the luggage cover. (See “Luggage cover” on page 175 in
Section 110.)

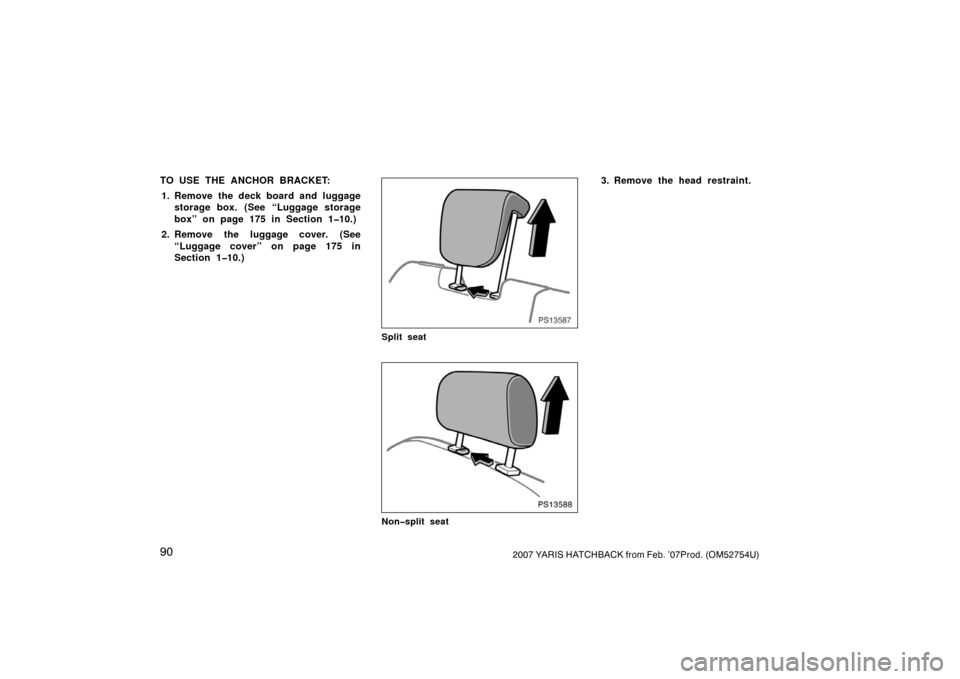

PS13587
Split seat
PS13588
Nonsplit seat
3. Remove the head restraint.

912007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)

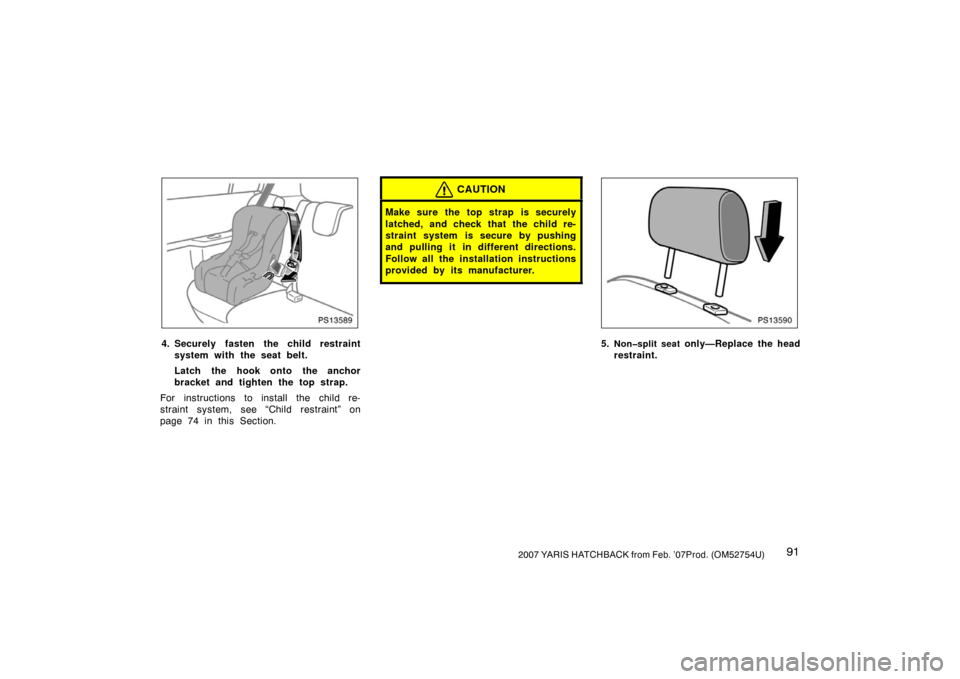

PS13589
4. Securely fasten the child restraintsystem with the seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” on
page 74 in this Section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
PS13590
5.Nonsplit seat only—Replace the head
restraint.

922007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
PS13591
The lower anchorages for the child re-
straint system interfaced with the
FMVSS225 or CMVSS210.2 specification
are installed in the rear seat.
The anchorages are installed in the gap
between the seat cushion and seatback of
both outside rear seats.
Child restraint system interfaced with the
FMVSS213 or CMVSS213 specification
can be fixed with these anchorages. In
this case, it is not necessary to fix the
child restraint system with a seat belt on
the vehicle.
PS13592Most
upright
position
CHILD RESTRAINT SYSTEM
INSTALLATION1. Fold down the seatback and back it to the most upright position until it
locks into place.
Make sure the seatback is locked secure-
ly.PS13593
Canada only
Ty p e A
—Installation with child
restraint lower anchorages

932007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)

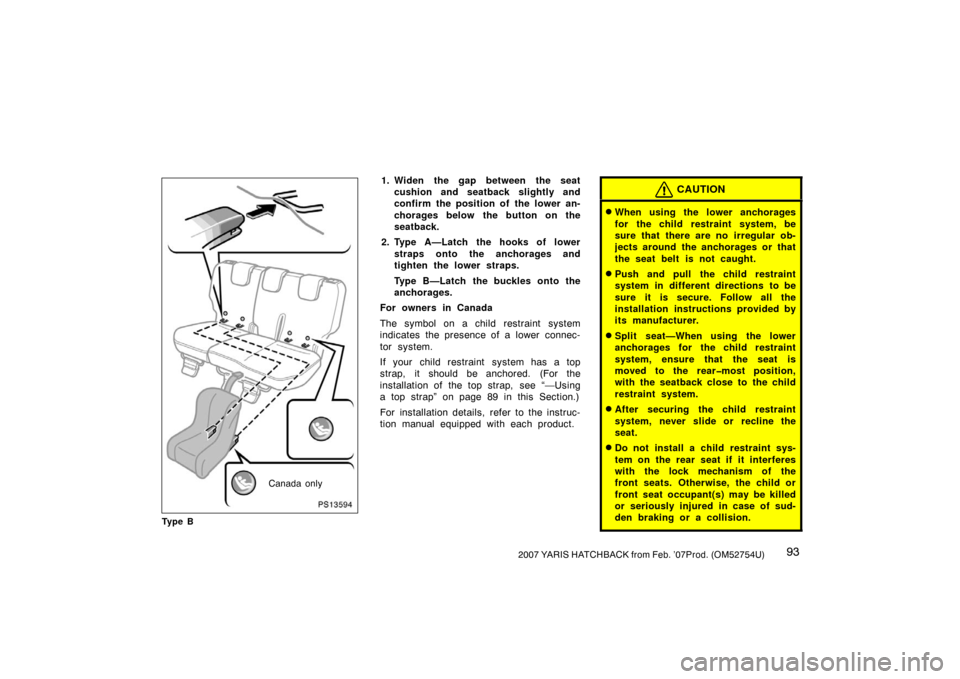

PS13594
Canada only
Ty p e B
1. Widen the gap between the seatcushion and seatback slightly and
confirm the position of the lower an-
chorages below the button on the
seatback.
2. Type A—Latch the hooks of lower straps onto the anchorages and
tighten the lower straps.
Type B—Latch the buckles onto the
anchorages.
For owners in Canada
The symbol on a child restraint system
indicates the presence of a lower connec-
tor system.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 89 in this Section.)
For installation details, refer to the instruc-
tion manual equipped with each product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
Split seat—When using the lower
anchorages for the child restraint
system, ensure that the seat is
moved to the rearmost position,
with the seatback close to the child
restraint system.
After securing the child restraint
system, never slide or recline the
seat.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.

942007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)

952007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Steering wheel and Mirrors
Tilt steering wheel96
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Outside rear view mirrors 96
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Anti −glare inside rear view mirror 98
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sun visors 99
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Vanity mirrors 100
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
SECTION 1 4

962007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
Tilt steering wheel
PS14501
To change the steering wheel angle,
hold the steering wheel, push down the
lock release lever, tilt the steering
wheel to the desired angle and return
the lever to its original position.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
Outside rear view mirrors—
PS14502
Adjust the mirror so that you can just
see the side of your vehicle in the mir-
ror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side
because it is a convex mirror. Any object
seen in a convex mirror will look smaller
and farther away than when seen in a flat
mirror.
