2007 TOYOTA YARIS Owners Manual

1532007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
The turn of play of the compact disc
having the structure shown on the left
is as follows:
001 002 . . . 011
The order changes depending on the
PC and MP3/WMA encoding software
you use. CDR and CDRW discs
CD−
R/CD− RW discs that have not been
subject to the “finalizing process” (a
process that allows them to be played
back on a conventional CD player)
cannot be played back.
It may not be possible to play back
CD− R/CD− RW discs recorded on a mu-
sic CD recorder or a personal comput-
er because of disc characteristics,
scratches or dirt on the disc, or dirt,
condensation, etc. on the lens of this
unit.
Playback of discs recorded on a per-
sonal computer may not be possible
depending on the application settings
and the environment. Record with the
correct format. (For details, contact the
manufacturer of the applications.)
Playback of CD −R/CD− RW discs may
become impossible in case of direct
exposure to sunlight, high tempera-
tures, or the storage conditions in the
vehicle.
Titles and other text information re-
corded on a CD −R/CD− RW disc may
not be displayed by the MP3/WMA
player (in the case of audio data (CD −
DA)).
The MP3/WMA player conforms to the
track skip function of the CD −R/CD−
RW disc.
If you insert a CD −RW disc into the
MP3/WMA player, load time to play-
back will be longer than for a conven-
tional CD or CD −R disc.
Read the precautions accompanying
the CD −R/CD− RW discs before use.
Recordings on CD −R/CD− RW cannot
be played back using the DDCD
(Double Density CD) system.

1542007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
TERMS
Packet write—
This is a general term for a method of
writing on CD−R, etc. at the time required
for a file, just as is done with files on
floppy or hard di scs.
Bit rate—
This expresses data volume per second,
or bps units (bits per second). The higher
the rate, the more information is available
to reproduce the sound. Using the same
encoding methods (such as MP3/WMA),
the higher the rate, the better the sound.
Multisession—
Multi −session is a recording method that
allows additional data to be recorded later.
When recording data on a CD −ROM,
CD− R or CD −RW, etc., all data from be-
ginning to end is treated as a single unit
or session. Multi −session is a method of
recording more than 2 sessions in one
disc.
CDDA—
CD− DA is an abbreviation of Compact
Disc Digital Audio. It refers to the uncom-
pressed format of regular CDs. ID3/WMA Tag—
This is a method of embedding track
−re-
lated information in a MP3/WMA file. This
embedded information can include the
track title, the artist’s name, the album
title, the music genre, the year of produc-
tion, comments and other data. The con-
tents can be freely edited using software
with ID3/WMA tag editing functions. Al-
though the tags are restricted to the num-
ber of characters, the information can be
viewed when the track is played back.
ISO 9660 format—
This is the international standard for the
format logic of CD −ROM folders and files.
For the ISO 9660 format, there are regula-
tions for the following two levels.
Level 1:
The file name is in 8.3 format (the name
consists of up to 8 characters, half −byte
English capital letters and half −byte nu-
merals and the “ −” sign, with a file exten-
sion of three characters.) Level 2:
The file name can have up to 31 (MP3
files)/15 (WMA files) characters (including
the separation mark “.” and a file exten-
sion). Each folder contains less than 8
hierarchies.
Extended formats
Joliet:
File name can have up to 64 characters.
Romeo:
File names can have up to 128 charac-
ters.
m3u—
Playlists created using the “WINAMP” soft-
ware have a playlist file extension (.m3u).
MP3—
MP3 is short for MPEG 1 & 2 Audio Layer
3. It is an audio compression standard set
by a working group (MPEG) of the ISO
(International Standards Organization).
MP3 is able to compress audio data to
about 1/10 the level of a conventional
disc.

1552007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
WMA—
WMA is short for Windows Media
TM Audio.
It is the audio file format developed by
Microsoft Corporation. WMA is able to
compress audio data to about 1/2 the lev-
el of MP3.
Windows Media
TM and Windows are reg-
istered trademarks of Microsoft Corpora-
tion in the United States and other coun-
tries.

1562007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)

1572007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Air conditioning system
Controls158
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . .
Air flow selector settings 161
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Operating tips 161
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Instrument panel vents 163
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Air conditioning filter 165
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION 1 9

1582007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)

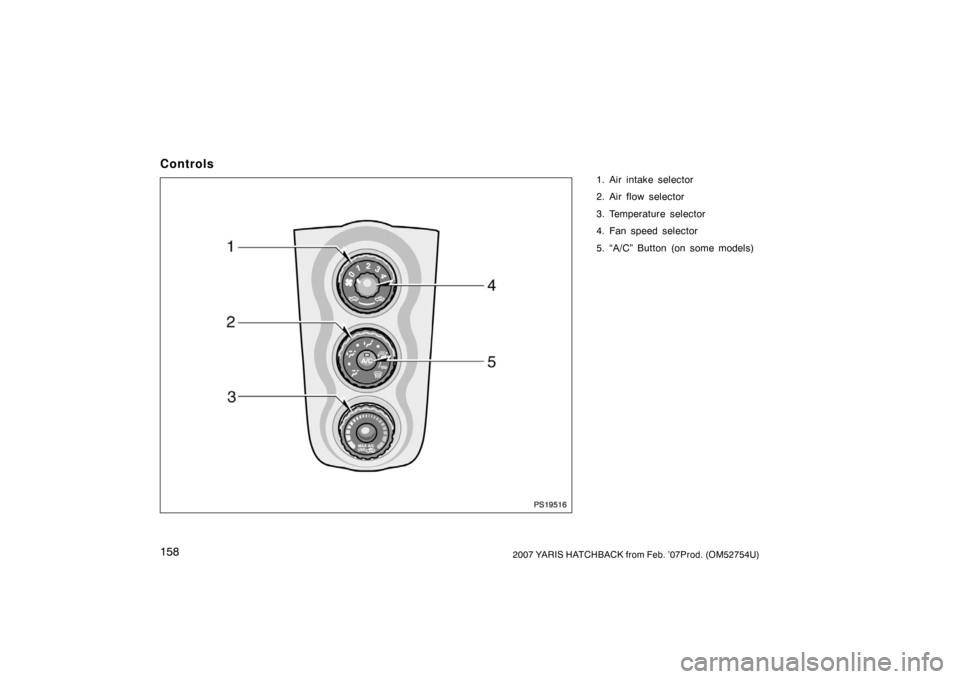

Controls
1. Air intake selector
2. Air flow selector
3. Temperature selector
4. Fan speed selector
5. “A/C” Button (on some models)
PS19516

1592007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
Fan speed selector
Turn the knob to adjust the fan speed—to
the right to increase, to the left to de-
crease.
Temperature selector
Turn the knob to adjust the temperature—
to the right to warm, to the left to cool.

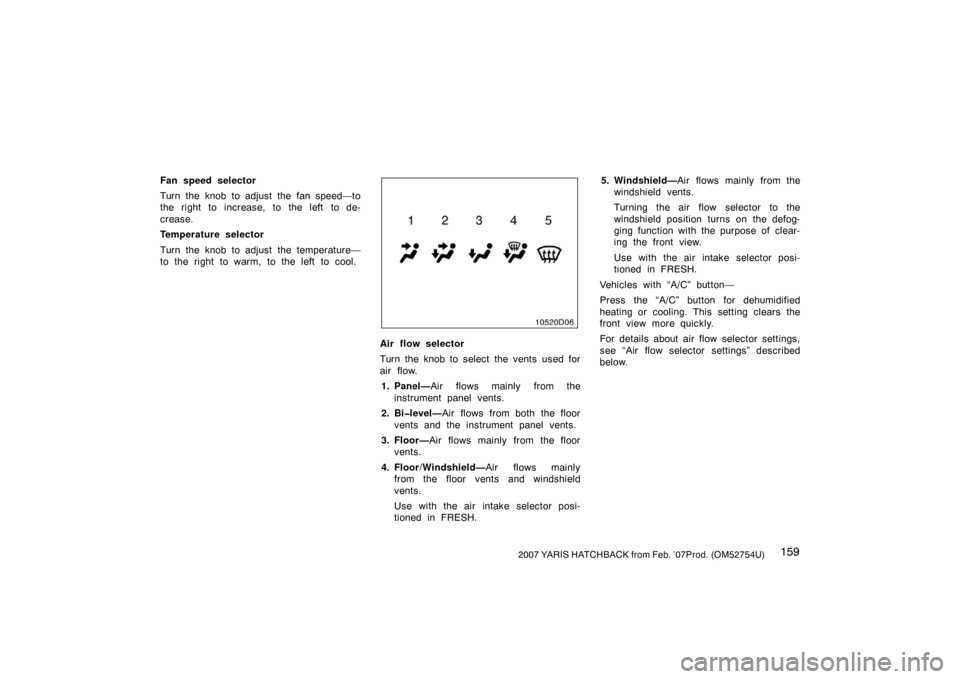

Air flow selector
Turn the knob to select the vents used for
air flow.1. Panel— Air flows mainly from the
instrument panel vents.
2. Bilevel— Air flows from both the floor
vents and the instrument panel vents.
3. Floor— Air flows mainly from the floor
vents.
4. Floor/Windshield— Air flows mainly
from the floor vents and windshield
vents.
Use with the air intake selector posi-
tioned in FRESH. 5. Windshield—
Air flows mainly from the
windshield vents.
Turning the air flow selector to the
windshield position turns on the defog-
ging function with the purpose of clear-
ing the front view.
Use with the air intake selector posi-
tioned in FRESH.
Vehicles with “A/C” button—
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
For details about air flow selector settings,
see “Air flow selector settings” described
below.

1602007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
PS19502
Air intake selector
Turn the knob to select the air source.1. Fresh— Draws outside air into the sys-
tem.
2. Recirculate— Recirculates the air inside
the vehicle. “A/C” button (on some models)
To turn on the air conditioning, press the
“A/C” button. The “A/C” button indicator
will come on. To turn the air conditioning
off, press the button again.
