2007 TOYOTA YARIS Owners Manual

1452007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold the “SCAN” button until
you hear a beep. The radio will tune in
the next preset station up the band, stay
there for 5 seconds, and then move to the
next preset station. To stop scanning,
push this button again.
To scan all the frequencies:
Quickly push and release the “SCAN” but-
ton. The radio will find the next station up
the station band, stay there for 5 seconds,
and then scan again to the next station.
To stop scanning, push this button again.Compact disc player
There are two scan features—you can ei-
ther scan the tracks on a specific disc or
scan the first tracks of all the discs in the
magazine.
Scanning the tracks on a disc:
Quickly push and release the “SCAN” but-
ton. “SCAN” will appear on the display
and the player will scan all the tracks on
the disc you are listening to. To stop
scanning, push this button again. If the
player scanned all the tracks on the disc,
it will stop scanning.
With compact disc changer only—
Scanning the first tracks of all the discs
in the magazine:
Push the “SCAN” button until you hear a
beep. “
·SCAN” will appear on the dis-
play and the player will scan the first
track of the next disc. To stop scanning,
push this button again. If the player has
scanned all the di scs, it will stop scan-
ning. MP3/WMA Player
There are two scan features—you can ei-
ther scan the files in a folder or scan the
first file of all the folders.
Scanning the files in a folder:
Quickly push and release “SCAN”. “SCAN”
will appear on the display and the player
will scan all the files in the folder you are
listening to. To select a file, push “SCAN”
again. If the player scanned all the files
in the folder, it will stop scanning.
Scanning the first file of all the folders:
Push “SCAN” until you hear a beep.
“
” will appear on the display and
the player will scan the first file of the
next folder. To select a folder, push the
“SCAN” again. If the player has scanned
all the folders, it will stop scanning.

1462007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
SEEK/TRACK (Seeking/Track up/down)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek the next station, quickly push and
release “” or “ ” side of the “SEEK/
TRACK” button. Do this again to find the
station after that.
Compact disc player
Use this button to skip up or down to a
different track.
Push “ ” or “ ” side of the “SEEK/
TRACK” button until the number of the
track you want to listen to appears on the
display. If you want to return to the begin-
ning of the current track, quickly push the
down side of the button one time.
MP3/WMA Player
To file up or down to a different file:
Push either side of the “TRACK” several
times until the file you want to listen to
appears on the display. If you want to
return to the beginning of the current file,
push the “ ” side of the button one time,
quickly. To fast forward or reverse the disc:
If you want to fast forward or reverse the
disc, push and hold it until you hear a
beep. When you release the button, the
player will resume playing.
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.
TEXT
Compact Disc Player
This button is used to change the display
for the compact disc that contains text
data.
To change the display, quickly push and
release the “TEXT” while the compact disc
is playing. The display changes in the
order from the elapsed time to disc title
to track title, then back to the elapsed
time.
If this button is pushed while a compact
disc that does not contain text data is
playing, “NO TITLE” will appear on the
display.
If the entire disc or track title does not
appear on the display, push and hold it
until you hear a beep. The rest of the title
(up to 24 letters) will appear.

1472007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
MP3/WMA Player
This button is used to change the display
for the MP3/WMA file that contains text
data.
To change the display, quickly push and
release the “TEXT” while the MP3/WMA
file is playing. The display changes in the
order from the elapsed time to folder
name to file name to album title (MP3 file
only) to track title to artist name, then
back to the elapsed time.
If this button is pushed while a MP3/WMA
file that does not contain text data is play-
ing, “NO TITLE” will appear on the dis-
play.
If the entire text data is not displayed,
push and hold it until you hear a beep.
The rest of the text data will appear.
TUNE·FILE (Tuning and File up/down)
Radio
Turn the knob clockwise to step up the
frequency. Turn the knob counterclockwise
to step down the frequency.
MP3/WMA Player
Turn the knob clockwise to file up. Turn
the knob counterclockwise to file down.NOTICE
To ensure correct audio system op-
erations:
Be careful not to spill beverages
over the audio system.
 Do not put anything other than a
Compact Disc into the slot.
 The use of a cellular phone inside
or near the vehicle may cause a
noise from the speakers of the au-
dio system which you are listening
to. However, this does not indicate
a malfunction.
RADIO RECEPTION
Usually, a problem with radio reception
does not mean there is a problem with
your radio—it is just the normal result of
conditions outside the vehicle.
For example, nearby buildings and terrain
can interfere with FM reception. Power
lines or telephone wires can interfere with
AM signals. And of course, radio signals
have a limited range, and the farther you
are from a station, the weaker its signal
will be. In addition, reception conditions
change constantly as your vehicle moves. Here are some common reception prob-
lems that probably do not indicate a prob-
lem with your radio:
FM
Fading and drifting stations—Generally, the
effective range of FM is about 40 km (25
miles). Once outside this range, you may
notice fading and drifting, which increase
with the distance from the radio transmit-
ter. They are often accompanied by distor-
tion.
Multi
−path—FM signals are reflective,
making it possible for two signals to reach
your antenna at the same time. If this
happens, the signals will cancel each oth-
er out, causing a momentary flutter or
loss of reception.
Static and fluttering—These occur when
signals are blocked by buildings, trees, or
other large objects. Increasing the bass
level may reduce static and fluttering.
Station swapping—If the FM signal you
are listening to is interrupted or weak-
ened, and there is another strong station
nearby on the FM band, your radio may
tune in the second station until the origi-
nal signal can be picked up again.
Audio system operating hints

1482007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
AM
Fading—AM broadcasts are reflected by
the upper atmosphere—especially at night.
These reflected signals can interfere with
those received directly from the radio sta-
tion, causing the radio station to sound
alternately strong and weak.
Station interference—When a reflected sig-
nal and a signal received directly from a
radio station are very nearly the same
frequency, they can interfere with each
other, making it difficult to hear the broad-
cast.
Static—AM is easily affected by external
sources of electrical noise, such as high
tension power lines, lightening, or electri-
cal motors. This results in static.CARING FOR YOUR CASSETTE PLAYER
AND TAPES
For high performance from your cassette
player and tapes:
Clean the tape head and other parts regu-
larly.
A dirty tape head or tape path can
decrease sound quality and tangle your
cassette tapes. The easiest way to
clean them is by using a cleaning tape.
(A wet type is recommended.)
Use high −quality cassettes.
Low −quality cassette tapes can cause
many problems, including poor sound,
inconsistent playing speed, and
constant auto− reversing. They can also
get stuck or tangled in the cassette
player.
Do not use a cassette if it has been
damaged or tangled or if its label is
peeling off.
Do not leave a cassette in the player
if you are not listening to it, especially
if it is hot outside.
Store cassettes in their cases and out
of direct sunlight.
Avoid using cassettes with a total play-
ing time longer than 100 minutes (50
minutes per side). The tape used in
these cassettes is thin and could get
stuck or tangled in the cassette player.

1492007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
CARING FOR YOUR COMPACT DISC
PLAYER AND DISCS
Extremely high temperatures can keep
your compact disc player from working.
On hot days, use the air conditioning
to cool the vehicle interior before you
listen to a disc.
Bumpy roads or other vibrations may
make your compact disc player skip.
If moisture gets into your compact disc
player, you may not hear any sound
even though your compact disc player
appears to be working. Remove the
disc from the player and wait until it
dries.
CAUTION
Compact disc players use an invisible
laser beam which could cause hazard-
ous radiation exposure if directed
outside the unit. Be sure to operate
the player correctly.
XS18016
Use only compact discs marked as
shown above. The following products
may not be playable on your compact
disc player.
Copy−protected CD
CD− ROM
Z17038
Special shaped discs
Z17058
Transparent/tr anslucent discs

1502007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
Z17039
Low quality discs
Z17037
Labeled discs
NOTICE
Do not use special shaped, trans-
parent/translucent, low quality or la-
beled discs such as those shown in
the illustrations. The use of such
discs may damage the player or
changer, or it may be impossible to
eject the discs.
 This system is not designed for use
of Dual Disc. Do not use Dual Disc
because it may cause damage to
the player or changer.
Z17052
Correct Wrong
Handle compact discs carefully, espe-
cially when you are inserting them.
Hold them on the edge and do not
bend them. Avoid getting fingerprints
on them, particularly on the shiny side.
Dirt, scratches, warping, pin holes, or
other disc damage could cause the
player to skip or to repeat a section of
a track. (To see a pin hole, hold the
disc up to the light.)
Remove discs from the compact disc
player when you are not listening to
them. Store them in their plastic cases
away from moisture, heat, and direct
sunlight.

1512007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
Z17053
To clean a compact disc: Wipe it with a
soft, lint−free cloth that has been damp-
ened with water. Wipe in a straight line
from the center to the edge of the disc
(not in circles). Dry it with another soft,
lint −free cloth. Do not use a conventional
record cleaner or anti −static device. MP3/WMA FILES
MP3 is short for MPEG Audio Layer 3
and refers to an audio compression
technology standard.
WMA is short for Windows MediaTM
Audio. WMA is able to compress audio
data to about 1/2 the level of MP3.
The MP3/WMA player allows playback
of MP3/WMA files on CD
−ROM, CD −R
and CD −RW discs.
Disc recordings compatible with level 1
and level 2 of ISO 9660 and with the
Romeo and Joliet file system can be
played back.
When naming a MP3/WMA file, add the
corresponding filename extension
(.mp3/.wma).
The MP3/WMA player plays back files
with the file name extension
(.mp3/.wma) as an MP3/WMA file. To
prevent noise and malfunctions, do not
use this extension for files other than
MP3/WMA files.
It is possible to play back multi −ses-
sion compatible recorded discs.
When playing discs with MP3/WMA
files and audio data (CD −DA) such as
CD− EXTRA and MIXED− MODE CD,
CD− DA only can be played.
Files are compatible with the ID3 Tag
Ver. 1.0, Ver. 1.1, Ver. 2.2 and Ver. 2.3
formats for display of album (disc title),
track (track title) and artist (track art-
ist).
Files are compatible with the WMA Tag
for display of album (disc title), track
(track title) and artist (track artist).
Only when MP3/WMA files of 32, 44.1
and 48 kHz frequencies are played
back, the emphasis function is valid.
(MP3 files: 16, 22.05, 24 kHz sampling
frequencies can be played back.)

1522007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
The sound quality of MP3/WMA files
generally becomes better with higher
bit rates. This product can play record-
ings with bit rates as follows:MP3 files: 64 kbps to 320 kbps
WMA files: 48 kbps to 320 kbps
But in order to be able to enjoy a
certain sound quality, it is recom-
mended to use only discs recorded
with a bit rate of at least 128 kbps.
The MP3/WMA player does not play
back MP3/WMA files from discs record-
er using packet write data transfer
(UDF format). Discs should be re-
corded using “pre −mastering” software
rather than packet −write software.
There is no m3u playlist compatibility.
There is no compatibility with the MP3i
(MP3 interactive) or mp3PRO format.
The MP3/WMA player is compatible
with VBR (Variable Bit Rate).
When playing back files recorded as
VBR (Variable Bit Rate) files, the play
time will not be correctly displayed if
fast −forward or reverse operations are
used.
It is not possible to check folders that
do not include MP3/WMA files.

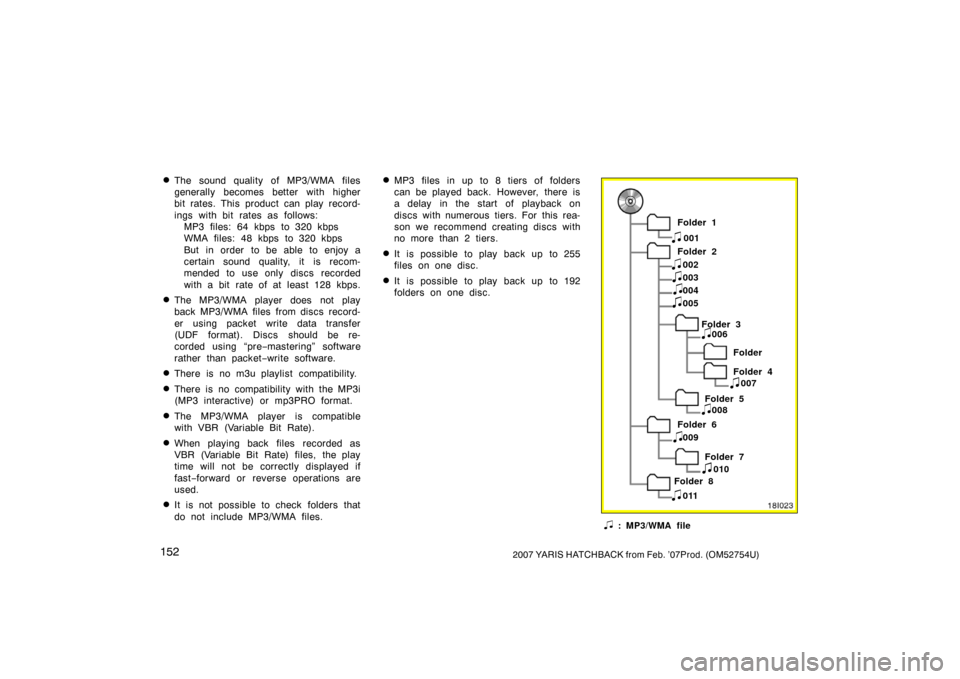

MP3 files in up to 8 tiers of folders
can be played back. However, there is
a delay in the start of playback on
discs with numerous tiers. For this rea-
son we recommend creating discs with
no more than 2 tiers.
It is possible to play back up to 255
files on one disc.
It is possible to play back up to 192
folders on one disc.
18i023
001
002
003
004
005
006
007
008
009
010
011 Folder 1
Folder 3 Folder
Folder 4
Folder 6 Folder 7
Folder 8 Folder 2
Folder 5
: MP3/WMA file
