The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogs up in the rain. However, if
there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.Light bulbsBulb
No.WTy p e
Headlights—60/55A
Parking lights—5E
Front fog lights—55B
Front side marker
lights—5E
Front turn signal
lights—21D
Side turn signal
lights—5F∗
Rear turn signal
lights—21D
Tail/stop and rear
side marker lights—21/5E
Back −up lights—21C
License plate lights—5E
Interior light—8G
Personal light—8E
Luggage
compartment light—5G
∗: Side turn signal lights should be re-
placed as an assembly.
A: HB2 halogen bulbs
B: H11 halogen bulbs
C: Single end bulbs
D: Single end bulbs (amber)
E: Wedge base bulbs
F: Wedge base bulbs (amber)
G: Double end bulbs

2902007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
—Headlights
PS73505
1. Open the hood. Unplug the connec-tor. Remove the rubber cover.
If the connector is tight, wiggle it.
PS73506
2. Release the bulb retaining spring and remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.
PS73507
3. Install the rubber cover as shown and fit it securely on the boss. Plug
in the connector.
Make sure the rubber cover fits securely
on the connector and the headlight body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.

2912007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
If either the left or right front fog, front
side marker lights or LED type high
mounted stoplight burns out, contact your
Toyota dealer.
NOTICE
Do not try to replace the front fog or
front side marker lights by yourself.
You may damage the vehicle.

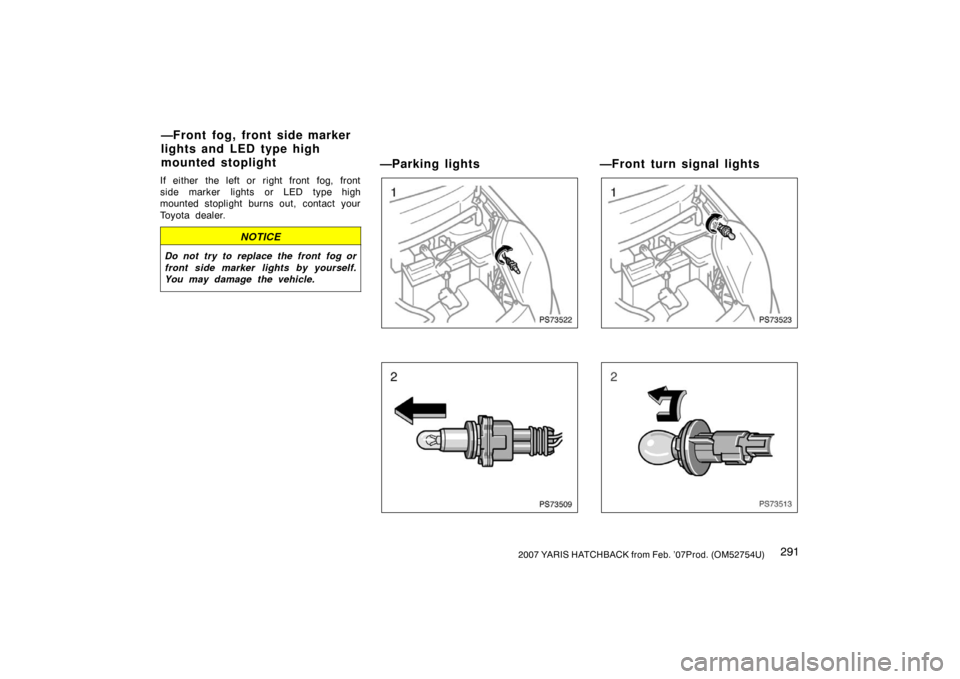

—Parking lights
PS73522
PS73509
—Front turn signal lights
PS73523
PS73513
—Front fog, front side marker
lights and LED type high
mounted stoplight

2922007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)

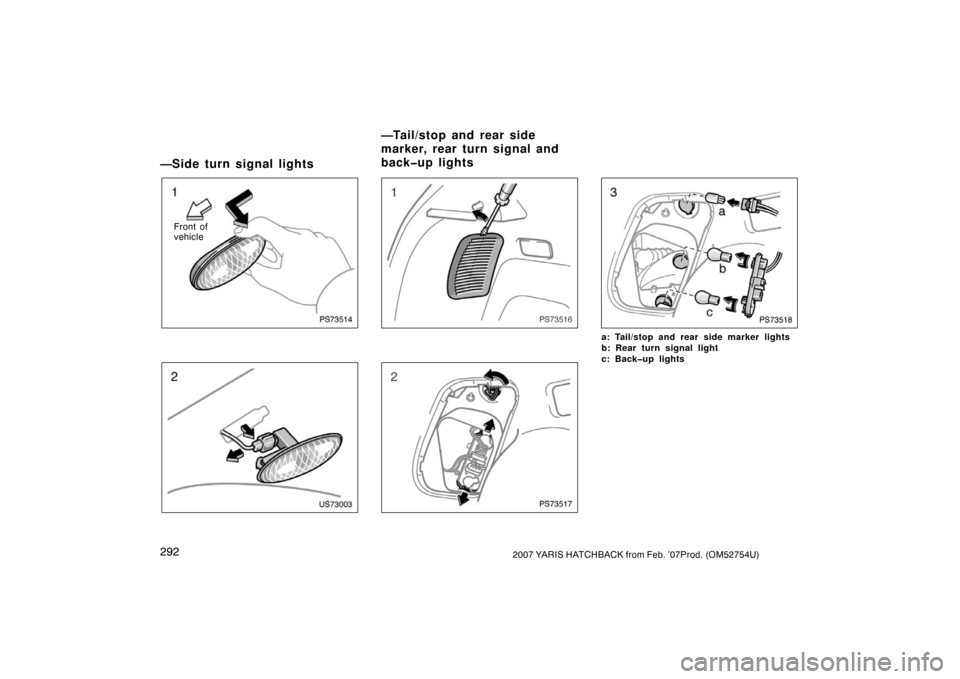

—Side turn signal lights
PS73514
Front of
vehicle
US73003
PS73516
PS73517
PS73518
a: Tail/stop and rear side marker lights
b: Rear turn signal light
c: Backup lights
—Tail/stop and rear side
marker, rear turn signal and
backup lights

2932007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)

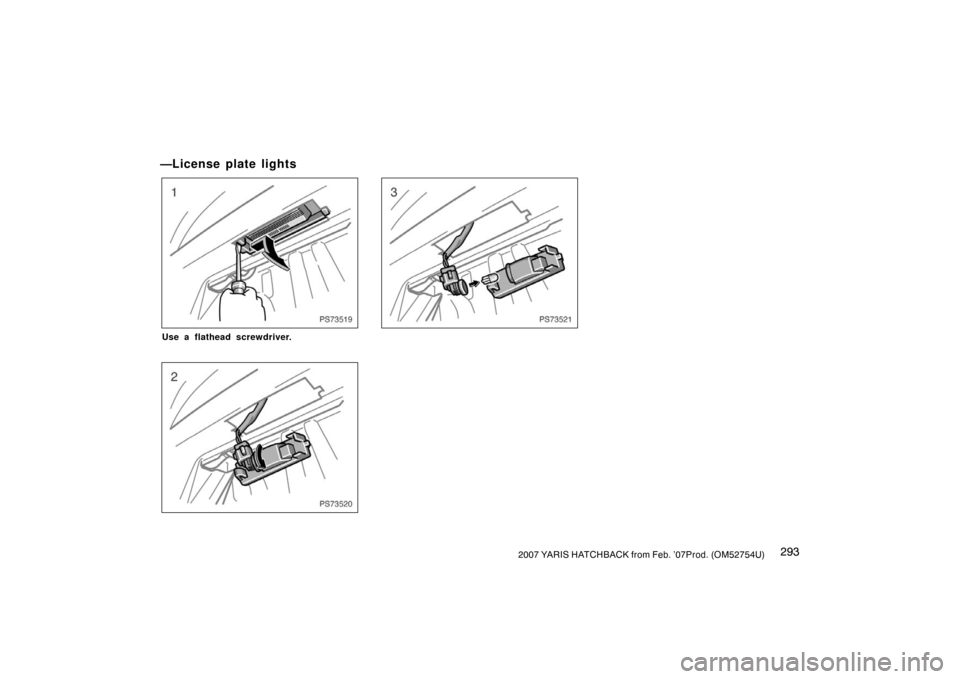

—License plate lights
PS73519
Use a flathead screwdriver.
PS73520
PS73521

2942007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)

2952007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
SPECIFICATIONS
Specifications
Dimensions and weights296
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Engine 296
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 296
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 297
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 299
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 300
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

2962007 YARIS HATCHBACK from Feb. ’07Prod. (OM52754U)
Dimensions and weights
Overall length mm (in.) 3825 (150.6)
Overall width mm (in.) 1695 (66.7)
Overall height mm (in.) 1530 (60.2)
Wheelbase mm (in.) 2460 (96.9)
Front tread mm (in.) 1480 (58.3)
∗1
1470 (57.9)∗2
Rear tread mm (in.) 1470 (57.9)∗1
1460 (57.5)∗2
Vehicle capacity weight
(occupants + luggage)
kg (lb.) 383 (845)
Towing capacity
∗ 3
(trailer + cargo weight) kg (lb.) 318 (700)
∗1: With P175/65R14 81S tires∗2: With P185/60R15 84T tires∗3: For Canada only
Engine
Model:
1.5 L 4 −cylinder (1NZ− FE)
Type: 4 cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.): 75.0  84.7 (2.95  3.33)
Displacement, cm
3 (cu. in.):
1496 (91.3)
Fuel
Fuel type: Unleaded gasoline, Octane Rating 87(Research Octane Number 91) or higher
Fuel tank capacity, L (gal., Imp. gal.): 42 (11.1, 9.2)
