PTC HEATER CONTROL SYSTEM
Refer to XX-XX, "*****".
Is the inspection result normal?
YES >> GO TO 18.
NO >> Replace ambient temperature sensor. Refer to XX.
18.CHECK PTC HEATER RELAY-1 POWER SUPPLY CIRCUIT
1. Disconnect PTC heater connector.
2. Reconnect all PTC relays.
3. Start the engine (1,000 RPM minimum).
4. Check voltage between PTC heater harness connector E65 ter-
minal 3 and ground.
Is the inspection result normal?
YES >> GO TO 19.
NO >> Repair harness or connector.
19.CHECK PTC HEATER RELAY-2 POWER SUPPLY CIRCUIT
Check voltage between PTC heater harness connector E65 terminal
2 and ground.
Is the inspection result normal
YES >> GO TO 20.
NO >> Repair harness or connector.
20.CHECK PTC HEATER RELAY-3 POWER SUPPLY CIRCUIT
Check voltage between PTC heater harness connector E65 terminal
1 and ground.
Is the inspection result normal
YES >> Replace PTC heater. Refer to XXXX.
NO >> Repair harness or connector.
PTC HEATER (1500 WATT) : PTC Heater (1500 Watt) Component Inspection
INFOID:0000000001682733
COMPONENT INSPECTION
Blower Relay
Te r m i n a l s
Vol tag e
(Approx.) (+) (−)
Connector Terminal
Ground
PTC heater: E65 3 Battery voltage
AWIIA0472ZZ
Te r m i n a l s
Vol tag e
(Approx.) (+) (−)
Connector Terminal
Ground
PTC heater: E65 2 Battery voltage
AWIIA0474ZZ
Te r m i n a l s
Vol tag e
(Approx.) (+) (−)
Connector Terminal
Ground
PTC heater: E65 1 Battery voltage
AWIIA0476ZZ

INSUFFICIENT COOLING
HAC-73
< SYMPTOM DIAGNOSIS >[MANUAL AIR CONDITIONER]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
INSUFFICIENT COOLING
Component Function CheckINFOID:0000000001547073
SYMPTOM: Insufficient cooling
INSPECTION FLOW
1.CONFIRM SYMPTOM BY PERFORMING OPERATIONAL CHECK - TEMPERATURE DECREASE
1. Turn temperature control dial counterclockwise to maximum cold position.
2. Check for cold air at discharge air outlets.
Can the symptom be duplicated?
YES >> GO TO 3.
NO >> GO TO 2.
2.CHECK FOR ANY SYMPTOMS
Perform a complete operational check for any symptoms. Refer to HAC-6, "
Operational Check".
Does another symptom exist?
YES >> Refer to HAC-5, "How to Perform Trouble Diagnosis For Quick and Accurate Repair".
NO >> System OK.
3.CHECK FOR SERVICE BULLETINS
Check for any service bulletins.
>> GO TO 4.
4.CHECK COMPRESSOR DRIVE BELT TENSION
Check compressor belt tension. Refer to EM-15, "
Checking" (HR16DE) or EM-142, "Checking Drive Belts"
(MR18DE), or EM-263, "Inspection and Adjustment" (K9K).
OK or NG
OK >> GO TO 5.
NG >> Adjust or replace compressor belt. Refer to EM-15, "
Checking" (HR16DE) or EM-142, "Checking
Drive Belts" (MR18DE), or EM-263, "Inspection and Adjustment" (K9K)
5.CHECK AIR MIX DOOR CABLE
Check and verify air mix door cable operation. Refer to XXXX AIR MIX DOOR CABLE ADJUST.
Does air mix door operate correctly?
YES >> GO TO 6.
NO >> Repair or replace as necessary.
6.CHECK COOLING FAN MOTOR OPERATION
Check and verify cooling fan motor for smooth operation. Refer to XX-XX, "*****".
Does cooling fan motor operate correctly?
YES >> GO TO 7.
NO >> Check cooling fan motor. Refer to XX-XX, "*****".
7.CHECK FOR EVAPORATOR FREEZE UP
Start engine and run A/C. Check for evaporator freeze up.
Does evaporator freeze up?
YES >> Perform performance test diagnoses. Refer to "PERFORMANCE TEST DIAGNOSIS".
NO >> GO TO 8.
8.CHECK REFRIGERANT PRESSURE
Check refrigerant pressure with manifold gauge connected. Refer to "Test Reading".
OK or NG
OK >> GO TO 9.
NG >> Perform performance test diagnoses. Refer to "PERFORMANCE TEST DIAGNOSIS".

HAC-76
< SYMPTOM DIAGNOSIS >[MANUAL AIR CONDITIONER]
INSUFFICIENT COOLING
Testing must be performed as follows:
Test Reading
Recirculating-to-discharge Air Temperature Table
Ambient Air Temperature-to-operating Pressure Table
*1: With blower control dial in the "1" position
*2: With blower control dial in the "4" position.
Test ReadingINFOID:0000000001547076
Recirculating-to-discharge Air Temperature Table
Vehicle condition Indoors or in the shade (in a well-ventilated place)
Doors Closed
Door window Open
Hood Open
TEMP. Max. COLD
Mode control dial
(Ventilation) set
Intake door lever
(Recirculation) set
Blower speedMax. speed set
Engine speed Idle speed
Operate the air conditioning system for 10 minutes before taking measurements.
Inside air (Recirculating air) at blower assembly inlet
Discharge air temperature at center ventilator
°C (°F) Relative humidity
%Air temperature
°C (°F)
50 - 6020 (68) 7.2 - 9.1 (45 - 48)
25 (77) 11.4 - 13.8 (53 - 57)
30 (86) 15.5 - 18.4 (60 - 65)
35 (95) 20.3 - 23.7 (69 - 75)
60 - 7020 (68) 9.1 - 10.9 (48 - 52)
25 (77) 13.8 - 16.2 (57 - 61)
30 (86) 18.4 - 21.3 (65 - 70)
35 (95) 23.7 - 27.1 (75 - 81)
Ambient air
High-pressure (Discharge side)
kPa (bar, kg/cm
2 , psi)Low-pressure (Suction side)
kPa (bar, kg/cm2 , psi) Relative humidity
%Air temperature
°C (°F)
50 - 7020 (68)843 - 1,036 *1
(11.08 - 13.63, 8.6 - 10.6, 122 - 150)159.0 - 194.0
(1.59 - 1.94, 1.62 - 1.98, 23.1 - 28.1)
25 (77)1,094 - 1,338 *1
(10.94 - 13.38, 11.2 - 13.6, 159 - 194)196.3 - 240.0
(1.96 - 2.40, 2.00 - 2.45, 28.5 - 34.8)
30 (86)1,298 - 1,590 *1
(12.98 - 15.90, 13.2 - 16.2, 188 - 231)248.0 - 302.7
(2.48 - 3.03, 2.53 - 3.09, 36.0 - 43.9)
35 (95)1,383 - 1,688 *2
(13.83 - 16.88, 14.1 - 17.2, 201 - 245)308.8 - 377.4
(3.09 - 3.77, 3.15 - 3.85, 44.8 - 54.7)
40 (104)1,628 - 1,988 *2
(16.28 - 19.88, 16.6 - 20.3, 236 - 288)377.4 - 461.2
(3.77 - 4.61, 3.85 - 4.70, 54.7 - 66.8)

INSUFFICIENT HEATING
HAC-81
< SYMPTOM DIAGNOSIS >[MANUAL AIR CONDITIONER]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
INSUFFICIENT HEATING
Component Function CheckINFOID:0000000001547078
SYMPTOM: Insufficient heating
INSPECTION FLOW
1.CONFIRM SYMPTOM BY PERFORMING OPERATIONAL CHECK - TEMPERATURE DECREASE
1. Turn temperature control dial clockwise to maximum heat position.
2. Check for hot air at discharge air outlets.
Can the symptom be duplicated?
YES >> GO TO 3.
NO >> GO TO 2.
2.CHECK FOR ANY SYMPTOMS
Perform a complete operational check for any symptoms. Refer to HAC-6, "
Operational Check".
Does another symptom exist?
YES >> Refer to HAC-5, "How to Perform Trouble Diagnosis For Quick and Accurate Repair" .
NO >> System OK.
3.CHECK FOR SERVICE BULLETINS
Check for any service bulletins.
>> GO TO 4.
4.CHECK COOLANT SYSTEM
1. Check engine coolant level. Refer to XX-XX, "*****" .
2. Check hoses for leaks or kinks.
3. Check Radiator cap. Refer to XX-XX, "*****" .
OK or NG
OK >> GO TO 5.
NG >> Repair/replace as necessary.
5.CHECK AIR MIX DOOR CABLE
Check air mix door cable operation. Refer to XXXX AIR MIX DOOR CABLE ADJUSTMENT .
OK or NG
YES >> GO TO 6.
NO >> Adjust or replace air mix door cable. Refer to XXXX AIR MIX DOOR CABLE ADJUST. .
6.CHECK AIR DUCTS
Check ducts for air leaks.
OK or NG
OK >> GO TO 7.
NG >> Repair air leaks.
7.CHECK HEATER HOSE TEMPERATURES
1. Start engine and warm it up to normal operating temperature.
2. Touch both the inlet and outlet heater hoses.
Is the inlet hose hot and the outlet hose warm?
YES >> GO TO 8.
NO >> Both hoses warm: GO TO 9.
8.CHECK ENGINE COOLANT TEMPERATURE SENSOR
Check engine control temperature sensor. Refer to XX-XX, "*****" .
OK or NG
OK >> System OK.

INSPECTION AND ADJUSTMENT
HAC-87
< BASIC INSPECTION >[AUTO AIR CONDITIONER (W/O NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
INSPECTION AND ADJUSTMENT
Operational CheckINFOID:0000000001547386
The purpose of the operational check is to confirm that the system operates properly.
CHECKING MEMORY FUNCTION
1. Press temperature control switch (UP: ) until 32°C is displayed.
2. Press OFF switch.
3. Turn the ignition switch OFF.
4. Turn the ignition switch ON.
5. Press the AUTO switch.
6. Confirm that the set temperature remains at previous temperature.
7. Press OFF switch.
If NG, go to trouble diagnosis procedure for HAC-198, "
Memory Function Check".
If OK, continue the check.
CHECKING BLOWER
1. Press blower motor switch (UP: ). Blower should operate on low speed. The fan symbol should have one
blade lit.
2. Press blower motor switch (UP: ), and continue checking blower speed and fan symbol until all speeds
are checked.
3. Leave blower on max. speed.
If NG, go to trouble diagnosis procedure for HAC-120, "
Front Blower Motor Diagnosis Procedure".
If OK, continue the check.
CHECKING DISCHARGE AIR
1. Press MODE switch and DEF switch.
2. Each position indicator should change shape.
3. Confirm that discharge air comes out according to the air distribution table. Refer to HAC-94, "
Discharge
Air Flow".
Intake door position is checked in the next step.
If NG, go to trouble diagnosis procedure for HAC-109, "
Mode Door Motor Diagnosis Procedure".
If OK, continue the check.
NOTE:
Confirm that the compressor clutch is engaged (sound or visual inspection) and intake door position is at
FRESH when the DEF is selected.
CHECKING RECIRCULATION
1. Press recirculation (REC) switch one time. Recirculation LED should illuminate.
2. Press fresh (FRE) switch one time. Fresh LED should illuminate.
3. Listen for intake door position change (you should hear blower sound change slightly).
If NG, go to trouble diagnosis procedure for HAC-116, "
Intake Door Motor Diagnosis Procedure".
If OK, continue the check.
CHECKING TEMPERATURE INCREASE
1. Press temperature control switch (UP: ) until 32°C is displayed.
2. Check for hot air at discharge air outlets.
If NG, go to trouble diagnosis procedure for HAC-193, "
Component Function Check".
If OK, continue the check.
CHECKING TEMPERATURE DECREASE
1. Press temperature control switch (DOWN: ) until 18°C is displayed. Conditions : Engine running at usual operating temperature

HAC-98
< FUNCTION DIAGNOSIS >[AUTO AIR CONDITIONER (W/O NAVI)]

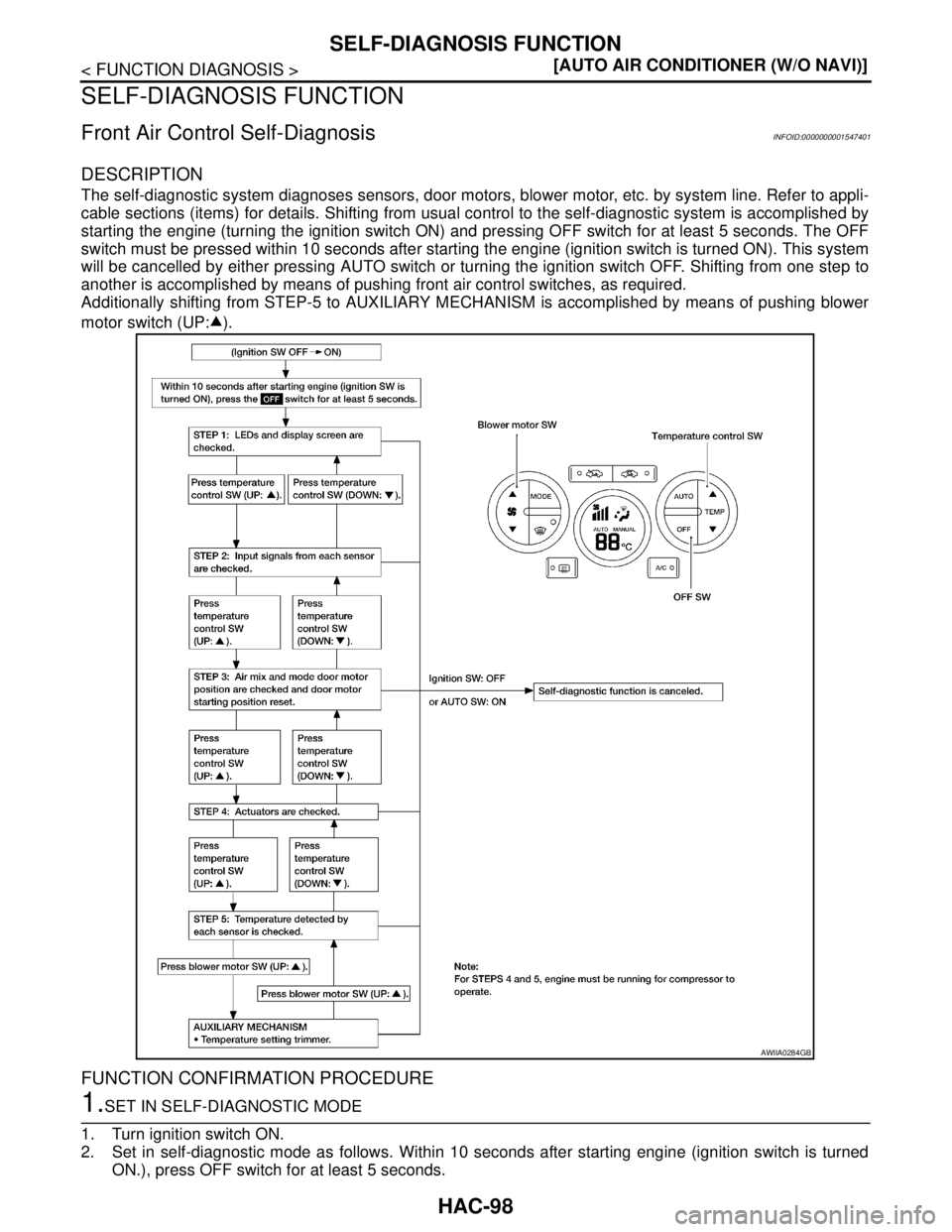

SELF-DIAGNOSIS FUNCTION
SELF-DIAGNOSIS FUNCTION
Front Air Control Self-DiagnosisINFOID:0000000001547401
DESCRIPTION
The self-diagnostic system diagnoses sensors, door motors, blower motor, etc. by system line. Refer to appli-
cable sections (items) for details. Shifting from usual control to the self-diagnostic system is accomplished by
starting the engine (turning the ignition switch ON) and pressing OFF switch for at least 5 seconds. The OFF
switch must be pressed within 10 seconds after starting the engine (ignition switch is turned ON). This system
will be cancelled by either pressing AUTO switch or turning the ignition switch OFF. Shifting from one step to
another is accomplished by means of pushing front air control switches, as required.
Additionally shifting from STEP-5 to AUXILIARY MECHANISM is accomplished by means of pushing blower
motor switch (UP: ).
FUNCTION CONFIRMATION PROCEDURE
1.SET IN SELF-DIAGNOSTIC MODE
1. Turn ignition switch ON.
2. Set in self-diagnostic mode as follows. Within 10 seconds after starting engine (ignition switch is turned
ON.), press OFF switch for at least 5 seconds.
AWIIA0284GB

SELF-DIAGNOSIS FUNCTION
HAC-99
< FUNCTION DIAGNOSIS >[AUTO AIR CONDITIONER (W/O NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P

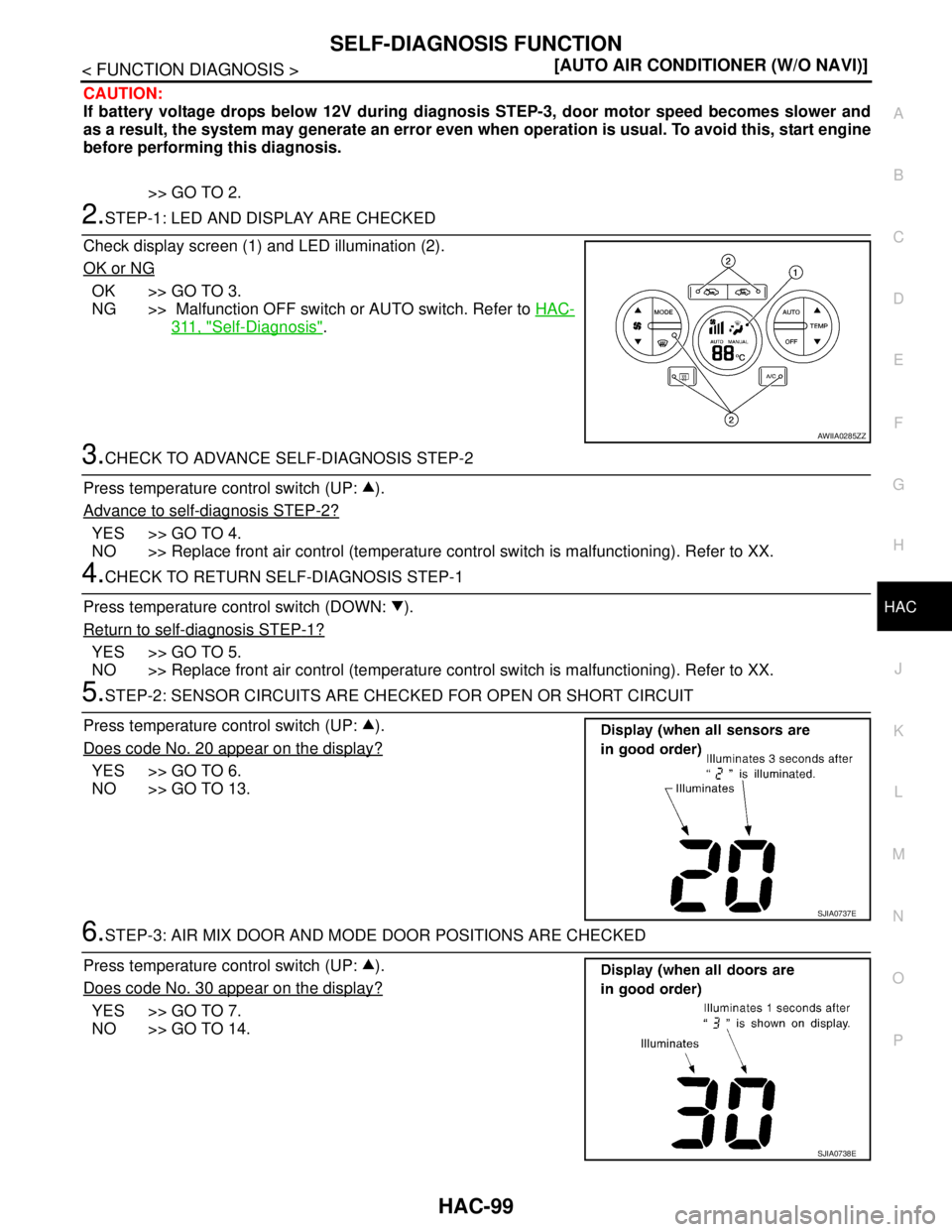

CAUTION:
If battery voltage drops below 12V during diagnosis STEP-3, door motor speed becomes slower and
as a result, the system may generate an error even when operation is usual. To avoid this, start engine
before performing this diagnosis.
>> GO TO 2.
2.STEP-1: LED AND DISPLAY ARE CHECKED
Check display screen (1) and LED illumination (2).
OK or NG
OK >> GO TO 3.
NG >> Malfunction OFF switch or AUTO switch. Refer to HAC-
311, "Self-Diagnosis".
3.CHECK TO ADVANCE SELF-DIAGNOSIS STEP-2
Press temperature control switch (UP: ).
Advance to self
-diagnosis STEP-2?
YES >> GO TO 4.
NO >> Replace front air control (temperature control switch is malfunctioning). Refer to XX.
4.CHECK TO RETURN SELF-DIAGNOSIS STEP-1
Press temperature control switch (DOWN: ).
Return to self
-diagnosis STEP-1?
YES >> GO TO 5.
NO >> Replace front air control (temperature control switch is malfunctioning). Refer to XX.
5.STEP-2: SENSOR CIRCUITS ARE CHECKED FOR OPEN OR SHORT CIRCUIT
Press temperature control switch (UP: ).
Does code No. 20 appear on the display?
YES >> GO TO 6.
NO >> GO TO 13.
6.STEP-3: AIR MIX DOOR AND MODE DOOR POSITIONS ARE CHECKED
Press temperature control switch (UP: ).
Does code No. 30 appear on the display?
YES >> GO TO 7.
NO >> GO TO 14.
AWIIA0285ZZ
SJIA0737E
SJIA0738E

HAC-118
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/O NAVI)]
BLOWER MOTOR CONTROL SYSTEM
BLOWER MOTOR CONTROL SYSTEM
System DescriptionINFOID:0000000001547417
SYSTEM DESCRIPTION
Component Parts
Fan speed control system components are: Front air control
 In-vehicle sensor
 Ambient sensor
 Sunload sensor
 Intake sensor
System Operation
Automatic Mode
In the automatic mode, the blower motor speed is calculated by the front air control based on input from in-
vehicle sensor, sunload sensor, intake sensor and ambient sensor.
The blower motor is applied voltage ranges from approximately 3.0 volts (lowest speed) to 12 volts (highest
speed).
The control blower speed (in the range of 3.0 to 12V), front air control supplies a gate voltage to the power
transistor. Based on this voltage, front air control controls voltage supplied to the blower motor.
Starting Fan Speed Control
Start up from COLD SOAK Condition (Automatic mode)
In a cold start up condition where the engine coolant temperature is below 56°C, the blower will not operate for
a short period of time (up to 150 seconds). The exact start delay time varies depending on the ambient and
engine coolant temperature.
In the most extreme case (very low ambient) the blower starting delay will be 150 seconds as described
above. After this delay, the blower will operate at low speed until the engine coolant temperature rises above
56°C, at which time the blower speed will increase to the objective speed.
Start up from usual or HOT SOAK Condition (Automatic mode)
The blower will begin operation momentarily after the A/C switch is pushed. The blower speed will gradually
rise to the objective speed over a time period of 3 seconds or less (actual time depends on the objective
blower speed).
Blower Speed Compensation
Sunload
When the in-vehicle temperature and the set temperature are very close, the blower will be operating at low
speed. The low speed will vary depending on the sunload. During conditions of low or no sunload, the blower

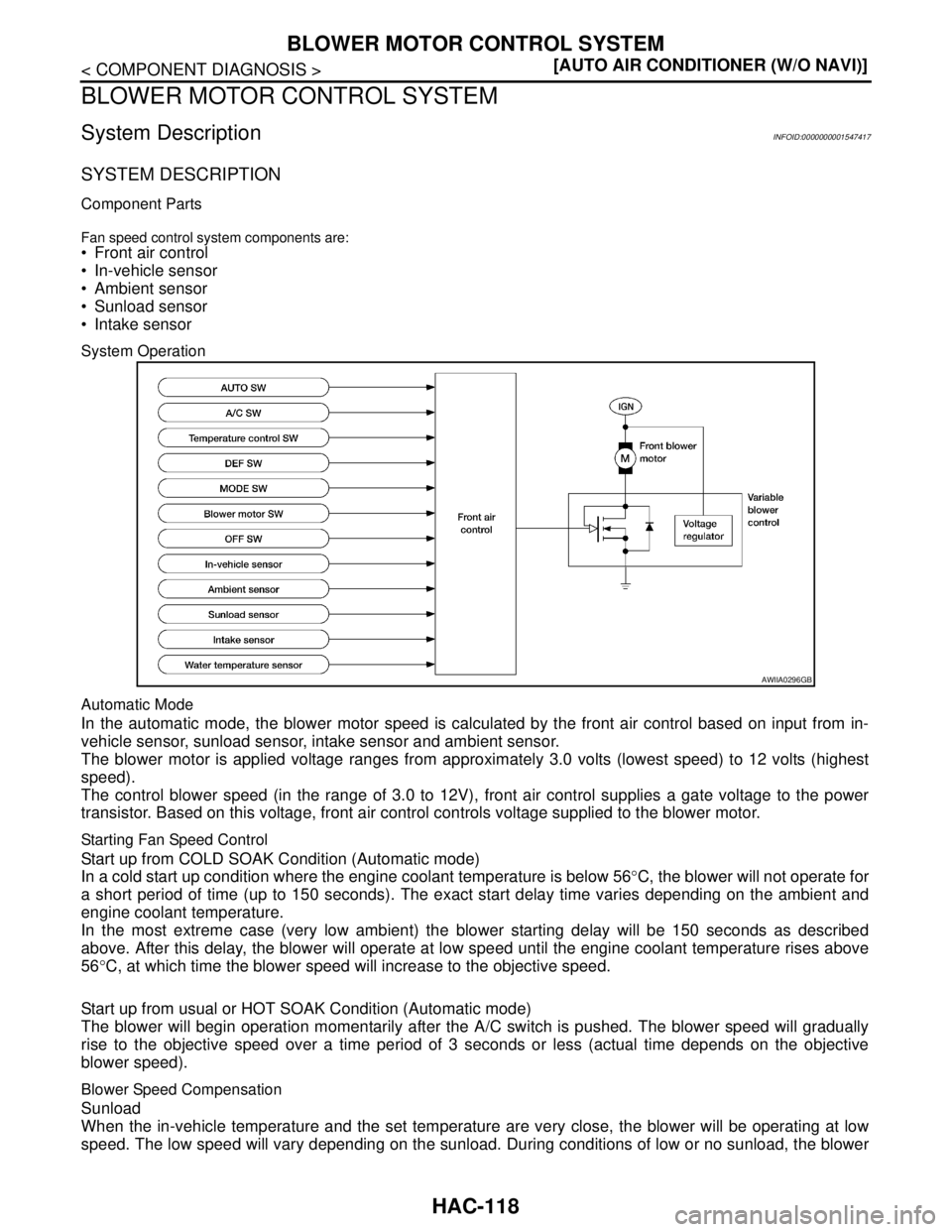

AWIIA0296GB
