2007 NISSAN TIIDA EC Engine Control System

INSUFFICIENT HEATING
HAC-193
< SYMPTOM DIAGNOSIS >[AUTO AIR CONDITIONER (W/O NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
INSUFFICIENT HEATING
Component Function CheckINFOID:0000000001547457
SYMPTOM: Insufficient heating
INSPECTION FLOW
1.CONFIRM SYMPTOM BY PERFORMING OPERATIONAL CHECK - TEMPERATURE INCREASE
1. Press the AUTO switch.
2. Turn the temperature control dial (driver) clockwise until 32° C (90° F) is displayed.
3. Check for hot air at discharge air outlets.
Can this symptom be duplicated?
YES >> GO TO 2.
NO >> Perform complete system operational check. Refer to HAC-87, "
Operational Check".
2.CHECK FOR SERVICE BULLETINS
Check for any service bulletins.
>> GO TO 3.
3.PERFORM SELF-DIAGNOSIS
Perform self-diagnosis. Refer to HAC-98, "
Front Air Control Self-Diagnosis".
Is the inspection results normal?
YES >> GO TO 4.
NO >> Refer to HAC-197, "
Self-Diagnosis".
4.CHECK ENGINE COOLING SYSTEM
1. Check for proper engine coolant level. Refer to XX-XX, "*****"
.
2. Check hoses for leaks or kinks.
3. Check radiator cap. Refer to XX-XX, "*****"
.
4. Check for air in cooling system.
>> GO TO 5.
5.CHECK AIR MIX DOOR OPERATION
Check the operation of the air mix door.
Is the inspection result normal?
YES >> GO TO 6.
NO >> Check the air mix door motor circuit. Refer to HAC-112, "
Air Mix Door Motor Diagnosis Proce-
dure".
6.CHECK AIR DUCTS
Check for disconnected or leaking air ducts.
Is the inspection result normal?
YES >> GO TO 7.
NO >> Repair all disconnected or leaking air ducts.
7.CHECK HEATER HOSE TEMPERATURES
1. Start engine and warm it up to normal operating temperature.
2. Touch both the inlet and outlet heater hoses.
Is the inspection result normal?
YES >> Hot inlet hose and a warm outlet hose: GO TO 8.
NO >> Both hoses warm: GO TO 9.
8.CHECK ENGINE COOLANT SYSTEM
Check engine control temperature sensor. Refer to XX-XX, "*****"
.
Is the inspection result normal?

HAC-202
< BASIC INSPECTION >[AUTO AIR CONDITIONER (W/NAVI)]
INSPECTION AND ADJUSTMENT
INSPECTION AND ADJUSTMENT
Operational CheckINFOID:0000000001547306
The purpose of the operational check is to confirm that the system operates properly.
CHECKING BLOWER
1. Turn blower control dial to 1st speed. Blower should operate on low speed.
2. Turn blower control dial to 2nd speed, and continue checking blower motor until all speed are checked.
3. Leave blower on max. speed.
If NG, go to trouble diagnosis procedure for HAC-234, "
Front Blower Motor Diagnosis Procedure".
If OK, continue the check.
CHECKING DISCHARGE AIR
1. Turn mode control dial to each position.
2. Confirm that discharge air comes out according to the air distribution table. Refer to HAC-208, "
Discharge
Air Flow".
Intake door position is checked in the next step.
If NG, go to trouble diagnosis procedure for HAC-222, "
Mode Door Motor Diagnosis Procedure".
If OK, continue the check.
NOTE:
Confirm that the compressor clutch is engaged (sound or visual inspection) and intake door position is at
FRESH when the DEF is selected.
CHECKING INTAKE DOOR
1. Press intake switch. Recirculation indicator should illuminate.
2. Press intake switch again. Fresh indicator should illuminate.
3. Listen for intake door position change (you should hear blower sound change slightly).
If NG, go to trouble diagnosis procedure for HAC-230, "
Intake Door Motor Diagnosis Procedure".
If OK, continue the check.
CHECKING TEMPERATURE DECREASE
1. Turn temperature control dial counterclockwise until 18°C (64°F).
2. Check for cold air at discharge air outlets.
If NG, go to trouble diagnosis procedure for HAC-299, "
Component Function Check".
If OK, continue the check.
CHECKING TEMPERATURE INCREASE
1. Turn temperature control dial clockwise until 32°C (90°F).
2. Check for hot air at discharge air outlets.
If NG, go to trouble diagnosis procedure for HAC-307, "
Component Function Check".
If OK, continue the check.
CHECKING A/C SWITCH
1. Turn blower control dial to ON.
2. Press A/C switch.
3. A/C switch indicator will turn ON.
 Confirm that the compressor clutch engages (sound or visual inspection).
If NG, go to trouble diagnosis procedure for HAC-239, "
Magnet Clutch Diagnosis Procedure".
If OK, continue the check.
CHECKING AUTO MODE
1. Set mode control dial and blower control dial to AUTO position.
2. Press A/C switch.Conditions : Engine running at usual operating temperature

SELF-DIAGNOSIS FUNCTION
HAC-213
< FUNCTION DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
SELF-DIAGNOSIS FUNCTION
Front Air Control Self-DiagnosisINFOID:0000000001547321
DESCRIPTION
The self-diagnostic system diagnoses sensors, door motors, blower motor, etc. by system line. Refer to appli-
cable sections (items) for details. Shifting from usual control to the self-diagnostic system is accomplished by
starting the engine (turning the ignition switch ON) and pressing intake switch for at least 5 seconds. The
intake switch must be pressed within 10 seconds after starting the engine (ignition switch is turned ON). This
system will be cancelled by either pressing A/C switch or turning the ignition switch OFF. Shifting from one
step to another is accomplished by means of turning blower control dial, as required.

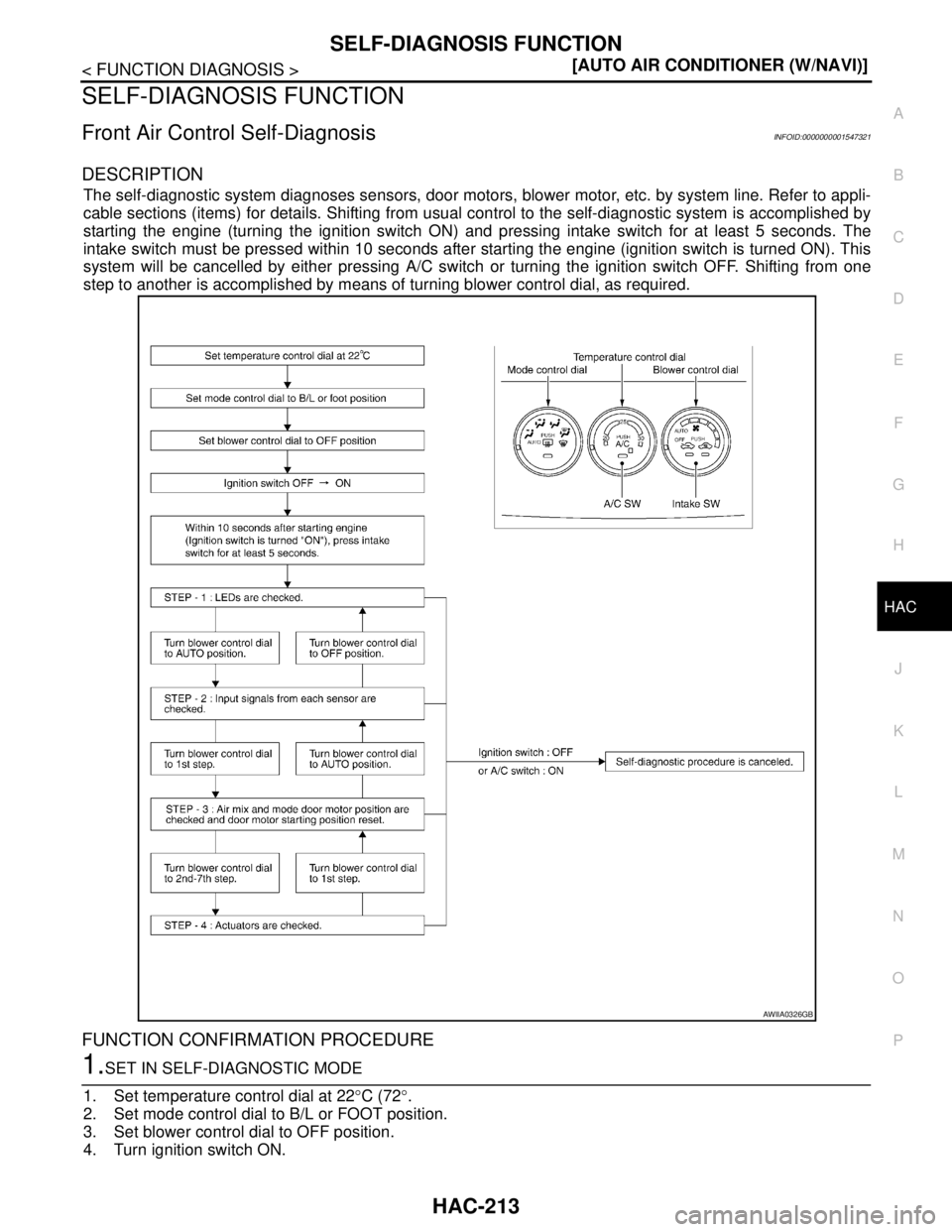

FUNCTION CONFIRMATION PROCEDURE
1.SET IN SELF-DIAGNOSTIC MODE
1. Set temperature control dial at 22°C (72°.
2. Set mode control dial to B/L or FOOT position.
3. Set blower control dial to OFF position.
4. Turn ignition switch ON.
AWIIA0326GB

HAC-214
< FUNCTION DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
SELF-DIAGNOSIS FUNCTION
5. Set in self-diagnostic mode as follows. Within 10 seconds after starting engine (ignition switch is turned
ON.), press intake switch for at least 5 seconds.
CAUTION:
If battery voltage drops below 12V during diagnosis STEP-3, door motor speed becomes slower and
as a result, the system may generate an error even when operation is usual. To avoid this, start engine
before performing this diagnosis.
>> GO TO 2.
2.STEP-1: LEDS ARE CHECKED
1. Check rear defogger switch, A/C switch and intake switch LEDs illumination.
2. Check indicator LEDs illumination.
OK or NG
OK >> GO TO 3.
NG >>  Does not illuminate rear defogger switch, A/C switch
and intake switch LEDs illumination. Refer to HAC-
311, "Self-Diagnosis".
3.STEP-2: CHECK TO ADVANCE SELF-DIAGNOSIS STEP-2
Turn blower control dial to AUTO position.
CAUTION:
When switched to STEP-2, LEDs of FRE and REC position blinks for approximately 5 seconds.
Check intake switch (FRE, REC) indicator LEDs illumination
OK >> GO TO 4.
NG >> Replace front air control (Blower control dial is malfunctioning.)
4.CHECK TO RETURN SELF-DIAGNOSIS STEP-1
Turn blower control dial to OFF position.
Return to self
-diagnosis STEP-1?
YES >> GO TO 5.
NO >> Replace front air control (Blower control dial is malfunctioning.)
5.STEP-2: SENSOR CIRCUIT ARE CHECKED
1. Turn blower control dial to AUTO position.
CAUTION:
When switched to STEP-2, LEDs of FRE and REC position blinks for approximately 5 seconds.
2. Check intake switch (FRE, REC) indicator LEDs illumination.
OK or NG
OK >> GO TO 6.
NG >> GO TO 9.
6.STEP-3: AIR MIX DOOR AND MODE DOOR MOTOR ARE CHECKED
AWIIA0327GB
AWIIA0328GB

HAC-232
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
BLOWER MOTOR CONTROL SYSTEM
BLOWER MOTOR CONTROL SYSTEM

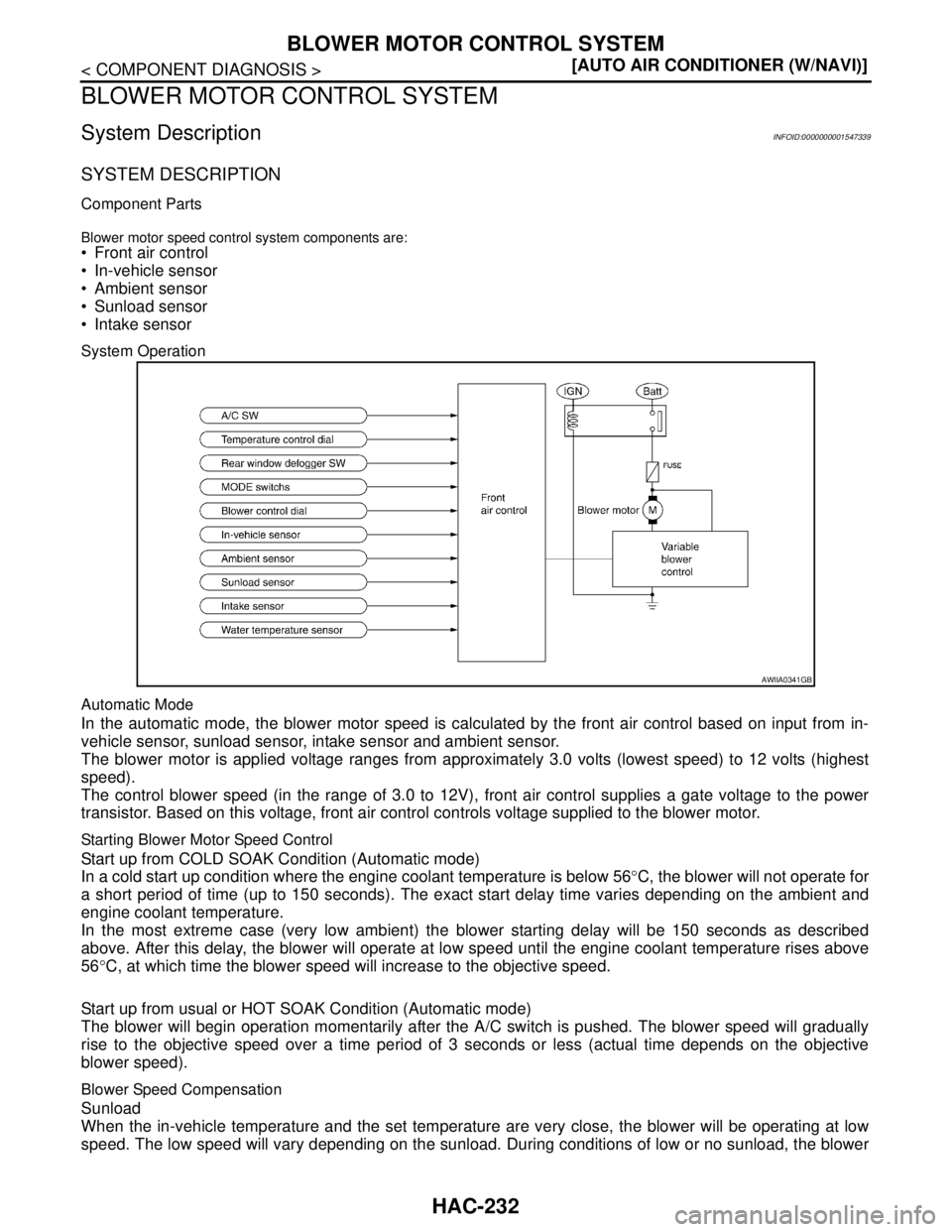

System DescriptionINFOID:0000000001547339
SYSTEM DESCRIPTION
Component Parts
Blower motor speed control system components are: Front air control
 In-vehicle sensor
 Ambient sensor
 Sunload sensor
 Intake sensor
System Operation
Automatic Mode
In the automatic mode, the blower motor speed is calculated by the front air control based on input from in-
vehicle sensor, sunload sensor, intake sensor and ambient sensor.
The blower motor is applied voltage ranges from approximately 3.0 volts (lowest speed) to 12 volts (highest
speed).
The control blower speed (in the range of 3.0 to 12V), front air control supplies a gate voltage to the power
transistor. Based on this voltage, front air control controls voltage supplied to the blower motor.
Starting Blower Motor Speed Control
Start up from COLD SOAK Condition (Automatic mode)
In a cold start up condition where the engine coolant temperature is below 56°C, the blower will not operate for
a short period of time (up to 150 seconds). The exact start delay time varies depending on the ambient and
engine coolant temperature.
In the most extreme case (very low ambient) the blower starting delay will be 150 seconds as described
above. After this delay, the blower will operate at low speed until the engine coolant temperature rises above
56°C, at which time the blower speed will increase to the objective speed.
Start up from usual or HOT SOAK Condition (Automatic mode)
The blower will begin operation momentarily after the A/C switch is pushed. The blower speed will gradually
rise to the objective speed over a time period of 3 seconds or less (actual time depends on the objective
blower speed).
Blower Speed Compensation
Sunload
When the in-vehicle temperature and the set temperature are very close, the blower will be operating at low
speed. The low speed will vary depending on the sunload. During conditions of low or no sunload, the blower
AWIIA0341GB

HAC-256
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
PTC HEATER CONTROL SYSTEM
PTC HEATER CONTROL SYSTEM
PTC HEATER (300 WATT)
PTC HEATER (300 WATT) : PTC Heater System DescriptionINFOID:0000000001548105
SYSTEM DESCRIPTION
The PTC heater system is controlled by ambient temperature, water temperature, FAN ON signal and temper-
ature control dial. Hot air is supplied to the discharge air outlets by a PTC heater that generates heat electri-
cally even when engine coolant temperature is low.
Component Parts
PTC heater system components are:
 PTC control unit
 PTC heater
 PTC relay-1
 Water temperature sensor
 Full hot switch
 Ambient sensor
System Operation
PTC heater system starts when all the following conditions are met:
 Less than 35 minutes after ignition switch ON.
 Blower control dial ON (Blower motor operates.) and temperature control dial full hot position (Full hot switch
ON).
 Ambient temperature is lower than 0°C (32°).
 Engine coolant temperature is lower than 65°C (149°) (condition
1), or when it becomes lower than 60°C (140°) again (condition 2)
on startup.
 Engine speed is more than 1100 rpm and after a lapse of more
than 10 seconds.
PTC heater system stops when any of the following conditions is
met:
 More than 35 minutes later after ignition switch ON.
 Blower control dial OFF (Blower motor OFF) and/or temperature
control dial except full hot position (Full hot switch OFF).
 Ambient temperature is higher than 0°C (32°).
 Engine coolant temperature is higher than 65°C (149°).
 When engine speed becomes less than 800 rpm.
SJIA0968E
AWIIA0343GB

HAC-258
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
PTC HEATER CONTROL SYSTEM
The ambient sensor is attached on the radiator core support upper. It
detects ambient temperature and converts it into a resistance value
which is then input into the front air control.
PTC HEATER (300 WATT) : PTC Heater (300 Watt) Diagnosis ProcedureINFOID:0000000001548107
DIAGNOSTIC PROCEDURE FOR PTC SYSTEM
SYMPTOM: PTC heater system operation is malfunction.
1.CHECK POWER SUPPLY FOR PTC RELAY-1
1. Turn ignition switch ON.
2. Check voltage between PTC relay-1 harness connector E61 ter-
minals 2, 3, and ground.
Is the inspection result normal
YES >> GO TO 2.
NO >> Check power supply circuit and 10A fuse (No. 2) and 40A fusible link (No. I), located in the fuse
and fusible link box.
 If fuses are OK, check harness for open circuit. Repair or replace if necessary.
 If fuses are NG, replace fuse and check harness for short circuit. Repair or replace if necessary.
2.CHECK PTC RELAY-1
1. Turn ignition switch OFF.
2. Check PTC relay-1. Refer to HAC-265, "
PTC HEATER (300 WATT) : PTC Heater (300 Watt) Component
Inspection".
Is the inspection result normal
YES >> GO TO 3.
NO >> Replace PTC relay-1. Refer to XX.
3.CHECK PTC RELAY-1 OUTPUT CIRCUIT
1. Disconnect ambient sensor, PTC heater and water temperature
sensor connectors.
2. Turn temperature control dial clockwise until full hot position.
3. Turn mode control dial to foot position.
4. Start the engine.
5. Turn blower control dial to maximum speed.
6. Check continuity between PTC relay-1 harness connector E61
terminal 1 and ground.
Is the inspection result normal
YES >> GO TO 5.
AWIIA0600ZZ
Te r m i n a l s
Voltag e
(Approx.)
(+) (−)
Connector Terminal
Ground Battery voltage
PTC relay-1: E612
3
SJIA0913E
Connector Terminal
GroundContinuity
PTC relay-1: E61 1 Yes
AWIIA0455ZZ

HAC-264
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
PTC HEATER CONTROL SYSTEM
Is the inspection result normal?
YES >> 1. Replace front air control. Refer to XX.
2. Go to self-diagnosis HAC-213, "
Front Air Control Self-Diagnosis" and perform self-diagnosis
STEP-2. Confirm that code No. 20 is displayed.
NO >> Repair harness or connector.
22.CHECK ENGINE RPM SIGNAL (MANUAL TRANSMISSION)
1. Reconnect PTC control unit.
2. Start the engine.
3. Check voltage between PTC control unit harness connector
M84 terminal 4 and ground.
Is the inspection result normal
YES >> GO TO 24.
NO >> GO TO 23.
23.CHECK CONTINUITY OF ENGINE RPM CIRCUIT BETWEEN FRONT AIR CONTROL AND PTC CON-
TROL UNIT (MANUAL TRANSMISSION)
1. Turn ignition switch OFF.
2. Disconnect ECM and PTC control unit connector.
3. Check continuity between PTC control unit harness connector
M84 (A) terminal 4 and ECM harness connector F10 (B) termi-
nal 13.
4. Check continuity between PTC control unit harness connector
M84 (A) terminal 4 and ground.
Is the inspection result normal
YES >> Replace ECM. Refer to XX.
NO >> Repair harness or connector.
24.CHECK BCM INPUT (FAN ON) SIGNAL
A
GroundContinuity
Connector Terminal
Ambient sensor:
E602No
Te r m i n a l s
Vo l ta g e
(Approx.) (+) (−)
Connector Terminal
Ground
PTC control unit: M84 4 4.2V
SJIA0924E
AB
Continuity
Connector Terminal Connector Terminal
PTC control unit: M84 4 ECM: F10 13 Yes
A
GroundContinuity
Connector Terminal
PTC control unit: M84 4 No
SJIA0925E
