to pull more seat belt out of the retractor. If
you cannot pull any more seat belt webbing
out of the retractor, the retractor is in the
automatic locking mode (Child restraint
mode).
9. Check to make sure that the child restraint is
properly secured prior to each use. If the belt
is not locked, repeat steps 4 through 7.
After the child restraint is removed and the seat
belt fully retracted, the automatic locking mode
(child restraint mode) is canceled.
PRECAUTIONS ON BOOSTER
SEATS

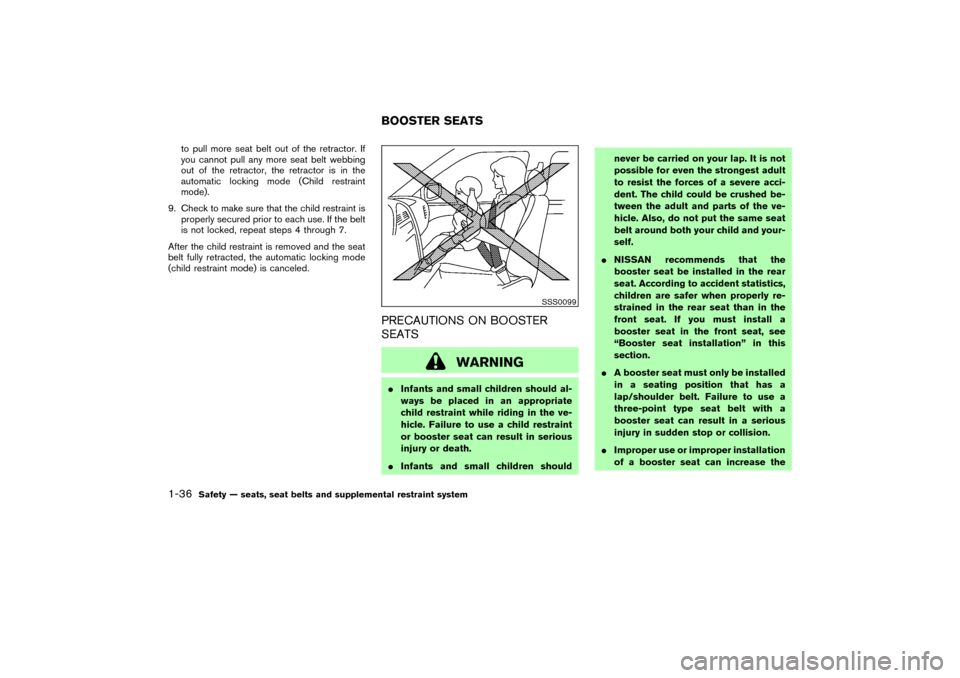

WARNING

Infants and small children should al-
ways be placed in an appropriate
child restraint while riding in the ve-
hicle. Failure to use a child restraint
or booster seat can result in serious
injury or death.

Infants and small children shouldnever be carried on your lap. It is not
possible for even the strongest adult
to resist the forces of a severe acci-
dent. The child could be crushed be-
tween the adult and parts of the ve-
hicle. Also, do not put the same seat
belt around both your child and your-
self.

NISSAN recommends that the
booster seat be installed in the rear
seat. According to accident statistics,
children are safer when properly re-
strained in the rear seat than in the
front seat. If you must install a
booster seat in the front seat, see
“Booster seat installation” in this
section.

A booster seat must only be installed
in a seating position that has a
lap/shoulder belt. Failure to use a
three-point type seat belt with a
booster seat can result in a serious
injury in sudden stop or collision.

Improper use or improper installation
of a booster seat can increase the
SSS0099
BOOSTER SEATS
1-36
Safety — seats, seat belts and supplemental restraint system


06.7.5/Z50-D/V5.0

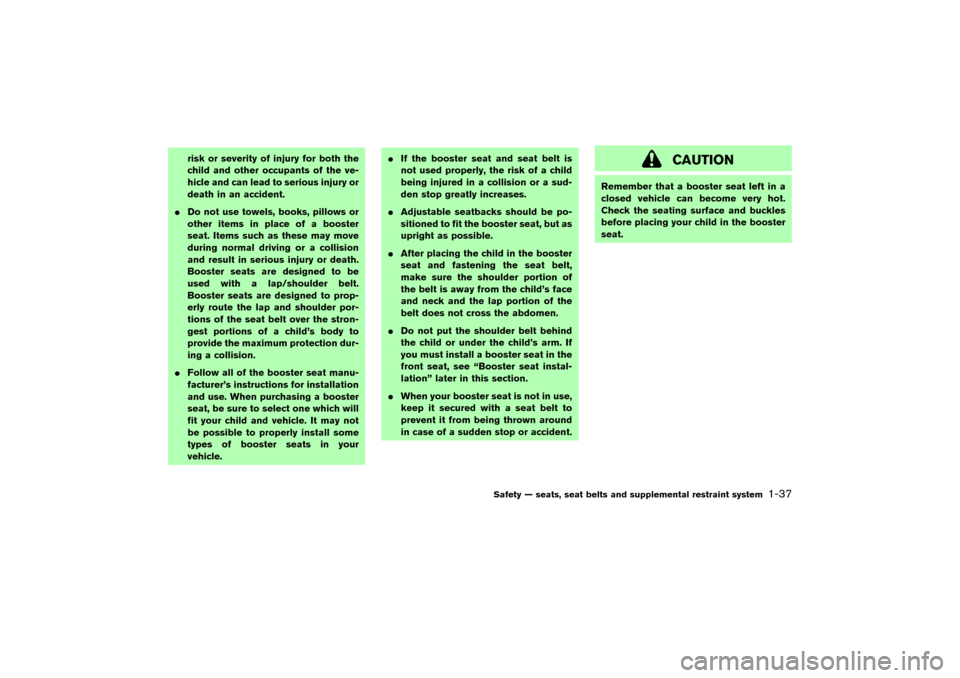

risk or severity of injury for both the
child and other occupants of the ve-
hicle and can lead to serious injury or
death in an accident.

Do not use towels, books, pillows or
other items in place of a booster
seat. Items such as these may move
during normal driving or a collision
and result in serious injury or death.
Booster seats are designed to be
used with a lap/shoulder belt.
Booster seats are designed to prop-
erly route the lap and shoulder por-
tions of the seat belt over the stron-
gest portions of a child’s body to
provide the maximum protection dur-
ing a collision.

Follow all of the booster seat manu-
facturer’s instructions for installation
and use. When purchasing a booster
seat, be sure to select one which will
fit your child and vehicle. It may not
be possible to properly install some
types of booster seats in your
vehicle.
If the booster seat and seat belt is
not used properly, the risk of a child
being injured in a collision or a sud-
den stop greatly increases.

Adjustable seatbacks should be po-
sitioned to fit the booster seat, but as
upright as possible.

After placing the child in the booster
seat and fastening the seat belt,
make sure the shoulder portion of
the belt is away from the child’s face
and neck and the lap portion of the
belt does not cross the abdomen.

Do not put the shoulder belt behind
the child or under the child’s arm. If
you must install a booster seat in the
front seat, see “Booster seat instal-
lation” later in this section.

When your booster seat is not in use,
keep it secured with a seat belt to
prevent it from being thrown around
in case of a sudden stop or accident.
CAUTION
Remember that a booster seat left in a
closed vehicle can become very hot.
Check the seating surface and buckles
before placing your child in the booster
seat.
Safety — seats, seat belts and supplemental restraint system
1-37


06.7.5/Z50-D/V5.0


Booster seats of various sizes are offered by
several manufacturers. When selecting any
booster seat, keep the following points in mind:

Choose only a booster seat with a label
certifying that it complies with Federal Motor
Vehicle Safety Standard 213 or Canadian
Motor Vehicle Safety Standard 213.
Check the booster seat in your vehicle to be
sure it is compatible with the vehicle’s seat
and seat belt system.

Make sure the child’s head will be properly
supported by the booster seat or vehicle
seat. The seat back must be at or above the
center of the child’s ears. For example, if a
low back booster seat
1
is chosen, the
vehicle seat back must be at or above the
center of the child’s ears. If the seat back is
lower than the center of the child’s ears, a
high back booster seat
2
should be used.
If the booster seat is compatible with your
vehicle, place your child in the booster seat
and check the various adjustments to be sure
the booster seat is compatible with your
child. Always follow all recommended proce-
dures.
All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated.
The instructions in this section apply to booster
seat installation in the rear seats or the front
passenger seat.
LRS0455
LRS0453
LRS0464
1-38
Safety — seats, seat belts and supplemental restraint system


06.7.5/Z50-D/V5.0

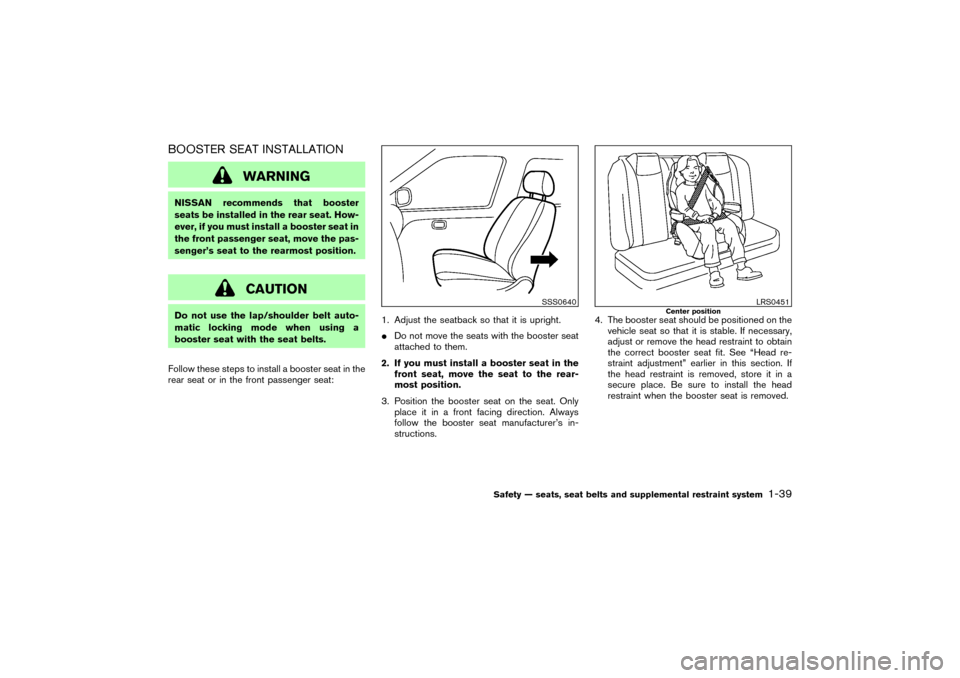

BOOSTER SEAT INSTALLATION
WARNING
NISSAN recommends that booster
seats be installed in the rear seat. How-
ever, if you must install a booster seat in
the front passenger seat, move the pas-
senger’s seat to the rearmost position.
CAUTION
Do not use the lap/shoulder belt auto-
matic locking mode when using a
booster seat with the seat belts.
Follow these steps to install a booster seat in the
rear seat or in the front passenger seat:1. Adjust the seatback so that it is upright.

Do not move the seats with the booster seat
attached to them.
2. If you must install a booster seat in the
front seat, move the seat to the rear-
most position.
3. Position the booster seat on the seat. Only
place it in a front facing direction. Always
follow the booster seat manufacturer’s in-
structions.4. The booster seat should be positioned on the
vehicle seat so that it is stable. If necessary,
adjust or remove the head restraint to obtain
the correct booster seat fit. See “Head re-
straint adjustment” earlier in this section. If
the head restraint is removed, store it in a
secure place. Be sure to install the head
restraint when the booster seat is removed.
SSS0640
LRS0451
Center position
Safety — seats, seat belts and supplemental restraint system
1-39


06.7.5/Z50-D/V5.0


5. Position the lap portion of the seat belt low
and snug on the child’s hips. Be sure to
follow the booster seat manufacturer’s in-
structions for adjusting the belt routing.
6. Pull the shoulder belt portion of the seat belt
toward the retractor to take up extra slack. Be
sure the shoulder belt is positioned across
the top, middle portion of the child’s shoul-
der. Be sure to follow the booster seat manu-
facturer’s instructions for adjusting the belt
routing.7. Follow the warnings, cautions and instruc-
tions for properly fastening a seat belt shown
in the “Three-point seat belt with retractor”
earlier in this section.8. If the booster seat is installed in the front
passenger seat, turn the ignition switch to the
ON position. The front passenger air bag
status light
may or may not illuminate
depending on the size of the child and the
type of booster seat used. See “Front pas-
senger air bag and status light” in this sec-
tion.
LRS0452
Outboard position
LRS0454
Front seat
SSS0481
1-40
Safety — seats, seat belts and supplemental restraint system


06.7.5/Z50-D/V5.0


PRECAUTIONS ON
SUPPLEMENTAL RESTRAINT
SYSTEMThis Supplemental Restraint System (SRS) sec-
tion contains important information concerning
the driver and passenger front impact supple-
mental air bags (NISSAN advanced air bag
system), front seat side-impact supplemental air
bags, curtain side-impact and rollover air bags
and front seat pre-tensioner seat belts.
Supplemental front impact air bag system:
The NISSAN advanced air bag system can help
cushion the impact force to the head and chest
of the driver and front passenger in certain
frontal collisions.
Supplemental side-impact air bag system:
This system can help cushion the impact force to
the chest area of the driver and front passenger
in certain side impact collisions. The front seat
side-impact supplemental air bags are designed
to inflate on the side where the vehicle is
impacted.
Supplemental curtain side-impact and roll-
over air bag system:This system can help
cushion the impact force to the head of occu-
pants in front and rear outboard seating posi-
tions in certain side impact or rollover collisions.
In a side impact, the curtain side-impact air bags
are designed to inflate on the side where the
vehicle is impacted. In a rollover, both curtainside-impact air bags are designed to inflate and
remain inflated for a while.
These supplemental restraint systems are de-
signed tosupplementthe crash protection
provided by the driver and passenger seat belts
and arenot a substitutefor them. Seat belts
should always be correctly worn and the occu-
pant seated a suitable distance away from the
steering wheel, instrument panel, door finishers
and side roof rails. (See “Seat belts” earlier in
this section for instructions and precautions on
seat belt usage.)
After turning the ignition switch to the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the systems are operational.SUPPLEMENTAL RESTRAINT
SYSTEM
Safety — seats, seat belts and supplemental restraint system
1-41


06.7.5/Z50-D/V5.0


WARNING

The supplemental front air bags ordi-
narily will not inflate in the event of a
side impact, rear impact, rollover, or
lower severity frontal collision. Al-
ways wear your seat belts to help
reduce the risk or severity of injury in
various kinds of accidents.

The front passenger air bag will not
inflate if the passenger air bag statuslight is lit or if the front passenger
seat is unoccupied. See “Front pas-
senger air bag and status light” later
in this section.

The seat belts and the supplemental
front air bags are most effective
when you are sitting well back and
upright in the seat. The front air bags
inflate with great force. Even with the
NISSAN advanced air bag system, if
you are unrestrained, leaning for-
ward, sitting sideways or out ofposition in any way, you are at
greater risk of injury or death in a
crash. You may also receive serious
or fatal injuries from the supplemen-
tal front air bag if you are up against
it when it inflates. Always sit back
against the seatback and as far away
as practical from the steering wheel
or instrument panel. Always use the
seat belts.

The driver and front passenger seat
belt buckles are equipped with sen-
sors that detect if the seat belts are
fastened. The advanced air bag sys-
tem monitors the severity of a colli-
sion and belt usage then inflates the
air bags. Failure to properly wear
seat belts can increase the risk or
severity of injury in an accident.

The front passenger seat is equipped
with an occupant classification sen-
sor (pressure sensor) that turns the
front passenger air bag OFF under
some conditions. This sensor is only
used in this seat. Failure to be prop-
SSS0131
1-42
Safety — seats, seat belts and supplemental restraint system


06.7.5/Z50-D/V5.0

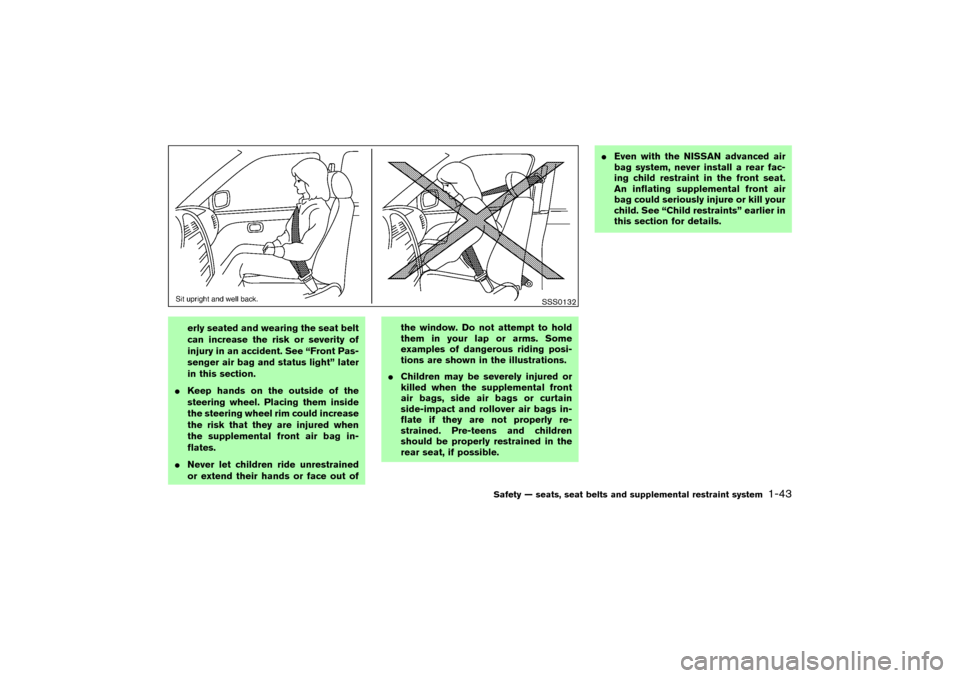

erly seated and wearing the seat belt
can increase the risk or severity of
injury in an accident. See “Front Pas-
senger air bag and status light” later
in this section.

Keep hands on the outside of the
steering wheel. Placing them inside
the steering wheel rim could increase
the risk that they are injured when
the supplemental front air bag in-
flates.

Never let children ride unrestrained
or extend their hands or face out ofthe window. Do not attempt to hold
them in your lap or arms. Some
examples of dangerous riding posi-
tions are shown in the illustrations.

Children may be severely injured or
killed when the supplemental front
air bags, side air bags or curtain
side-impact and rollover air bags in-
flate if they are not properly re-
strained. Pre-teens and children
should be properly restrained in the
rear seat, if possible.
Even with the NISSAN advanced air
bag system, never install a rear fac-
ing child restraint in the front seat.
An inflating supplemental front air
bag could seriously injure or kill your
child. See “Child restraints” earlier in
this section for details.
SSS0132
Safety — seats, seat belts and supplemental restraint system
1-43


06.7.5/Z50-D/V5.0
