2007 NISSAN MURANO Owners Manual

even though the ignition switch is in the
ONposition.
5. The hazard indicator flashes twice and the
horn chirps once.

When the LOCK button
Ais pushed with all
doors locked, the hazard indicator flashes
twice and the horn chirps once as a reminder
that the doors are already locked.
*1: Doors lock with the Intelligent Key while the
mechanical key or the valet key is in the
ignition switch or the ignition switch is
pushed in.
*2: Doors do not lock and buzzer sounds when
the LOCK button is pushed while any door
is open.
Unlocking doors and fuel-filler door:
1. Push the UNLOCK buttonB
on the Intelli-
gent Key once.

The driver’s door and fuel-filler door unlock

The hazard indicator flashes once if all doors
are completely closed with the ignition switch
in any position except the ON position.

The interior light turns on and the light timer
activates for 30 seconds when the switch is
in the DOOR position with the ignition switch
in any position except the ON position.2. Push the UNLOCK button
B
on the Intelli-
gent Key again within 5 seconds.

All doors unlock.

Lift gate unlocks.

The hazard indicator flashes once if all doors
are completely closed.
All doors will be locked automatically unless one
of the following operations is performed within 1
minute of pushing the UNLOCK button
B.

any door is open

the ignition switch is pushed

the mechanical key or the valet key is inserted
into the ignition switch
The interior light can be turned off without
waiting for 30 seconds by turning the ignition
switch to the ON position or by locking the
doors with the Intelligent Key.
Opening and closing front windows:

To open the windows, push the UNLOCK
button
B
forabout 3 secondsor turn the
driver’s door key lock with the metal key to
the rear of the vehicle forabout 2 seconds
after the door is unlocked.
To stop opening, release the UNLOCK but-
ton
Bor turn the key to the neutral position.
To close the front windows, turn the driver’s
door key lock to the front of the vehicle for
about 2 secondsafter the door is locked.
To stop closing, turn the key to the neutral
position.
The door windows will open or close while
turning the metal key. See “Doors” earlier in this
section.
Using the panic alarm:
If you are near your vehicle and feel threatened,
you may activate the alarm to call attention as
follows:
1. Push the PANIC button
C
on the Intelligent
Key forlonger than 0.5 secondswith the
metal key removed from the ignition switch or
the ignition switch not pushed in.
2. The theft warning alarm and headlights will
stay on for 25 seconds.
3. The panic alarm stops when:

It has run for 25 seconds, or

Any of the buttons on the Intelligent Key are
pushed.
3-22
Pre-driving checks and adjustments


06.7.5/Z50-D/V5.0


OPERATION WITH THE
MECHANICAL KEY AND VALET KEYIf the Intelligent Key cannot be used because its
battery is discharged, use the metal key to lock
or unlock the doors and use the mechanical key
or the valet key, which is registered to the
NISSAN Vehicle Immobilizer System compo-
nents, to start the engine.Removing the mechanical key
Release the lock knobat the back of the
intelligent key and remove the mechanical
key.
To install the mechanical key to the intelligent
key, securely lock the lock knoband then
check that the mechanical key will not move.

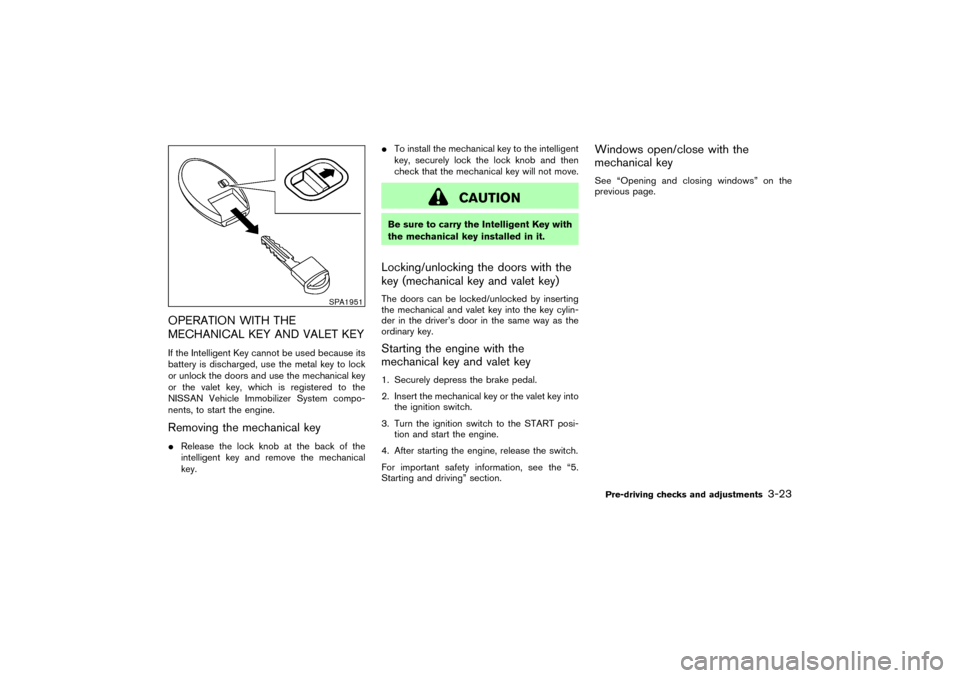

CAUTION
Be sure to carry the Intelligent Key with
the mechanical key installed in it.Locking/unlocking the doors with the
key (mechanical key and valet key)The doors can be locked/unlocked by inserting
the mechanical and valet key into the key cylin-
der in the driver’s door in the same way as the
ordinary key.Starting the engine with the
mechanical key and valet key1. Securely depress the brake pedal.
2. Insert the mechanical key or the valet key into
the ignition switch.
3. Turn the ignition switch to the START posi-
tion and start the engine.
4. After starting the engine, release the switch.
For important safety information, see the “5.
Starting and driving” section.
Windows open/close with the
mechanical keySee “Opening and closing windows” on the
previous page.
SPA1951
Pre-driving checks and adjustments
3-23


06.7.5/Z50-D/V5.0


1. Pull the hood lock release handle
1
located
below the instrument panel; the hood will
then spring up slightly.
2. Move the lever
2
at the front of the hood
with your fingertips and raise the hood.
3. When closing the hood, slowly close the
hood and make sure it locks into place.

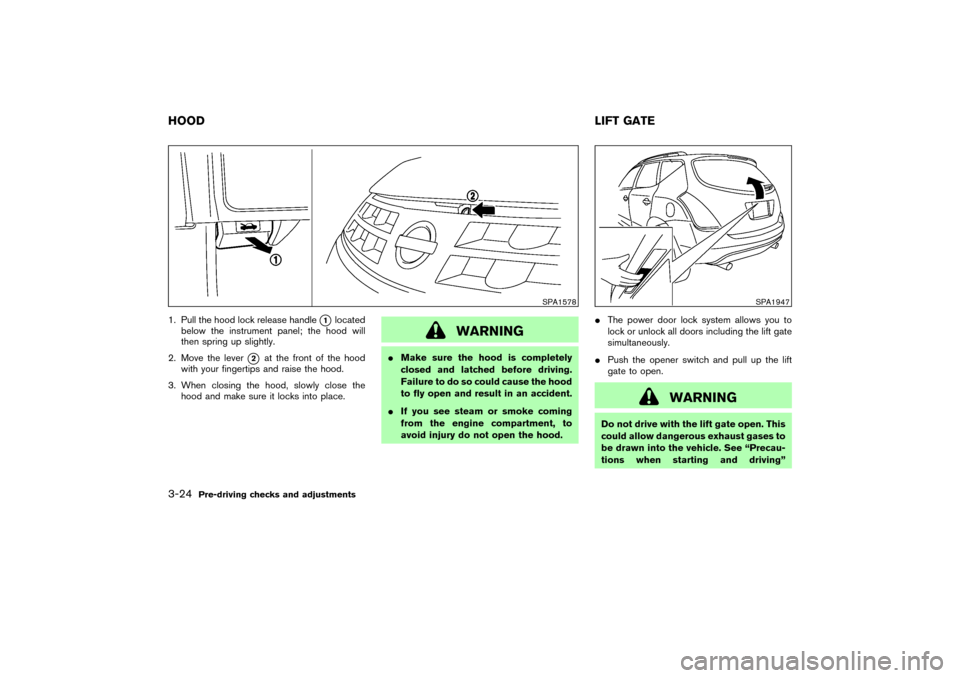

WARNING

Make sure the hood is completely
closed and latched before driving.
Failure to do so could cause the hood
to fly open and result in an accident.

If you see steam or smoke coming
from the engine compartment, to
avoid injury do not open the hood.
The power door lock system allows you to
lock or unlock all doors including the lift gate
simultaneously.

Push the opener switch and pull up the lift
gate to open.
WARNING
Do not drive with the lift gate open. This
could allow dangerous exhaust gases to
be drawn into the vehicle. See “Precau-
tions when starting and driving”
SPA1578
SPA1947
HOODLIFT GATE3-24
Pre-driving checks and adjustments


06.7.5/Z50-D/V5.0


in the “5. Starting and driving” section
for exhaust gas.
Emergency unlock leverIf the lift gate cannot be opened with the door
lock switch or remote controller due to a dis-
charged battery, follow the next steps.
1. Remove the cover inside of the lift gate with a
suitable tool.
2. Move the lever toward the direction
A
as
illustrated to open the lift gate.
Contact a NISSAN dealer as soon as possible.

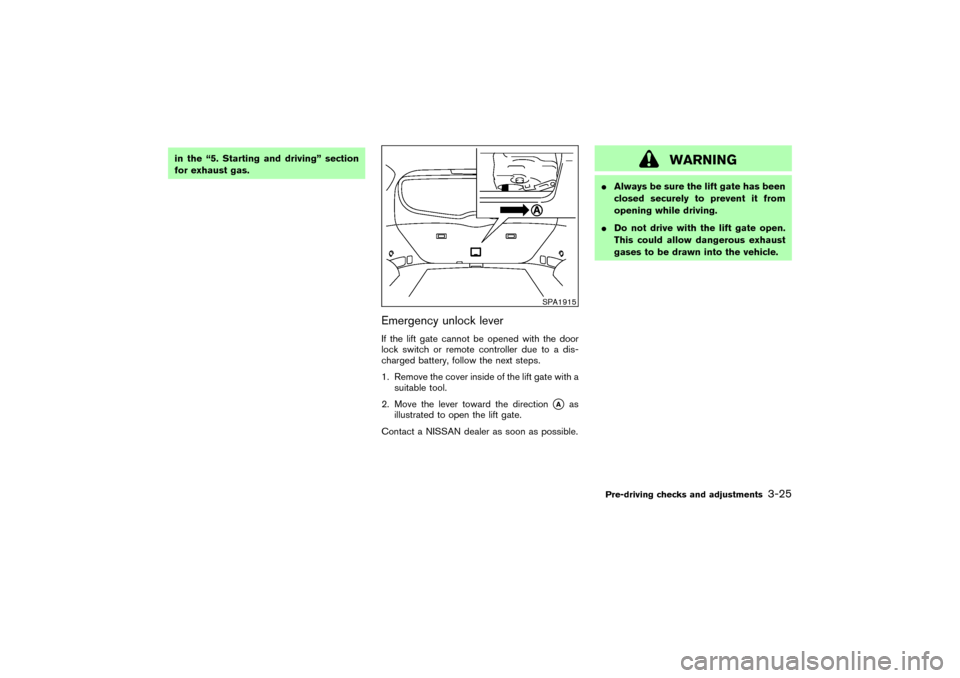

WARNING

Always be sure the lift gate has been
closed securely to prevent it from
opening while driving.

Do not drive with the lift gate open.
This could allow dangerous exhaust
gases to be drawn into the vehicle.
SPA1915
Pre-driving checks and adjustments
3-25


06.7.5/Z50-D/V5.0


OPEN THE FUEL-FILLER DOORTo open the fuel-filler door, unlock it using one of
the following operations, then push the right-
hand side of the lid
A.

Push the unlock button on the remote keyless
entry once.

Insert the key into the door lock cylinder and
turn the door key clockwise twice.

Push the power door lock switch to the
unlock side.

Push the driver’s side door handle requestswitch once (Intelligent Key equipped
model).

Push the passenger side door handle request
switch or lift gate request switch twice (Intel-
ligent Key equipped model).
To lock, close the fuel-filler door and lock the
doors.
SPA1580
FUEL-FILLER DOOR3-26
Pre-driving checks and adjustments


06.7.5/Z50-D/V5.0


FUEL-FILLER CAPThe fuel-filler cap is a ratcheting type. Turn the
cap counterclockwise
A
to remove.
To tighten, turn the cap clockwise until ratchet-
ing clicks are heard.
Put the fuel-filler cap on the cap holder
Bwhile
refueling.

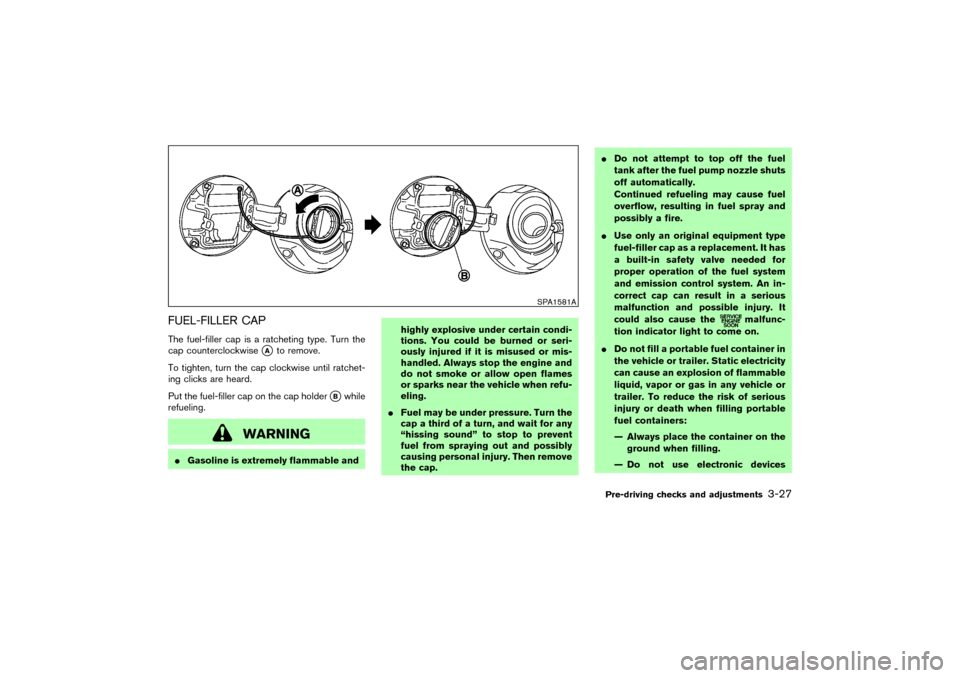

WARNING

Gasoline is extremely flammable andhighly explosive under certain condi-
tions. You could be burned or seri-
ously injured if it is misused or mis-
handled. Always stop the engine and
do not smoke or allow open flames
or sparks near the vehicle when refu-
eling.

Fuel may be under pressure. Turn the
cap a third of a turn, and wait for any
“hissing sound” to stop to prevent
fuel from spraying out and possibly
causing personal injury. Then remove
the cap.
Do not attempt to top off the fuel
tank after the fuel pump nozzle shuts
off automatically.
Continued refueling may cause fuel
overflow, resulting in fuel spray and
possibly a fire.

Use only an original equipment type
fuel-filler cap as a replacement. It has
a built-in safety valve needed for
proper operation of the fuel system
and emission control system. An in-
correct cap can result in a serious
malfunction and possible injury. It
could also cause the
malfunc-
tion indicator light to come on.

Do not fill a portable fuel container in
the vehicle or trailer. Static electricity
can cause an explosion of flammable
liquid, vapor or gas in any vehicle or
trailer. To reduce the risk of serious
injury or death when filling portable
fuel containers:
— Always place the container on the
ground when filling.
— Do not use electronic devices
SPA1581A
Pre-driving checks and adjustments
3-27


06.7.5/Z50-D/V5.0

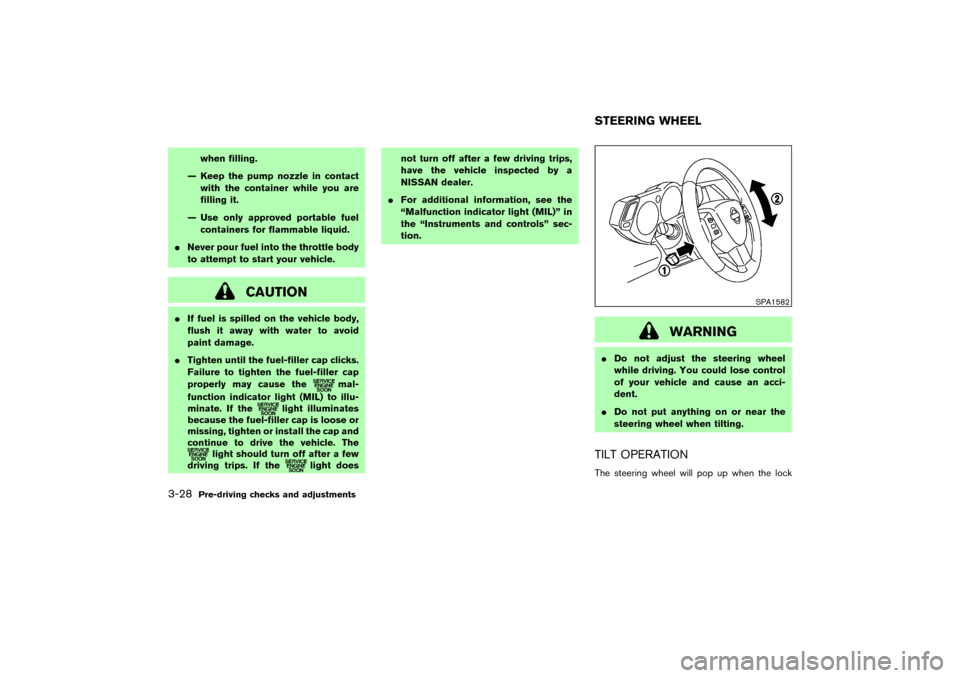

when filling.
— Keep the pump nozzle in contact
with the container while you are
filling it.
— Use only approved portable fuel
containers for flammable liquid.

Never pour fuel into the throttle body
to attempt to start your vehicle.
CAUTION

If fuel is spilled on the vehicle body,
flush it away with water to avoid
paint damage.

Tighten until the fuel-filler cap clicks.
Failure to tighten the fuel-filler cap
properly may cause the
mal-
function indicator light (MIL) to illu-
minate. If the
light illuminates
because the fuel-filler cap is loose or
missing, tighten or install the cap and
continue to drive the vehicle. The
light should turn off after a few
driving trips. If the
light doesnot turn off after a few driving trips,
have the vehicle inspected by a
NISSAN dealer.

For additional information, see the
“Malfunction indicator light (MIL)” in
the “Instruments and controls” sec-
tion.
WARNING

Do not adjust the steering wheel
while driving. You could lose control
of your vehicle and cause an acci-
dent.

Do not put anything on or near the
steering wheel when tilting.TILT OPERATIONThe steering wheel will pop up when the lock
SPA1582
STEERING WHEEL
3-28
Pre-driving checks and adjustments


06.7.5/Z50-D/V5.0


lever is pulled as illustrated
1.
Keep holding the lock lever and adjust the
steering wheel to the desired position
2.
Release the lock lever to lock the steering wheel.
The accelerator and brake pedals can be ad-
justed for driving comfort.
Use the pedal adjusting switch to adjust the
brake and accelerator pedal position forward
1
or backward
2. Pedal adjustment can only be
performed when:

Ignition switch is in the OFF, ACC or LOCK
position, or

Ignition switch is ON and the selector lever is
in the P (Park) position
The brake and accelerator pedals cannot be
adjusted separately.

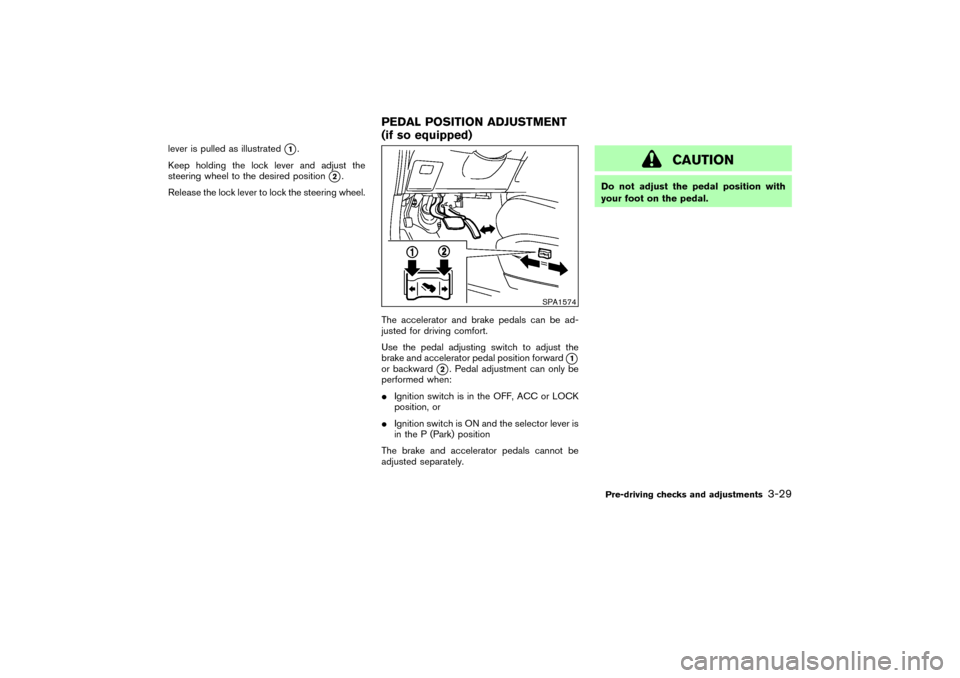

CAUTION
Do not adjust the pedal position with
your foot on the pedal.
SPA1574
PEDAL POSITIONADJUSTMENT
(if so equipped)
Pre-driving checks and adjustments
3-29


06.7.5/Z50-D/V5.0
