2007 NISSAN MURANO Owners Manual

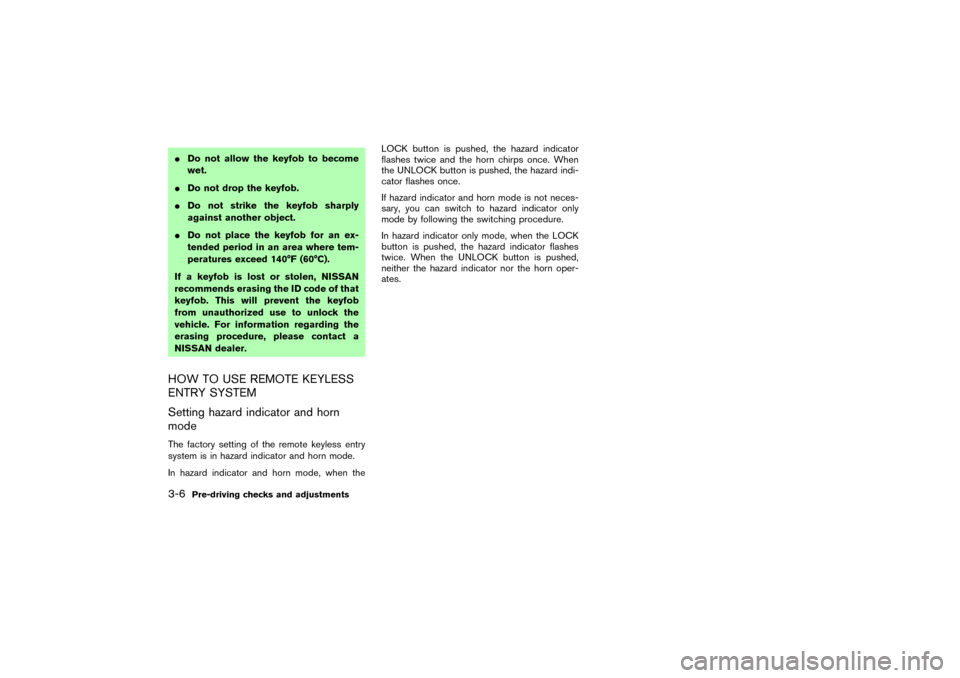

Do not allow the keyfob to become
wet.

Do not drop the keyfob.

Do not strike the keyfob sharply
against another object.

Do not place the keyfob for an ex-
tended period in an area where tem-
peratures exceed 140°F (60°C).
If a keyfob is lost or stolen, NISSAN
recommends erasing the ID code of that
keyfob. This will prevent the keyfob
from unauthorized use to unlock the
vehicle. For information regarding the
erasing procedure, please contact a
NISSAN dealer.HOW TO USE REMOTE KEYLESS
ENTRY SYSTEM
Setting hazard indicator and horn
modeThe factory setting of the remote keyless entry
system is in hazard indicator and horn mode.
In hazard indicator and horn mode, when theLOCK button is pushed, the hazard indicator
flashes twice and the horn chirps once. When
the UNLOCK button is pushed, the hazard indi-
cator flashes once.
If hazard indicator and horn mode is not neces-
sary, you can switch to hazard indicator only
mode by following the switching procedure.
In hazard indicator only mode, when the LOCK
button is pushed, the hazard indicator flashes
twice. When the UNLOCK button is pushed,
neither the hazard indicator nor the horn oper-
ates.3-6
Pre-driving checks and adjustments


06.7.5/Z50-D/V5.0


(Switching procedure)
Push the LOCK and UNLOCK buttons on the
keyfobsimultaneously for more than 2 seconds
to switch from one mode to the other.
When pushing the buttons to set hazard indica-
tor only mode, the hazard indicator flashes 3
times.
When pushing the buttons to set hazard indica-
tor and horn mode, the hazard indicator flashes
once and the horn chirps once.
Locking doors and fuel-filler door1. Remove the ignition key.*1
2. Close all the doors and fuel-filler door.*2
3. Push the LOCK button
A
on the keyfob.
4. All the doors and fuel-filler door will lock.
All of the doors will lock when the LOCK
button on the keyfob is pushed even
though a door remains open and/or the
ignition switch is in the ONposition.
5. The hazard indicator flashes twice and the
horn chirps once.
SPA1260
SPA1397C
Pre-driving checks and adjustments
3-7


06.7.5/Z50-D/V5.0


When the LOCK button is pushed with all
doors and fuel-filler door locked, the hazard
indicator flashes twice and the horn chirps
once as a reminder that the doors and fuel-
filler door are already locked.
*1: Doors and fuel-filler door lock with the key-
fobwhile a key is in the ignition switch.
However, the panic alarm will not activate
when the key is in the ignition switch.
*2: Doors and fuel-filler door lock with the key-
fobwhile any door is open. However, hazard
indicator and horn mode will not function.Unlocking doors1. Push the UNLOCK button
B
on the keyfob
once.

The driver’s door and fuel-filler door unlocks

The hazard indicator flashes once if all doors
and fuel-filler door are completely closed with
the ignition switch in any position except the
ON position.

The interior light turns on and the light timer
activates for 30 seconds when the switch is
in the DOOR position with the ignition switch
in any position except the ON position.
2. Push the UNLOCK button
B
on the keyfob
again within 5 seconds.
All doors unlock

The hazard indicator flashes once if all doors
are completely closed.
If the following operation is not carried out
within 1 minute after pushing the
UNLOCK button, all doors will be locked
automatically. (if so equipped)

any door is opened.

the ignition switch is turned to the ON
position
The interior light can be turned off without
waiting for 30 seconds by turning the ignition
switch to the ON position or by locking the
doors with the keyfob.
Opening the front windowPush the UNLOCK button
B
on the keyfob.
The driver’s door will unlock.
Continue to push the UNLOCK button for 3
seconds. The driver’s and front passenger’s
windows will be lowered.
Continue to push the UNLOCK button until
windows are fully open.
To stop lowering the windows, release the UN-
LOCK button.To start lowering the windows, push the UN-
LOCK button again for 3 more seconds.
This function will operate after the ignition switch
is off and 45 seconds passed or either the front
door is opened.
Using the panic alarmIf you are near your vehicle and feel threatened,
you may activate the alarm to call attention as
follows:
1. Push the PANIC
Cbutton on the keyfob for
longer than 0.5 seconds.
2. The theft warning alarm and headlights will
stay on for 30 seconds.
3. The panic alarm stops when:

It has run for 30 seconds, or

The LOCK or the UNLOCK button is pushed,
or

The panic button is pushed on the keyfob for
more than 0.5 seconds.
Battery replacementSee the “8. Maintenance and do-it-yourself”
section for battery replacement.
3-8
Pre-driving checks and adjustments


06.7.5/Z50-D/V5.0


The Intelligent Key uses coded radio signals to
communicate with the vehicle. When the Intelli-
gent Key is near the vehicle, such as when
standing near the vehicle with the Intelligent Key
in your pocket or purse, it allows the vehicle to
be locked or unlocked. And, when you are inside
the vehicle while carrying the Intelligent Key with
you, it allows the engine to be started without
inserting the key to the ignition switch. It is also
possible to use the remote keyless entry func-
tion.
CAUTION

Be sure to carry the Intelligent Key
with you.

Do not leave the vehicle with the
Intelligent Key inside.

The Intelligent Key may not function
correctly depending on the environment
or operating conditions. It could also
malfunction if you do not use it cor-
rectly.

The Intelligent Key transmits faint radio
waves.
In the following situations, the Intelli-
gent Key and remote keyless entry func-tions may not operate correctly, and you
may have to use the metal key (me-
chanical key or valet key):
•when there are strong signals com-
ing from a television tower, power
station or broadcasting station.
•when you have wireless equipment
or a cellular phone with you.
•when the Intelligent Key is in contact
with or covered by a metallic mate-
rial.
•when radio wave-type remote control
entry is used nearby.
•when the Intelligent Key is placed
near an electric appliance such as a
personal computer.

The Intelligent Key continually con-
sumes battery power as the key receives
a signal to communicate with the ve-
hicle. Battery life of the Intelligent Key is
about 2 years, although it varies de-
pending on the operating conditions.
When the battery of the Intelligent Key
is low, the green blinking key warning
light goes out about 30 seconds after
the ignition switch is turned to ON. If the
battery runs down, replace it with a new
one.
If the Intelligent Key receives strong
signal over an extended period of time,
the battery of the Intelligent Key could
quickly run down. Do not place the In-
telligent Key near an electric appliance
such as a television set or personal
computer.

Because the ignition switch is electroni-
cally controlled, if the vehicle battery is
completely discharged when the igni-
tion switch is in the LOCK position, the
steering lock cannot be released or the
ignition switch cannot be turned (not by
the mechanical key either).

In case the vehicle battery is completely
discharged, make sure to recharge the
vehicle battery immediately.INTELLIGENT KEY SYSTEM (if so
equipped)
Pre-driving checks and adjustments
3-9


06.7.5/Z50-D/V5.0


1. Intelligent Key 2 sets
2. Mechanical key (metal key)*1*2 2 sets
3. Valet key (with built-in transponder chip)*1
4. Key number plate
*1 The mechanical key and valet key are
equipped with Nissan Vehicle ImmobilizerSystem. Refer to “Nissan Vehicle Immobilizer
System (NVIS) keys” earlier in this section.
*2 Mechanical key is included in the Intelligent
Key. Refer to “Operation with the mechanical
key” later in this section for how to remove
the mechanical key from the Intelligent Key.

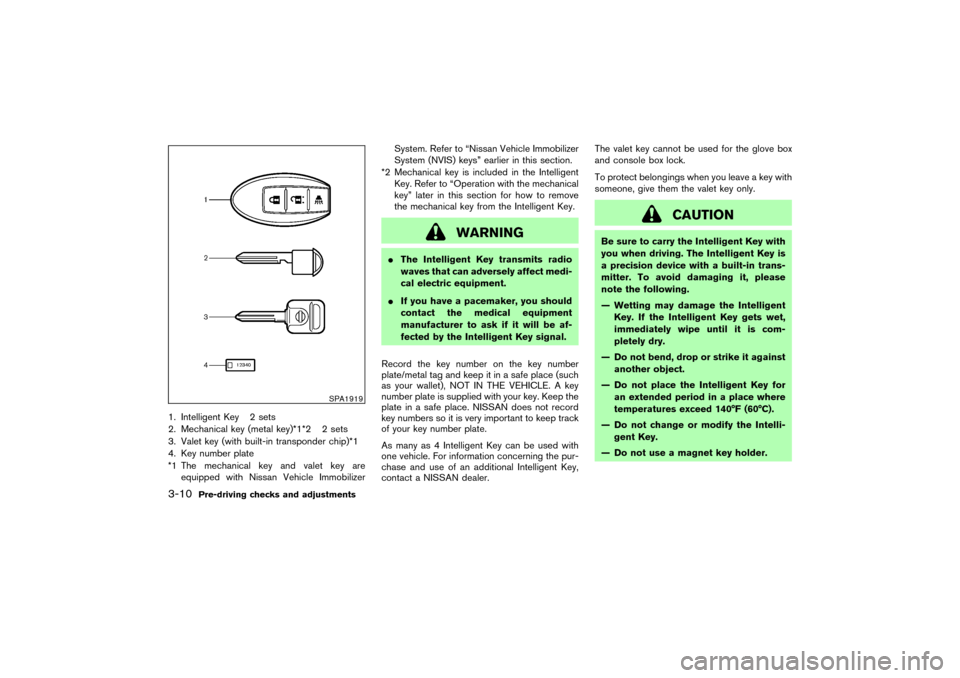

WARNING

The Intelligent Key transmits radio
waves that can adversely affect medi-
cal electric equipment.

If you have a pacemaker, you should
contact the medical equipment
manufacturer to ask if it will be af-
fected by the Intelligent Key signal.
Record the key number on the key number
plate/metal tag and keep it in a safe place (such
as your wallet), NOT IN THE VEHICLE. A key
number plate is supplied with your key. Keep the
plate in a safe place. NISSAN does not record
key numbers so it is very important to keep track
of your key number plate.
As many as 4 Intelligent Key can be used with
one vehicle. For information concerning the pur-
chase and use of an additional Intelligent Key,
contact a NISSAN dealer.The valet key cannot be used for the glove box
and console box lock.
To protect belongings when you leave a key with
someone, give them the valet key only.
CAUTION
Be sure to carry the Intelligent Key with
you when driving. The Intelligent Key is
a precision device with a built-in trans-
mitter. To avoid damaging it, please
note the following.
— Wetting may damage the Intelligent
Key. If the Intelligent Key gets wet,
immediately wipe until it is com-
pletely dry.
— Do not bend, drop or strike it against
another object.
— Do not place the Intelligent Key for
an extended period in a place where
temperatures exceed 140°F (60°C).
— Do not change or modify the Intelli-
gent Key.
— Do not use a magnet key holder.
SPA1919
3-10
Pre-driving checks and adjustments


06.7.5/Z50-D/V5.0

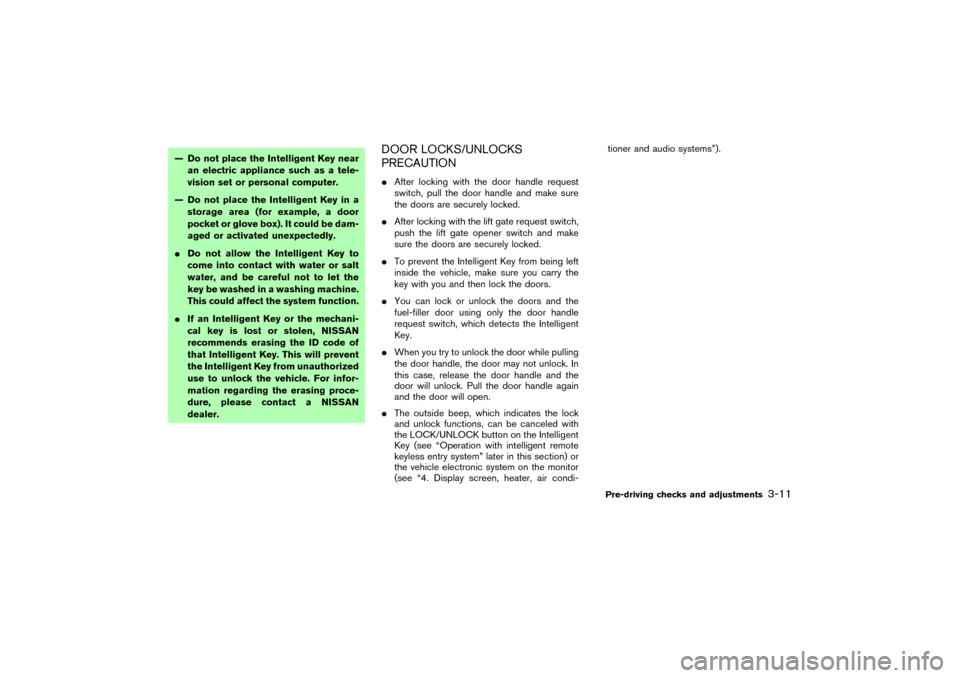

— Do not place the Intelligent Key near
an electric appliance such as a tele-
vision set or personal computer.
— Do not place the Intelligent Key in a
storage area (for example, a door
pocket or glove box). It could be dam-
aged or activated unexpectedly.

Do not allow the Intelligent Key to
come into contact with water or salt
water, and be careful not to let the
key be washed in a washing machine.
This could affect the system function.

If an Intelligent Key or the mechani-
cal key is lost or stolen, NISSAN
recommends erasing the ID code of
that Intelligent Key. This will prevent
the Intelligent Key from unauthorized
use to unlock the vehicle. For infor-
mation regarding the erasing proce-
dure, please contact a NISSAN
dealer.
DOOR LOCKS/UNLOCKS
PRECAUTION
After locking with the door handle request
switch, pull the door handle and make sure
the doors are securely locked.

After locking with the lift gate request switch,
push the lift gate opener switch and make
sure the doors are securely locked.

To prevent the Intelligent Key from being left
inside the vehicle, make sure you carry the
key with you and then lock the doors.

You can lock or unlock the doors and the
fuel-filler door using only the door handle
request switch, which detects the Intelligent
Key.

When you try to unlock the door while pulling
the door handle, the door may not unlock. In
this case, release the door handle and the
door will unlock. Pull the door handle again
and the door will open.

The outside beep, which indicates the lock
and unlock functions, can be canceled with
the LOCK/UNLOCK button on the Intelligent
Key (see “Operation with intelligent remote
keyless entry system” later in this section) or
the vehicle electronic system on the monitor
(see “4. Display screen, heater, air condi-tioner and audio systems”).
Pre-driving checks and adjustments
3-11


06.7.5/Z50-D/V5.0


INTELLIGENT KEY OPERATIONYou can lock or unlock the doors and fuel-filler
door without taking the key out from your pocket
or purse.When you carry the Intelligent Key with you, you
can lock or unlock all doors by pushing the door
handle request switch
A
or lift gate request
switch
B
within the range of operation.
Locking doors and fuel-filler door1. Turn the ignition switch to the LOCK position.
(Remove the key if any key is in the ignition
switch.)*1, *2
2. Close all the doors.*3
3. Push any door handle request switch or lift
gate request switch while carrying the Intel-
ligent Key with you.*44. All the doors (including the lift gate) and
fuel-filler door will lock.
5. The hazard indicator flashes twice and out-
side buzzer sounds twice.
The hazard indicator and buzzer mode can
be changed with the Intelligent remote
keyless entry system (see “Operation with
intelligent remote keyless entry system”
later in this section) or vehicle electronic
systems on the monitor (see “4. Display
screen, heater, air conditioner and audio
systems”).
*1: Doors lock with the door handle request
switch or lift gate request switch while a
mechanical or valet key is in the ignition
switch or the ignition switch is pushed in.
*2: Doors lock with the door handle request
switch or lift gate request switch while the
ignition switch is not in the LOCK position.
*3: Doors do not lock by pushing the door
handle request switch or lift gate request
switch while any door is open. A beep
sounds to warn you. However, doors lock
with the metal key even if any door is open.
*4: Doors do not lock with door handle request
switch or lift gate request switch with the
Intelligent Key inside the vehicle and a beep
sounds to warn you.
However, when an Intelligent Key is inside
SPA1921
SPA1922
3-12
Pre-driving checks and adjustments


06.7.5/Z50-D/V5.0


the vehicle, doors can be locked with an-
other Intelligent Key.
Unlocking doors and fuel-filler door1. Push the door handle request switch or lift
gate request switch once.
Driver’s side:

The driver door and fuel-filler door unlock.
Front passenger side or lift gate:

Only corresponding door unlocks.
2. The hazard indicator flashes once and out-
side buzzer sounds once if all doors are
completely closed with the ignition key in any
position except the ON position.
3. Push the door handle request switch or lift
gate request switch again within 5 seconds.

All doors and the fuel-filler door unlock.

The hazard indicator flashes once and out-
side buzzer sounds once if all doors are
completely closed.
All doors will be locked automatically after push-
ing the door handle request switch or lift gate
request switch unless one of the following op-
erations is performed within 1 minute.

any door is opened
the ignition switch is pushed

the mechanical key or the valet key is inserted
into the ignition switch
Re-lock time can be adjusted or cancelled with
the vehicle electronic systems on the monitor
(see “4. Display screen, heater, air conditioner
and audio systems”).
The room light will come on for 30 seconds
when the door is unlocked using the request
switch.
The room light can be turned off without waiting
for 30 seconds by turning the ignition switch to
the ON position or by locking the doors.
OPERATING THE ENGINE
Ignition switch positionsPush in the ignition switch in the range (
A
to
B) when you turn it.
LOCK (Normal parking position)
A:
The ignition switch can only be locked in the
A
position.
The ignition switch will be unlocked when it is
pushed in, and turned to the ACC position
C
while carrying the Intelligent Key.
SSD0417
Pre-driving checks and adjustments
3-13


06.7.5/Z50-D/V5.0
