Active Test
CONSULT-III Application Items for IPDM E/RNIS0001H
DATA MONITOR
ACTIVE TEST
KEY ON SW Indicates [ON/OFF] condition of key switch.
DOOR SW-DR Indicates [ON/OFF] condition of driver side door switch.
DOOR SW-AS Indicates [ON/OFF] condition of passenger side door switch.
BACK DOOR SW Indicates [ON/OFF] condition of back door switch (For Coupe).
LOCK SW DR/AS Indicates [ON/OFF] condition of lock signal from lock/unlock switch.
UNLK SW DR/AS Indicates [ON/OFF] condition of unlock signal from lock/unlock switch.
KEY CYL LK SW Indicates [ON/OFF] condition of lock signal from door key cylinder switch.
LK BUTTON/SIG Indicates [ON/OFF] condition of lock signal from key fob.
UN BUTTON/SIG Indicates [ON/OFF] condition of unlock signal from key fob.
PANIC BTN Indicates [ON/OFF] condition of panic signal from key fob.
TRUNK OPNR SW Indicates [ON/OFF] condition of trunk room lamp switch (For Roadster).
TRUNK BTN/SIGIndicates [ON/OFF] condition of back door open signal from key fob.
Indicates [ON/OFF] condition of trunk open signal from key fob. (For Roadster)
TRUNK OPN MNTR Indicates [ON/OFF] condition of trunk lid opener switch. (For Roadster)
UN BUTTON ON Indicates [ON/OFF] condition of unlock signal from key fob.
LK/UN BTN ON Indicates [ON/OFF] condition of lock/unlock signal at the same time from key fob.
DOOR SW-RR This is displayed even when it is not equipped.Monitored Item Description
Test Item Description
INT LAMPThis test is able to check interior lamp operation. The interior lamp is turned on when “ON” on CON-
SULT-III screen is touched.
IGN ILLUM This is displayed even when it is not equipped.
TRUNK/BACK DOORThis test is able to check back door (For Coupe) or trunk lid (For Roadster) opener actuator opera-
tion. The back door (For Coupe) or trunk (For Roadster) is unlocked when “ON” on CONSULT-III
screen is touched.
HORNThis test is able to check panic alarm and horn reminder operations. The horn activate for 0.02 sec-
onds after “ON” on CONSULT-III screen is touched.
HEAD LAMP(HI)This test is able to check headlamps panic alarm operation. The headlamp illuminates for 0.5 sec-
onds after “ON” on CONSULT-III screen is touched.
POWER WINDOW DOWNThis test is able to check power window open operation. The front power windows activate for 10
seconds after “ON” or CONSULT-III screen is touched.
FLASHER RIGHTThis test is able to check hazard reminder operation. The right hazard lamp turns on when “ON” on
CONSULT-III screen is touched.
FLASHER LEFTThis test is able to check hazard reminder operation. The left hazard lamp turns on when “ON” on
CONSULT-III screen is touched.
FLASHER RIGHT (CAN)This test is able to check hazard reminder operation. The right hazard indicator lamp turns on when
“ON” on CONSULT-III screen is touched.
FLASHER LEFT (CAN)This test is able to check hazard reminder operation. The left hazard indicator lamp turns on when
“ON” on CONSULT-III screen is touched.
Monitored Item Description
HORN CHIRP Indicates [ON/OFF] condition of horn function by IPDM E/R.
Test Item Description
HORNThis test is able to check horn operation. Horn activates when “ON” on CONSULT-III screen is
touched.

REMOTE KEYLESS ENTRY SYSTEM
BL-75
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
Work FlowNIS0001I
1. Check the trouble symptom and customer's requests.
2. Understand outline of system. Refer to BL-61, "
System Description" .
3. Confirm that power door lock system operates normally. Refer to BL-21, "
POWER DOOR LOCK SYS-
TEM" .
4. Refer to trouble diagnosis chart by symptom, repair or replace any malfunctioning parts. Refer to BL-75,
"Trouble Diagnosis Chart by Symptom" .
5. Inspection end.
Trouble Diagnosis Chart by SymptomNIS0001J
NOTE:

Always check the “Work Flow” before troubleshooting. Refer to BL-75, "Work Flow" .

Always check key fob battery before replacing key fob.

The panic alarm operation, back door or trunk lid (Roadster models) opener operation and keyless power
window down operation of remote keyless entry system do not activate with the ignition key inserted in the
ignition key cylinder.
Symptom Diagnoses/service procedureReference
page
All functions of remote keyless entry system do not
operate.1. Check key fob battery and function BL-77
2. Replace key fob. Refer to ID Code Entry Procedure.
NOTE:
If the result of key fob function check with CONSULT-III is OK, key
fob is not malfunctioning.BL-89
3. Check remote keyless entry receiver BL-85
4. Replace BCMBCS-17
The new ID of key fob cannot be entered without
CONSULT-III.1. Check key fob battery and function BL-77
2. Check key switch BL-84
3. Check door switch BL-79
4. Check ACC switch BL-78
5. Check door lock and unlock switch BL-42
6. Replace key fob. Refer to ID Code Entry Procedure.
NOTE:
If the result of key fob function check with CONSULT-III is OK, key
fob is not malfunctioning.BL-89
7. Replace BCMBCS-17
Door lock or unlock does not work.1. Check door lock operation BL-23
2. Check key fob battery and function BL-77
3. Replace key fob. Refer to ID Code Entry Procedure.
NOTE:
If the result of key fob function check with CONSULT-III is OK, key
fob is not malfunctioning.BL-89
4. Replace BCMBCS-17
Back door does not open when back door opener
button is continuously pressed.1. Check back door opener operation BL-23
2. Check back door open operation mode BL-73
3. Check key fob battery and function BL-77
4. Check key switch BL-84
5. Replace BCMBCS-17

BL-76
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2006 November2007 350Z
Trunk does not open when trunk opener button is
continuously pressed. (Roadster models)1. Check trunk opener operation BL-114
2. Check trunk open operation mode BL-73
3. Check key fob battery and function BL-77
4. Check key switch BL-84
5. Replace BCMBCS-17
Hazard reminder does not activate properly when
pressing lock or unlock button of key fob.1. Check hazard reminder mode *
*: Hazard reminder can be activated or deactivated. First check
the hazard reminder setting.BL-732. Check hazard warning lamp function with hazard switch.LT- 6 6
3. Check door switch BL-79
4. Replace BCMBCS-17
Horn reminder does not activate properly when
pressing lock button of key fob.1. Check horn reminder mode *
*: Horn reminder can be activated or deactivated. First check the
horn chirp setting.BL-732. Check horn chirp function with horn switch.BL-88
3. Check door switch BL-79
4. Check IPDM E/R operation BL-85
5. Replace BCMBCS-17
Interior lamp and step lamp operation do not acti-
vate properly.1. Check interior lamp and step lamp operation BL-882. Check door switch BL-79
3. Replace BCMBCS-17
Panic alarm (horn and headlamp) does not activate
when panic alarm button is continuously pressed.1. Check panic alarm mode *
*: Panic alarm can be activated or deactivated. First check the
Panic alarm setting.BL-73
2. Check key fob battery and function BL-77
3. Check headlamp alarm BL-88
4. Check horn chirp function with horn switch.BL-88
5. Check IPDM E/R operation BL-85
6. Check key switch BL-84
7. Replace key fob. Refer to ID Code Entry Procedure.
NOTE:
If the result of key fob function check with CONSULT-III is OK, key
fob is not malfunctioning.BL-89
8. Replace BCMBCS-17
Auto door lock operation does not activate properly.
(All other remote keyless entry system function is
OK.)1. Check auto door lock operation mode *
*: Auto door lock operation can be activated or deactivated. First
check the auto door lock operation setting.BL-73
2. Replace BCMBCS-17
Keyless power window down (open) operation does
not activate properly.
(All other remote keyless entry system function is
OK.)1. Check power window down operation mode *
*: Power window down operation can be activated or deactivated.
First check the power window down setting.BL-73
2. Check power window functionGW-19
3. Replace BCMBCS-17
Symptom Diagnoses/service procedureReference
page

REMOTE KEYLESS ENTRY SYSTEM
BL-77
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
Check Key Fob Battery and Function NIS0001K
1. CHECK KEY FOB BATTERY
1. Remove key fob battery. Refer to BL-91, "
Key Fob Battery Replacement" .
2. Measure voltage between battery positive and negative terminals.
NOTE:
Key fob does not function if battery is not set correctly.
OK or NG
OK >> GO TO 2
NG >> Replace battery.
2. CHECK KEY FOB FUNCTION
With CONSULT-III
Check key fob function in “DATA MONITOR” mode with CONSULT-III.
When pushing each button of key fob, the corresponding monitor item should be turned as follows.
OK or NG
OK >> Key fob is OK.
NG >> Replace key fob.Voltage : 2.5 - 3.0V
SEL237W
Condition Monitor item
Pushing LOCK KEYLESS LOCK : ON
Pushing UNLOCK KEYLESS UNLOCK : ON
Keep pushing UNLOCKRKE KEEP UNLK : ON*
*: “RKE KEEP UNLK” turns to ON 3 seconds after UNLOCK
button keeps pushing.
Pushing TRUNK KEYLESS TRUNK : ON
Pushing PANIC KEYLESS PANIC : ON
Pushing LOCK and UNLOCK at the same time RKE LCK - UNLCK : ON

BL-78
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2006 November2007 350Z
Check ACC Switch NIS0001L
1. CHECK ACC SWITCH
With CONSULT-III
Check ACC switch (“ACC ON SW”) in “DATA MONITOR” mode with CONSULT-III.
Without CONSULT-III
Check voltage between BCM connector and ground.
OK or NG
OK >> ACC switch is OK.
NG >> Check the following.

10A fuse [No. 6, located in fuse block (J/B)]

Harness for open or short between BCM and fuse
Monitor item Condition
ACC ON SWIgnition switch position is ACC or ON : ON
Ignition switch position is OFF : OFF
ItemCon-
nectorTerminals
(Wire color)
ConditionVoltage [V]
(Approx.)
(+) (–)
Ignition switch M90 11 (LG) GroundACC or ON Battery voltage
OFF 0
PIIA7002E

REMOTE KEYLESS ENTRY SYSTEM
BL-79
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
Check Door Switch NIS0001M
DRIVER SIDE DOOR SWITCH AND PASSENGER SIDE DOOR SWITCH CHECK
1. CHECK DOOR SWITCH INPUT SIGNAL
With CONSULT-III
Check door switches (“DOOR SW-DR” and “DOOR SW-AS”) in “DATA MONITOR” mode with CONSULT-III.
Without CONSULT-III
Check voltage between BCM connector and ground.
OK or NG
OK >> Door switch is OK.
NG >> GO TO 2.
Monitor item Condition
DOOR SW-DROPEN : ON
CLOSE : OFF
DOOR SW-ASOPEN : ON
CLOSE : OFF
ItemCon-
nectorTe r m i n a l s
(Wire color)
ConditionVoltage [V]
(Approx.)
(+) (–)
Driver side door
switchB83 62 (L)
GroundOpen 0
Close 5
Passenger side
door switchM90 12 (P)Open 0
Close 5
PIIA9539E

BL-80
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2006 November2007 350Z
2. CHECK DOOR SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect door switch and BCM connector.
3. Check continuity between door switch harness connector B17, B23 terminal 1 and BCM harness connec-
tor B83 terminal 62 (driver side) or M90 terminal 12 (passenger side).
4. Check continuity between door switch harness connector B17,
B23 terminal 1and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace door switch harness.
3. CHECK DOOR SWITCH
Check continuity between door switch B17 (driver side) or B23 (passenger side) terminal 1 and ground part of
door switch.
OK or NG
OK >> GO TO 4.
NG >> Replace door switch.Driver side door
1 (L) - 62 (L) : Continuity should exist.
Passenger side door
1 (P) - 12 (P) : Continuity should exist.
Driver side door
switch
1 (L) - Ground : Continuity should not exist.
Passenger side door
switch
1(P) - Ground : Continuity should not exist.
PIIA9540E
TerminalCondition of door
switchContinuity
1 Ground part of door switchPushed (close) No
Released (open) Yes
PIIA3351E

REMOTE KEYLESS ENTRY SYSTEM
BL-81
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z

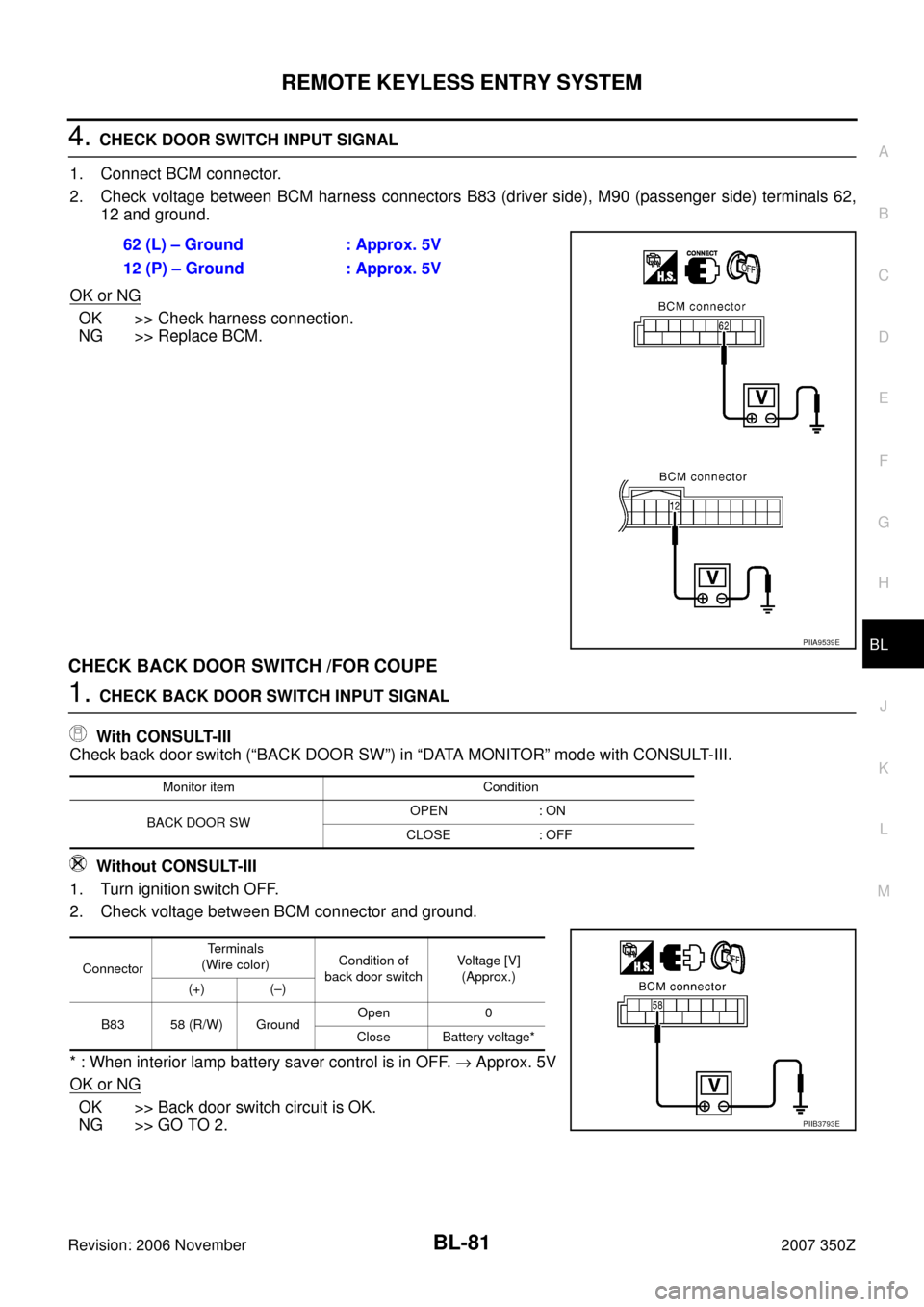

4. CHECK DOOR SWITCH INPUT SIGNAL
1. Connect BCM connector.
2. Check voltage between BCM harness connectors B83 (driver side), M90 (passenger side) terminals 62,
12 and ground.
OK or NG
OK >> Check harness connection.
NG >> Replace BCM.
CHECK BACK DOOR SWITCH /FOR COUPE
1. CHECK BACK DOOR SWITCH INPUT SIGNAL
With CONSULT-III
Check back door switch (“BACK DOOR SW”) in “DATA MONITOR” mode with CONSULT-III.
Without CONSULT-III
1. Turn ignition switch OFF.
2. Check voltage between BCM connector and ground.
* : When interior lamp battery saver control is in OFF. → Approx. 5V
OK or NG
OK >> Back door switch circuit is OK.
NG >> GO TO 2.62 (L) – Ground : Approx. 5V
12 (P) – Ground : Approx. 5V
PIIA9539E
Monitor item Condition
BACK DOOR SWOPEN : ON
CLOSE : OFF
ConnectorTerminals
(Wire color)Condition of
back door switchVoltage [V]
(Approx.)
(+) (–)
B83 58 (R/W) GroundOpen 0
Close Battery voltage*
PIIB3793E
