REMOTE KEYLESS ENTRY SYSTEM
BL-67
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
TIWT2264E

BL-68
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2006 November2007 350Z

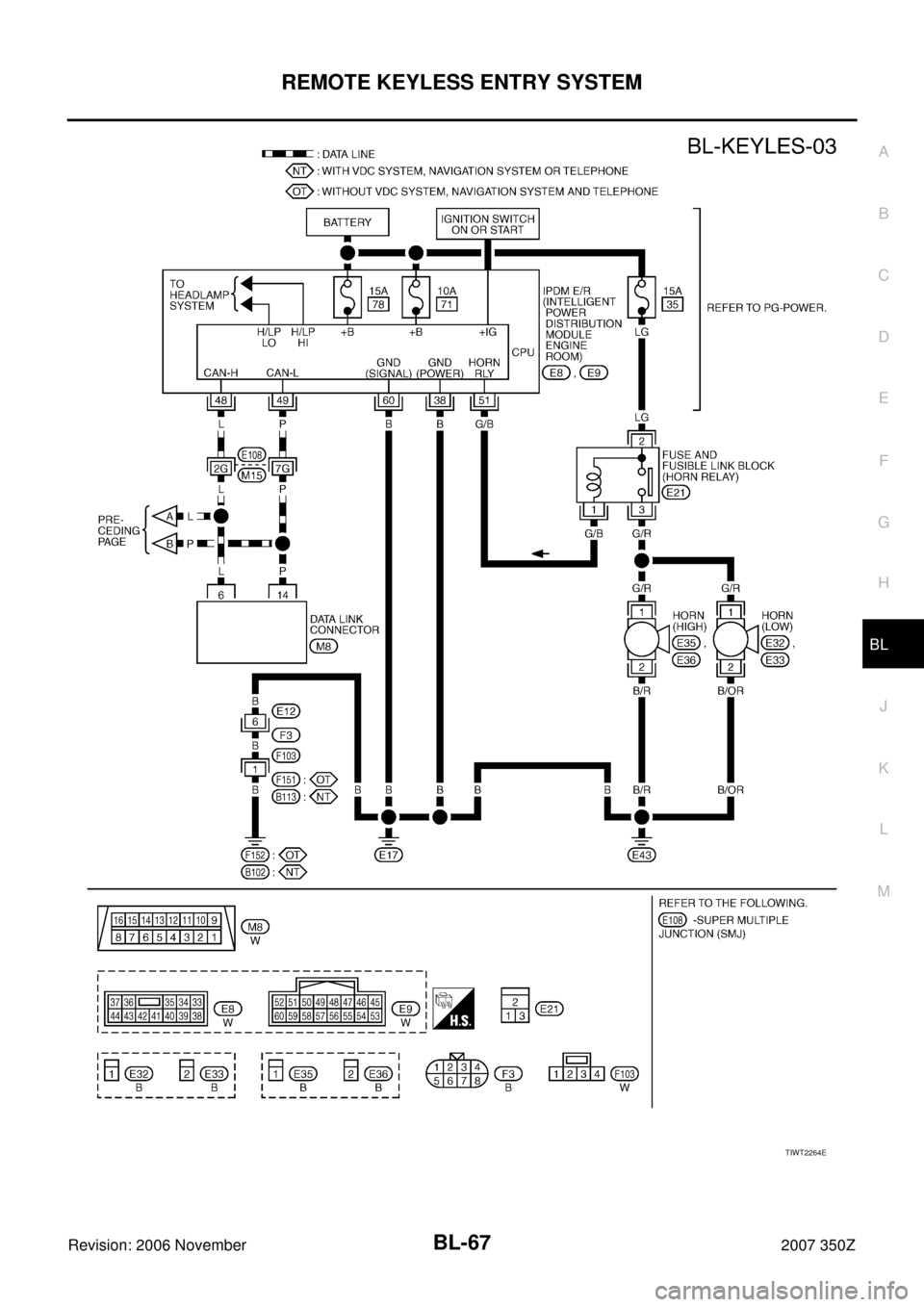

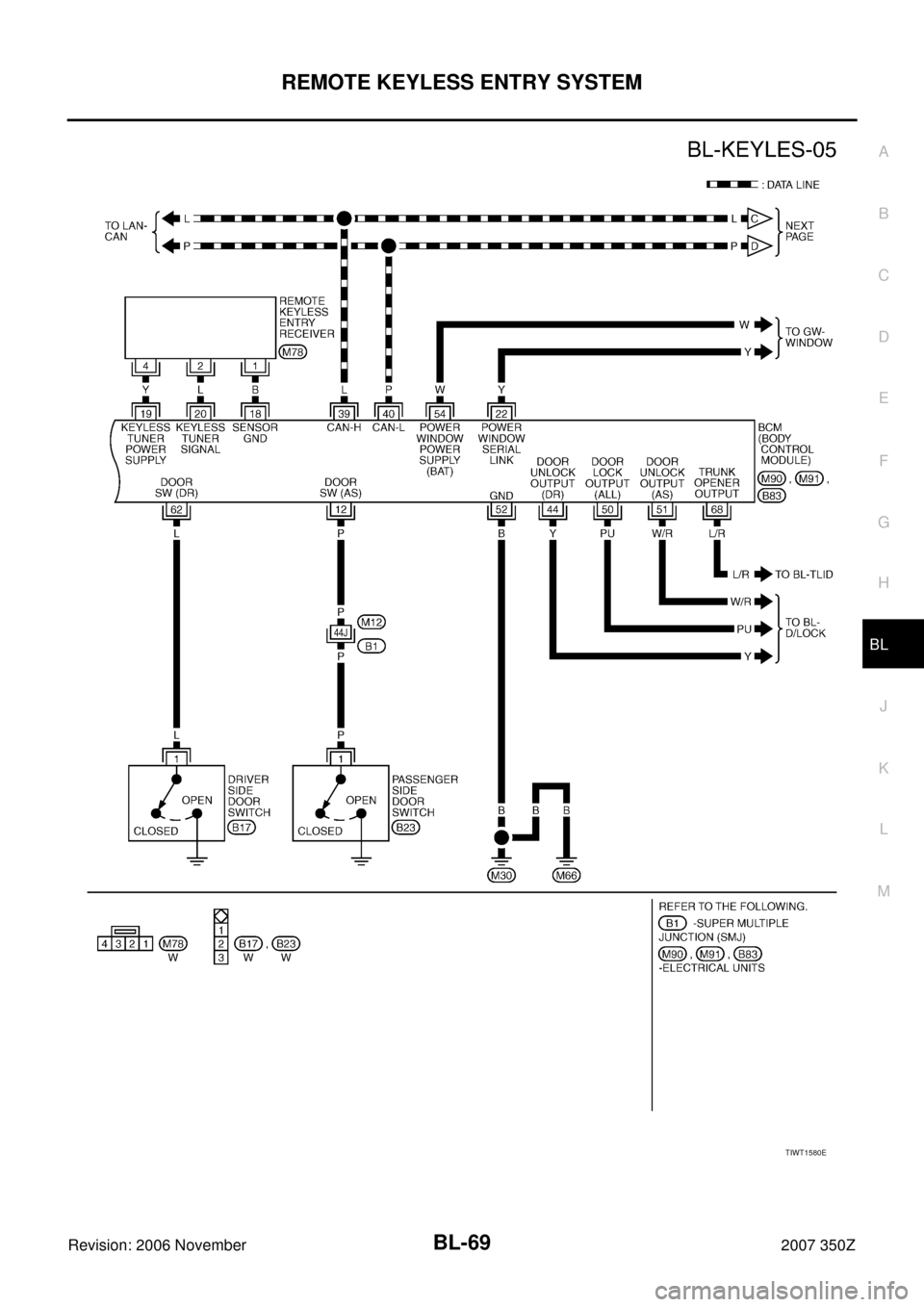

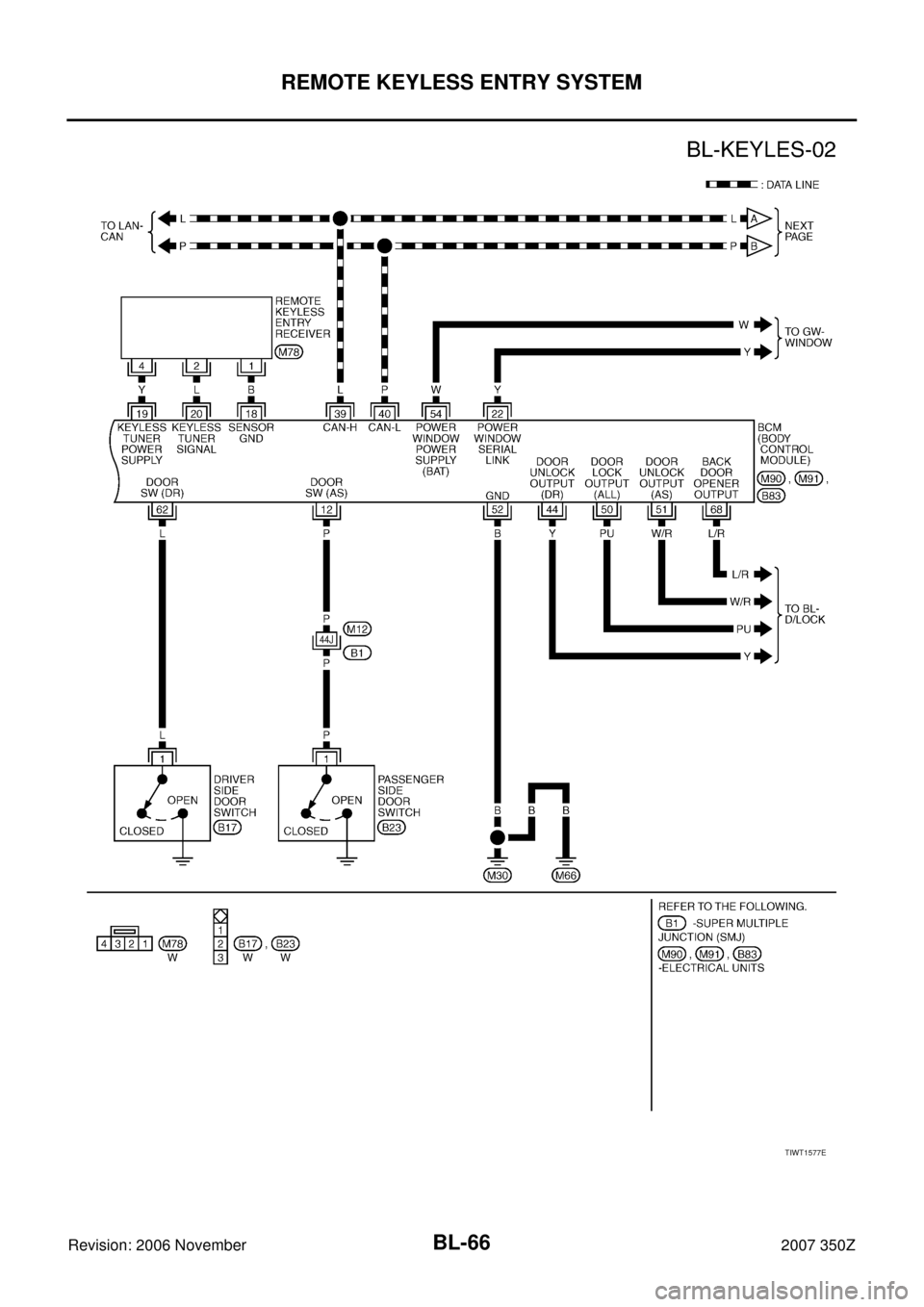

Wiring Diagram — KEYLES — /For Roadster NIS0001A
TIWT2265E

REMOTE KEYLESS ENTRY SYSTEM
BL-69
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
TIWT1580E

BL-70
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2006 November2007 350Z

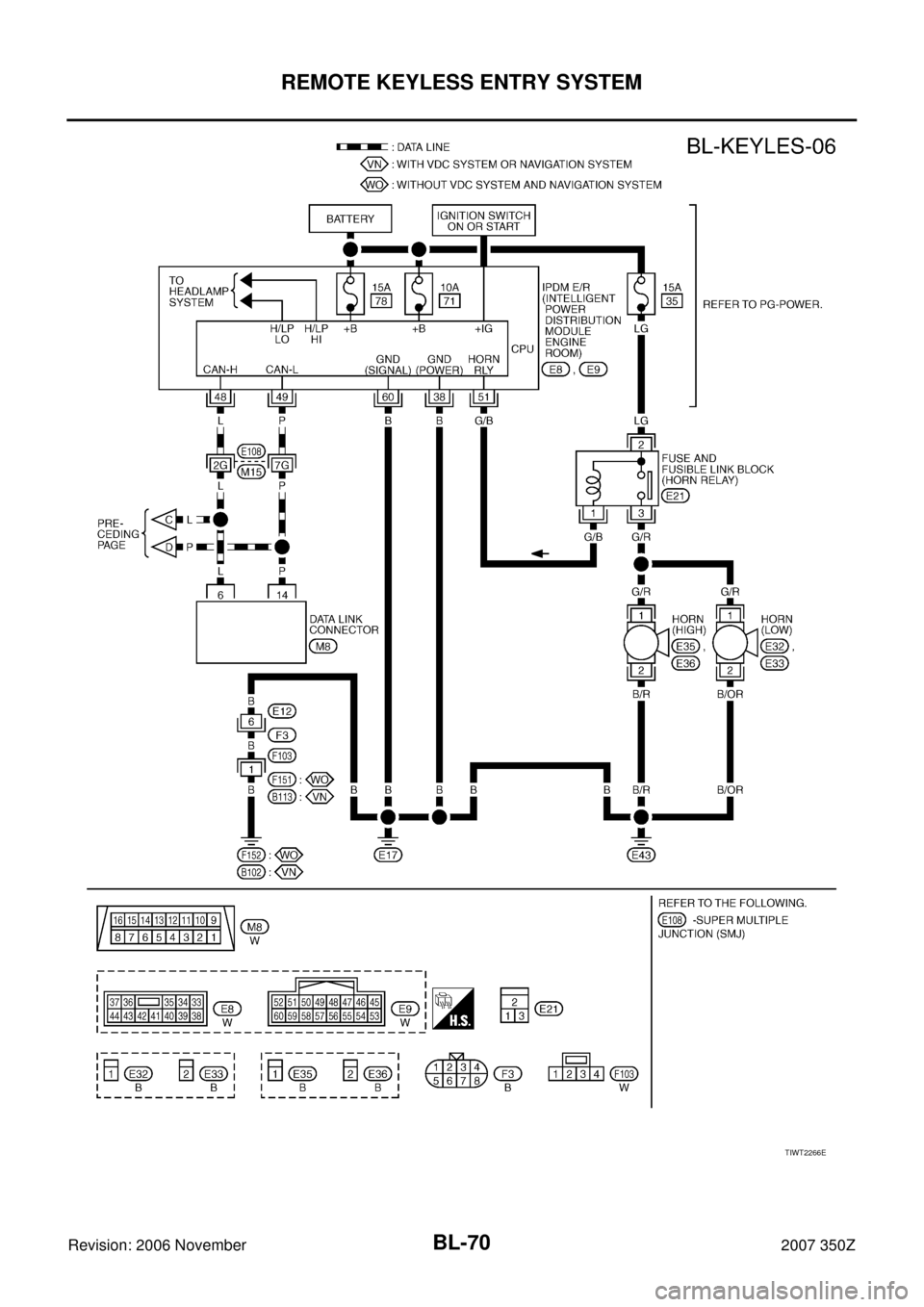

TIWT2266E

REMOTE KEYLESS ENTRY SYSTEM
BL-71
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
Terminals and Reference Value for BCMNIS0001B
*1: When interior lamp battery saver control is in OFF: Approx 5V.
*2: For roadster.Te r -
minal Wire
colorItemSignal
input/
outputConditionVoltage (V)
(Approx.)
11 LG Ignition switch (ACC) Input Ignition switch (ACC or ON position) Battery voltage
12 P Passenger side door switch Input ON (Open) → OFF (Closed) 0 → 5
18 BRemote keyless entry
receiver (Ground)—— 0
19 YRemote keyless entry
receiver (Power supply)OutputKey is inserted in IGN key cylinder 0
All door closed
20 LRemote keyless entry
receiver (Signal)InputKey is inserted in IGN key cylinder 0
Waiting
(All door closed)
When signal is received
(All door closed)
37 B/R Key switch (Insert) InputON (Key inserted) → OFF (Key
removed from IGN key cylinder)Battery voltage → 0
38 W/L Ignition switch (ON) Input Ignition switch (ON or START position) Battery voltage
39 L CAN – HInput/
Output——
40 P CAN – LInput/
Output——
42 GY Power source (Fuse) Input — Battery voltage
52 B Ground — — 0
55 R Power source (Fusible link) Input — Battery voltage
57 R/WTrunk lid lock assembly
(trunk room lamp switch)*
2Input
ON (Open) → OFF (Closed)
0 → Battery voltage*1
58 R/W Back door switch Input
62 L Driver side door switch Input ON (Open) → OFF (Closed) 0 → 5
OCC3881D
OCC3879D
OCC3880D

BL-72
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2006 November2007 350Z
Terminals and Reference Value for IPDM E/RNIS0001C
*: In the state that horn reminder operates.
CONSULT-III Function (BCM)NIS0001D

CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.
*:Refer to BCS-16, "CAN Communication Inspection Using CONSULT-III (Self-Diagnosis)" . Te r m i -
nal Wire
colorItemSignal
input/out-
putConditionVoltage (V)
(Approx.)
38 B Ground — — 0
48 L CAN – HInput/
Output—0
49 P CAN – LInput/
Output—0
51 G/B Horn relay InputWhen door lock is operated using
key fob*
(ON → OFF)Battery voltage → 0
60 B Ground — — 0
BCM diagnosis
positionInspection items and diagnosis mode Description
MULTI REMOTE
ENTData monitorDisplays the input remote keyless entry system data to
BCM on real–time basis.
Active test Sends a drive signal to check the operation.
Work support Changes the setting for each function.

REMOTE KEYLESS ENTRY SYSTEM
BL-73
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
CONSULT-III Application Items for BCMNIS0001F
“MULTI REMOTE CONTENT”
Work Support
Hazard and horn reminder mode
Auto door lock operation mode
Panic alarm operation mode
Back door open operation mode
Trunk lid open operation mode (Roadster models)
Power window down (open) operation mode
Data Monitor
Test Item Description
REMO CONT ID CONFIR It can be checked whether key fob ID code is registered or not in this mode.
REMO CONT ID REGIST Key fob ID code can be registered.
REMO CONT ID ERASUR Key fob ID code can be erased.
MULTI ANSWER BACK SETHazard and horn reminder mode can be changed in this mode. The reminder mode will be changed
when “MODE SET” on CONSULT-III screen is touched.
AUTO LOCK SETAuto locking function mode can be changed in this mode. The function mode will be changed when
“MODE SET” on CONSULT-III screen is touched.
PANIC ALRM SETPanic alarm operation mode can be changed in this mode. The operation mode will be changed
when “MODE SET” on CONSULT-III screen is touched.
TRUNK OPEN SETBack door opener operation mode can be changed in this mode. The operation mode will be
changed when “MODE SET” on CONSULT-III screen is touched.
Trunk lid opener operation mode can be changed in this mode. The operation mode will be changed
when “MODE SET” on CONSULT-III screen is touched.
PW DOWN SETKeyless power window down (open) operation mode can be changed in this mode. The operation
mode will be changed when“MODE SET” on CONSULT-III screen is touched.
ON
(C mode)OFF
(S mode)MODE 3 MODE 4 MODE 5 MODE 6
Key fob
operation Lock Unlock Lock Unlock Lock Unlock Lock Unlock Lock Unlock Lock Unlock
Hazard warning
lamp flashTwice Once Twice — — — Twice Once Twice — — Once
Horn sound Once———————Once—Once—
MODE 1 MODE 2 MODE 3
Auto locking function 1 minutes Nothing 5 minutes
MODE 1 MODE 2 MODE 3
Key fob operation 0.5 seconds Nothing 1.5 seconds
MODE 1 MODE 2 MODE 3
Key fob operation 0.5 seconds Nothing 1.5 seconds
MODE 1 MODE 2 MODE 3
Key fob operation 0.5 seconds Nothing 1.5 seconds
MODE 1MODE 2MODE 3
Key fob operation 3 seconds Nothing 5 seconds
Monitored Item Description
IGN ON SW Indicates [ON/OFF] condition of ignition switch in ON position.
ACC ON SW Indicates [ON/OFF] condition of ignition switch in ACC position.
