2007 NISSAN 350Z headlamp

BL-2Revision: 2006 November2007 350Z DATA MONITOR .................................................. 55
ACTIVE TEST ..................................................... 55
Terminals and Reference Value for BCM/For Road-
ster .......................................................................... 56
Trouble Diagnosis/For Roadster ............................. 56
FUEL LID DOSE NOT OPEN WITH FUEL LID
OPENER SWITCH .............................................. 56
REMOTE KEYLESS ENTRY SYSTEM ..................... 59
Component Parts and Harness Connector Location ... 59
FOR COUPE ....................................................... 59
FOR ROADSTER ................................................ 60
System Description ................................................. 61
INPUTS ............................................................... 61
OPERATION PROCEDURE ................................ 62
CAN Communication System Description .............. 63
CAN Communication Unit ....................................... 63
Schematic ............................................................... 64
Wiring Diagram — KEYLES — /For Coupe ............ 65
Wiring Diagram — KEYLES — /For Roadster ........ 68
Terminals and Reference Value for BCM ................ 71
Terminals and Reference Value for IPDM E/R ........ 72
CONSULT-III Function (BCM) ................................. 72
CONSULT-III Application Items for BCM ................ 73
“MULTI REMOTE CONTENT” ............................. 73
CONSULT-III Application Items for IPDM E/R ........ 74
DATA MONITOR .................................................. 74
ACTIVE TEST ..................................................... 74
Work Flow ............................................................... 75
Trouble Diagnosis Chart by Symptom .................... 75
Check Key Fob Battery and Function ..................... 77
Check ACC Switch ................................................. 78
Check Door Switch ................................................. 79
DRIVER SIDE DOOR SWITCH AND PASSEN-
GER SIDE DOOR SWITCH CHECK ................... 79
CHECK BACK DOOR SWITCH /FOR COUPE ... 81
Check Trunk Lid Lock Assembly (Trunk Room Lamp
Switch) / For Roadster ............................................ 83
Check Key Switch ................................................... 84
Check IPDM E/R Operation .................................... 85
Check Remote Keyless Entry Receiver .................. 85
Check Horn Function .............................................. 88
Check Headlamp Alarm .......................................... 88
Check Interior Lamp Operation .............................. 88
ID Code Entry Procedure ....................................... 89
KEY FOB ID SETUP WITH CONSULT-III ........... 89
KEY FOB ID SETUP WITHOUT CONSULT-III .... 90
Key Fob Battery Replacement ................................ 91
Removal and Installation of Remote Keyless Entry
Receiver ................................................................. 92
REMOVAL ........................................................... 92
INSTALLATION .................................................... 92
DOOR ........................................................................ 93
Fitting Adjustment ................................................... 93
COUPE ................................................................ 93
DOOR .................................................................. 93
STRIKER ADJUSTMENT .................................... 93
ROADSTER ......................................................... 94
DOOR .................................................................. 94
STRIKER ADJUSTMENT .................................... 94DOVE TAIL FEMALE ADJUSTMENT (ROAD-
STER) .................................................................. 95
Removal and Installation ......................................... 95
REMOVAL ............................................................ 95
INSTALLATION .................................................... 96
Removal and Installation of Dove Tail Male &
Female (Roadster) .................................................. 96
REMOVAL ............................................................ 96
INSTALLATION .................................................... 96
Door Weatherstrip ................................................... 97
REMOVAL ............................................................ 97
INSTALLATION .................................................... 97
DOOR LOCK ............................................................. 98
Component Structure .............................................. 98
Inspection and Adjustment ...................................... 98
EXTERIOR HANDLE ROD ADJUSTMENT ......... 98
Removal and Installation ......................................... 98
REMOVAL ............................................................ 98
INSTALLATION .................................................... 99
Disassembly and Assembly .................................... 99
DISASSEMBLY .................................................... 99
ASSEMBLY .......................................................... 99
BACK DOOR ...........................................................100
Fitting Adjustment .................................................100
VERTICAL/LATERAL CLEARANCE ADJUST-
MENT .................................................................100
Back Door Assembly .............................................100
REMOVAL ..........................................................100
INSTALLATION ..................................................101
INSPECTION .....................................................101
Removal and Installation of Back Door Striker ......101
REMOVAL ..........................................................101
INSTALLATION ..................................................102
Removal and Installation of Back Door Stay .........102
REMOVAL ..........................................................102
INSTALLATION ..................................................102
Removal and Installation of Back Door Weatherstrip .103
REMOVAL ..........................................................103
INSTALLATION ..................................................103
BACK DOOR LOCK ................................................104
Removal and Installation of Back Door Lock & Back
Door Opener Actuator ...........................................104
REMOVAL ..........................................................104
INSTALLATION ..................................................104
INSPECTION .....................................................104
Removal and Installation of Back Door Opener
Switch (External) ...................................................105
REMOVAL ..........................................................105
INSTALLATION ..................................................105
Removal and Installation of Back Door Emergency
Opener Cable ........................................................106
REMOVAL ..........................................................106
INSTALLATION ..................................................106
TRUNK LID ..............................................................107
Fitting Adjustment .................................................107
LONGITUDINAL AND LATERAL CLEARANCE
ADJUSTMENT ...................................................107
SURFACE HEIGHT ADJUSTMENT ..................107
Removal and Installation of Trunk Lid Assembly ..108

BL-3
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z REMOVAL ......................................................... 108
INSTALLATION ................................................. 108
Removal and Installation of Trunk Lid Stay .......... 109
REMOVAL ......................................................... 109
INSTALLATION ................................................. 109
Removal and Installation of Trunk Lid Lock Assem-
bly ......................................................................... 109
REMOVAL ......................................................... 109
INSTALLATION ................................................. 109
Removal and Installation of Trunk Lid Striker ....... 109
REMOVAL ......................................................... 109
INSTALLATION .................................................. 110
Removal and Installation of Trunk Lid Emergency
Opener Cable ....................................................... . 111
REMOVAL ......................................................... . 111
INSTALLATION ................................................. . 111
Removal and Installation of Trunk Lid Hinge ......... 112
REMOVAL .......................................................... 112
INSTALLATION .................................................. 112
Removal and Installation of Lift Spring .................. 112
REMOVAL .......................................................... 112
INSTALLATION .................................................. 112
Removal and Installation of Trunk Lid Weatherstrip .. 113
REMOVAL .......................................................... 113
INSTALLATION .................................................. 113
TRUNK LID OPENER ..............................................114
Component Parts and Harness Connector Location .. 114
System Description ............................................... 114
TRUNK LID OPENER CANCEL OPERATION .. 115
TRUNK OPENER OPERATION WITH KEY FOB .. 115
Wiring Diagram—T/LID— ..................................... 116
Terminals and Reference Value for BCM .............. 118
CONSULT-III Function (BCM) ............................... 119
ACTIVE TEST .................................................... 119
Trouble Diagnosis ................................................ 120
TRUNK DOSE NOT OPEN WITH TRUNK LID
OPENER SWITCH ............................................ 120
TRUNK DOSE NOT CLOSE ............................. 123

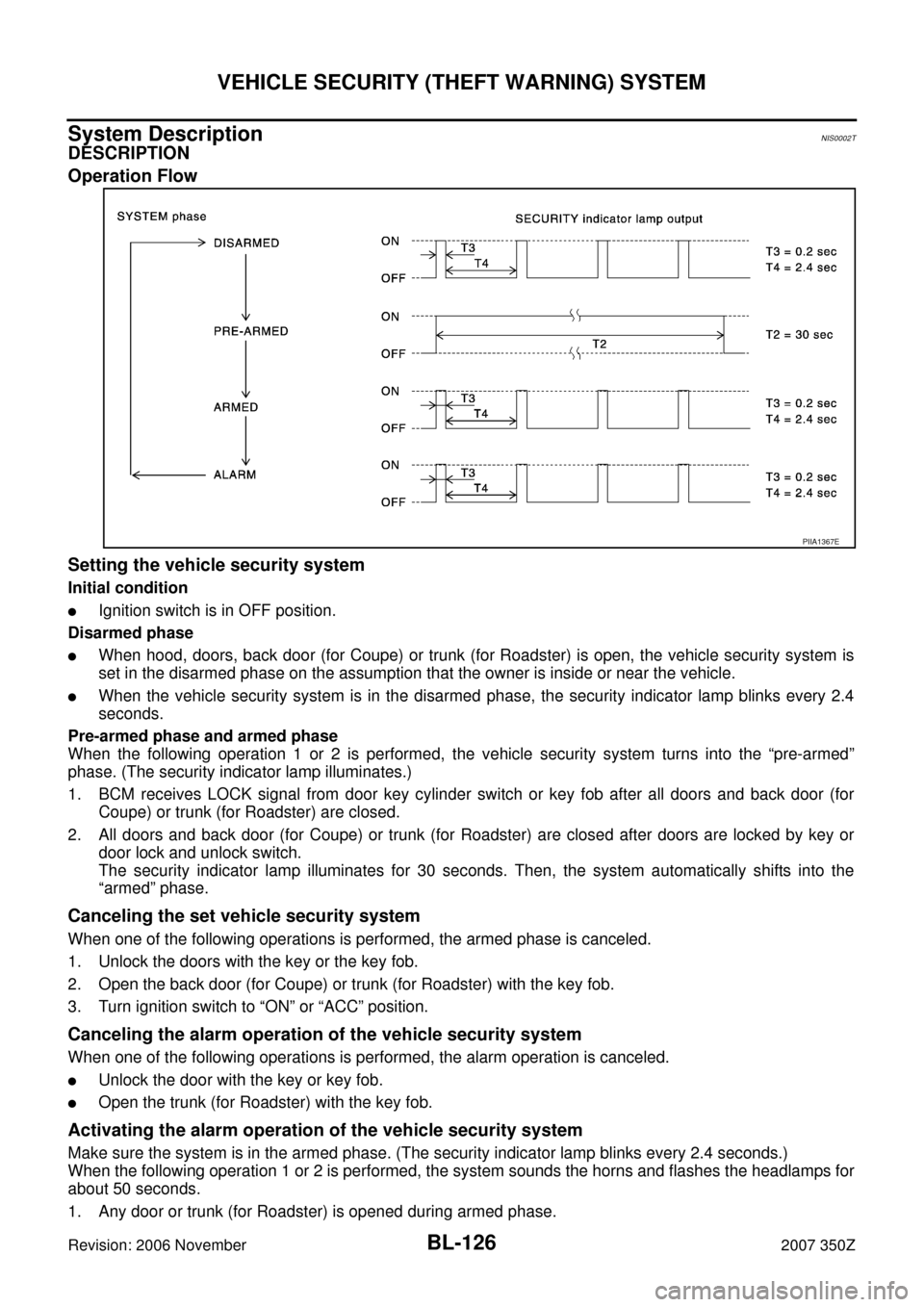

VEHICLE SECURITY (THEFT WARNING) SYSTEM . 125
Component Parts and Harness Connector Location . 125
System Description .............................................. 126
DESCRIPTION .................................................. 126
POWER SUPPLY AND GROUND .................... 127
INITIAL CONDITION TO ACTIVATE THE SYS-
TEM ................................................................... 127
VEHICLE SECURITY SYSTEM ALARM OPER-
ATION ............................................................... 127
VEHICLE SECURITY SYSTEM DEACTIVATION . 127
PANIC ALARM OPERATION ............................ 128
CAN Communication System Description ............ 128
CAN Communication Unit .................................... 128
Schematic ............................................................ 129
Wiring Diagram — VEHSEC — ........................... 130
Terminals and Reference Value for BCM ............. 135
Terminals and Reference Value for IPDM E/R ..... 137
CONSULT-III Function (BCM) .............................. 137
CONSULT-III APPLICATION ITEM ................... 137
CONSULT-III Function (IPDM E/R) ...................... 138
CONSULT-III APPLICATION ITEM ................... 138Trouble Diagnosis .................................................138
WORK FLOW ....................................................138
Preliminary Check ................................................139
Symptom Chart .....................................................140
Diagnostic Procedure 1 ........................................141
1 – 1 CHECK DOOR SWITCH ..........................141
1 – 2 CHECK BACK DOOR SWITCH (COUPE) .143
1 – 3 CHECK TRUNK LID LOCK ASSEMBLY
(TRUNK ROOM LAMP SWITCH) (ROADSTER) .145
Diagnostic Procedure 2 ........................................146
CHECK SECURITY INDICATOR LAMP ...........146
Diagnostic Procedure 3 ........................................147
CHECK DOOR KEY CYLINDER SWITCH ........147
Diagnostic Procedure 4 ........................................148
CHECK VEHICLE SECURITY HORN ALARM . 148
Diagnostic Procedure 5 ........................................148
CHECK VEHICLE SECURITY HEADLAMP
ALARM ..............................................................148
Diagnostic Procedure 6 ........................................149
CHECK DOOR LOCK AND UNLOCK SWITCH .149
NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-
NATS) ......................................................................150
Component Parts and Harness Connector Location .150
System Description ...............................................151
System Composition .............................................152
ECM Re-communicating Function ........................152
Wiring Diagram — NATS — .................................153
Terminals and Reference Value for BCM .............154
CONSULT-III .........................................................154
CONSULT-III INSPECTION PROCEDURE .......154
CONSULT-III DIAGNOSTIC TEST MODE
FUNCTION ........................................................154
NVIS (NATS) SELF-DIAGNOSTIC RESULTS
ITEM CHART .....................................................154
Work Flow .............................................................155
Trouble Diagnoses ...............................................156
SYMPTOM MATRIX CHART 1 ..........................156
SYMPTOM MATRIX CHART 2 ..........................157
DIAGNOSTIC SYSTEM DIAGRAM ...................157
Diagnostic Procedure 1 ........................................158
Diagnostic Procedure 2 ........................................159
Diagnostic Procedure 3 ........................................160
Diagnostic Procedure 4 ........................................161
Diagnostic Procedure 5 ........................................163
Diagnostic Procedure 6 ........................................165
How to Replace NATS Antenna Amp. ..................166
INTEGRATED HOMELINK TRANSMITTER ...........167
Wiring Diagram — TRNSCV — ............................167
Trouble Diagnoses ...............................................168
DIAGNOSTIC PROCEDURE ............................168
BODY REPAIR ........................................................170
Body Exterior Paint Color (Coupe) .......................170
Body Exterior Paint Color (Roadster) ...................171
Body Component Parts (Coupe) ..........................172
UNDERBODY COMPONENT PARTS ..............172
BODY COMPONENT PARTS ...........................174
Body Component Parts (Roadster) ......................176
UNDERBODY COMPONENT PARTS ..............176
BODY COMPONENT PARTS ...........................178

REMOTE KEYLESS ENTRY SYSTEM
BL-63
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
Interior Lamp and Step Lamp Operation
When the following conditions come:

condition of interior lamp switch is DOOR position;

door switch OFF (when all the doors are closed);
Remote keyless entry system turns on interior lamp (for 30 seconds) with input of UNLOCK signal from key
fob.
For detailed description, refer to LT- 1 3 0 , "
MAP LAMP TIMER OPERATION" .
Panic Alarm Operation
When key switch is OFF (when ignition key is not inserted in key cylinder), BCM turns on and off horn and
headlamp intermittently with input of PANIC ALARM signal from key fob.
The alarm automatically turns off after 25 seconds or when BCM receives any signal from key fob.
For detailed description, refer to BL-128, "
PANIC ALARM OPERATION" .
Back Door Operation/For Coupe
When a BACK DOOR OPEN signal is sent with key OFF (ignition key removed from key cylinder) from key
fob, power is supplied through BCM terminal 19.
When power and ground are supplied, back door opener actuator opens back door.
Trunk Opener Operation/For Roadster
When a TRUNK OPEN signal is sent with key OFF (ignition key removed from key cylinder) from key fob,
power is supplied through BCM terminal 19.
When power and ground are supplied, trunk lid opener actuator opens trunk.
Keyless Power Window Down (open) Operation
When key fob unlock switch is turned ON with ignition switch OFF, and key fob unlock switch is detected to be
on continuously for 3 seconds, the driver's door and passenger's door power windows are simultaneously
opened.
Power window is operated to open and the operation continues as long as the key fob unlock switch is
pressed.
CAN Communication System DescriptionNIS00016
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitNIS00017
Refer to LAN-4, "CAN Communication System"

BL-74
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2006 November2007 350Z
Active Test
CONSULT-III Application Items for IPDM E/RNIS0001H
DATA MONITOR
ACTIVE TEST
KEY ON SW Indicates [ON/OFF] condition of key switch.
DOOR SW-DR Indicates [ON/OFF] condition of driver side door switch.
DOOR SW-AS Indicates [ON/OFF] condition of passenger side door switch.
BACK DOOR SW Indicates [ON/OFF] condition of back door switch (For Coupe).
LOCK SW DR/AS Indicates [ON/OFF] condition of lock signal from lock/unlock switch.
UNLK SW DR/AS Indicates [ON/OFF] condition of unlock signal from lock/unlock switch.
KEY CYL LK SW Indicates [ON/OFF] condition of lock signal from door key cylinder switch.
LK BUTTON/SIG Indicates [ON/OFF] condition of lock signal from key fob.
UN BUTTON/SIG Indicates [ON/OFF] condition of unlock signal from key fob.
PANIC BTN Indicates [ON/OFF] condition of panic signal from key fob.
TRUNK OPNR SW Indicates [ON/OFF] condition of trunk room lamp switch (For Roadster).
TRUNK BTN/SIGIndicates [ON/OFF] condition of back door open signal from key fob.
Indicates [ON/OFF] condition of trunk open signal from key fob. (For Roadster)
TRUNK OPN MNTR Indicates [ON/OFF] condition of trunk lid opener switch. (For Roadster)
UN BUTTON ON Indicates [ON/OFF] condition of unlock signal from key fob.
LK/UN BTN ON Indicates [ON/OFF] condition of lock/unlock signal at the same time from key fob.
DOOR SW-RR This is displayed even when it is not equipped.Monitored Item Description
Test Item Description
INT LAMPThis test is able to check interior lamp operation. The interior lamp is turned on when “ON” on CON-
SULT-III screen is touched.
IGN ILLUM This is displayed even when it is not equipped.
TRUNK/BACK DOORThis test is able to check back door (For Coupe) or trunk lid (For Roadster) opener actuator opera-
tion. The back door (For Coupe) or trunk (For Roadster) is unlocked when “ON” on CONSULT-III
screen is touched.
HORNThis test is able to check panic alarm and horn reminder operations. The horn activate for 0.02 sec-
onds after “ON” on CONSULT-III screen is touched.
HEAD LAMP(HI)This test is able to check headlamps panic alarm operation. The headlamp illuminates for 0.5 sec-
onds after “ON” on CONSULT-III screen is touched.
POWER WINDOW DOWNThis test is able to check power window open operation. The front power windows activate for 10
seconds after “ON” or CONSULT-III screen is touched.
FLASHER RIGHTThis test is able to check hazard reminder operation. The right hazard lamp turns on when “ON” on
CONSULT-III screen is touched.
FLASHER LEFTThis test is able to check hazard reminder operation. The left hazard lamp turns on when “ON” on
CONSULT-III screen is touched.
FLASHER RIGHT (CAN)This test is able to check hazard reminder operation. The right hazard indicator lamp turns on when
“ON” on CONSULT-III screen is touched.
FLASHER LEFT (CAN)This test is able to check hazard reminder operation. The left hazard indicator lamp turns on when
“ON” on CONSULT-III screen is touched.
Monitored Item Description
HORN CHIRP Indicates [ON/OFF] condition of horn function by IPDM E/R.
Test Item Description
HORNThis test is able to check horn operation. Horn activates when “ON” on CONSULT-III screen is
touched.

BL-76
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2006 November2007 350Z
Trunk does not open when trunk opener button is
continuously pressed. (Roadster models)1. Check trunk opener operation BL-114
2. Check trunk open operation mode BL-73
3. Check key fob battery and function BL-77
4. Check key switch BL-84
5. Replace BCMBCS-17
Hazard reminder does not activate properly when
pressing lock or unlock button of key fob.1. Check hazard reminder mode *
*: Hazard reminder can be activated or deactivated. First check
the hazard reminder setting.BL-732. Check hazard warning lamp function with hazard switch.LT- 6 6
3. Check door switch BL-79
4. Replace BCMBCS-17
Horn reminder does not activate properly when
pressing lock button of key fob.1. Check horn reminder mode *
*: Horn reminder can be activated or deactivated. First check the
horn chirp setting.BL-732. Check horn chirp function with horn switch.BL-88
3. Check door switch BL-79
4. Check IPDM E/R operation BL-85
5. Replace BCMBCS-17
Interior lamp and step lamp operation do not acti-
vate properly.1. Check interior lamp and step lamp operation BL-882. Check door switch BL-79
3. Replace BCMBCS-17
Panic alarm (horn and headlamp) does not activate
when panic alarm button is continuously pressed.1. Check panic alarm mode *
*: Panic alarm can be activated or deactivated. First check the
Panic alarm setting.BL-73
2. Check key fob battery and function BL-77
3. Check headlamp alarm BL-88
4. Check horn chirp function with horn switch.BL-88
5. Check IPDM E/R operation BL-85
6. Check key switch BL-84
7. Replace key fob. Refer to ID Code Entry Procedure.
NOTE:
If the result of key fob function check with CONSULT-III is OK, key
fob is not malfunctioning.BL-89
8. Replace BCMBCS-17
Auto door lock operation does not activate properly.
(All other remote keyless entry system function is
OK.)1. Check auto door lock operation mode *
*: Auto door lock operation can be activated or deactivated. First
check the auto door lock operation setting.BL-73
2. Replace BCMBCS-17
Keyless power window down (open) operation does
not activate properly.
(All other remote keyless entry system function is
OK.)1. Check power window down operation mode *
*: Power window down operation can be activated or deactivated.
First check the power window down setting.BL-73
2. Check power window functionGW-19
3. Replace BCMBCS-17
Symptom Diagnoses/service procedureReference
page

BL-88
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2006 November2007 350Z
Check Horn Function NIS0001R
First perform the “SELF-DIAG RESULTS” in “BCM” with CONSULT-III, then perform the trouble diagnosis of
malfunction system indicated “SELF-DIAG RESULTS” of “BCM”. Refer to BCS-16, "
CAN Communication
Inspection Using CONSULT-III (Self-Diagnosis)" .
1. CHECK HORN OPERATION
Check if horn sounds with horn switch.
Does horn operate?
Yes >> Horn circuit is OK.
No >> Check horn circuit. Refer to WW-53, "
Wiring Diagram — HORN —" .
Check Headlamp Alarm NIS0001S
First perform the “SELF-DIAG RESULTS” in “BCM” with CONSULT-III, then perform the trouble diagnosis of
malfunction system indicated “SELF-DIAG RESULTS” of “BCM”. Refer to BCS-16, "
CAN Communication
Inspection Using CONSULT-III (Self-Diagnosis)" .
1. CHECK HEADLAMP OPERATION
Does headlamp come on when turning lighting switch “ON”.
YES or NO
Yes >> Headlamp alarm circuit is OK.
No >> Check headlamp system. Refer to LT- 5 , "
HEADLAMP (FOR USA)" , LT- 3 2 , "HEADLAMP (FOR
CANADA) - DAYTIME LIGHT SYSTEM -" ,.
Check Interior Lamp Operation NIS0001T
1. CHECK ILLUMINATION OPERATION
When interior lamp switch is in “DOOR” position, open the door (driver side or passenger side).
OK or NG
OK >> Interior lamp circuit is OK.
NG >> Check interior lamp circuit. Refer to LT- 1 2 8 , "
INTERIOR ROOM LAMP" . Interior lamp should illuminate.
