BUMP STARTING
Never bump start the engine (by pushing, towing,
or coasting downhill) as this could cause fuel to
flow into the catalytic exhaust system and damage
it beyond repair.IMPORTANT Remember that until the engine has
started the brake booster and electrical power
steering systems will not work and a greater effort
will therefore be required to press the brake pedal
or turn the steering wheel.
WARNING
Alert other drivers that the car is stationary in compliance with local regulations:
hazard warning lights, warning triangle etc. Any passengers on board should
leave the car, especially if it is heavily laden. Passengers should stay away from
oncoming traffic while the wheel is being changed on. If the wheel is being
changed on a steep or badly surfaced road, place the wedges or other suitable
material under the wheel to stop the car.

256
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
IN AN
EMERGENCY

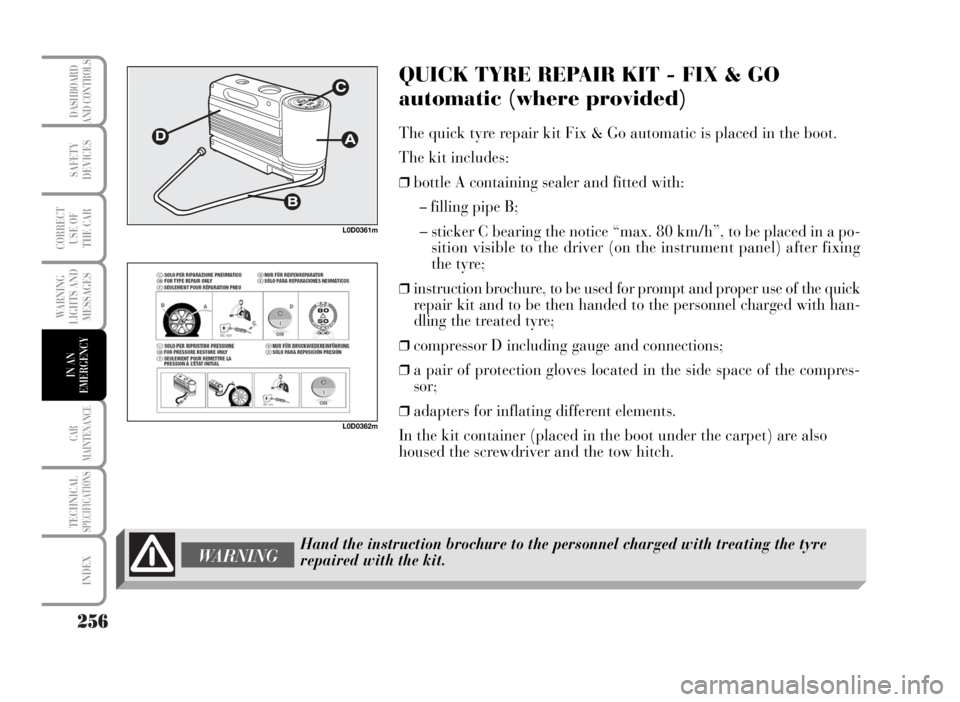

QUICK TYRE REPAIR KIT - FIX & GO
