Warning
light on
dial Message on
multifunction
display
ENGAGE N (neutral) (amber) (where provided)
The instrument panel warning light will come on (together with the
message on multifunction display and the buzzer), using the Dual
FuNction System gearbox when shifting to neutral is required.
Displayed message and warning light shall go off when setting the
gearbox to N.
è
amber
If the warning light continues to stay on (together with the message on the
multifunction display), contact Lancia Dealership.
WARNING

232
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
REAR FOG LIGHTS
The warning light on the dial turns on when the rear fog lights are
turned on. amber
green
green
green4
FRONT FOG LIGHTS
The warning light on the dial turns on when the front fog lights are
turned on.
LEFT-HAND DIRECTION INDICATOR (intermittent)
The warning light on the dial turns on when the direction indicator
stalk is moved downwards or, together with the right indicator, when
the hazard warning light button is pressed.
5
R
RIGHT-HAND DIRECTION INDICATOR (intermittent)
The warning light on the dial turns on when the direction indicator
stalk is moved upwards or, together with the left indicator, when the
hazard warning light button is pressed.E
Warning
light on
dialMessage on
multifunction
display

233
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
Warning
light on
dial Message on
multifunction
display
SIDELIGHTS AND LOW BEAMS
The warning light on the dial turns on when sidelights, parking lights
or low beams are turned on. The warning light on the dial will also
turn on when the daylight sensor (where provided) turns the lights
on.
FOLLOW ME HOME
The warning light on the dial comes on (on certain versions, together
with the message on the display) when the “Follow me home” device
is activated (see “Follow me home” in section “Dashboard and
controls”).
MAIN BEAM HEADLIGHTS
The warning light on the dial turns on when the main beams are
turned on.3
1
3
green
green
blue

234
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
Ü
green
Warning
light on
dialMessage on
multifunction
display
CRUISE CONTROL (where provided)
The warning light on the dial comes on (on certain versions, together
with the message on the display), with the knurled ring of the Cruise
Control in the ON position, when the device starts to intervene on the
engine.
POSSIBLE PRESENCE OF ICE ON THE ROAD
When the outside temperature reaches or falls below 3°C, the
reconfigurable multifunction display will show a warning message,
symbol√will turn on and temperature indication will flash to warn
the driver of the possible presence of ice on the road. A buzzer will
also sound.

235
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES

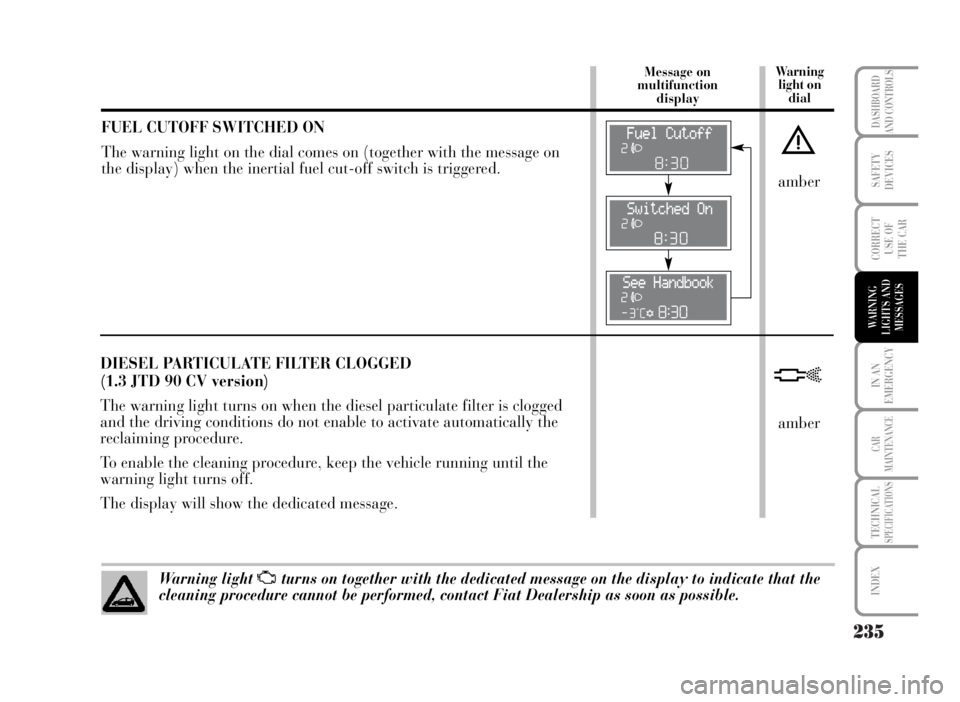

FUEL CUTOFF SWITCHED ON
The warning light on the dial comes on (together with the message on
the display) when the inertial fuel cut-off switch is triggered.
è
amber
8:30
Warning
light on
dial Message on
multifunction
display
DIESEL PARTICULATE FILTER CLOGGED
(1.3 JTD 90 CV version)
The warning light turns on when the diesel particulate filter is clogged
and the driving conditions do not enable to activate automatically the
reclaiming procedure.
To enable the cleaning procedure, keep the vehicle running until the
warning light turns off.
The display will show the dedicated message.h
amber
Warning light Uturns on together with the dedicated message on the display to indicate that the
cleaning procedure cannot be performed, contact Fiat Dealership as soon as possible.

236
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR PROTECTION SYSTEM FAILURE - LANCIA CODE
Turning the key to MAR the warning light on the dial shall flash only
once and then go off. If with the ignition key at MAR the warning
light comes on with fixed light (together with the message on the
display), this indicates a possible failure (see “The Lancia Code
system” in section “Dashboard and controls”).
IMPORTANT The turning on at the same time of the
UandYwarning lights indicates a failure of the Lancia CODE system.
If with the engine running the failure message is displayed, contact
Lancia Dealership.
If with the engine running the
Ywarning light flashes, this means
that the car is not protected by the engine inhibitor device (see “The
Lancia Code system” in section “Dashboard and controls”). Contact
Lancia Dealership to have all the keys memorised.
Y
amber
Warning
light on
dialMessage on
multifunction
display

237
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
“DUALDRIVE” ELECTRIC POWER STEERING FAILURE
(where provided)
Turning the ignition key to MAR the warning light on the dial turns
on, but it should go off after few seconds.
If the warning light stays on (together with the message on the
display), you will not have steering assistance and the effort on the
steering wheel will be increased, steering is however possible. Contact
Lancia Dealership.
DIESEL FUEL FILTER SENSOR FAILURE
The warning light on the dial comes on (together with the message on
the display) when diesel fuel filter sensor failure is detected. Contact
Lancia Dealership as soon as possible to have the fault removed.
GLOW PLUG WARMING FAILURE (Multijet versions)
The warning light on the instrument panel flashes for about 30
seconds after starting the engine (together with the message on the
display) when there is a failure in the glow plug warming system.
Contact Lancia Dealership to have the fault eliminated.
g
red
amber
amber
è
m
Warning
light on
dial Message on
multifunction
display

238
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
ABS SYSTEM FAILURE - System unavailable
Turning the ignition key to MAR the warning light on the dial turns
on, but it should go off after few seconds.
The warning light turns on (together with the message on the display)
when the system is inefficient or unavailable.
In this case the braking system keeps its effectiveness unchanged, but
without the potential offered by the ABS system. Drive carefully and
contact Lancia Dealership as soon as possible.
RAIN SENSOR FAILURE
The warning light on the dial turns on (together with the message on
the display) when the rain sensor is faulty. Contact Lancia
Dealership.
>
amber
amber
è
Warning
light on
dialMessage on
multifunction
display
