6A-78 ENGINE MECHANICAL (4JK1/4JJ1)

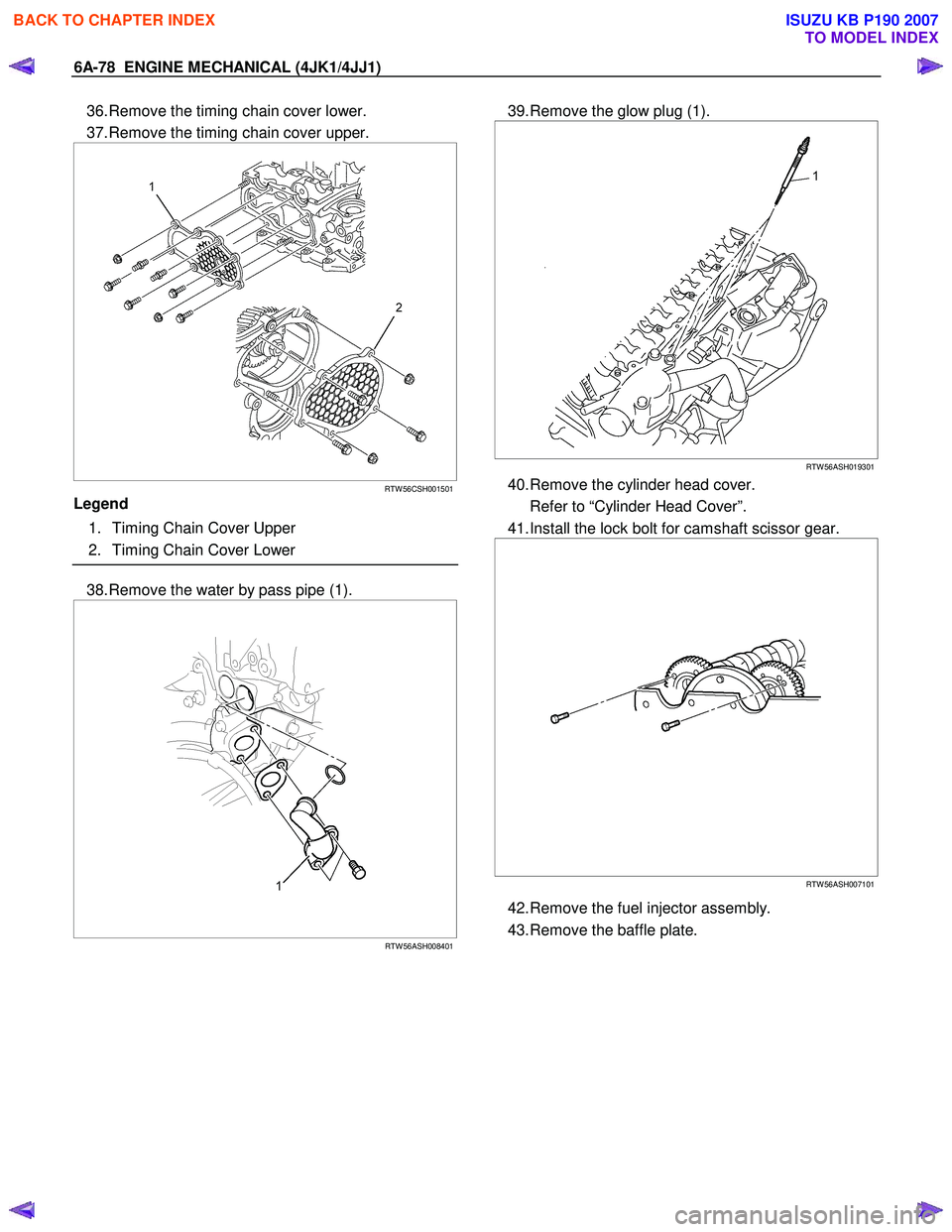

36. Remove the timing chain cover lower.
37. Remove the timing chain cover upper.




RTW 56CSH001501
Legend
1. Timing Chain Cover Upper
2. Timing Chain Cover Lower


38. Remove the water by pass pipe (1).





RTW 56ASH008401
39. Remove the glow plug (1).



RTW 56ASH019301
40. Remove the cylinder head cover.
Refer to “Cylinder Head Cover”.
41. Install the lock bolt for camshaft scissor gear.








RTW 56ASH007101
42. Remove the fuel injector assembly.
43. Remove the baffle plate.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE MECHANICAL (4JK1/4JJ1) 6A-79

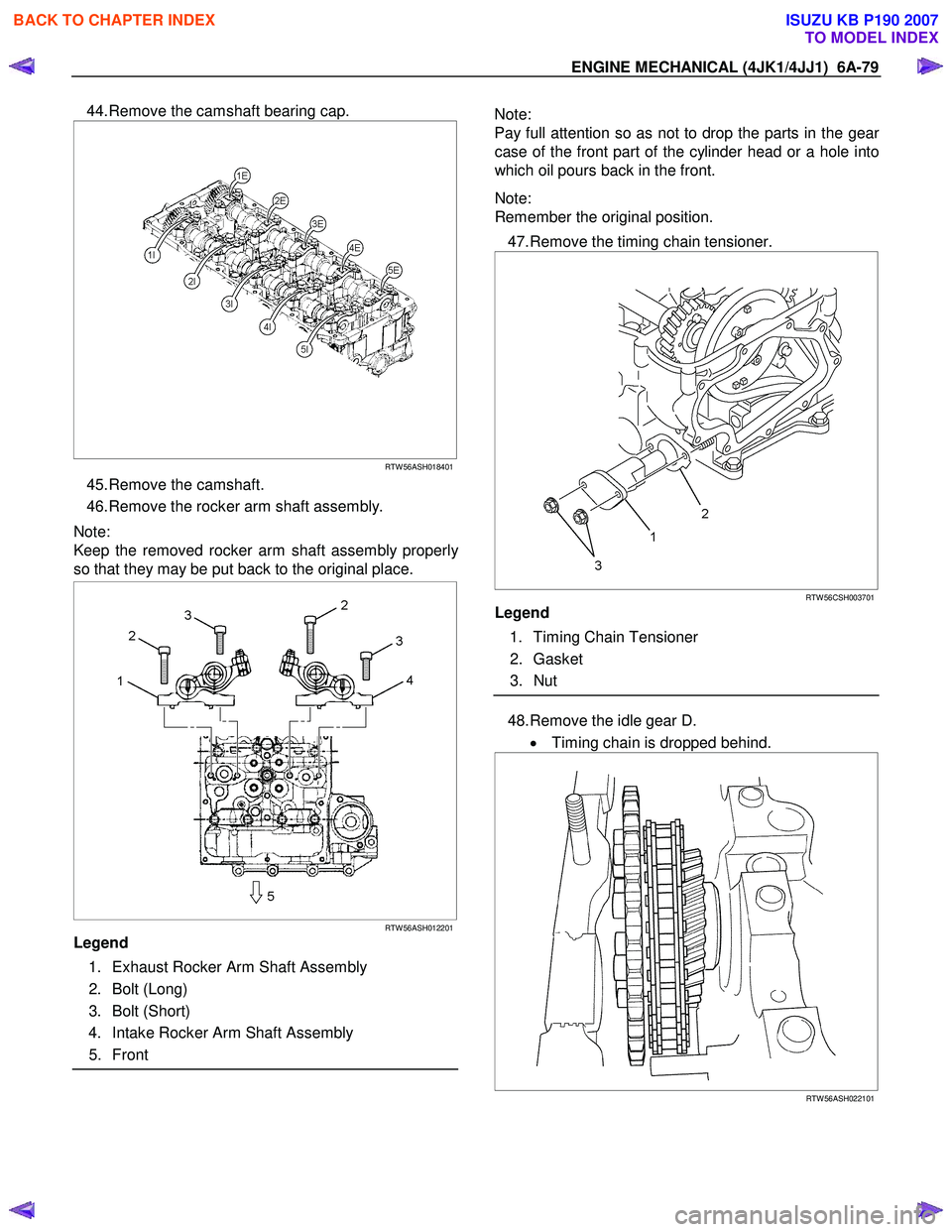

44. Remove the camshaft bearing cap.





RTW 56ASH018401
45. Remove the camshaft.
46. Remove the rocker arm shaft assembly.
Note:
Keep the removed rocker arm shaft assembly properl
y
so that they may be put back to the original place.



RTW 56ASH012201
Legend
1. Exhaust Rocker Arm Shaft Assembly
2. Bolt (Long)
3. Bolt (Short)
4. Intake Rocker Arm Shaft Assembly
5. Front


Note:
Pay full attention so as not to drop the parts in the gea
r
case of the front part of the cylinder head or a hole into
which oil pours back in the front.
Note:
Remember the original position.
47. Remove the timing chain tensioner.



RTW 56CSH003701
Legend
1. Timing Chain Tensioner
2. Gasket
3. Nut


48. Remove the idle gear D.
• Timing chain is dropped behind.



RTW 56ASH022101


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6A-80 ENGINE MECHANICAL (4JK1/4JJ1)

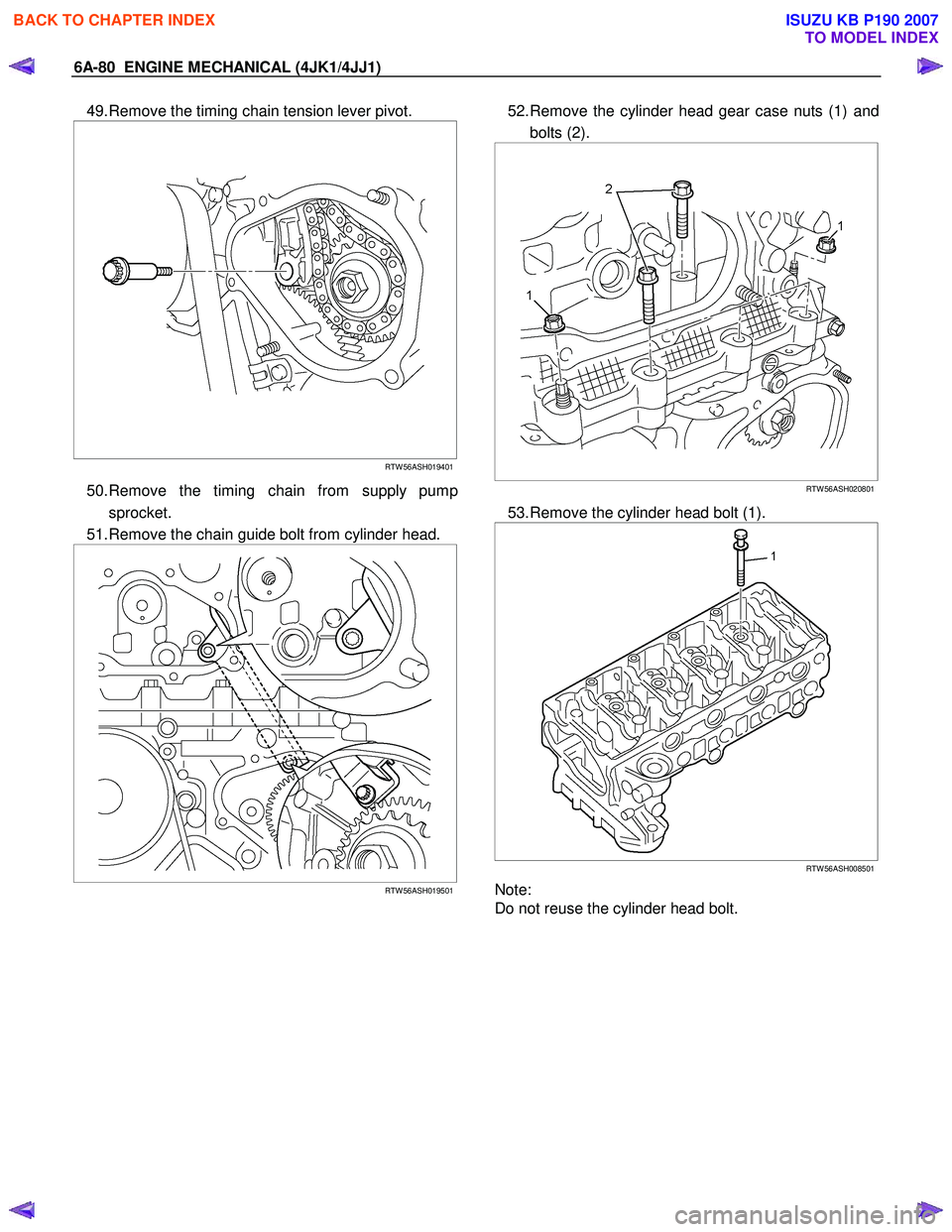

49. Remove the timing chain tension lever pivot.





RTW 56ASH019401
50. Remove the timing chain from supply pump
sprocket.
51. Remove the chain guide bolt from cylinder head.



RTW 56ASH019501

52. Remove the cylinder head gear case nuts (1) and
bolts (2).




RTW 56ASH020801
53. Remove the cylinder head bolt (1).


RTW 56ASH008501
Note:
Do not reuse the cylinder head bolt.



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE MECHANICAL (4JK1/4JJ1) 6A-81

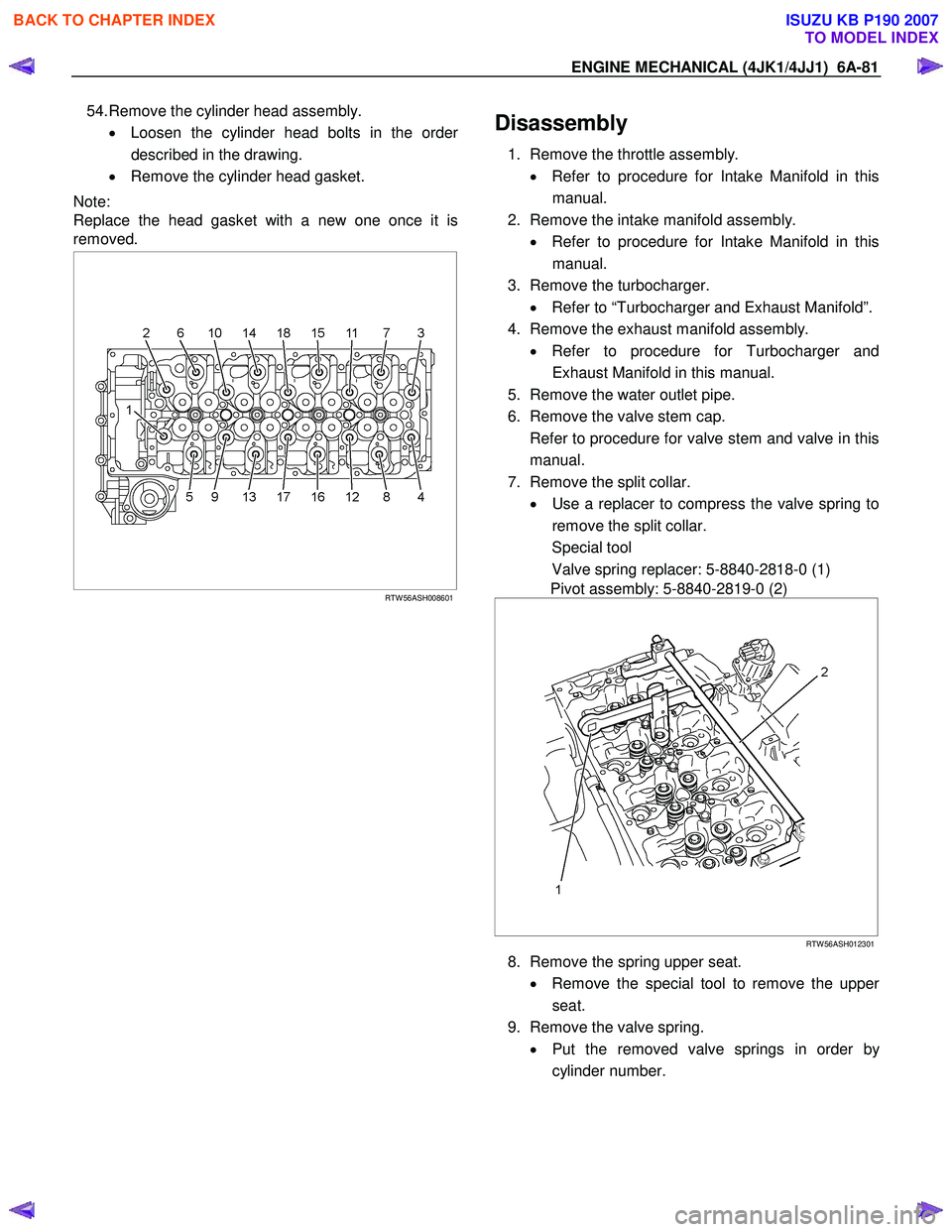

54. Remove the cylinder head assembly.
• Loosen the cylinder head bolts in the order
described in the drawing.
• Remove the cylinder head gasket.
Note:
Replace the head gasket with a new one once it is
removed.






RTW 56ASH008601

Disassembly
1. Remove the throttle assembly.
• Refer to procedure for Intake Manifold in this
manual.
2. Remove the intake manifold assembly. • Refer to procedure for Intake Manifold in this
manual.
3. Remove the turbocharger. • Refer to “Turbocharger and Exhaust Manifold”.
4. Remove the exhaust manifold assembly. • Refer to procedure for Turbocharger and
Exhaust Manifold in this manual.
5. Remove the water outlet pipe.
6. Remove the valve stem cap.
Refer to procedure for valve stem and valve in this manual.
7. Remove the split collar. • Use a replacer to compress the valve spring to
remove the split collar.
Special tool
Valve spring replacer: 5-8840-2818-0 (1)
Pivot assembly: 5-8840-2819-0 (2)




RTW 56ASH012301
8. Remove the spring upper seat.
• Remove the special tool to remove the uppe
r
seat.
9. Remove the valve spring. • Put the removed valve springs in order b
y
cylinder number.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6A-82 ENGINE MECHANICAL (4JK1/4JJ1)

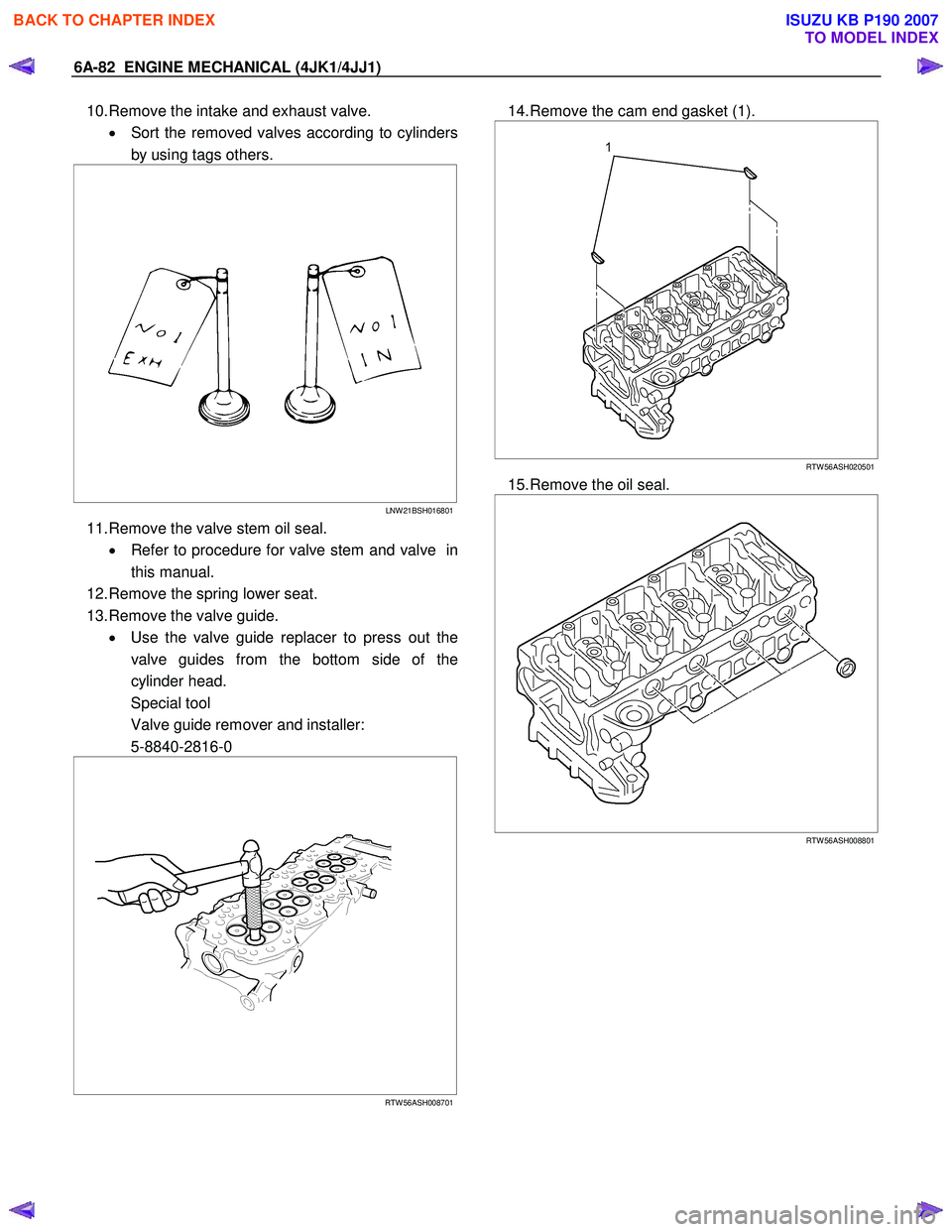

10. Remove the intake and exhaust valve.
• Sort the removed valves according to cylinders
by using tags others.







LNW 21BSH016801
11. Remove the valve stem oil seal.
• Refer to procedure for valve stem and valve in
this manual.
12. Remove the spring lower seat.
13. Remove the valve guide. • Use the valve guide replacer to press out the
valve guides from the bottom side of the
cylinder head.
Special tool
Valve guide remover and installer:
5-8840-2816-0






RTW 56ASH008701


14. Remove the cam end gasket (1).



RTW 56ASH020501
15. Remove the oil seal.




RTW 56ASH008801



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE MECHANICAL (4JK1/4JJ1) 6A-83

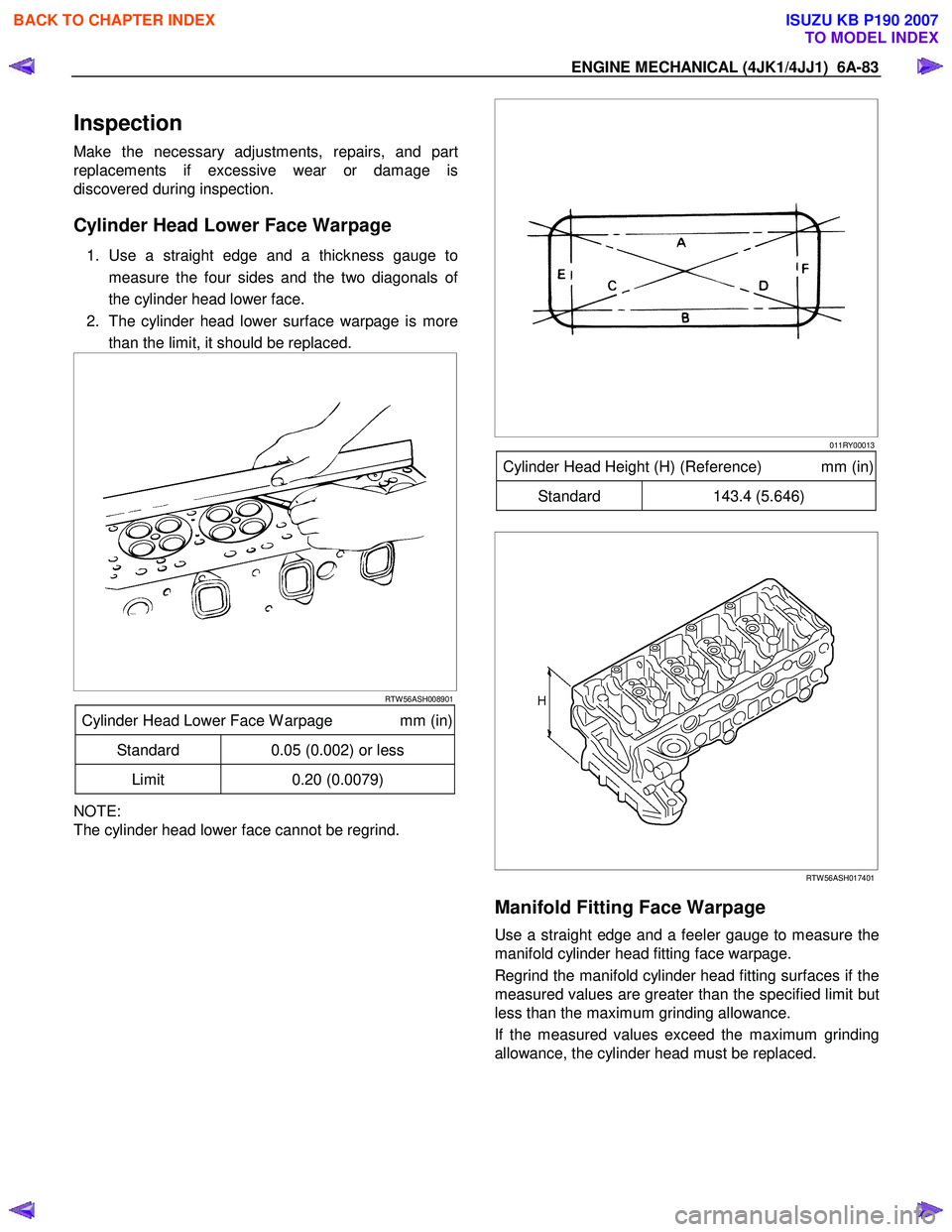

Inspection
Make the necessary adjustments, repairs, and part
replacements if excessive wear or damage is
discovered during inspection.
Cylinder Head Lower Face Warpage
1. Use a straight edge and a thickness gauge to
measure the four sides and the two diagonals o
f
the cylinder head lower face.
2. The cylinder head lower surface warpage is more than the limit, it should be replaced.




RTW 56ASH008901
Cylinder Head Lower Face W arpage mm (in)
Standard 0.05 (0.002) or less
Limit 0.20 (0.0079)
NOTE:
The cylinder head lower face cannot be regrind.









011RY00013
Cylinder Head Height (H) (Reference) mm (in)
Standard 143.4 (5.646)





RTW 56ASH017401
Manifold Fitting Face Warpage
Use a straight edge and a feeler gauge to measure the
manifold cylinder head fitting face warpage.
Regrind the manifold cylinder head fitting surfaces if the
measured values are greater than the specified limit but
less than the maximum grinding allowance.
If the measured values exceed the maximum grinding
allowance, the cylinder head must be replaced.



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6A-84 ENGINE MECHANICAL (4JK1/4JJ1)

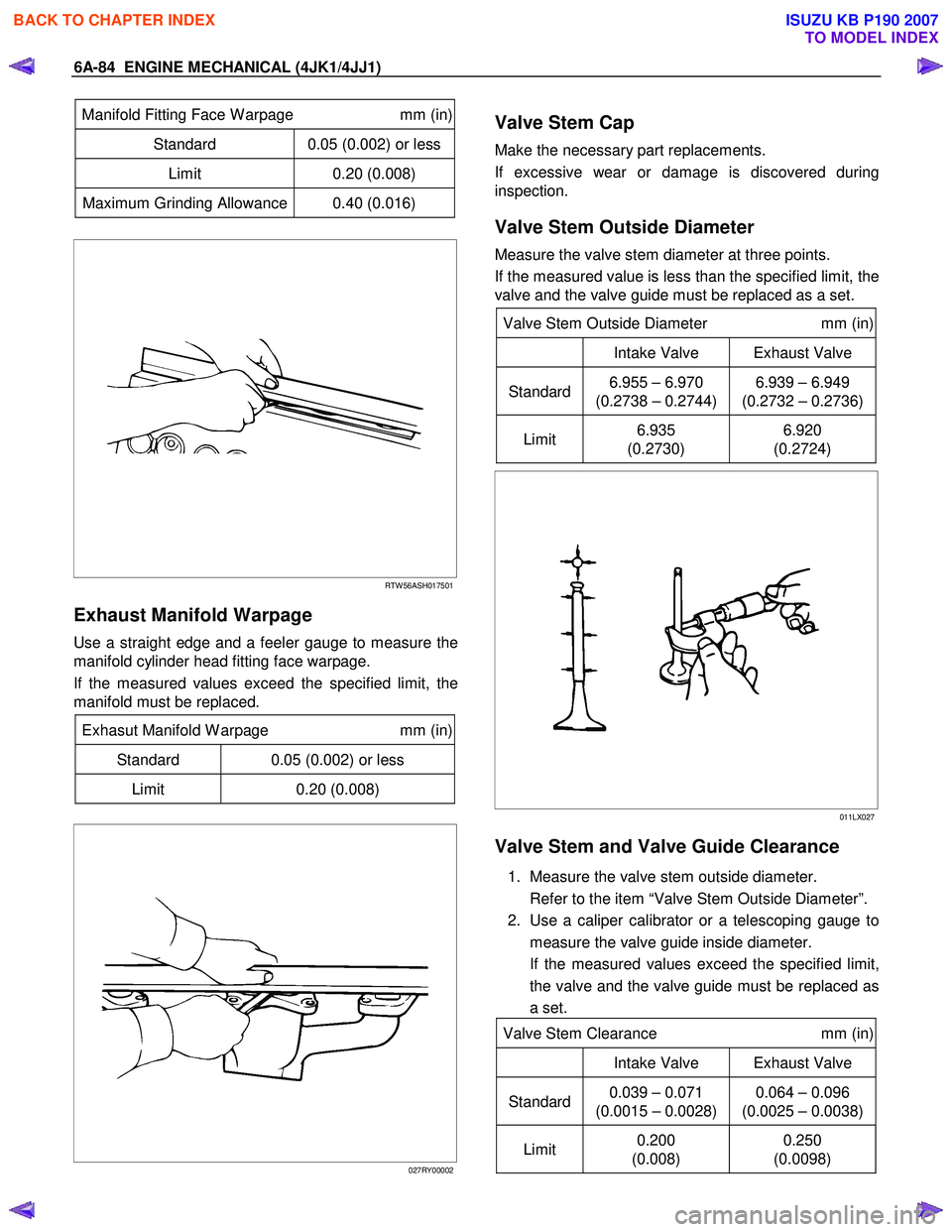

Manifold Fitting Face W arpage mm (in)
Standard 0.05 (0.002) or less
Limit 0.20 (0.008)
Maximum Grinding Allowance 0.40 (0.016)









RTW 56ASH017501
Exhaust Manifold Warpage
Use a straight edge and a feeler gauge to measure the
manifold cylinder head fitting face warpage.
If the measured values exceed the specified limit, the
manifold must be replaced.
Exhasut Manifold W arpage mm (in)
Standard 0.05 (0.002) or less
Limit 0.20 (0.008)







027RY00002

Valve Stem Cap

Make the necessary part replacements.
If excessive wear or damage is discovered during
inspection.
Valve Stem Outside Diameter
Measure the valve stem diameter at three points.
If the measured value is less than the specified limit, the
valve and the valve guide must be replaced as a set.
Valve Stem Outside Diameter mm (in)
Intake Valve Exhaust Valve
Standard 6.955 – 6.970
(0.2738 – 0.2744) 6.939 – 6.949
(0.2732 – 0.2736)
Limit 6.935
(0.2730) 6.920
(0.2724)






011LX027
Valve Stem and Valve Guide Clearance
1. Measure the valve stem outside diameter.
Refer to the item “Valve Stem Outside Diameter”.
2. Use a caliper calibrator or a telescoping gauge to measure the valve guide inside diameter.
If the measured values exceed the specified limit, the valve and the valve guide must be replaced as
a set.
Valve Stem Clearance mm (in)
Intake Valve Exhaust Valve
Standard0.039 – 0.071
(0.0015 – 0.0028) 0.064 – 0.096
(0.0025 – 0.0038)
Limit 0.200
(0.008) 0.250
(0.0098)


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE MECHANICAL (4JK1/4JJ1) 6A-85




011RY00023
Valve Thickness
Measure the valve thickness.
If the measured value is less than the specified limit, the
valve and the valve guide must be replaced as a set.
Intake and Exhasut Valve Thickness mm (in)
Standard 1.32 (0.052)
Limit 1.1 (0.043)






014RY00020

Valve Depression
1. Install the valve (1) to the cylinder head (2).
2. Use a depth gauge or a straight edge with steel rule to measure the valve depression from the
cylinder head lower surface.
If the measured value exceeds the specified limit, the valve seat insert must be replaced.
Valve Depression mm (in)
Standard 1.8 (0.07)
Limit 2.5 (0.098)







014RY00021
Valve Contact Width
1. Check the valve contact faces for roughness and
unevenness. Make smooth the valve contact
surfaces.
2. Measure the valve contact width.
If the measured value exceeds the specified limit, the valve seat insert must be replaced.

Valve Contact W idth
mm (in)
Intake Exhaust
Standard 1.7 (0.067) 2.0 (0.079)
Limit 2.2 (0.087) 2.5 (0.098)



BACK TO CHAPTER INDEX
