2007 ISUZU KB P190 engine

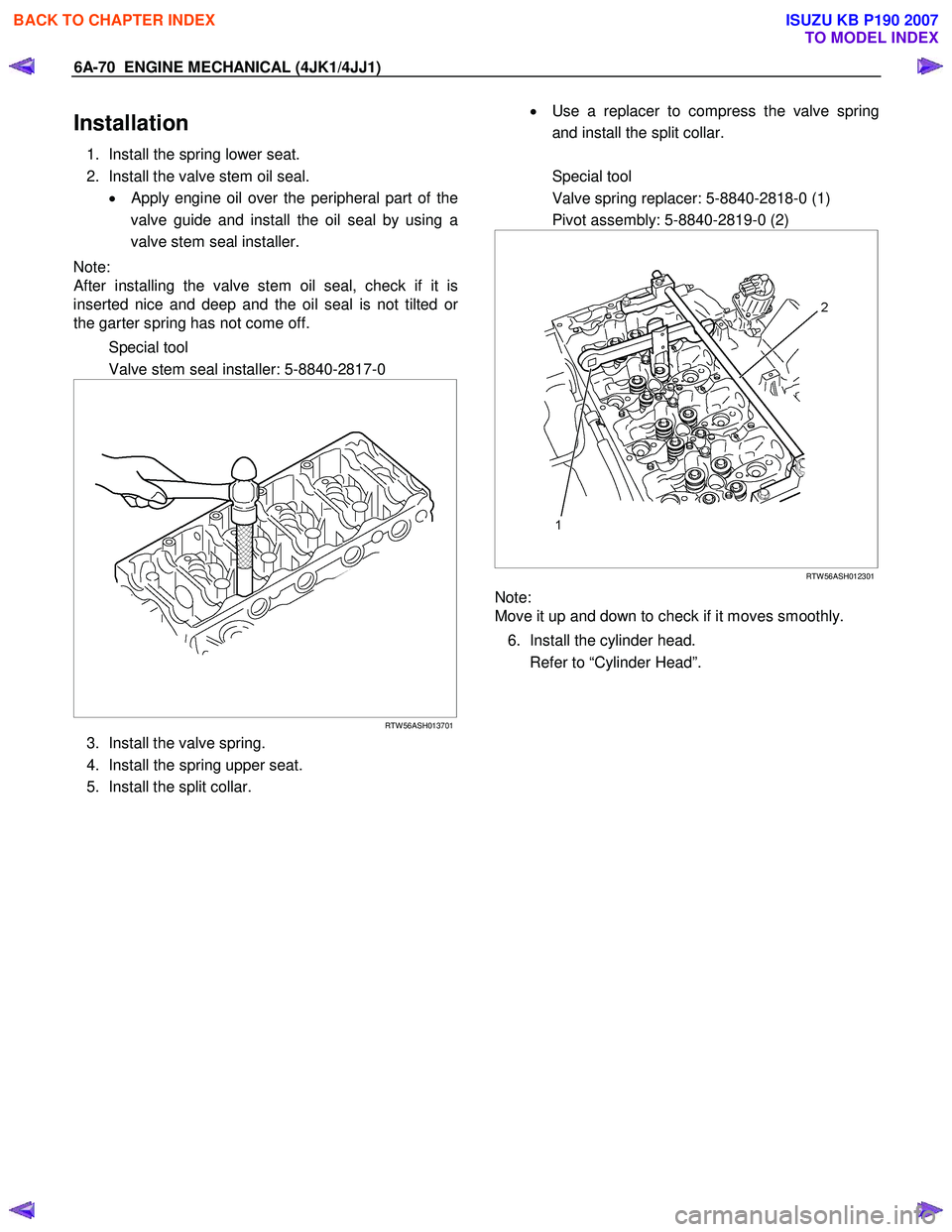

6A-70 ENGINE MECHANICAL (4JK1/4JJ1)
Installation
1. Install the spring lower seat.
2. Install the valve stem oil seal. •
Apply engine oil over the peripheral part of the
valve guide and install the oil seal by using a
valve stem seal installer.
Note:
After installing the valve stem oil seal, check if it is
inserted nice and deep and the oil seal is not tilted o
r
the garter spring has not come off.
Special tool
Valve stem seal installer: 5-8840-2817-0





RTW 56ASH013701
3. Install the valve spring.
4. Install the spring upper seat.
5. Install the split collar.
• Use a replacer to compress the valve spring
and install the split collar.

Special tool
Valve spring replacer: 5-8840-2818-0 (1)
Pivot assembly: 5-8840-2819-0 (2)





RTW 56ASH012301
Note:
Move it up and down to check if it moves smoothly.
6. Install the cylinder head.
Refer to “Cylinder Head”.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

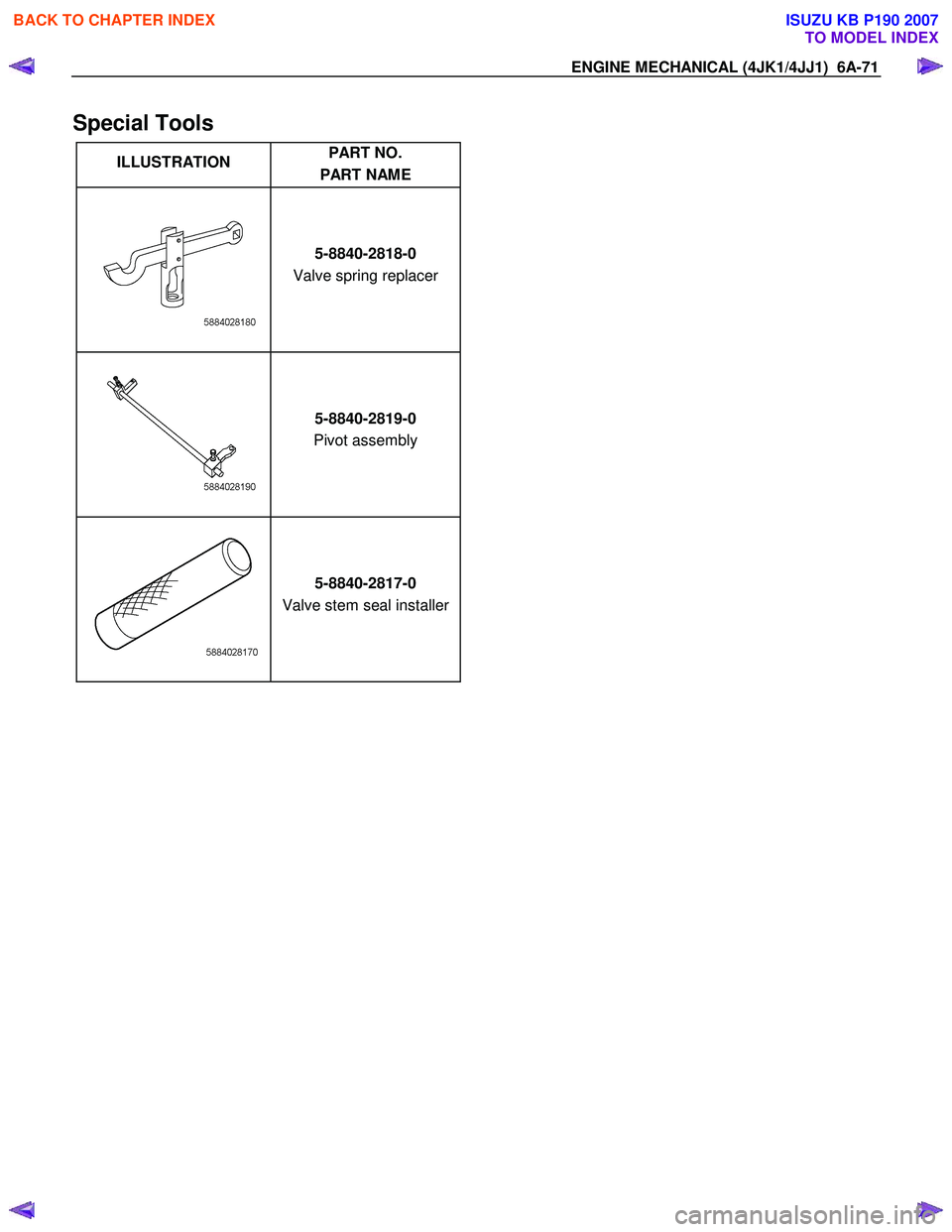

ENGINE MECHANICAL (4JK1/4JJ1) 6A-71
Special Tools
ILLUSTRATION PART NO.
PART NAME

5-8840-2818-0
Valve spring replacer

5-8840-2819-0
Pivot assembly

5-8840-2817-0
Valve stem seal installer


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6A-72 ENGINE MECHANICAL (4JK1/4JJ1)
Cylinder Head
Components





RTW 56ALF001001
Legend 1. Fuel Injector Clamp
2. Fuel Injector Assembly
3. Glow Plug
4. Intake and Exhaust Valves 5. Cylinder Head
6. Timing Chain Tension Lever
7. Timing Chain Guide
8. Timing Chain Tensioner

Note:
To avoid electric shock;
Set the switch to the 'OFF' position and disconnect the
negative battery cable before checking or repairing the
fuel injector, wiring or/and connectors. Removal
1. Remove the engine head cover.
2. Drain the engine coolant.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

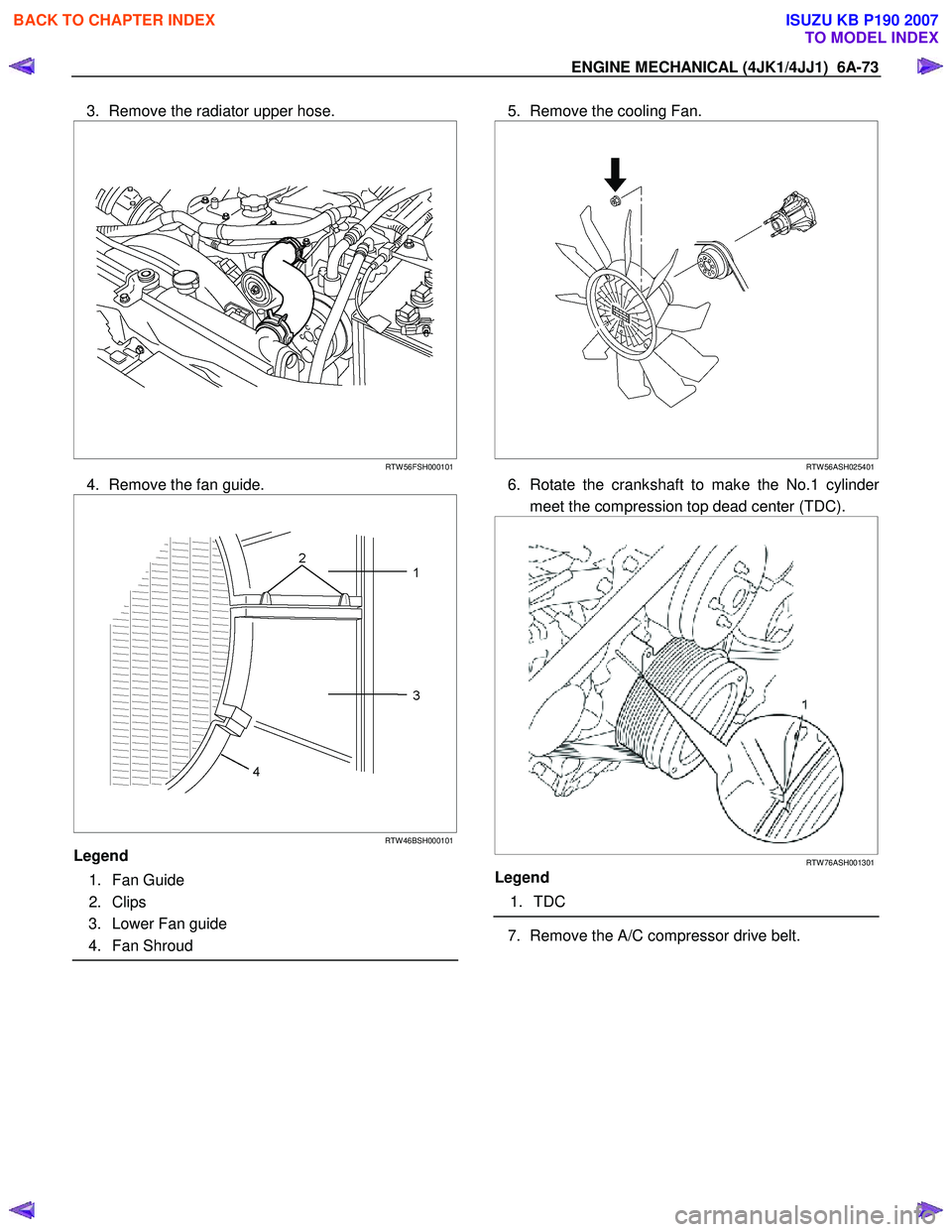

ENGINE MECHANICAL (4JK1/4JJ1) 6A-73
3. Remove the radiator upper hose.








RTW 56FSH000101
4. Remove the fan guide.




RTW 46BSH000101
Legend
1. Fan Guide
2. Clips
3. Lower Fan guide
4. Fan Shroud


5. Remove the cooling Fan.





RTW 56ASH025401
6. Rotate the crankshaft to make the No.1 cylinder
meet the compression top dead center (TDC).





RTW 76ASH001301
Legend
1. TDC

7. Remove the A/C compressor drive belt.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6A-74 ENGINE MECHANICAL (4JK1/4JJ1)
8. Remove the A/C compressor adjust pulley.








RTW 56ASH010601
Legend
1. Bolt
2. Nut


9. Remove the battery.
10. Disconnect the A/C compressor connector and A/C compressor with hose.
11. Remove the A/C compressor bracket.





RTW 56ASH024201
Legend
1. A/C Compressor Bracket
2. Intake Duct
3. A/C Compressor






12. Remove the intercooler (High output).
• Disconnect the BARO sensor harness
connector (2).
• Remove the two intake hoses.
• Remove the intercooler (1).




RTW 76ASH000501
13. Remove the intake hose and duct (Standard
output).




RTW 56ASH022501
Legend
1. Intake Hose for Intercooler and Intake Throttle
2. Intake Duct for Turbocharger and Air Cleaner
3. Intake Hose for Turbocharger and Intercooler




BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE MECHANICAL (4JK1/4JJ1) 6A-75
14. Disconnect the fuel injector connector (2).
15. Remove the fuel leak off hose (1).







RTW 76ASH000101
Note:
Do not reuse the fuel leak off hose clips.
16. Disconnect each connector. • Glow Plug
• EGR Valve
• Throttle Assembly
• Barometric Sensor
• W ater temperature sensor
• Camshaft Position sensor
17. Remove the harness bracket.
18. Remove the cylinder head cover.
Refer to “Cylinder Head Cover”.
19. Remove the EGR cooler heat protector.
20. Remove the EGR cooler water pipe.
21. Remove the EGR cooler.


22. Loosen the nuts of catalyst converter and
turbocharger.



RTW 56ASH006201
Legend
1. Catalyst Converter
2. Turbocharger

23. Remove the exhaust front pipe.





RTW 56ASH007701
Legend
1. Exhaust Front Pipe (4×2 High Ride Suspension, 4×4)
2. Exhaust Front Pipe (4×2 Except High Ride Suspension)




BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

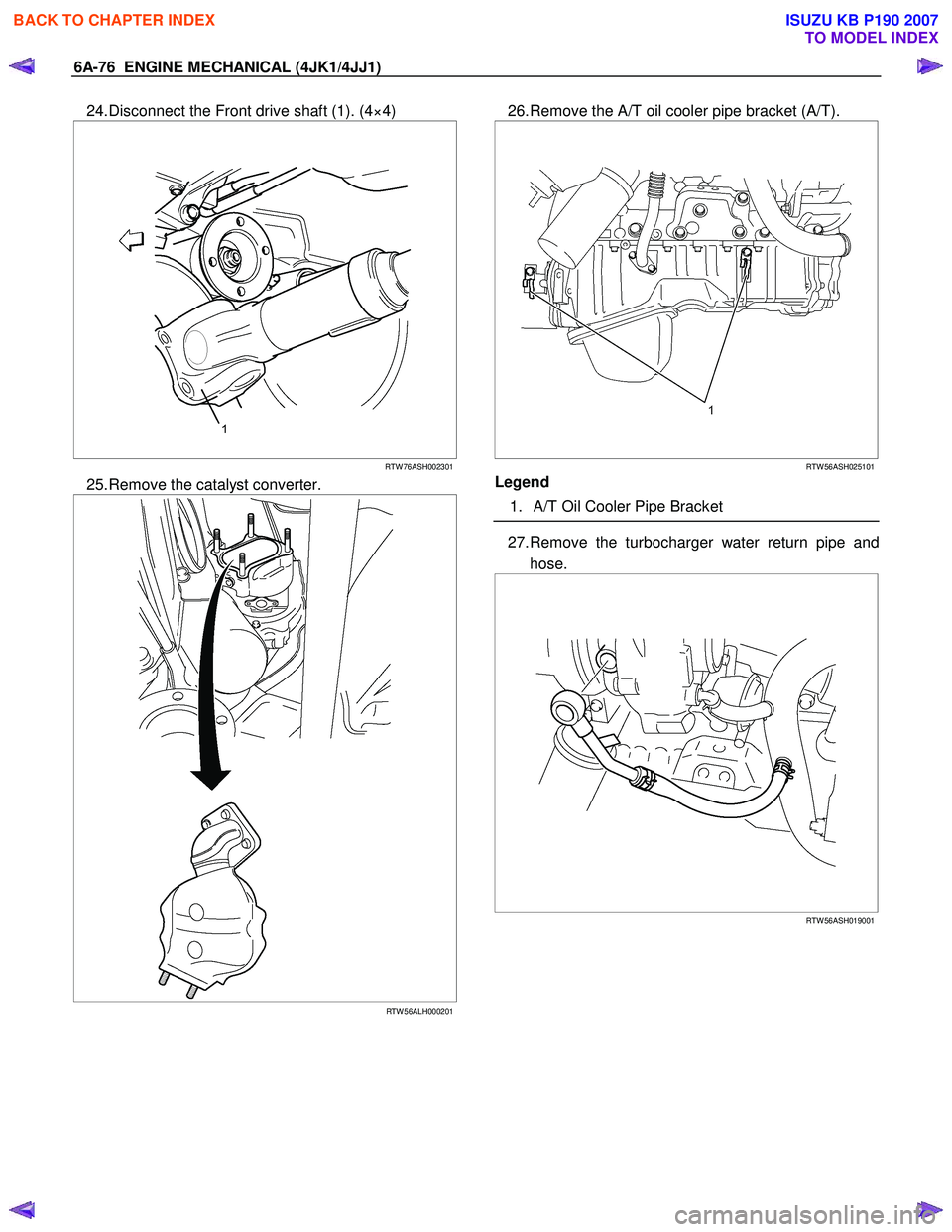

6A-76 ENGINE MECHANICAL (4JK1/4JJ1)
24. Disconnect the Front drive shaft (1). (4×4)





RTW 76ASH002301
25. Remove the catalyst converter.

RTW 56ALH000201

26. Remove the A/T oil cooler pipe bracket (A/T).





RTW 56ASH025101
Legend
1. A/T Oil Cooler Pipe Bracket


27. Remove the turbocharger water return pipe and
hose.






RTW 56ASH019001


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

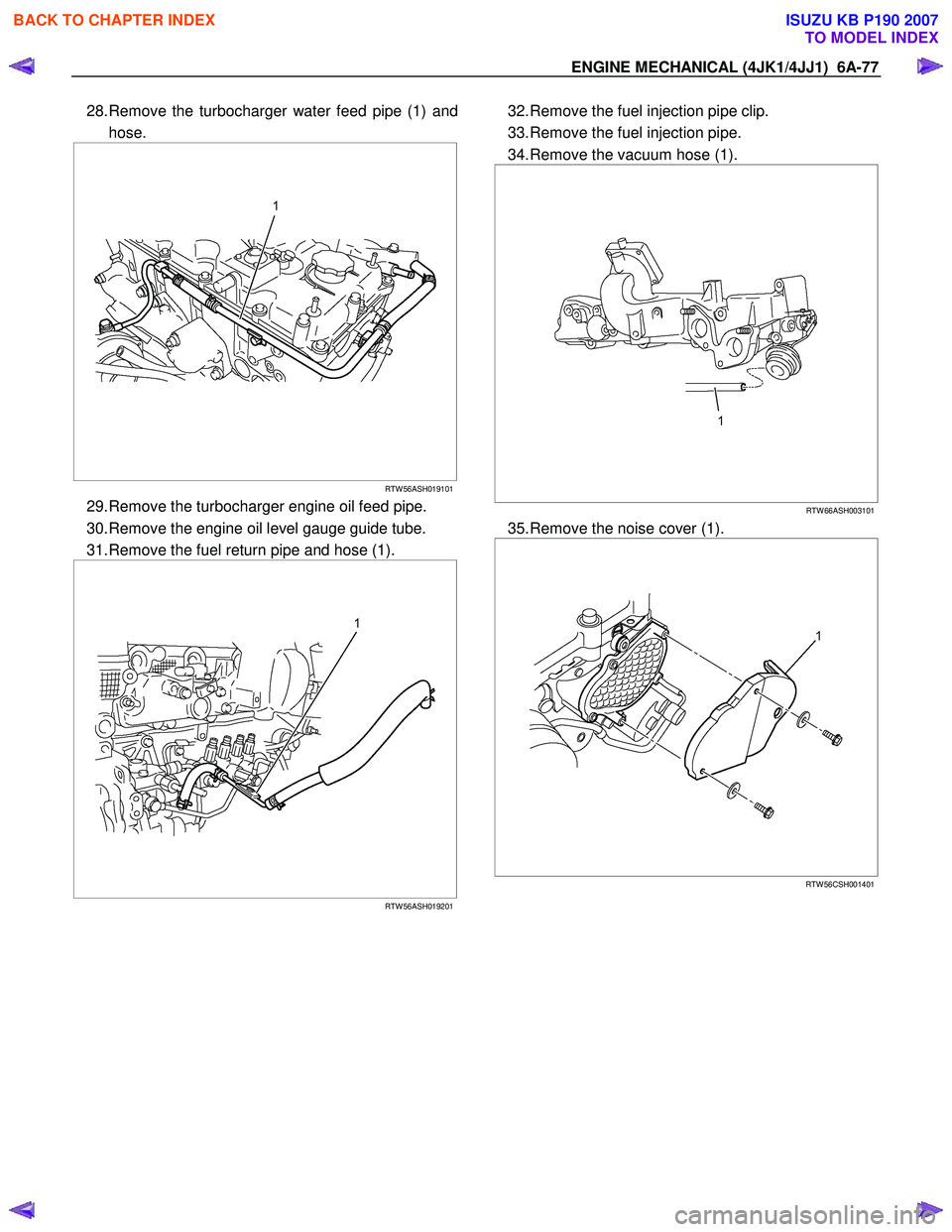

ENGINE MECHANICAL (4JK1/4JJ1) 6A-77
28. Remove the turbocharger water feed pipe (1) and
hose.





RTW 56ASH019101
29. Remove the turbocharger engine oil feed pipe.
30. Remove the engine oil level gauge guide tube.
31. Remove the fuel return pipe and hose (1).





RTW 56ASH019201
32. Remove the fuel injection pipe clip.
33. Remove the fuel injection pipe.
34. Remove the vacuum hose (1).






RTW 66ASH003101
35. Remove the noise cover (1).






RTW 56CSH001401

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
