2007 ISUZU KB P190 FLASH CODE

7A2-90 TRANSMISSION CONTROL SYSTEM (AW30–40LE)

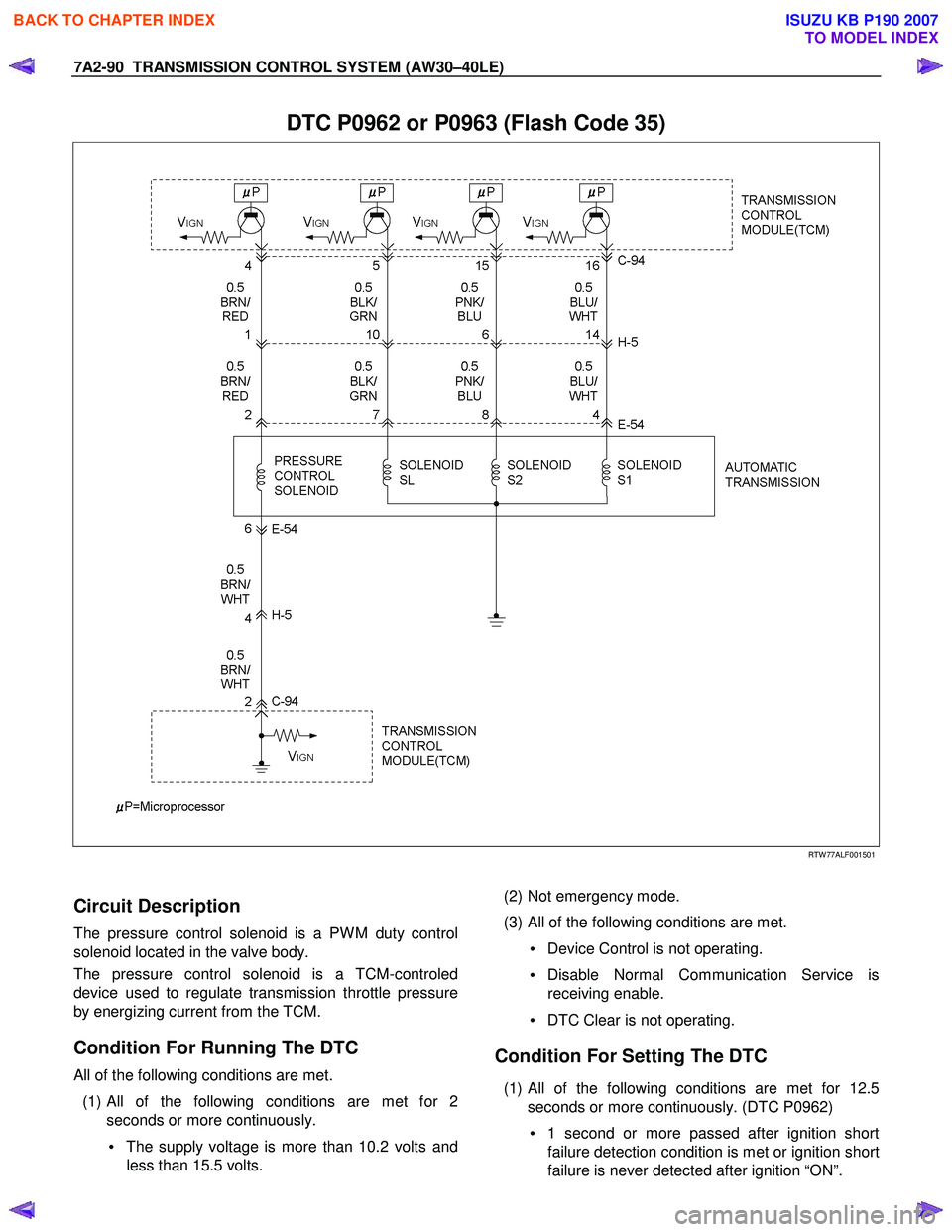

DTC P0962 or P0963 (Flash Code 35)




RTW 77ALF001501

Circuit Description
The pressure control solenoid is a PW M duty control
solenoid located in the valve body.
The pressure control solenoid is a TCM-controled
device used to regulate transmission throttle pressure
by energizing current from the TCM.
Condition For Running The DTC
All of the following conditions are met.
(1) All of the following conditions are met for 2 seconds or more continuously.
• The supply voltage is more than 10.2 volts and
less than 15.5 volts.
(2) Not emergency mode.
(3) All of the following conditions are met. • Device Control is not operating.
• Disable Normal Communication Service is
receiving enable.
• DTC Clear is not operating.
Condition For Setting The DTC
(1) All of the following conditions are met for 12.5
seconds or more continuously. (DTC P0962)
• 1 second or more passed after ignition short
failure detection condition is met or ignition short
failure is never detected after ignition “ON”.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

TRANSMISSION CONTROL SYSTEM (AW30–40LE) 7A2-93

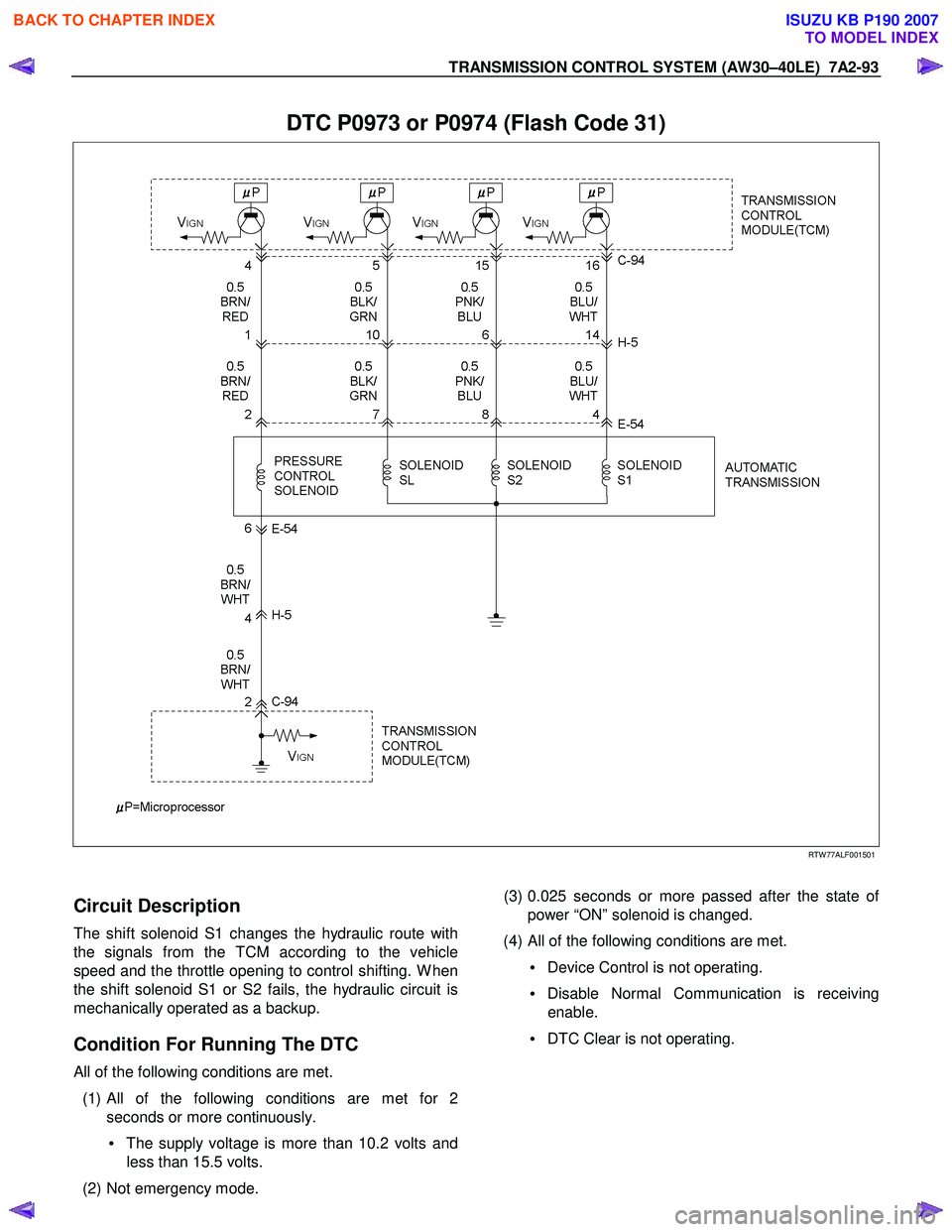

DTC P0973 or P0974 (Flash Code 31)




RTW 77ALF001501

Circuit Description
The shift solenoid S1 changes the hydraulic route with
the signals from the TCM according to the vehicle
speed and the throttle opening to control shifting. W hen
the shift solenoid S1 or S2 fails, the hydraulic circuit is
mechanically operated as a backup.
Condition For Running The DTC
All of the following conditions are met.
(1)
All of the following conditions are met for 2
seconds or more continuously.
• The supply voltage is more than 10.2 volts and
less than 15.5 volts.
(2) Not emergency mode.
(3) 0.025 seconds or more passed after the state o
f
power “ON” solenoid is changed.
(4) All of the following conditions are met. • Device Control is not operating.
• Disable Normal Communication is receiving
enable.
• DTC Clear is not operating.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

TRANSMISSION CONTROL SYSTEM (AW30–40LE) 7A2-97

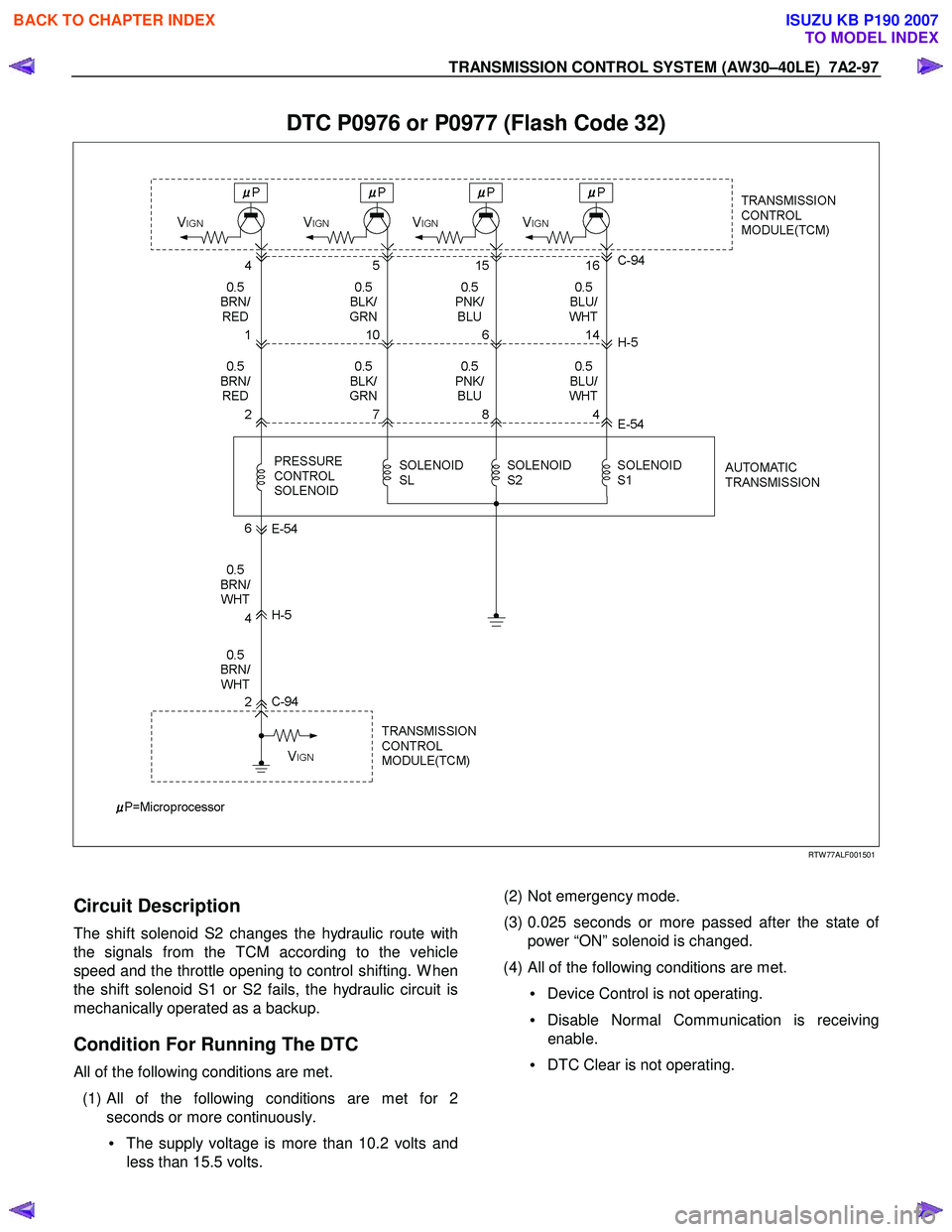

DTC P0976 or P0977 (Flash Code 32)




RTW 77ALF001501

Circuit Description
The shift solenoid S2 changes the hydraulic route with
the signals from the TCM according to the vehicle
speed and the throttle opening to control shifting. W hen
the shift solenoid S1 or S2 fails, the hydraulic circuit is
mechanically operated as a backup.
Condition For Running The DTC
All of the following conditions are met.
(1) All of the following conditions are met for 2 seconds or more continuously.
• The supply voltage is more than 10.2 volts and
less than 15.5 volts.
(2) Not emergency mode.
(3) 0.025 seconds or more passed after the state o
f
power “ON” solenoid is changed.
(4) All of the following conditions are met. • Device Control is not operating.
• Disable Normal Communication is receiving
enable.
• DTC Clear is not operating.



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

TRANSMISSION CONTROL SYSTEM (AW30–40LE) 7A2-101

DTC P1790 (Flash Code 61)
Description
The electrically erasable programable read only
memory (EEPROM) is a permanent memory chip that is
physically solenoid within the TCM. The EEPROM
contans the program and the calibration information that
the TCM needs to control powertrain operation.
Unlike the PROM used in past applications, the
EEPROM is not replaceable. If the TCM is replaced, the
new TCM will need to be programmed. Equipment
containing the correct program and calibration for the
vehicle is required to program the TCM.
Condition For Running The DTC
ROM check sum calculation is completed.
Condition For Setting The DTC
Following condition is met twice since ignition “ON”.
• ROM check sum calculation result/check sum value saved in ROM.
Action Taken When The DTC Sets
• Change to emergency mode.
• Check Trans “ON”.
• DTC stored.
• MIL request “ON”. (EURO 4 only)
Conditions For Clearing The DTC
• The DTC can be cleared from the TCM history by
using a scan tool.
• The DTC will be cleared from history when the
vehicle has achieved 40 warm-up cycles without a
failure reported.
•
After more than 1 second has elapsed after the
ignition key has been turned “ON”, short between
No.11 and No.5 (ground) of DLC (Data Link
Connector). Then, after 1 second, but within 6
seconds, discontinue shorting.
Diagnostic Aids
• Inspect the wiring for poor electrical connection at the
TCM. Look for possible bent, backed out, deformed
or damaged terminals. Check for weak terminal
tension as well. Also check for a chafed wire that
could short to bare metal or other wiring. Inspect for a
broken wire inside the insulation.
• W hen diagnosing for a possible intermittent short o
r
open condition, move the wiring harness while
observing test equipment for a change.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

TRANSMISSION CONTROL SYSTEM (AW30–40LE) 7A2-103

DTC P1791 (Flash Code 62)
Description
DTC P1791 is recorded by TCM when there is
malfunction in the RAM.
Condition For Running The DTC
Execute only one time after ignition “ON”.
Condition For Setting The DTC
One of the following conditions are met two times
continuously.
• W rite Ox5a5a5a5a into RAM, and read value is not
same as Ox5a5a5a5a.
• W rite Oxa5a5a5a5 into RAM, and read value is not
same as Oxa5a5a5a5.
Action Taken The DTC Sets
• Check Trans “ON”.
• DTC stored.
• MIL request “ON”. (EURO 4 only)
Conditions For Clearing The DTC
• The DTC can be cleared from the TCM history by
using a scan tool.
• The DTC will be cleared from history when the vehicle has achieved 40 warm-up cycles without a
failure reported.
•
After more than 1 second has elapsed after the
ignition key has been turned “ON”, short between
No.11 and No.4 (ground) of DLC (Data Link
Connector). Then, after 1 second, but within 6
seconds, discontinue shorting.
Diagnostic Aids
• Inspect the wiring for poor electrical connection at the
TCM. Look for possible bent, backed out, deformed
or damaged terminals. Check for weak terminal
tension as well. Also check for a chafed wire that
could short to bare metal or other wiring. Inspect for a
broken wire inside the insulation.
• W hen diagnosing for a possible intermittent short o
r
open condition, move the wiring harness while
observing test equipment for a change.



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

TRANSMISSION CONTROL SYSTEM (AW30–40LE) 7A2-105

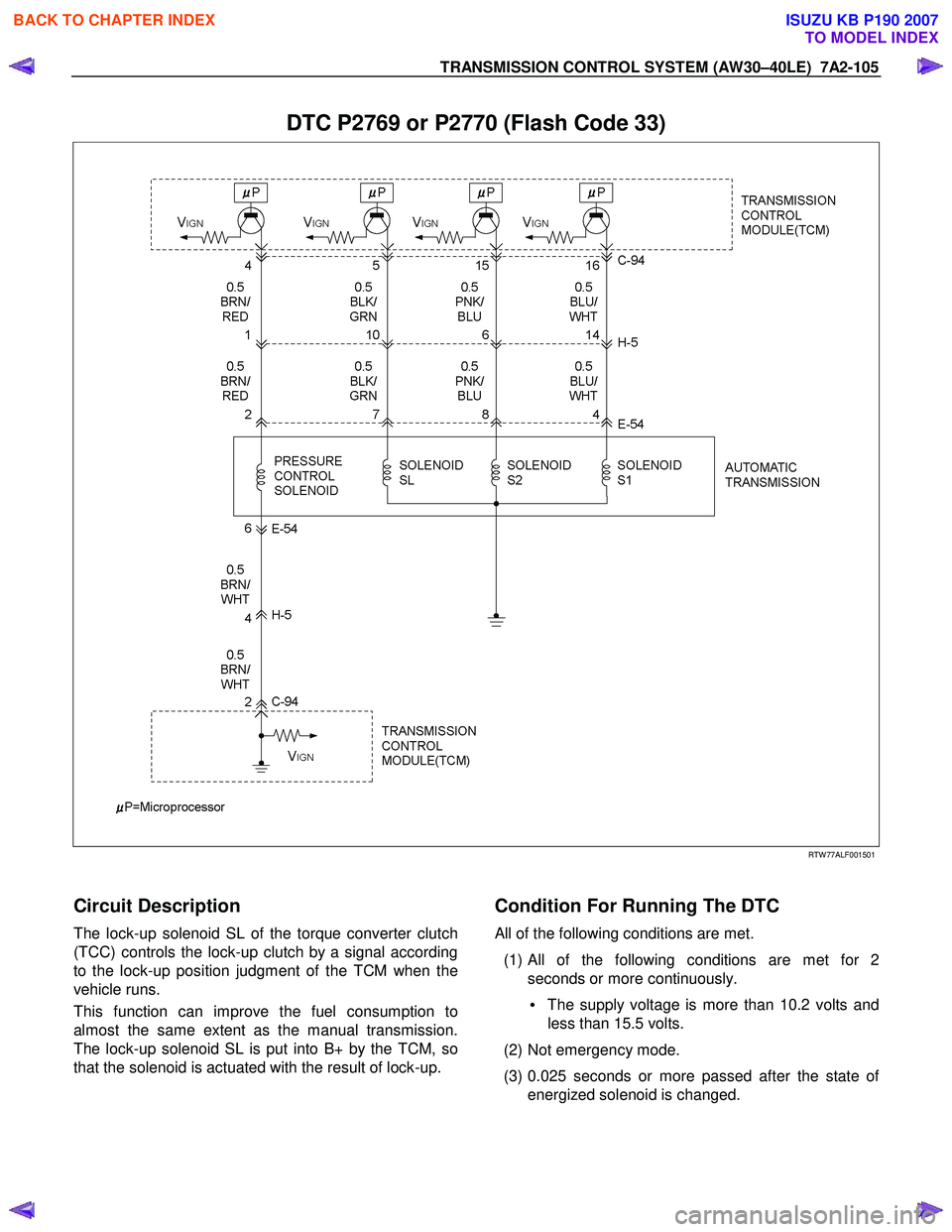

DTC P2769 or P2770 (Flash Code 33)
