2007 Hyundai Santa Fe Owner's Manual

1
FEATURES OF YOUR HYUNDAI
85

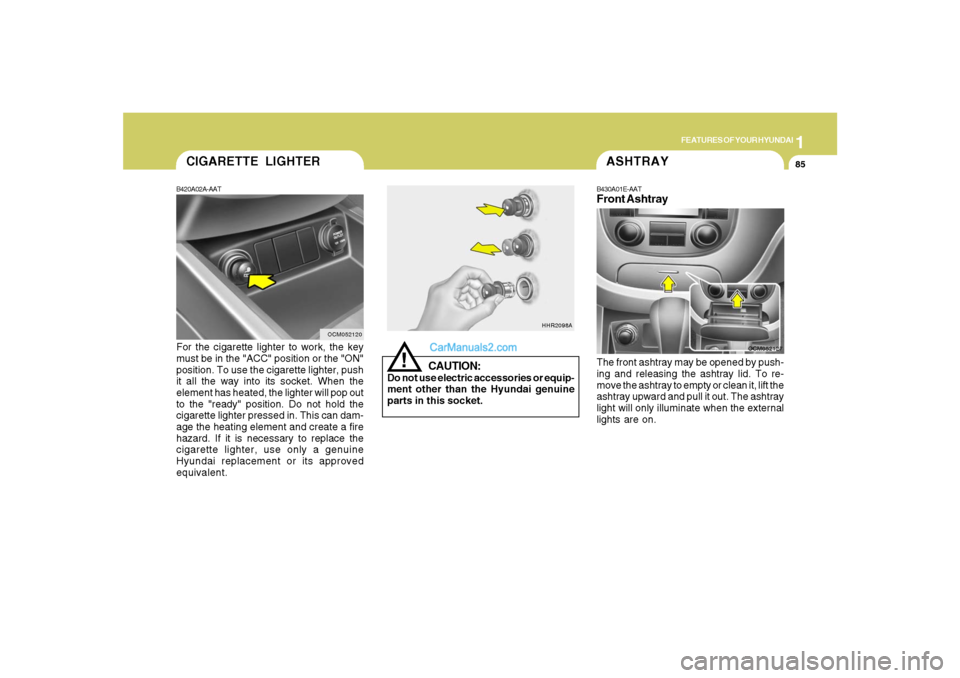

B420A02A-AATFor the cigarette lighter to work, the key
must be in the "ACC" position or the "ON"
position. To use the cigarette lighter, push
it all the way into its socket. When the
element has heated, the lighter will pop out
to the "ready" position. Do not hold the
cigarette lighter pressed in. This can dam-
age the heating element and create a fire
hazard. If it is necessary to replace the
cigarette lighter, use only a genuine
Hyundai replacement or its approved
equivalent.
OCM052120
CIGARETTE LIGHTER
CAUTION:
Do not use electric accessories or equip-
ment other than the Hyundai genuine
parts in this socket.
!
HHR2098A
ASHTRAYB430A01E-AATFront AshtrayThe front ashtray may be opened by push-
ing and releasing the ashtray lid. To re-
move the ashtray to empty or clean it, lift the
ashtray upward and pull it out. The ashtray
light will only illuminate when the external
lights are on.
OCM052127

1FEATURES OF YOUR HYUNDAI86
!
CAUTION:
o Use the power outlets only when the
engine is running. Remove the plug
from the power outlet after using the
electric device. Using the power out-
lets when the engine stops or keeping
the electric device plugged in for many
hours may cause the battery to dis-
charge.
o Do not use the power outlet to connect
electric accessories or equipment
that are not designed to operate on 12
volts.
o Some electronic devices can cause
electronic interference when plugged
into the power outlet. These devices
may cause excessive audio noise
and malfunctions in other electronic
systems or devices in your vehicle. The power outlets are designed to provide
power for mobile telephones or other de-
vices designed to operate with vehicle
electrical systems. The devices should
draw less than 10 amps with the engine
running.
OCM052123
POWER OUTLETSB500D01TG-AAT
OCM052121OCM052122L
(If installed)
(If installed)

1
FEATURES OF YOUR HYUNDAI
87
B505A01CM-AATAC Inverter (If installed)
OCM052124A
CAUTION:
o When not using the AC Inverter, make
sure that the switch is turned off, and
is closed the AC Inverter cover.
o Only use when the engine is running,
and remove the plug from the AC
Inverter after using the accessory.
Using when the engine is not running
or leaving the accessory plugged in
for long time may cause the battery to
discharge.
!
These supply 115VAC/150W electric
power to operate electric accessories or
equipment when the key is in the "ON"
position or engine is running. The AC
Inverter is turned on by pushing in the
switch. To turn the AC Inverter off, push the
switch a second time.NOTE:When pushing the AC inverter switch,
the switch indicator illumination is de-
layed momentarily while the system
conducts a self-check.
OCM036305A
o Do not use the electric accessories
or equipment with maximum electric
power consumption greater than
150W (115VAC).
o Some electronic devices can cause
electronic interference when plugged
into the AC Inverter. These devices
may cause excessive audio noise
and malfunctions in other electronic
systems or devices used in your ve-
hicle.
o Do not use broken electric accesso-
ries or equipment, as they may dam-
age the AC Inverter and vehicle's elec-
trical system.
o Do not use two or more electric ac-
cessories or equipment at the same
time.
o When input voltage is under 11V, the
outlet LED and indicator will blink, and
will automatically turn off.

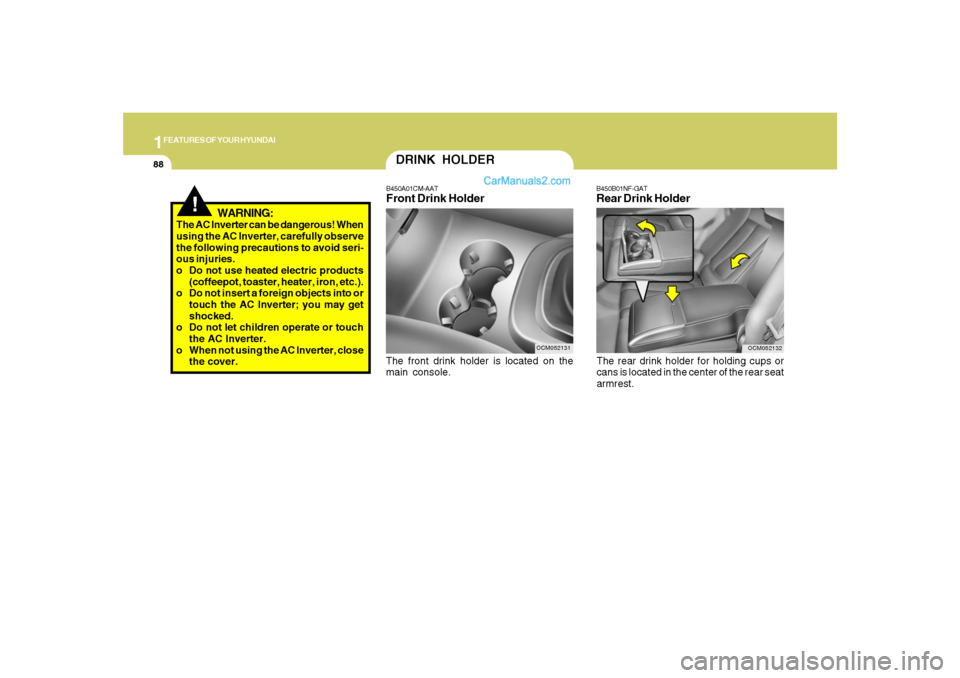

1FEATURES OF YOUR HYUNDAI88
OCM052132
B450B01NF-GATRear Drink HolderThe rear drink holder for holding cups or
cans is located in the center of the rear seat
armrest.
OCM052131
DRINK HOLDERB450A01CM-AATFront Drink HolderThe front drink holder is located on the
main console.
!
WARNING:
The AC Inverter can be dangerous! When
using the AC Inverter, carefully observe
the following precautions to avoid seri-
ous injuries.
o Do not use heated electric products
(coffeepot, toaster, heater, iron, etc.).
o Do not insert a foreign objects into or
touch the AC Inverter; you may get
shocked.
o Do not let children operate or touch
the AC Inverter.
o When not using the AC Inverter, close
the cover.

1
FEATURES OF YOUR HYUNDAI
89
!
!

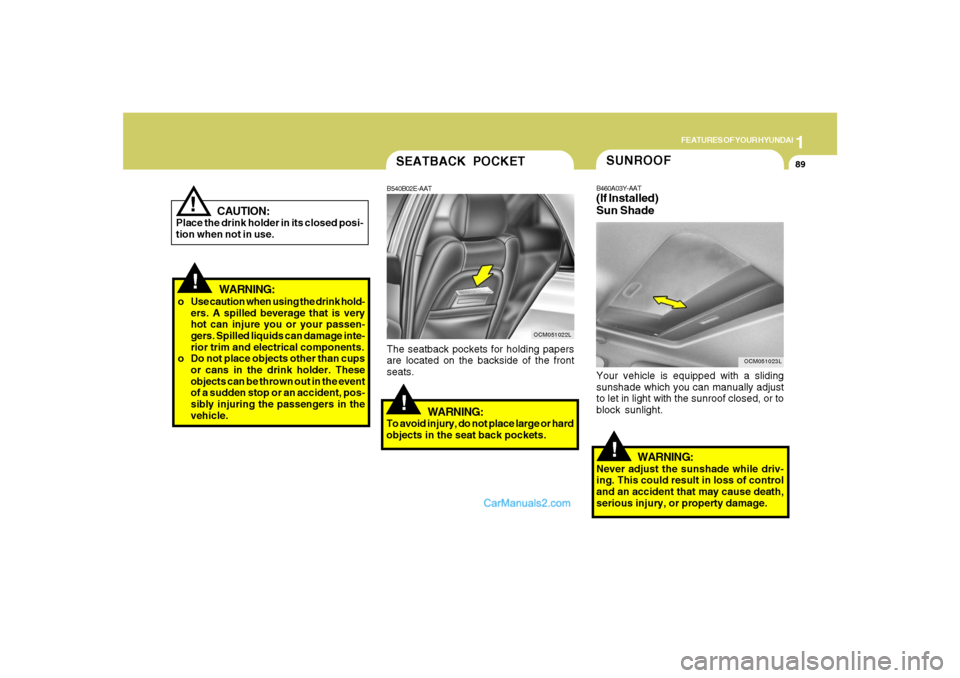

WARNING:
o Use caution when using the drink hold-
ers. A spilled beverage that is very
hot can injure you or your passen-
gers. Spilled liquids can damage inte-
rior trim and electrical components.
o Do not place objects other than cups
or cans in the drink holder. These
objects can be thrown out in the event
of a sudden stop or an accident, pos-
sibly injuring the passengers in the
vehicle.
!
CAUTION:
Place the drink holder in its closed posi-
tion when not in use.
SEATBACK POCKETB540B02E-AAT
OCM051022L
The seatback pockets for holding papers
are located on the backside of the front
seats.
!SUNROOFB460A03Y-AAT(If Installed)
Sun Shade
OCM051023L
Your vehicle is equipped with a sliding
sunshade which you can manually adjust
to let in light with the sunroof closed, or to
block sunlight.
WARNING:
Never adjust the sunshade while driv-
ing. This could result in loss of control
and an accident that may cause death,
serious injury, or property damage.
WARNING:
To avoid injury, do not place large or hard
objects in the seat back pockets.

1FEATURES OF YOUR HYUNDAI90
!
Auto ReverseIf an object is detected while the sunroof is
closing automatically, it will reverse direc-
tion, and then stop.
Auto reverse function does not work if a
small obstacle is blocked between the
sliding glass and the sunroof sash. You
should always check that all passengers
and objects are away from the sunroof
before closing it.
WARNING:
Be careful that someone’s head, hands
and body are not trapped by a closing
sunroof.Manual slide closePress the CLOSE button on the overhead
console for less than 0.5 second.
Auto slide openTo use the auto slide feature, momentarily
(more than 1 second) press the OPEN
button on the overhead console. The
sunroof will slide all the way open. To stop
the sunroof sliding at any point, press any
sunroof control button.Manual slide openPress the OPEN button on the overhead
console for less than 0.5 second.Auto slide closeTo close the sunroof, press the CLOSE
button on the overhead console for more
than 1 second.
The sunroof will slide all the way close. To
stop at the desired point, press any sunroof
control button.
B460B01CM-AATOpening the Sunroof SystemIf your vehicle is equipped with this feature,
you can slide or tilt your sunroof with the
sunroof control buttons located on the
overhead console.
The sunroof can only be opened, closed,
or tilted when the ignition switch is in the
"ON" position.
OCM051024L

1
FEATURES OF YOUR HYUNDAI
91
B460C01CM-GATTilting the Sunroof SystemClose
To close the sunroof, press the CLOSE
button on the overhead console and hold
it until the sunroof is closed.NOTE:After washing the car or after there is
rain, be sure to wipe off any water that is
on the sunroof before operating it.
!
Auto tilt openTo use the autotilt feature, momentarily
(more than 1 second) press the TILT UP
button on the overhead console. The
sunroof will tilt all the way open. To stop the
sunroof tilting at any point, press any
sunroof control button.Manual tilt openPress the TILT UP button on the overhead
console for less than 0.5 second.
OCM051025L
WARNING:
o Do not close a sunroof if anyone's
hands, arms or body are between the
sliding glass and the sunroof sash, as
this could result in injury.
o Do not place your head or arms out of
the sunroof opening at any time.
o While the vehicle is moving, always
keep the head, hands and other parts
of the body of all occupants away
from the roof opening. Otherwise, you
could be seriously injured if the ve-
hicle stops suddenly or if the vehicle
is involved in an accident.
CAUTION:
o Do not open the sunroof in severely
cold temperature or when it is cov-
ered with ice or snow.
o Periodically remove any dirt that may
have accumulated on the guide rails.
o Do not press any sunroof control but-
ton longer than necessary.
Damage to the motor or system com-
ponents could occur.
!

1FEATURES OF YOUR HYUNDAI92
!
CAUTION:
If the sunroof is not reset, it may not
operate properly.
B460E01TG-GATResetting the sunroofWhenever the vehicle battery is discon-
nected or discharged, or you use the emer-
gency handle to operate the sunroof, you
have to reset your sunroof system as fol-
lows:3. Insert the hexagonal head wrench pro-
vided with the vehicle into the socket.
This wrench can be found in the vehicle's
glove box.
4. Turn the wrench clockwise to open or
counterclockwise to close the sunroof.
OCM052022N
1. Turn the ignition key to the "ON" posi-
tion.
2. Press the TILT UP button for more than
1 second to tilt up the sunroof com-
pletely when the sunroof is fully closed.
Then, release the button.
3. Press and hold the TILT UP button once
again until the sunroof has returned to
the original position of TILT UP after it is
raised a little higher than the maximum
TILT UP position. Then, release the
button.
4. Press and hold the TILT UP button within
5 seconds until the sunroof is operated
as follows;
TILT DOWN → SLIDE OPEN → SLIDE
CLOSE
Then, release the button.
B460D01CM-AATManual Operation of SunroofIf the sunroof does not electrically operate:
1. Open the sunglass holder.
2. Remove the two mounting screws of the
front overhead console with a (+) driver.
OCM055031N
