2007 Hyundai Santa Fe Owner's Manual

1
FEATURES OF YOUR HYUNDAI
133
FEATURES OF YOUR HYUNDAI
133133133133

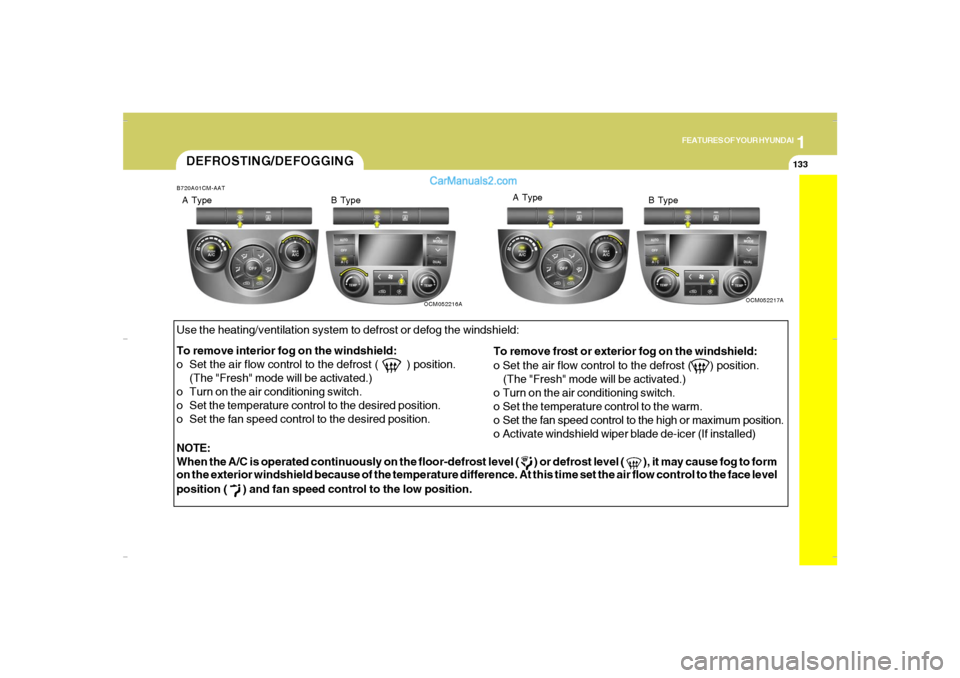

DEFROSTING/DEFOGGINGNOTE:
When the A/C is operated continuously on the floor-defrost level (
) or defrost level (
), it may cause fog to form
on the exterior windshield because of the temperature difference. At this time set the air flow control to the face level
position (
) and fan speed control to the low position. To remove interior fog on the windshield:
o Set the air flow control to the defrost ( ) position.
(The "Fresh" mode will be activated.)
o Turn on the air conditioning switch.
o Set the temperature control to the desired position.
o Set the fan speed control to the desired position.To remove frost or exterior fog on the windshield:
o Set the air flow control to the defrost ( ) position.
(The "Fresh" mode will be activated.)
o Turn on the air conditioning switch.
o Set the temperature control to the warm.
o Set the fan speed control to the high or maximum position.
o Activate windshield wiper blade de-icer (If installed)
B720A01CM-AAT
OCM052216AOCM052217A
Use the heating/ventilation system to defrost or defog the windshield:A Type B TypeA Type
B Type
Cmhma-1b.p653/20/2006, 4:59 PM 133

1FEATURES OF YOUR HYUNDAI
134

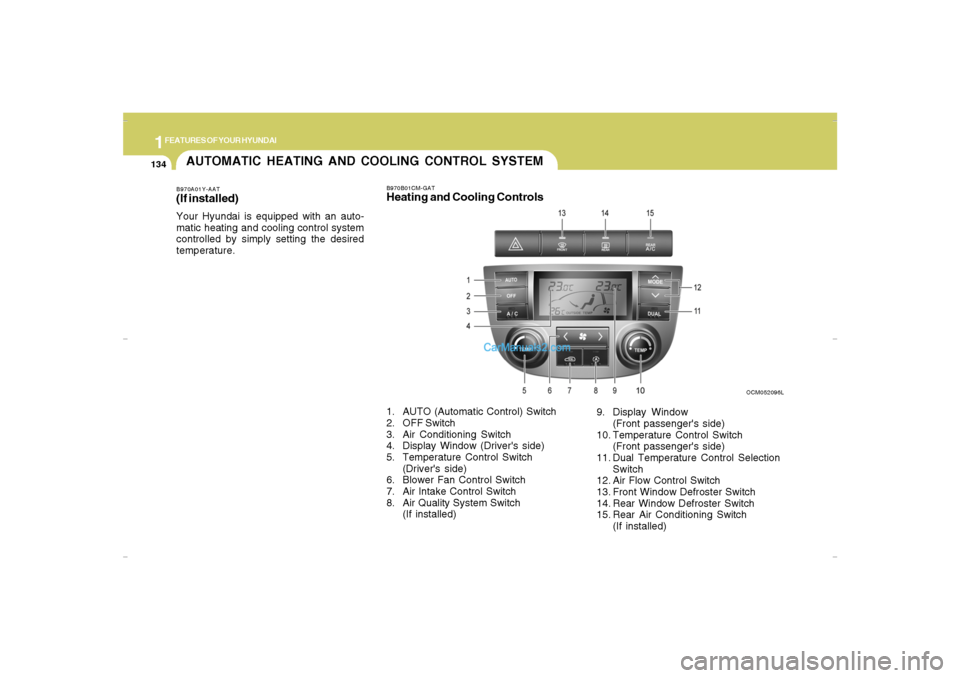

AUTOMATIC HEATING AND COOLING CONTROL SYSTEMB970A01Y-AAT(If installed)Your Hyundai is equipped with an auto-
matic heating and cooling control system
controlled by simply setting the desired
temperature.
B970B01CM-GATHeating and Cooling Controls
OCM052096L
1. AUTO (Automatic Control) Switch
2. OFF Switch
3. Air Conditioning Switch
4. Display Window (Driver's side)
5. Temperature Control Switch
(Driver's side)
6. Blower Fan Control Switch
7. Air Intake Control Switch
8. Air Quality System Switch
(If installed)9. Display Window
(Front passenger's side)
10. Temperature Control Switch
(Front passenger's side)
11. Dual Temperature Control Selection
Switch
12. Air Flow Control Switch
13. Front Window Defroster Switch
14. Rear Window Defroster Switch
15. Rear Air Conditioning Switch
(If installed)
Cmhma-1b.p653/20/2006, 4:59 PM 134

1
FEATURES OF YOUR HYUNDAI
135
FEATURES OF YOUR HYUNDAI
135135135135
B970C01CM-AATAutomatic OperationThe FATC (Full Automatic Temperature
Control) system automatically controls
heating and cooling by doing as follows:
1. Push the AUTO button. It is indicated by
AUTO on the display. The modes, fan
speeds, air intake and air-conditioning
will be controlled automatically by tem-
perature setting.2. Turn the "TEMP" knob to set the desired
temperature.
The temperature will increase to the
maximum 90°F (32°C) by turning the
knob clockwise.
The temperature will decrease to the
minimum 62°F (17°C) by turning the
knob counterclockwise.
NOTE:If the battery has been discharged or
disconnected, the temperature mode will
reset to Centigrade degrees.
This is a normal condition and you can
change the temperature mode from
Centigrade to Fahrenheit as follows;
OCM052098OCM052101
OCM052062
Photo SensorPress the "MODE" and "DUAL" switch
simultaneously for 3 seconds.
The display shows that the unit of tem-
perature is adjusted to Centigrade or
Fahrenheit (°C
→ →→ →
→ °F or °F
→ →→ →
→ °C).NOTE:Never place anything over the sensor
which is located on the instrument panel
to ensure better control of the heating
and cooling system.
Cmhma-1b.p653/20/2006, 4:59 PM 135

1FEATURES OF YOUR HYUNDAI
136
B980B01Y-AATFan Speed Control SwitchThe fan speed can be set to the desired
speed by pressing the appropriate fan
speed control button. The higher the fan
speed is, the more air is delivered. Press-
ing the "OFF" button turns off the fan.
OCM052097 B980A01Y-AAT
Manual OperationThe heating and cooling system can be
controlled manually as well by pushing
buttons other than the "AUTO" button. In
this state, the system sequentially works
according to the order of buttons selected.
The function of the buttons which are not
selected will be controlled automatically.
Press the "AUTO" button in order to convert
to automatic control of the system.
B670C03Y-AATAir Intake Control Switch
(Without A.Q.S)This is used to select fresh outside air or
recirculation inside air.
To change the air intake control mode,
(Fresh mode, Recirculation mode) push
the control button.
FRESH MODE (
) : The indicator light
on the button goes on when the air intake
control is fresh mode.
OCM052110L
Cmhma-1b.p653/20/2006, 4:59 PM 136

1
FEATURES OF YOUR HYUNDAI
137
FEATURES OF YOUR HYUNDAI
137137137137
RECIRCULATION MODE (
) : The
indicator light on the button is illuminated
when the air intake control is recirculation
mode.
With the "Fresh" mode selected, air enters
the vehicle from the outside and is heated
or cooled according to the function se-
lected.
With the "Recirculation" mode selected,
and air from within the passenger com-
partment will be drawn through the heat-
ing system and heated or cooled accord-
ing to the function selected.
B980C01CM-AATAir Intake Control Switch
(With A.Q.S) (If installed)This is used to select fresh outside air or
recirculate inside air automatically.
:OFF
:ON
Fresh Mode :
Air enters the vehicle from the outside and
is heated or cooled according to the func-
tion selected.
OCM052109
OCM052109L
NOTE:It should be noted that prolonged opera-
tion of the heating system in "recircula-
tion" mode will give rise to fogging of the
windshield and side windows and the air
within the passenger compartment will
become stale. In addition, prolonged use
of the air conditioning with the "Recircu-
lation" mode selected may result in the
air within the passenger compartment
becoming excessively dry.
Cmhma-1b.p653/20/2006, 4:59 PM 137

1FEATURES OF YOUR HYUNDAI
138
Exhaust Gas Cutoff Mode :
Air enters the vehicle from the outside.
But if exhaust gas enters the vehicle from
the outside, the exhaust gas cutoff mode is
automatically converted to the (
)
mode, to prevent exhaust gas from enter-
ing the vehicle.
OCM052110
Recirculation Mode :
Air from within the passenger compart-
ment will be drawn through the heating
system and heated or cooled according to
the function selected.
!
NOTE:It should be noted that prolonged opera-
tion of the heating system in recircula-
tion mode (
) will give rise to misting
of the windshield and side windows and
the air within the passenger compart-
ment will become stale. In addition, pro-
longed use of the air conditioning with
the recirculation mode (
) selected
may result in the air within the passen-
ger compartment becoming excessively
dry.
CAUTION:
If the windows fog up with the Recircula-
tion or A.Q.S mode selected, set the air
intake control to the Fresh air position or
A.Q.S control to "OFF".
B740A01S-AATAir Conditioning SwitchThe air conditioning is turned on or off by
pushing the A/C button on the heating/air
conditioning control panel.
OCM052103
Cmhma-1b.p653/20/2006, 4:59 PM 138

1
FEATURES OF YOUR HYUNDAI
139
FEATURES OF YOUR HYUNDAI
139139139139

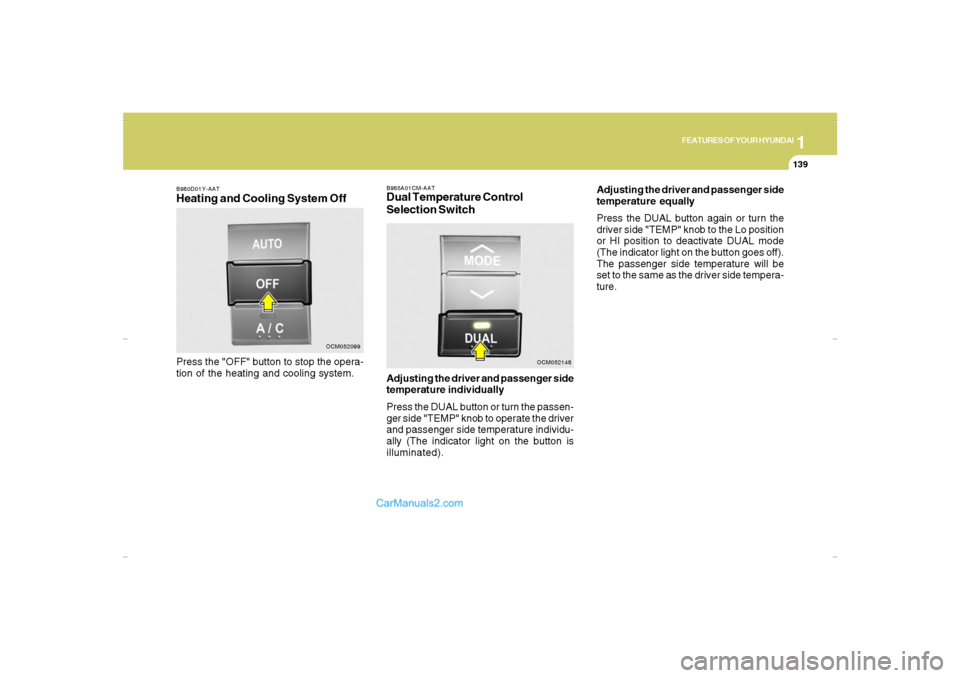

B980D01Y-AATHeating and Cooling System OffPress the "OFF" button to stop the opera-
tion of the heating and cooling system.
OCM052099
B985A01CM-AATDual Temperature Control
Selection SwitchAdjusting the driver and passenger side
temperature individually
Press the DUAL button or turn the passen-
ger side "TEMP" knob to operate the driver
and passenger side temperature individu-
ally (The indicator light on the button is
illuminated).
OCM052148
Adjusting the driver and passenger side
temperature equally
Press the DUAL button again or turn the
driver side "TEMP" knob to the Lo position
or HI position to deactivate DUAL mode
(The indicator light on the button goes off).
The passenger side temperature will be
set to the same as the driver side tempera-
ture.
Cmhma-1b.p653/20/2006, 4:59 PM 139

1FEATURES OF YOUR HYUNDAI
140
OCM052106N
Bi-Level
When selecting the "Bi-Level", the indica-
tor light will come on and the air will be
discharged through the face, the floor and
the 2nd row seat ventilator.
OCM052105N
Face-Level
When selecting the "Face-Level", the indi-
cator light will come on, causing air to be
discharged through the face level and the
2nd row seat ventilator.
B980E01CM-AATAir Flow Control
OCM052104
This is used to direct the flow of air. Air can
be directed to the floor, dashboard outlets,
or windshield. Four symbols are used to
represent Face, Bi-Level, Floor and Floor-
Defrost position.
2nd row seat ventilator 2nd row seat ventilator
