2007 Hyundai Santa Fe Owner's Manual

1
FEATURES OF YOUR HYUNDAI
13

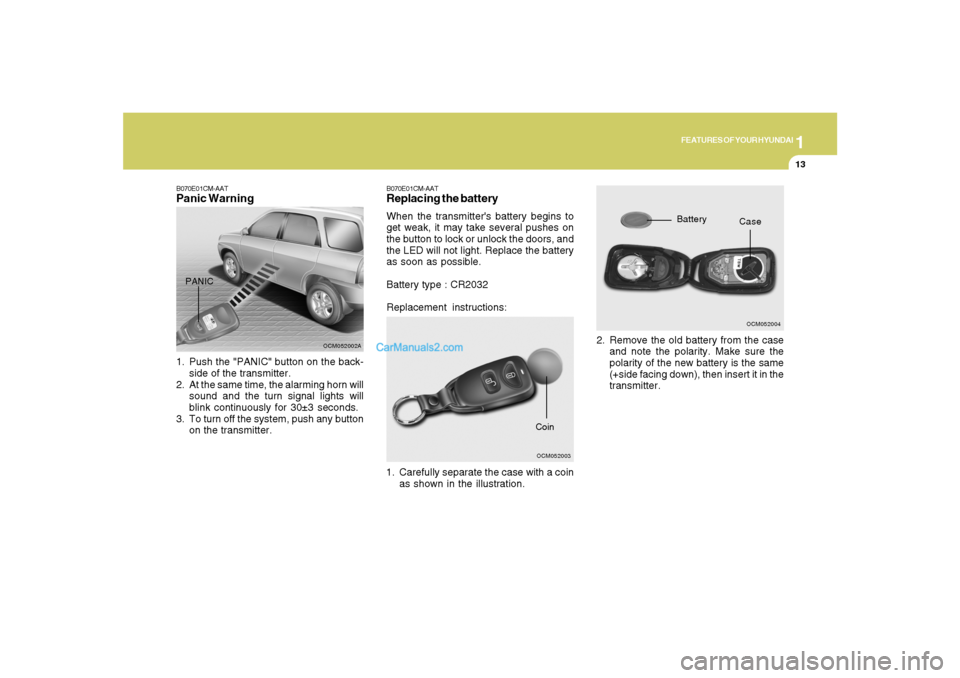

B070E01CM-AATReplacing the batteryWhen the transmitter's battery begins to
get weak, it may take several pushes on
the button to lock or unlock the doors, and
the LED will not light. Replace the battery
as soon as possible.
Battery type : CR2032
Replacement instructions:
1. Carefully separate the case with a coin
as shown in the illustration.2. Remove the old battery from the case
and note the polarity. Make sure the
polarity of the new battery is the same
(+side facing down), then insert it in the
transmitter.
OCM052003Coin
OCM052004
Battery
Case
B070E01CM-AATPanic Warning1. Push the "PANIC" button on the back-
side of the transmitter.
2. At the same time, the alarming horn will
sound and the turn signal lights will
blink continuously for 30±3 seconds.
3. To turn off the system, push any button
on the transmitter.
OCM052002A
PANIC

1FEATURES OF YOUR HYUNDAI14

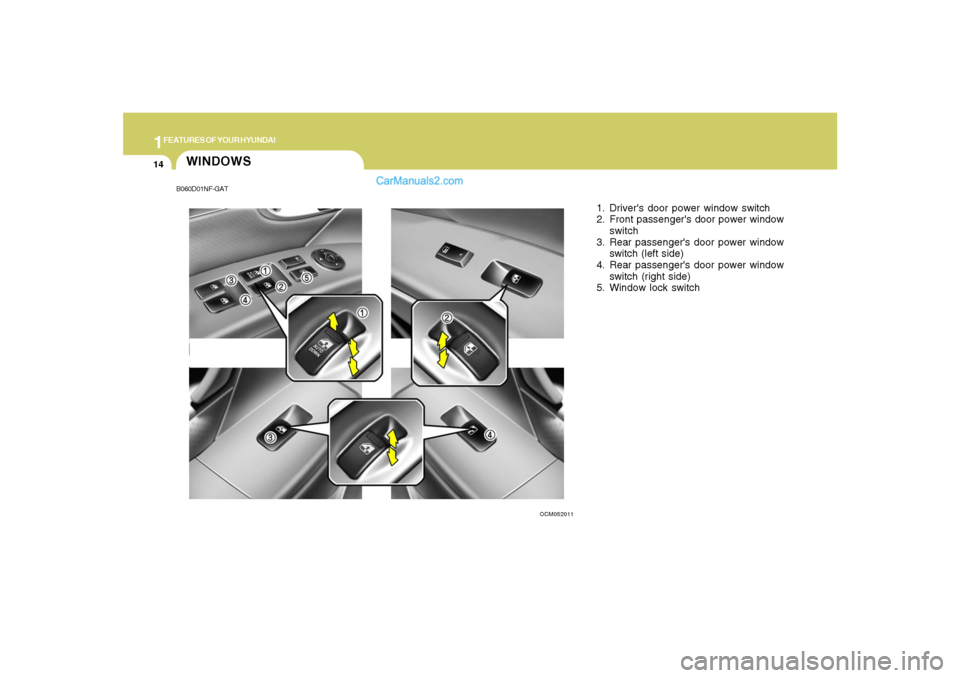

WINDOWS
OCM052011
1. Driver's door power window switch
2. Front passenger's door power window
switch
3. Rear passenger's door power window
switch (left side)
4. Rear passenger's door power window
switch (right side)
5. Window lock switch
B060D01NF-GAT

1
FEATURES OF YOUR HYUNDAI
15
POWER WINDOWSB060A01CM-AATThe power windows operate when the
ignition key is in the "ON" position. The
main switches are located on the driver's
armrest and control the front and rear win-
dows on both sides of the vehicle. The
windows may be opened by depressing
the appropriate window switch and closed
by pulling up the switch. To open the win-
dow on the driver's side, press the switch
halfway down. The window moves as long
as the switch is operated. To fully open the
driver's window automatically, press the
switch fully down. In automatic operation,
the window will fully open even if you let go
of the switch. To stop at the desired open-
ing, pull up and release the switch.
OCM051003L
!
In order to prevent operation of the pas-
senger front and rear windows, a window
lock switch is provided on the armrest of
the driver's door. To disable the power
windows, press the window lock switch. To
revert to normal operation, press the win-
dow lock switch a second time.NOTE:The power windows can be operated for
30 seconds after the ignition key is
turned to the "ACC" or "LOCK" posi-
tions, or removed from the ignition
switch. If the driver's door is opened
during this 30 second period, the power
windows can no longer be operated with-
out the ignition key turned to the "ON"
position.
WARNING:
o Passengers can be injured in their
head, hands or other body parts are
trapped by a closing window. Always
check for obstructions before raising
any windows.
o Never leave any child unattended in
the vehicle. Even very your children
may inadvertently cause the vehicle
to move, entangle themselves in the
window, otherwise injure themselves
or others.
OCM052012
Close
Open
OCM052013
Close
Open

1FEATURES OF YOUR HYUNDAI16
!
B080B04A-AATFront Seat
Adjusting seat forward and rearwardTo move the seat toward the front or rear,
pull the lock release lever upward. This will
release the seat on its track so you can
move it forward or rearward to the desired
position. When you find the position you
want, release the lever and slide the seat
forward or rearward on its track until it locks
into the desired position and cannot be
moved further.
HNF2032
SEATSB080A02A-AATAdjustable Front Seats
!
WARNING:
o Never adjust the driver’s seat while
the vehicle is moving. Any sudden or
unexpected movement of the seat
could cause you to lose control of the
vehicle resulting in an accident. Only
adjust the driver’s seat when the ve-
hicle is stationary.
o Do not sit or lean unnecessarily close
to the air bag. Position the seat so that
you can sit as far back as possible
from the air bag and still comfortably
reach all controls. o Do not attempt to operate the main
switch on another door in opposing
directions at the same time. If this is
done, the window will stop and cannot
be opened or closed.
WARNING:

1
FEATURES OF YOUR HYUNDAI
17
HNF2033
B080C03A-AATAdjusting Seatback AngleTo recline the seatback, lean forward to
take your weight off it, then pull up on the
recliner control lever at the outside edge of
the seat. Now lean back until the desired
seatback angle is achieved. To lock the
seatback into position, release the recliner
control lever.
!
WARNING:
Riding with a reclined seatback in-
creases your chance of serious or fatal
injuries in the event of a collision or
sudden stop. The protection of your re-
straint system (seat belts and air bags)
is greatly reduced by reclining your seat.
Seat belts must be snug against your
hips and chest to work properly. The
more the seatback is reclined, the greater
the chance that an occupant's hips will
slide under the lap belt or the occupant's
neck will strike the shoulder belt. Driv-
ers and passengers should always sit
well back in their seats, properly belted,
and with the seatbacks upright.
!
WARNING:
After adjusting the seat, always check
that it is securely locked into place by
attempting to move the seat forward or
rearward without using the lock release
lever. Sudden or unexpected move-
ment of the driver's seat could cause
you to lose control of the vehicle result-
ing in an accident.

1FEATURES OF YOUR HYUNDAI18
!
B080D01JM
WARNING:
o For maximum effectiveness in case
of an accident the headrest should be
adjusted so the middle of the head-
rest is at the same height as the top of
the occupant's eyes. For this reason,
the use of a cushion that holds the
body away from the seatback is not
recommended.
o Do not operate vehicle with the head-
rests removed as injury to the occu-
pants may occur in the event of an
accident. Headrests may provide pro-
tection against neck injuries when
properly adjusted.o Do not adjust the headrest height while
the vehicle is in motion.
B081D01CM-AATAdjusting Headrest Forward and
RearwardThe headrest may be adjusted forward to
three different positions by pulling the head-
rest forward. To adjust the headrest rear-
ward, pull it fully forward to the farthest
position and release it. Adjust the headrest
so that it properly supports the head and
neck.
OMG035101
!
WARNING:
B080D02JM-AATAdjustable HeadrestsHeadrests are designed to help reduce
the risk of neck injuries.
To raise the headrest, pull it up. To lower
the headrest, push it down while pressing
the lock knob. To remove the headrest,
raise it as far as it can go then press the lock
knob while pulling upward. This should
only be done when the seat is not occu-
pied.
HJM2044
Lock Knob

1
FEATURES OF YOUR HYUNDAI
19
B083D01NF-AATActive Headrests (If Installed)The active headrest is designed to move
forward and upward during a rear impact.
This helps to prevent the driver's and front
passenger's heads from moving backward
and thus helps prevent neck injuries.
HNF2041-1
B080E01Y-AATLumbar Support Control
(Driver's Seat Only)To adjust the lumbar support, turn the
handle on the outboard or left side of the
seat. To increase the amount of lumbar
support, pull the lever forward. To de-
crease it, push the lever toward the rear.
1. Minimum support
2. Maximum support
HNF20391
2
B080F01NF-GATSeat Height Adjustment
(Driver's Seat Only)To raise or lower the seat, raise or lower the
control lever to the desired seat height.
HNF2034

1FEATURES OF YOUR HYUNDAI20
!

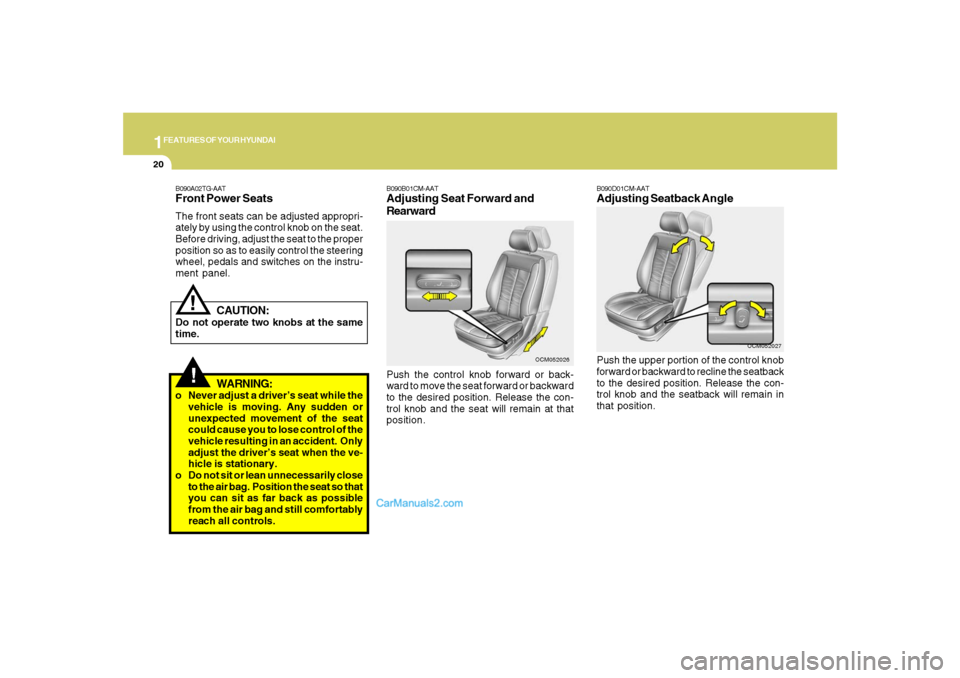

B090A02TG-AATFront Power SeatsThe front seats can be adjusted appropri-
ately by using the control knob on the seat.
Before driving, adjust the seat to the proper
position so as to easily control the steering
wheel, pedals and switches on the instru-
ment panel.
CAUTION:
Do not operate two knobs at the same
time.
WARNING:
o Never adjust a driver’s seat while the
vehicle is moving. Any sudden or
unexpected movement of the seat
could cause you to lose control of the
vehicle resulting in an accident. Only
adjust the driver’s seat when the ve-
hicle is stationary.
o Do not sit or lean unnecessarily close
to the air bag. Position the seat so that
you can sit as far back as possible
from the air bag and still comfortably
reach all controls.
!
B090B01CM-AATAdjusting Seat Forward and
RearwardPush the control knob forward or back-
ward to move the seat forward or backward
to the desired position. Release the con-
trol knob and the seat will remain at that
position.
OCM052026
B090D01CM-AATAdjusting Seatback AnglePush the upper portion of the control knob
forward or backward to recline the seatback
to the desired position. Release the con-
trol knob and the seatback will remain in
that position.
OCM052027
