2007 Hyundai Santa Fe Owner's Manual

1

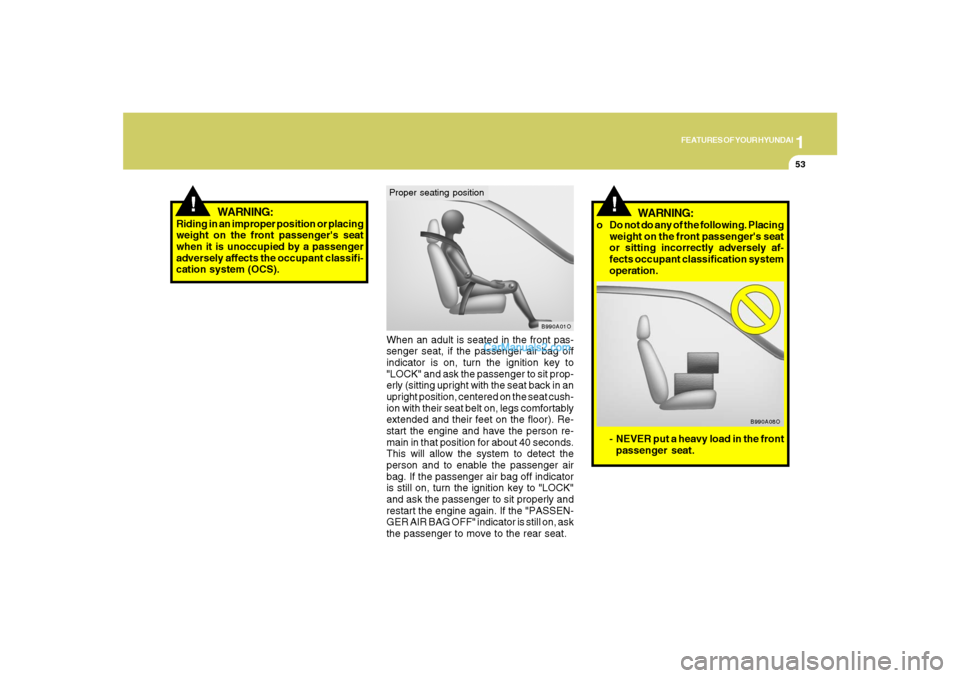

FEATURES OF YOUR HYUNDAI
53
!
When an adult is seated in the front pas-
senger seat, if the passenger air bag off
indicator is on, turn the ignition key to
"LOCK" and ask the passenger to sit prop-
erly (sitting upright with the seat back in an
upright position, centered on the seat cush-
ion with their seat belt on, legs comfortably
extended and their feet on the floor). Re-
start the engine and have the person re-
main in that position for about 40 seconds.
This will allow the system to detect the
person and to enable the passenger air
bag. If the passenger air bag off indicator
is still on, turn the ignition key to "LOCK"
and ask the passenger to sit properly and
restart the engine again. If the "PASSEN-
GER AIR BAG OFF" indicator is still on, ask
the passenger to move to the rear seat.Proper seating position
B990A01O
WARNING:
Riding in an improper position or placing
weight on the front passenger's seat
when it is unoccupied by a passenger
adversely affects the occupant classifi-
cation system (OCS).
- NEVER put a heavy load in the front
passenger seat.
B990A08O
!
WARNING:
o Do not do any of the following. Placing
weight on the front passenger's seat
or sitting incorrectly adversely af-
fects occupant classification system
operation.

1FEATURES OF YOUR HYUNDAI54
- NEVER lean on the center console.
- NEVER lean on the door trim.
- NEVER sit on one side of the front
passenger seat.
B990A07O
B990A05O
- NEVER place feet on the dashboard.
- NEVER excessively recline the front
passenger seatback.
- NEVER sit with hips shifted towards
the front of the seat.
B990A03O
B990A02O

1
FEATURES OF YOUR HYUNDAI
55
!
NOTE:The passenger air bag off indicator illu-
minates for about 4 seconds after the
ignition key is turned to the "ON" posi-
tion or after the engine is started. If the
front passenger seat is occupied, the
occupant classification sensor will then
classify the front passenger within ap-
proximately 10 seconds after the igni-
tion is turned on.
!
WARNING:
o A smaller-stature adult who is not
seated correctly (for example: seat
excessively reclined, leaning on the
center console, or hips shifted for-
ward in the seat) can cause a condi-
tion where the advanced frontal air
bag system senses less weight than
if the occupant were seated properly
(sitting upright with the seatback in an
upright position, centered on the seat
cushion with their seat belt on, legs
comfortably extended and their feet
on the floor).
o This condition can result in an adult
potentially being misclassified and
illumination of the passenger air bag
off indicator.
WARNING:
Do not allow an adult passenger to ride
in the front seat when the passenger air
bag off indicator is illuminated, because
the air bag will not deploy in the event of
a crash. If the passenger air bag off
indicator remains illuminated after the
passenger repositions themselves prop-
erly and the car is restarted, Hyundai
recommends that passenger move to
the rear seat because the passenger's
front air bag will not deploy.
!
CAUTION:
If the occupant classification system is
not working properly, the SRS air bag
warning light on the instrument panel
will illuminate because the passenger's
front air bags are connected with the
occupant classification system. If there
is a malfunction of the occupant classi-
fication system, the passenger air bag
off indicator will illuminate and the
passenger's front air bags will not inflate
in frontal impact crashes even if there is
adult occupant in the front passenger's
seat. If the SRS air bag warning light does
not illuminate when the ignition key is
turned to the "ON" position, remains
illuminated after approximately 6 sec-
onds when the ignition key is turned to
the "ON" position, or if it illuminates
while the vehicle is being driven, have an
authorized Hyundai dealer inspect the
occupant classification system and the
SRS air bag system as soon as possible.

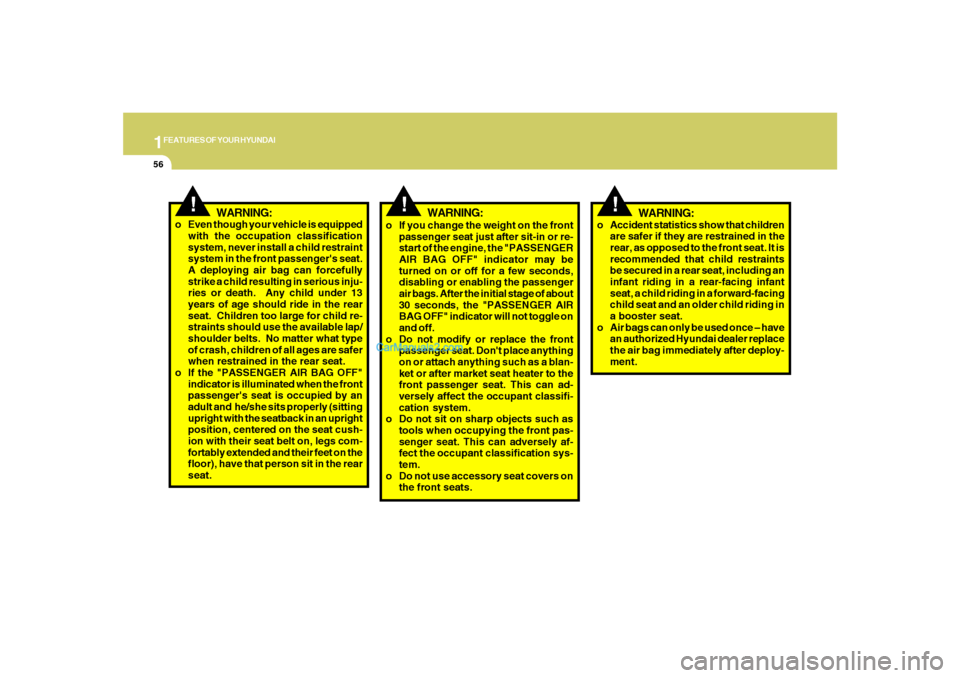

1FEATURES OF YOUR HYUNDAI56
!
WARNING:
o Accident statistics show that children
are safer if they are restrained in the
rear, as opposed to the front seat. It is
recommended that child restraints
be secured in a rear seat, including an
infant riding in a rear-facing infant
seat, a child riding in a forward-facing
child seat and an older child riding in
a booster seat.
o Air bags can only be used once – have
an authorized Hyundai dealer replace
the air bag immediately after deploy-
ment.
!
WARNING:
o If you change the weight on the front
passenger seat just after sit-in or re-
start of the engine, the "PASSENGER
AIR BAG OFF" indicator may be
turned on or off for a few seconds,
disabling or enabling the passenger
air bags. After the initial stage of about
30 seconds, the "PASSENGER AIR
BAG OFF" indicator will not toggle on
and off.
o Do not modify or replace the front
passenger seat. Don't place anything
on or attach anything such as a blan-
ket or after market seat heater to the
front passenger seat. This can ad-
versely affect the occupant classifi-
cation system.
o Do not sit on sharp objects such as
tools when occupying the front pas-
senger seat. This can adversely af-
fect the occupant classification sys-
tem.
o Do not use accessory seat covers on
the front seats.
!
WARNING:
o Even though your vehicle is equipped
with the occupation classification
system, never install a child restraint
system in the front passenger's seat.
A deploying air bag can forcefully
strike a child resulting in serious inju-
ries or death. Any child under 13
years of age should ride in the rear
seat. Children too large for child re-
straints should use the available lap/
shoulder belts. No matter what type
of crash, children of all ages are safer
when restrained in the rear seat.
o If the "PASSENGER AIR BAG OFF"
indicator is illuminated when the front
passenger's seat is occupied by an
adult and he/she sits properly (sitting
upright with the seatback in an upright
position, centered on the seat cush-
ion with their seat belt on, legs com-
fortably extended and their feet on the
floor), have that person sit in the rear
seat.

1
FEATURES OF YOUR HYUNDAI
57
B990B03MC-AATSide Impact Air bagYour Hyundai is equipped with a side
impact air bag in each front seat. The
purpose of the air bag is to provide the
vehicle's driver and/or the front passenger
with additional protection than that offered
by the seat belt alone. The side impact air
bags are designed to deploy only during
certain side-impact collisions, depending
on the crash severity, angle, speed and
point of impact. The side impact air bags
are not designed to deploy in all side
impact situations.
B990B02LZ
OCM052212L
Side impact sensor
Important Safety Notes on the Side
Impact Air bag SystemFollowing are a number of safety points
concerning this system which should al-
ways be observed to ensure risk of injury
is reduced in an accident.
WARNING:
o The side impact air bag is supplemen-
tal to the driver's and the passenger's
seat belt systems and is not a substi-
tute for them. Therefore your seat
belts must be worn at all times while
the vehicle is in motion. The air bags
deploy only in certain side impact
conditions severe enough to cause
significant injury to the vehicle occu-
pants.
o For best protection from the side im-
pact air bag system and to avoid be-
ing injured by the deploying side im-
pact air bag, both front seat occu-
pants should sit in an upright position
with the seat belt properly fastened.
The driver's hands should be placed
on the steering wheel at the 9:00 and
3:00 positions. The passenger's arms
and hands should be placed on their
laps.
o Do not use any accessory seat cov-
ers.
Use of seat covers could reduce or
prevent the effectiveness of the airbag
system.
!

1FEATURES OF YOUR HYUNDAI58
B990C02JM-AATCurtain Air bagCurtain air bags are located along both
sides of the roof rails above the front and
rear doors.
They are designed to help protect the
heads of the front seat occupants and the
rear outboard seat occupants in certain
side impact collisions.
The curtain air bags are designed to de-
ploy only during certain side impact colli-
sions, depending on the crash severity,
angle, speed and impact. The curtain air
bags are not designed to deploy in all side
impact situations, collisions from the front
or rear of the vehicle or in most rollover
situations.
OCM052213
Curtain Air bag
!
o Do not install any accessories on the
side or near the side impact air bag.
o Do not place any objects over the air
bag or between the air bag and your-
self.
o Do not place any objects (an umbrella,
bag, etc.) between the front door and
the front seat. Such objects may be-
come dangerous projectiles and
cause injury if the supplemental side
impact air bag inflates.
o To prevent unexpected deployment
of the side impact air bag that may
result in personal injury, avoid impact
to the side impact sensor when the
ignition key is on.
WARNING:
!
WARNING:
o Before installing child restraints, al-
ways refer to the "Child Restraint
System" section to ensure correct
installation and occupant protection
is maximized.
o Make sure that the occupant does not
have any body parts (head, arms &
legs) protruding outside the restrain-
ing system. If an inflating air bag was
to strike an infant child on the head, it
may cause serious injury.
o Ensure the opening for the Curtain Air
Bag System remains unobstructed
at all times, so that the air bags can
inflate properly if needed.Important Safety Notes for Curtain
Air Bag SystemsFollowing are a number of safety points
concerning this system which should al-
ways be observed to ensure risk of injury
is reduced in an accident.

1
FEATURES OF YOUR HYUNDAI
59
!
B240C01CM-AATSRS CareThe SRS is virtually maintenance free and
there are no parts you can safely service by
yourself. If the SRS SRI (Service Reminder
Indicator) does not illuminate, or continu-
ously remains on, have your vehicle im-
mediately inspected by your Hyundai
dealer.
Any work on the SRS system, such as
removing, installing, repairing, or any work
on the steering wheel must be performed
by a qualified Hyundai technician. Improper
handling of the air bag system may result
in serious personal injury.
!
!
WARNING:
o The built in coat hooks should only be
used for light weight clothing. Ensure
that clothing pockets are free of any
heavy or sharp objects. When using
coat hooks, do not hang clothes on
coat hangers.
o The space between the occupant and
the curtain air bag must never be
occupied by children, passengers or
pets. Occupants should never lean
out or have any parts of their body
protruding from the window while the
engine is running.
o Do not move the sun visor out to cover
the side window if there is an item
attached to it such as garage door
remote control, pens, compact disc
pocket, air fresheners or the like.
These objects may cause injury if the
Curtain Air Bag is deployed.
o Where sun blinds are fitted to the rear
doors, these must not obstruct or
impair the air bag in any way.o Do not install any accessories or
children’s toys in the Curtain Air Bag
deployment zones, as this may im-
pair the operation of the system or
throw parts of them into the vehicle
cabin causing injury to occupants if
the system is deployed.
o To maintain the integrity of the Cur-
tain Air Bag system, any work, re-
moval or installation of the air bag and
associated components (such as roof
lining and side trims) should always
be performed by an authorized
Hyundai dealer.
WARNING:
WARNING:
Never tamper with or disconnect the air
bag system sensors & wiring. You could
cause the air bag to inflate or the system
may fail to operate which may result in
fatal personal injury.

1FEATURES OF YOUR HYUNDAI60
o For cleaning the air bag pad covers,
use only a soft, dry cloth or one which
has been moistened with plain water.
Solvents or cleaners could adversely
affect the air bag covers and proper
deployment of the system.
o No objects should be placed over or
near the air bag modules on the steer-
ing wheel, instrument panel, and the
front passenger's panel above the
glove box, because any such object
could cause harm if the vehicle is in a
crash severe enough to cause the air
bags to inflate.
o If the air bags inflate, they must be
replaced by an authorized Hyundai
dealer.
o Do not tamper with or disconnect SRS
wiring, or other components of the
SRS system. Doing so could result in
injury, due to accidental inflation of
the air bags or by rendering the SRS
inoperative.
!
WARNING:
!
WARNING:
o Do not install a child restraint system
in the front passenger seat position.
A child restraint system must never
be placed in the front seat. The infant
or child could be severely injured or
killed by an air bag deployment in
case of an accident.
o Modification to SRS components or
wiring, including the addition of any
kind of badges to the pad covers or
modifications to the body structure,
can adversely affect SRS perfor-
mance and lead to possible injury.
1JBH3051L
!
o If components of the air bag system
must be discarded, or if the vehicle
must be scrapped, certain safety pre-
cautions must be observed. Your
Hyundai dealer knows these precau-
tions and can give you the necessary
information. Failure to follow these
precautions and procedures could
increase the risk of personal injury.
o If your car was flooded and has soaked
carpeting or water on the floor, don't
try to start the engine; have the car
towed to an authorized Hyundai dealer.
o Do not replace bumper or the bumper
guard with the one other than Hyundai
genuine parts. Otherwise, it can ad-
versely affect SRS performance and
lead to an increased risk of injury.
WARNING:
