HEATING AND COOLING CONTROLB710A01JM-GAT1. Side Defroster Nozzle
2. Side Ventilators
3. Windshield Defroster Nozzles
4. Center Ventilators
B710B02O-AATCenter VentilatorThe center ventilators are located in the
middle of the dashboard. To change the
direction of the air flow, move the knob in
the center of the vent up-and-down and
side-to-side. The vents are opened when
the vent knob is moved to "
" position.
The vents are closed when the vent knob
is moved to "
". Keep these vents clear
of any obstructions.
B710C02HP-AATSide VentilatorThe side ventilators are located on each
side of the dash board. To change the
direction of the air flow, move the knob in
the center of the vent up-and-down and
side-to-side. The vents are closed when
the vent knob is moved to "
" position.
The vents are opened when the vent knob
is moved to "
". Keep these vents clear
of any obstructions.
OCM052147L
Cmhma-1b.p653/20/2006, 4:59 PM 125

1FEATURES OF YOUR HYUNDAI
126
B670A01CM-AAT1. Fan speed control
2. Air flow control
3. Temperature control
4. Air conditioning switch
5. OFF switch
6. Air intake control switch
7. MAX A/C switch
OCM051048A
HEATING AND VENTILATION
B670C03E-AATAir Intake ControlThis is used to select fresh outside air or
recirculating inside air.
To change the air intake control mode,
(Fresh mode, Recirculation mode) push
the control button.
FRESH MODE (
) : The indicator light
on the button goes on when the air intake
control is fresh mode.
RECIRCULATION MODE (
): The
indicator light on the button is illuminated
when the air intake control is recirculation
mode.OCM052154
OCM052153A B670B01CM-GAT
Fan Speed Control
(Blower Control)The ignition switch must be in the ON
position for fan operation.
The fan speed control knob allows you to
control the fan speed of the air flowing from
the ventilation system. To change the fan
speed, turn the knob to the right for higher
speed or left for lower speed.
To turn off the fan, turn the knob to the off
(0) position.
Cmhma-1b.p653/20/2006, 4:59 PM 126

1
FEATURES OF YOUR HYUNDAI
127
FEATURES OF YOUR HYUNDAI
127127127127
With the "Fresh" mode selected, air enters
the vehicle from the outside and is heated
or cooled according to the function se-
lected.
With the "Recirculation" mode selected,
air from within the passenger compart-
ment will be drawn through the heating
system and heated or cooled according to
the function selected.NOTE:It should be noted that prolonged opera-
tion of the heating in "Recirculation"
mode (
) may result in fogging of the
windshield and side windows and the air
within the passenger compartment will
become stale. In addition, prolonged use
of the air conditioning with the "Recircu-
lation" mode (
) selected may result
in the air within the passenger compart-
ment becoming excessively dry.
B670D01CM-AATAir Flow Control
OCM052105N
OCM052156A
This is used to turn the blower fan on/off
and to direct the flow of air. Air can be
directed to the floor, dashboard outlets, or
windshield. Five symbols are used to rep-
resent Face, Bi-Level, Floor, Floor-Defrost
and Defrost air position.
Face-Level
Selecting the "Face" mode will cause air to
be discharged through the side and center
ventilators and 2nd row seat ventilator.
2nd row seat ventilator
Cmhma-1b.p653/20/2006, 4:59 PM 127

1FEATURES OF YOUR HYUNDAI
128
OCM052106N
OCM052107

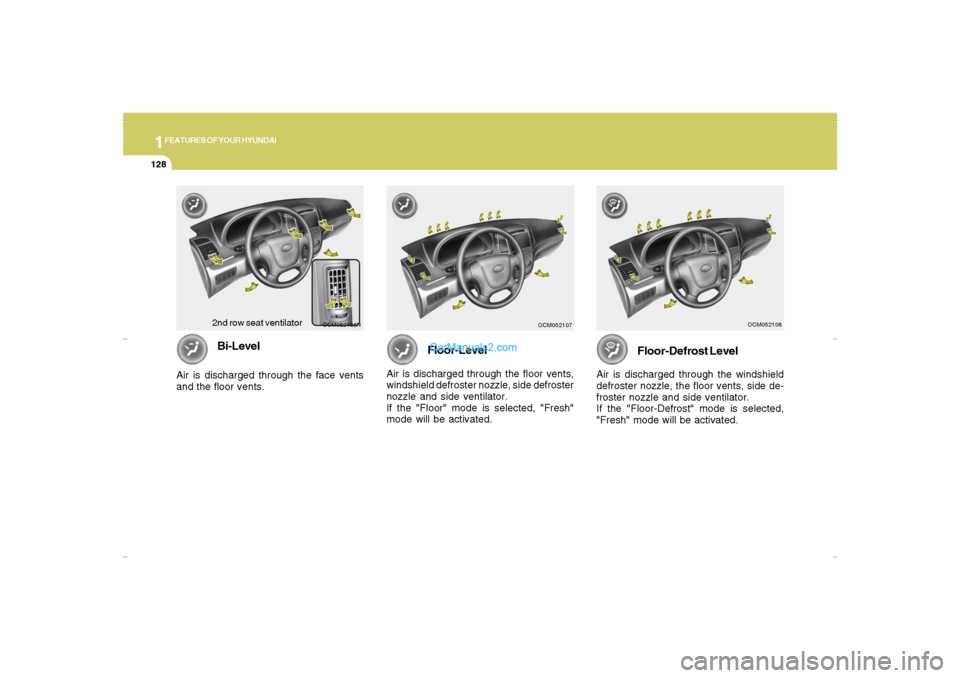

Bi-Level
Air is discharged through the face vents
and the floor vents.
Floor-Level
Air is discharged through the floor vents,
windshield defroster nozzle, side defroster
nozzle and side ventilator.
If the "Floor" mode is selected, "Fresh"
mode will be activated.
OCM052108
Floor-Defrost Level
Air is discharged through the windshield
defroster nozzle, the floor vents, side de-
froster nozzle and side ventilator.
If the "Floor-Defrost" mode is selected,
"Fresh" mode will be activated.
2nd row seat ventilator
Cmhma-1b.p653/20/2006, 4:59 PM 128

1
FEATURES OF YOUR HYUNDAI
129
FEATURES OF YOUR HYUNDAI
129129129129
OCM052111

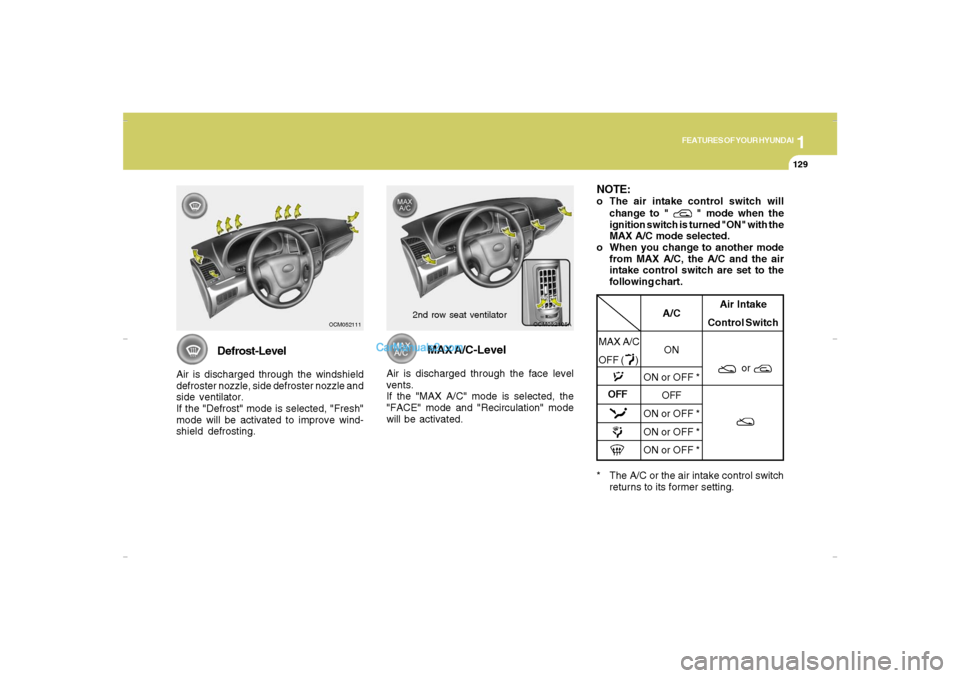

Defrost-Level
Air is discharged through the windshield
defroster nozzle, side defroster nozzle and
side ventilator.
If the "Defrost" mode is selected, "Fresh"
mode will be activated to improve wind-
shield defrosting.
OCM052105A
MAX A/C-Level
Air is discharged through the face level
vents.
If the "MAX A/C" mode is selected, the
"FACE" mode and "Recirculation" mode
will be activated.
* The A/C or the air intake control switch
returns to its former setting.
A/C
ON
ON or OFF *
OFF
ON or OFF *
ON or OFF *
ON or OFF *Air Intake
Control Switch
or
OFFNOTE:o The air intake control switch will
change to "
" mode when the
ignition switch is turned "ON" with the
MAX A/C mode selected.
o When you change to another mode
from MAX A/C, the A/C and the air
intake control switch are set to the
following chart.
MAX A/C
OFF ( )
2nd row seat ventilator
Cmhma-1b.p653/20/2006, 4:59 PM 129

1FEATURES OF YOUR HYUNDAI
130
OCM052155A
CoolWarm

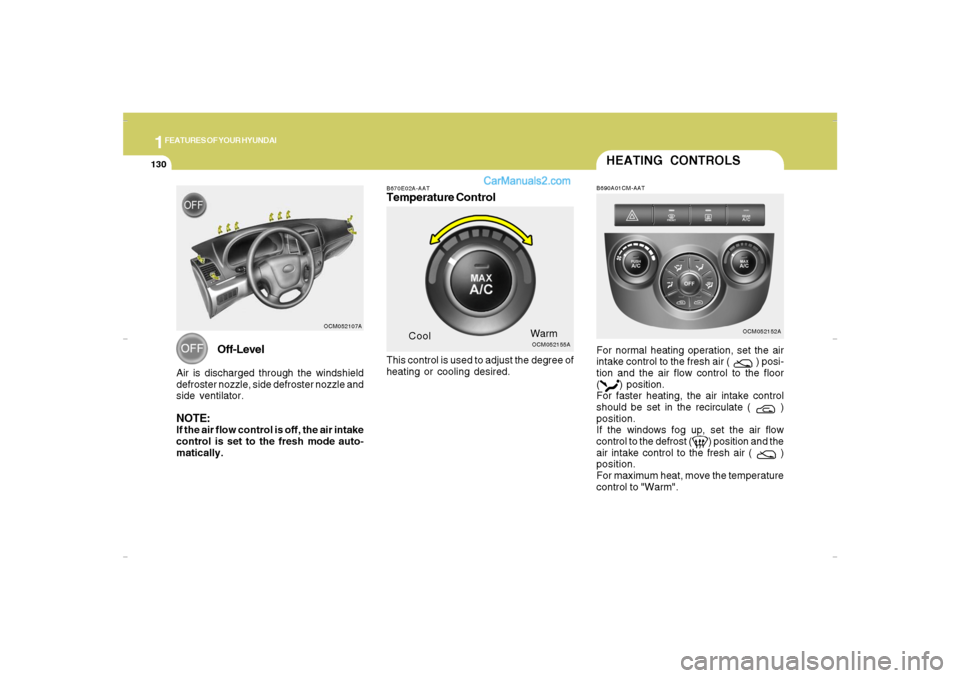

B670E02A-AATTemperature ControlThis control is used to adjust the degree of
heating or cooling desired.
OCM052107A
Off-Level
Air is discharged through the windshield
defroster nozzle, side defroster nozzle and
side ventilator.NOTE:If the air flow control is off, the air intake
control is set to the fresh mode auto-
matically.
HEATING CONTROLSB690A01CM-AATFor normal heating operation, set the air
intake control to the fresh air (
) posi-
tion and the air flow control to the floor
(
) position.
For faster heating, the air intake control
should be set in the recirculate (
)
position.
If the windows fog up, set the air flow
control to the defrost ( ) position and the
air intake control to the fresh air ( )
position.
For maximum heat, move the temperature
control to "Warm".
OCM052152A
Cmhma-1b.p653/20/2006, 4:59 PM 130

1
FEATURES OF YOUR HYUNDAI
131
FEATURES OF YOUR HYUNDAI
131131131131
B730A01CM-AATOperation Tipso To keep dust or unpleasant fumes from
entering the car through the ventilation
system, temporarily set the air intake
control to (
).
Be sure to return the control to (
)
when the irritation has passed to keep
fresh air in the vehicle. This will help
keep the driver alert and comfortable.
o Air for the heating/cooling system is
drawn in through the grilles just ahead
of the windshield. Care should be taken
that these are not blocked by leaves,
snow, ice or other obstructions.
o To prevent interior fog on the wind-
shield, set the air intake control to the
fresh air (
) position, fan speed to the
desired position, turn on the air condi-
tioning system, and adjust temperature
control to desired temperature.
OCM051040A B710A01A-AAT
To operate the ventilation system:
o Set the air intake control switch to the
fresh air (
) position.
o To direct all intake air to the dashboard
vents, set the airflow control to the face
(
) position.
o Adjust the fan speed control to the de-
sired speed.
o Set the temperature control between
"Cool" and "Warm".
VENTILATION
o If the interior of the car is hot when you
first get in, open the windows for a few
minutes to expel the hot air.
o When you are using the air conditioning
system, keep all windows closed to
keep hot air out.
o When moving slowly, as in heavy traffic,
shift to a lower gear. This increases
engine speed, which in turn increases
the speed of the air conditioning com-
pressor.
o On steep grades, turn the air condition-
ing off to avoid the possibility of the
engine over-heating.
o During winter months or in periods when
the air conditioning is not used regu-
larly, run the air conditioning once ev-
ery month for a few minutes. This will
help circulate the lubricants and keep
your system in peak operating condi-
tion.
Cmhma-1b.p653/20/2006, 4:59 PM 131

1FEATURES OF YOUR HYUNDAI
132
B740C01S-AATDehumidified HeatingFor dehumidified heating:
o Turn on the fan control switch.
o Turn on the air conditioning switch. The
air conditioning indicator light should
come on at the same time.
o Set the air intake control to the "Fresh"
mode (
).
o Set the air flow control to the "Face" (
).
o Adjust the fan control to the desired
speed.
o For more rapid action, set the fan at one
of the higher speeds.
o Adjust the temperature control to pro-
vide the desired amount of warmth.
AIR CONDITIONING SYSTEMB740A01A-AATAir Conditioning Switch
(If installed)The air conditioning is turned on by push-
ing the A/C button on the heating/air con-
ditioning control panel.
OCM052157A
OCM051039A B740B02A-AAT
Air Conditioning Operation
CoolingTo use the air conditioning to cool the
interior:
o Turn on the fan control switch.
o Turn on the air conditioning switch by
pushing in on the switch. The air condi-
tioning indicator light should come on at
the same time.
o Set the air intake control to "Fresh" mode
(
).
o Set the temperature control to "Cool".
("Cool" provides maximum cooling. The
temperature may be moderated by
moving the control toward "Warm".)o Adjust the fan control to the desired
speed. For greater cooling, turn the fan
control to one of the higher speeds or
temporarily select the "Recirculation
(
)" position on the air intake control
switch.
