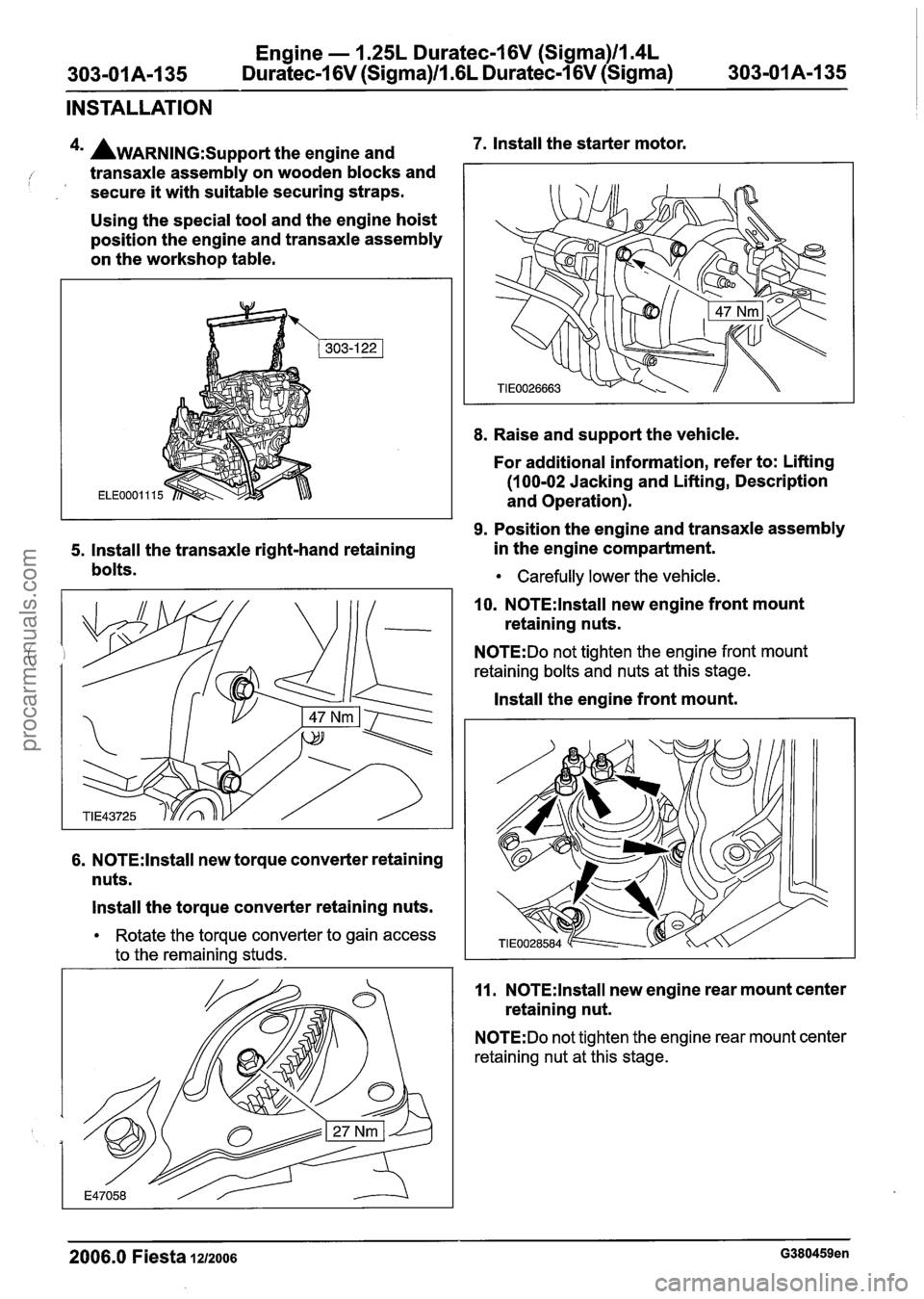

INSTALLATION
4m AWARNING:S~~~~~~ the engine and 7. Install the starter motor.
transaxle assembly on wooden blocks and
secure
it with suitable securing straps.
Using the special tool and the engine hoist
position the engine and transaxle assembly
on the workshop table.
8. Raise and support the vehicle.
For additional information, refer to: Lifting
(100-02 Jacking and Lifting, Description
and Operation).
9. Position the engine and transaxle assembly
5. Install the transaxle right-hand retaining in
the engine compartment.
bolts.
Carefully lower the vehicle.
6. N0TE:lnstall new torque converter retaining
nuts.
Install the torque converter retaining nuts.
Rotate the torque converter to gain access
to the remaining studs. 10.
N0TE:lnstall new engine
front mount
retaining nuts.
N0TE:Do not tighten the engine front mount
retaining bolts and nuts at this stage.
Install the engine front mount.
11. N0TE:lnstall new engine rear mount center
retaining nut.
N0TE:Do not tighten the engine rear mount center
retaining nut at this stage.
