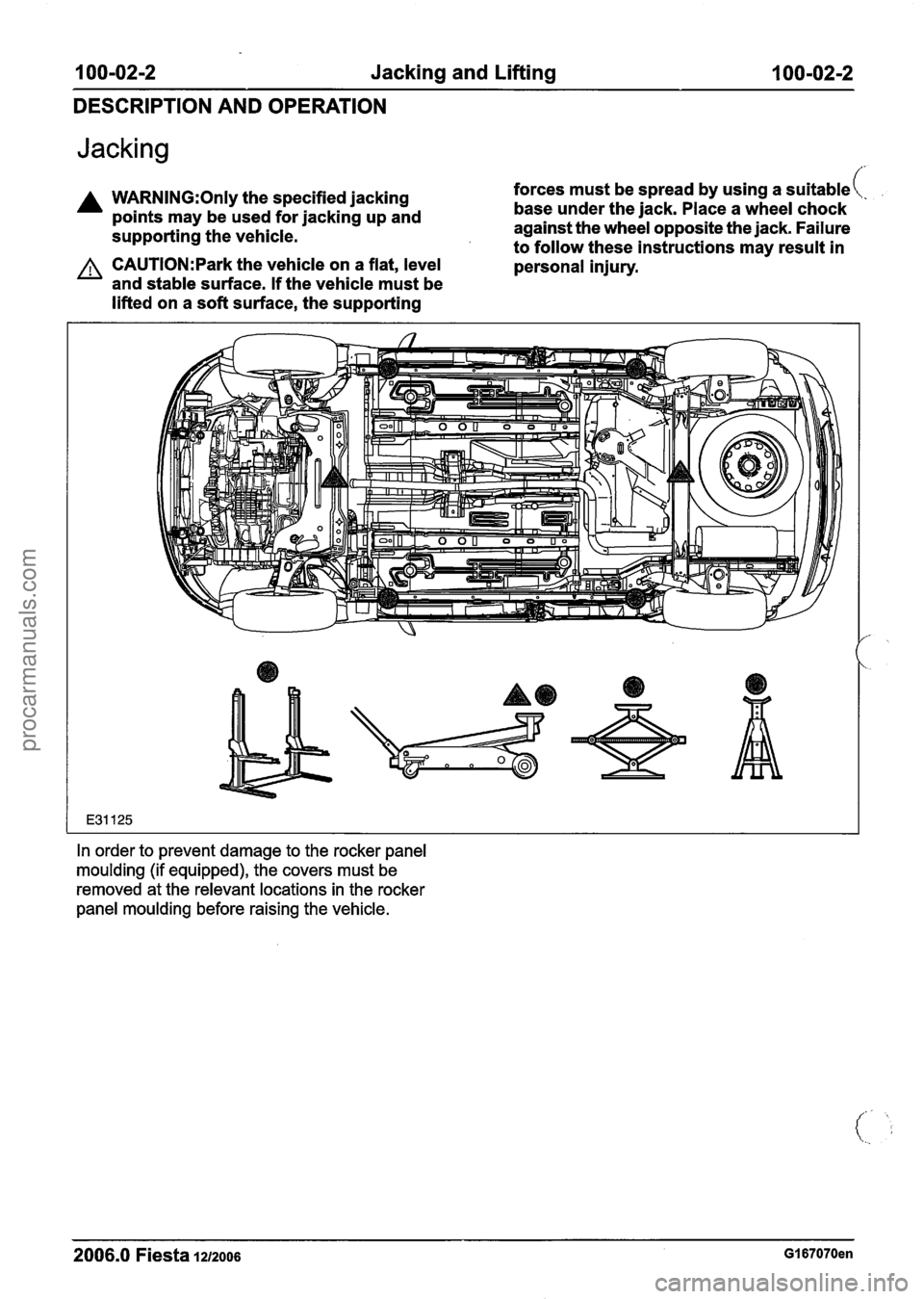

100-02-2 Jacking and Lifting 100-02-2
DESCRIPTION AND OPERATION
Jacking
A WARN1NG:Only the specified jacking
points may be used for jacking up and
supporting the vehicle.
A CAUTI0N:Park the vehicle on a flat, level
and stable surface. If the vehicle must be
lifted on a soft surface, the supporting forces
must be spread by using a suitable(:
base under the jack. Place a wheel chock
against the wheel opposite the jack. Failure
to follow these instructions may result in
personal injury.
In order to prevent damage to the rocker panel
moulding (if equipped), the covers must be
removed at the relevant locations in the rocker
panel moulding before raising the vehicle.
2006.0 Fiesta 1212006 GI 67070en
procarmanuals.com

100-024 Jacking and Lifting 100-02-4
DESCRIPTION AND OPERATION
Adapters for jacking points
2006.0 Fiesta 1212006 GI 67070en
Item
I
2
3
Description
Adapter with locating plate and rear jacking point (viewing angle from below the vehicle)
Adapter with locating plate and rear jacking point
Adapter with locating plate in conjunction with the trolley jack
procarmanuals.com

100-02-5 Jacking and Lifting 100-02-5
DESCRIPTION AND OPERATION
Lifting
/' A WARNING:Only raise the vehicle at the A CAUTI0N:Place blocks underneath the
specified lifting points. hoist points
if a two-column hoist is used.
- -- --
2006.0 Fiesta 1212006 GI 67072en
