Page 671 of 1226

303-01 B-49 Engine - 2.OL Duratec-HE (M14) 303-01 B-49
IN-VEHICLE REPAIR
Oil Pan(21 154 0)
Materials
Name Specification
. Special Tool(s) 4. Loosen the transaxle upper retaining bolts
1 Cleaner I WSK-M2G342-A I
I Silicone Sealant I WSE-M4G323-A4 I
approximately 10 mm.
/ 21 179
Removal
1. Disconnect the battery.
Separator, Oil Pan
303-428 (21 -1
79)
5. Raise and support the vehicle. For additional
information, refer to: (100-02 Jacking and
Lifting)
-
For additional information, refer to: Battery Jacking
(Description and Operation),
Disconnect
(414-01 Battery, Mounting and Lifting
(Description and Operation).
Cables, General Procedures).
2. Remove the air cleaner.
' For additional information, refer to: Air
Cleaner
- 2.OL Duratec-HE (M14) (303-12
Intake Air Distribution and Filtering,
Removal and Installation).
3. Remove the oil level indicator and oil level
indicator tube upper retaining bolt.
6. Remove the oil level indicator tube lower
retaining bolt.
7. Remove the engine support insulator.
2006.0 Fiesta 1212006 G451306en
procarmanuals.com

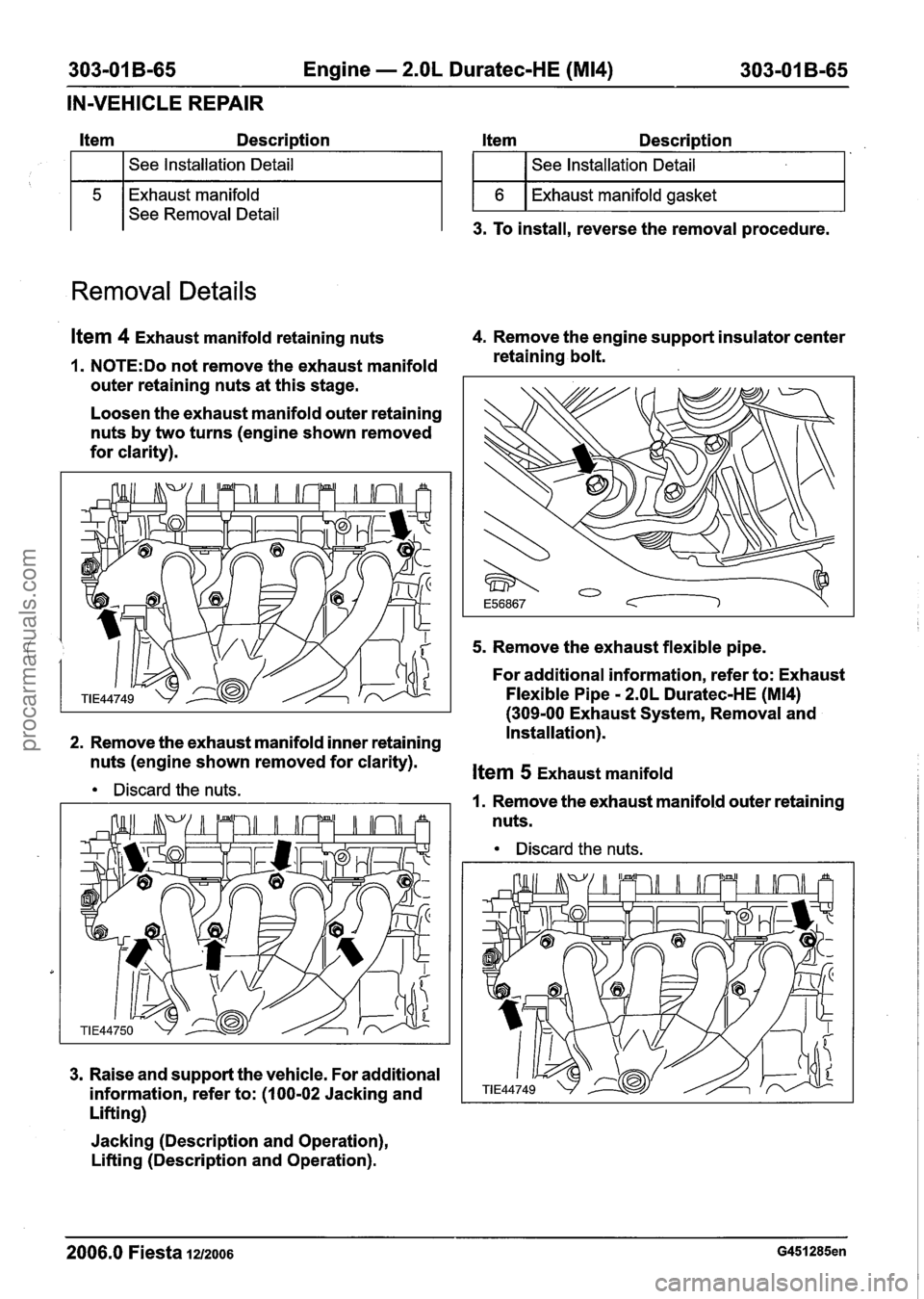

Page 687 of 1226

303-01 B-65 Engine - 2.OL Duratec-HE (M14) 303-01 B-65
IN-VEHICLE REPAIR
151
Exhaust manifold
See Removal Detail
Item Description Item Description
Removal Details
See Installation Detail
1 6 ~xhaust manifold gasket
I See Installation Detail
1 3. To install, reverse the removal procedure.
Item 4 Exhaust manifold retaining nuts 4.
Remove the engine support insulator center
1. N0TE:Do not remove the exhaust manifold retaining
bolt.
outer retaining nuts at this stage.
Loosen the exhaust manifold outer retaining
nuts by two turns (engine shown removed
for clarity).
i 5. Remove the exhaust flexible pipe.
For additional information, refer to: Exhaust
Flexible Pipe
- 2.OL Duratec-HE (M14)
(309-00 Exhaust System, Removal and
2. Remove the exhaust manifold inner retaining Installation).
nuts (engine shown removed for clarity).
kern 5 Exhaust manifold
Discard the nuts. I. Remove the exhaust manifold outer retaining
nuts.
Discard the nuts.
3. Raise and support the vehicle. For additional
information, refer to: (1 00-02 Jacking and
Lifting)
Jacking (Description and Operation),
Lifting (Description and Operation).
2006.0 Fiesta 1212006 G451285en
procarmanuals.com
Page 695 of 1226

303-01 B-73 Engine - 2.OL Duratec-HE (M14) 303-01 B-73
IN-VEHICLE REPAIR
12. Install the exhaust manifold upper heat 16.
Install the intake manifold.
shield (engine shown removed for clarity).
For additional information, refer to: Intake
Manifold (303-01 Engine
- 2.OL Duratec-HE
(M14), ln-vehicle Repair).
17. Raise and support the vehicle. For
additional information, refer to: (1 00-02
Jacking and Lifting)
Jacking (Description and Operation),
Lifting (Description and Operation).
13. lnstall the generator upper retaining bolt.
18, lnstall the exhaust manifold support bracket
retaining bolts.
19. Fill and bleed the cooling system.
For additional information, refer to: Cooling
System Draining, Filling and Bleeding
(303-03 Engine Cooling
- 2.OL Duratec-HE
14. Install the power steering pump return line
(M14), General Procedures).
support bracket.
15. lnstall the timing chain.
For additional information, refer to: Timing
Chain (303-01 Engine
- 2.OL Duratec-HE
(M14), ln-vehicle Repair).
2006.0 Fiesta 12/2006 G451308en
procarmanuals.com
Page 700 of 1226
303-01 B-78 Engine - 2.OL Duratec-HE (M14) 303-01 B-78
REMOVAL
Remove and discard the power steering fluid
30. Detach the power steering pump to steering
reservoir O-rings.
gear pressure line from the intake manifold.
28. Using the special tool, remove the power
31. Disconnect the fuel supply line.
steering pump pulley.
For additional information, refer to: Quick
Discard the power steering pump pulley. Release Coupling (310-00 Fuel System - - - - -
General information, General procedures).
,'-
', .
29. Detach the power steering pump to steering
gearpressurelinefromthepowersteering 32. Raiseands~pportthevehicle~For
Pumpm additional information, refer to: (I 00-02
Jacking and Lifting)
Jacking (Description and Operation),
Lifting (Description and Operation).
33. Remove the air cleaner resonator support
bracket.
2006.0 Fiesta 1212006 G451290en
procarmanuals.com
Page 703 of 1226
303-01 B-81 Engine - 2.OL Duratec-HE (M14) 303-01 B-81
REMOVAL
Discard the nuts. 49. Remove the wiring harness retaining
bracket.
46. Remove the engine rear mount retaining
nuts.
50. Remove the starter motor.
Discard the nuts. Detach the wiring harness from the retaining
bracket.
47. Raise and support the vehicle and remove
the engine and transaxle assembly. For
51. Remove the transaxle lower retaining bolts.
additional information, refer to: (1 00-02
Jacking and Lifting)
Jacking (Description and Operation),
Lifting (Description and Operation).
48. Using a suitable engine hoist support the
engine and transaxle assembly and remove
the retaining straps.
2006.0 Fiesta 1212006 G451290en
procarmanuals.com
Page 735 of 1226

303-01 B-I 13 Engine - 2.OL Duratec-HE (M14) 303-01 B-113
INSTALLATION
12. Remove the securing straps. 17.
Attach the gearshift cables to the bracket
13. Raise and support the vehicle. For and
turn the abutment sleeves
( additional information, refer to: (I 00-02 counterclockwise.
Jacking and Lifting)
Jacking (Description and Operation),
Lifting (Description and Operation).
14. Install the engine support insulator.
15. Attach the air conditioning (NC)
compressor to the cylinder block. 18.
Attach the gearshift cables to the selector
levers.
19. CAUTIONS:
A~he inner CV joint must not be bent
more than 23 degrees. The outer CV joint
must not be bent more than 45 degrees.
16. Connect the
NC high pressure switch n~ake sure that the halfshaft seal is not
electrical connector. damaged.
n~ake sure the snap ring is correctly
seated.
N0TE:lnstall a new snap ring.
Using the special tool, attach the left-hand
halfshaft to the transaxle.
2006.0 Fiesta 1212006 ~451291 en
procarmanuals.com
Page 761 of 1226

Engine Cooling - 1.3L Duratec-8V
(Rocam)ll.25L Duratec-1 6V (Sigma)llI4L
303-03A-19 Duratec-1 6V (Sigma)lll6L Duratec-I 6V (Sigma) 303-03A-19
GENERAL PROCEDURES
Cooling System Draining, Filling and Bleeding - 1.3L Duratec-8V
I (Rocam)/l.25L Duratec-1 6V (Sigma)/l.4L Duratec-1 6V
(Sigma)/l.6L Duratec-1 6V (Sigma)(24 122 0)
Draining 5. Install the radiator drain plug.
la AWARNING:~~~~ releasing the cooling 6. Lower the vehicle.
system pressure, cover the coolant
expansion tank cap with a thick cloth to
Filling and Bleeding
prevent the possibility of scalding. Failure 1. Remove the radiator bleed plug (if equipped). to follow this instruction may result in
personal injury.
Release the cooling system pressure by
slowly turning the coolant expansion tank
cap a quarter of a turn.
2. Fill the coolant expansion tank until coolant
is expelled from the radiator bleed point or
stabilizes at the MAX mark (whichever occurs
first).
3. Install the radiator bleed plug (if equipped). 2. Remove the coolant expansion tank cap. 4. Fill the coolant expansion tank to the MAX 3. Raise and support the vehicle.
mark (if necessary).
For additional information, refer to: Lifting
(1 00-02 Jacking and Lifting, Description
and Operation).
4. Drain the cooling system.
Allow the coolant to drain into a suitable
container.
5.
Start and run the engine at 3000 revolutions
per minute (RPM) for two minutes.
6. Fill the coolant expansion tank completely.
7. Install the coolant expansion tank cap.
8. Start and run the engine at 3000 RPM for
another two minutes.
2006.0 Fiesta 1212006 G146259en
procarmanuals.com
Page 787 of 1226

303-03B-17 Engine Cooling - 2.OL Duratec-HE (M14) 303=03B-17 --
GENERAL PROCEDURES
Cooling System Draining, Filling and Bleeding(24 122 0)
Draining
, Special Tool(s) Allow the coolant to drain into a suitable
Im AWARNING:~~~~ releasing the cooling
system pressure, cover the coolant
expansion tank cap with a thick cloth to
prevent the possibility of scalding. Failure
5. Install the radiator lower hose.
to follow this instruction may result in
personal injury.
6. Lower the vehicle.
Release the cooling system pressure by
slowly turning the coolant expansion tank
Filling and Bleeding
cap a quarter of a turn. 1. Fill the coolant expansion tank to the MAX
mark.
container.
24003
2. Remove the coolant expansion tank cap.
3. Raise and support the vehicle.
For additional information, refer to: Lifting
(1 00-02 Jacking and Lifting, Description
and Operation).
4. Using the special tool, disconnect the
radiator lower hose to drain the cooling
system.
Removerllnstaller, Cooling
Hose Clamp
303-397 (24-003)
2. N0TE:Do not allow the engine to reach
normal operating temperature.
Start the engine, run the engine briefly at
2500 revolutions per minute (RPM) for 10
seconds to prime the heater circuit.
3. Switch the engine off.
4. Fill the coolant expansion tank 15 mm over
the MAX mark.
5. Install the coolant expansion tank cap.
6. Start the engine, maintain the engine speed
at
2500 RPM for eight minutes or until the
engine reaches normal operating
temperature.
2006.0 Fiesta 1212006
