Manual Transmission/Transaxle and Clutch -
308-00-1 1 General Information 308-00-1 I
GENERAL PROCEDURES

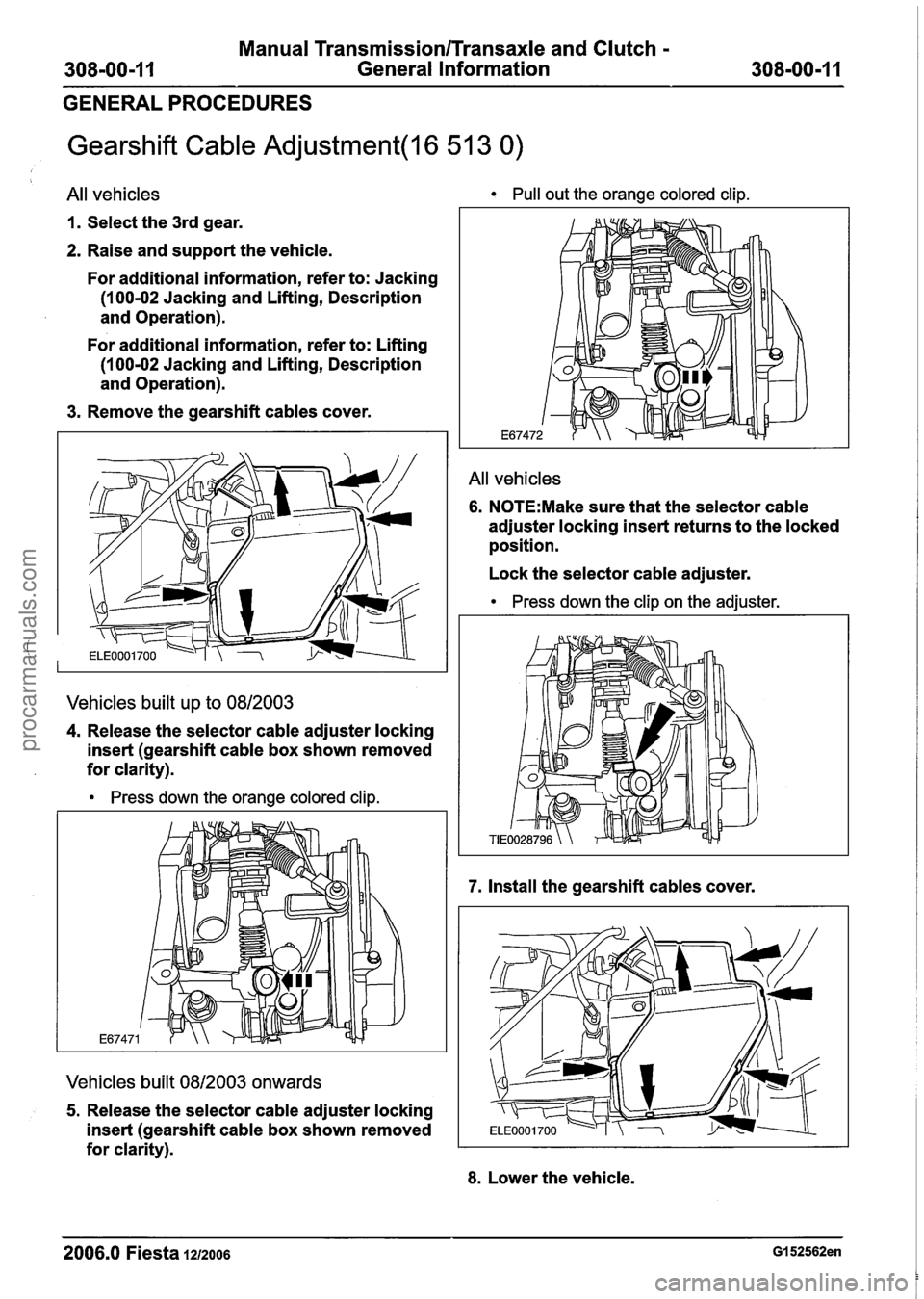

Gearshift Cable Adjustment(l6 51 3 0)

All vehicles
1. Select the 3rd gear.
2. Raise and support the vehicle.
For additional information, refer to: Jacking
(1
00-02 Jacking and Lifting, Description
and Operation).
For additional information, refer to: Lifting
(1
00-02 Jacking and Lifting, Description
and Operation).
3. Remove the gearshift cables cover.
Vehicles built up to 0812003
4. Release the selector cable adjuster locking
insert (gearshift cable box shown removed
for clarity).
Press down the orange colored clip.
Vehicles built 0812003 onwards
5. Release the selector cable adjuster locking
insert (gearshift cable box shown removed
for clarity).
Pull out the orange colored clip.
All vehicles
6. N0TE:Make sure that the selector cable
adjuster locking insert returns to the locked
position.
Lock the selector cable adjuster.
Press down the clip on the adjuster.
7. Install the gearshift cables cover.
8. Lower the vehicle.
2006.0 Fiesta 1212006 GI 52562en
procarmanuals.com

Manual Transmission/Transaxle and Clutch -
308-00-1 2 General Information 308-00-1 2
GENERAL PROCEDURES

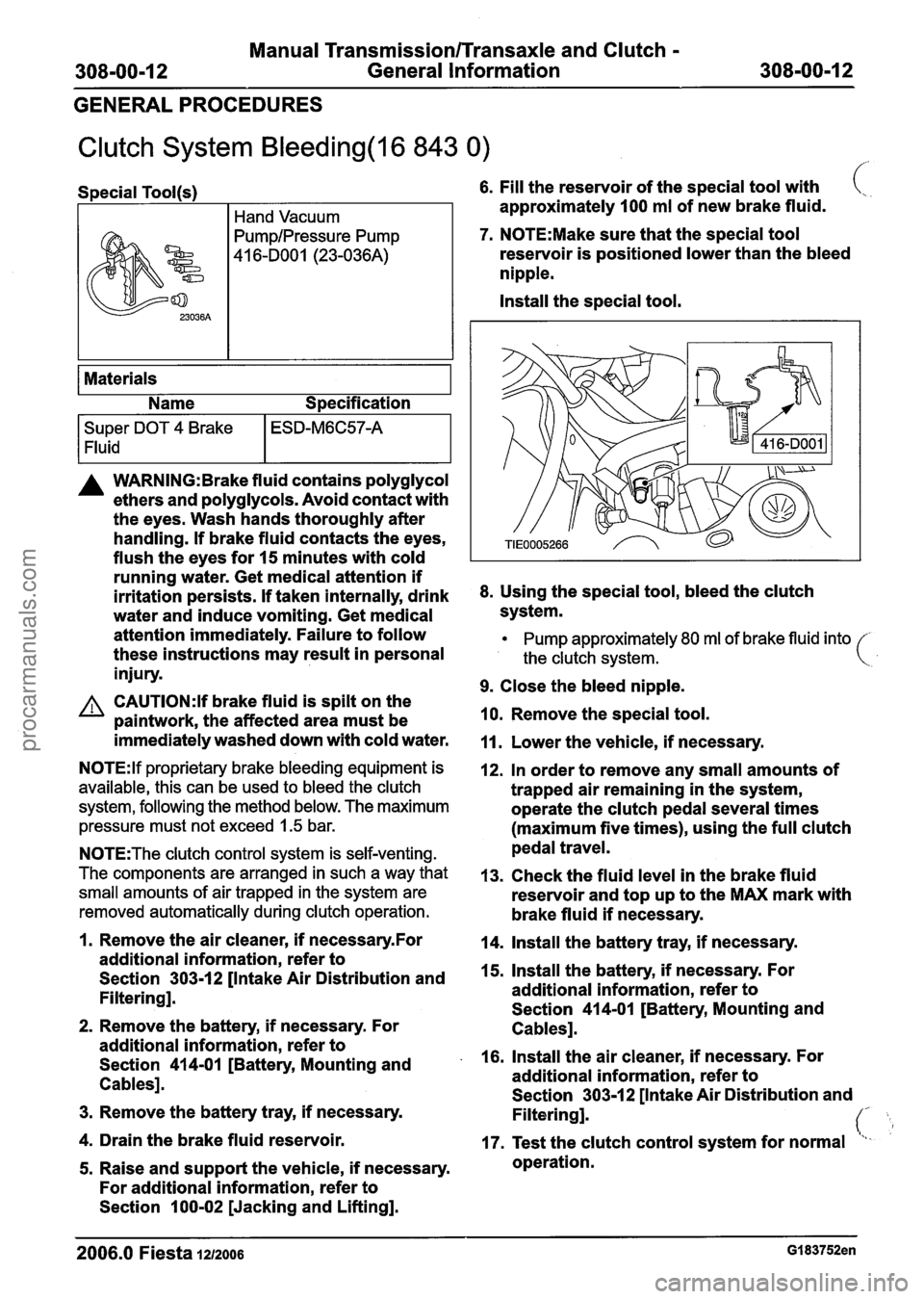

Clutch System Bleeding(l6 843 0)
Special Tool(s) 6. Fill the reservoir of the special tool with (,, .
I Hand Vacuum approximately 100 ml of new brake fluid.
7. N0TE:Make sure that the special tool
reservoir is positioned lower than the bleed
nipple.
Install the special tool.
Super DOT 4 Brake
1 Fluid
I
Materials
Name Specification
ESD-M6C57-A
A WARNING: Brake fluid contains polyglycol
ethers and polyglycols. Avoid contact with
the eyes. Wash hands thoroughly after
handling. If brake fluid contacts the eyes,
flush the eyes for 15 minutes with cold
running water. Get medical attention if
irritation persists. If taken internally, drink
8. Using the special tool, bleed the clutch
water and induce vomiting. Get medical system.
attention immediately. Failure to follow
Pump approximately 80 ml of brake fluid into
these instructions may result in personal the clutch svstem. (
injury. w
9. Close the bleed nipple. A CAUTI0N:Y brake fluid is spilt on the
paintwork, the affected area must be 10.
Remove the special tool.
immediately washed down with cold water.
11. Lower the vehicle, if necessary.
N0TE:lf proprietary brake bleeding equipment is
available, this can be used to bleed the clutch
system, following the method below. The maximum
pressure must not exceed
1.5 bar.
N0TE:The clutch control system is self-venting.
The components are arranged in such a way that
small amounts of air trapped in the system are
removed automatically during clutch operation.
12. In order to remove any small amounts of
trapped air remaining in the system,
operate the clutch pedal several times
(maximum five times), using the full clutch
pedal travel.
13. Check the fluid level in the brake fluid
reservoir and top up to the MAX mark with
brake fluid if necessary.
1. Remove the air cleaner, if necessaryfor 14. Install the battery tray, if necessary.
additional information, refer to
Section
303-12 [Intake Air Distribution and 15.
Install the battery, if necessary. For
Filtering]. additional
information, refer to
Section 414-01 [Battery, Mounting and
2. Remove the battery, if necessary. For
Cablesl.
additional information, refer to
Section
414-01 [Battery, Mounting and . 16. Install the air cleaner, if necessary. For
Cables]. additional
information, refer to
Section 303-1
2 [Intake Air Distribution and - 3. Remove the battery tray, if necessary.
Filtering]. (' L 4. Drain the brake fluid reservoir.
17. Test the clutch control system for normal "I-
5. Raise and support the vehicle, if necessary. operation.
For additional information, refer to
Section 100-02 [Jacking and Lifting].
2006.0 Fiesta 1212006 GI 83752en
procarmanuals.com

308-03-22 Manual Transmission/Transaxle 308-03-22
IN-VEHICLE REPAIR
Vehicle Speed Sensor (VSS)(33 654 0)
Removal 2. Insert the retaining pin.
I. Raise and support the vehicle. For additional
information, refer to:
(1 00-02 )
Jacking (Description and Operation),
Lifting (Description and Operation).
2. Disconnect the vehicle speed sensor (VSS)
electrical connector.
3. Remove the VSS.
I. Remove the retaining pin.
2. Remove the VSS.
2. Install VSS connector.
3. Lower the vehicle.
Installation
1. Install VSS.
1. Insert the VSS.
2006.0 Fiesta iuzoos GI 81 04en
procarmanuals.com

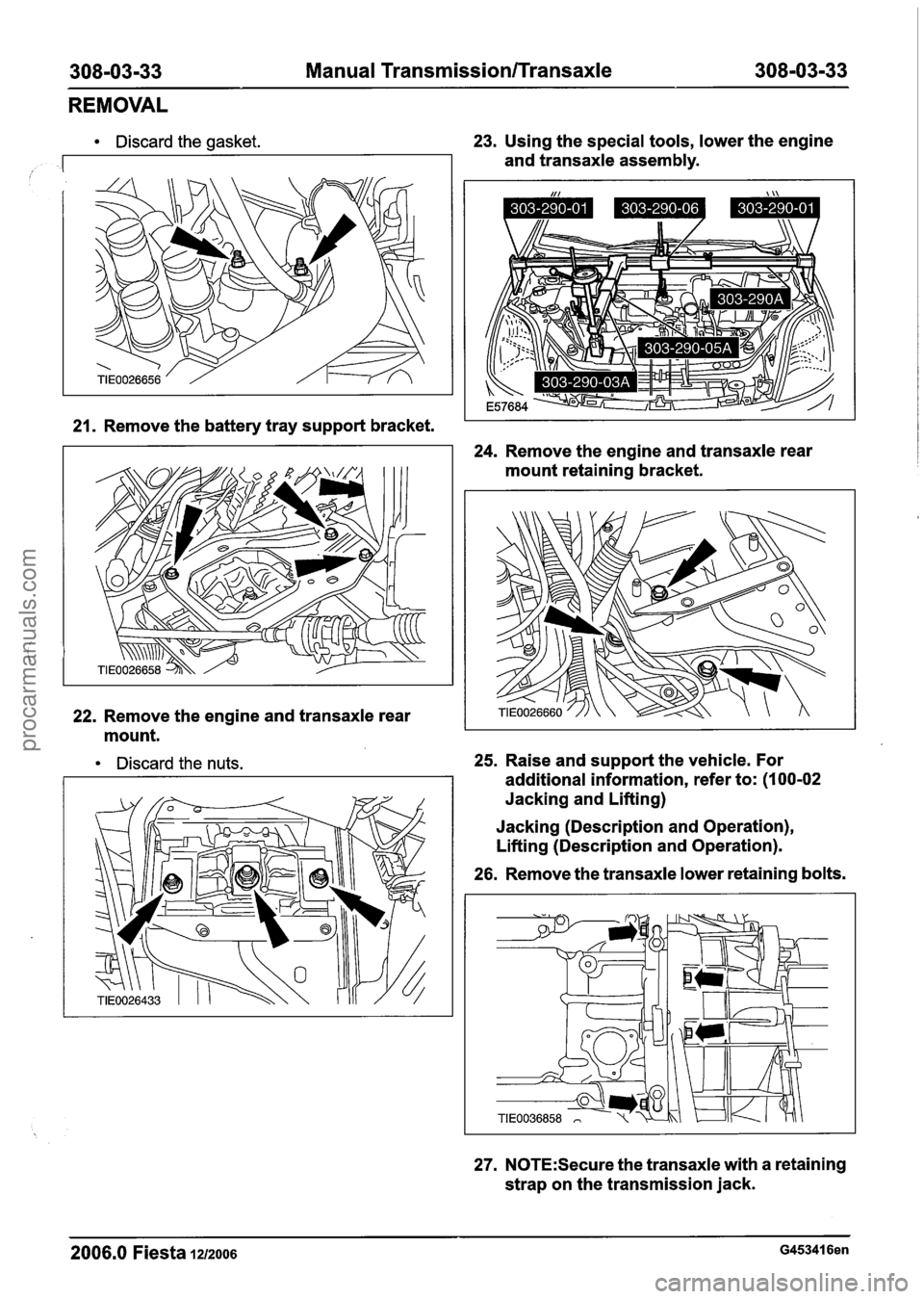

308-03-33 Manual Transmission/Transaxle 308-03-33
REMOVAL
Discard the gasket.
,
23. Using the special tools, lower the engine
and transaxle assembly.
21. Remove the battery tray support bracket.
24. Remove the engine and transaxle rear
mount retaining bracket.
22. Remove the engine and transaxle rear
mount.
Discard the nuts. 25. Raise and support the vehicle. For
additional information, refer to:
(1 00-02
Jacking and Lifting)
Jacking (Description and Operation),
Lifting (Description and Operation).
26. Remove the transaxle lower retaining bolts.
27. N0TE:Secure the transaxle with a retaining
strap on the transmission jack.
2006.0 Fiesta 1212006 G453416en
procarmanuals.com

308-03-64 Manual Transmission/Transaxle 308-03-64
INSTALLATION
13. Connect the vehicle speed sensor (VSS) 16. Raise and support the vehicle. For
electrical connector (if equipped). additional information, refer to
Section 100-02 [Jacking and Lifting].
17. CAUTIONS:
Asupport the halfshaft. The inner joint
must not be bent more than 18 degrees.
The outer joint must not be bent more than
45 degrees.
ADO not damage the halfshaft oil seal.
Attach the right-hand halfshaft and the
intermediate shaft to the transaxle.
14' ACAUTION:~~ brake fluid is spilt on the
paintwork, the affected area must be
immediately washed down with cold water.
N0TE:Make sure the spring clip is correctly seated.
Connect the clutch slave cylinder supply
line.
Install the spring clip.
15. Attach the coolant expansion tank to the
bracket. 18.
N0TE:lnstall a
new center bearing cap and
locknuts.
Install the intermediate shaft center bearing
cap.
I. Install the center bearing cap.
2. Attach the heat shield.
3. Install the locknuts.
19. CAUTIONS:
Asupport the halfshaft. The inner joint
must not be bent more than 18 degrees.
The outer joint must not be bent more than
45 degrees.
2006.0 Fiesta 1212006 GI I 3293en
procarmanuals.com

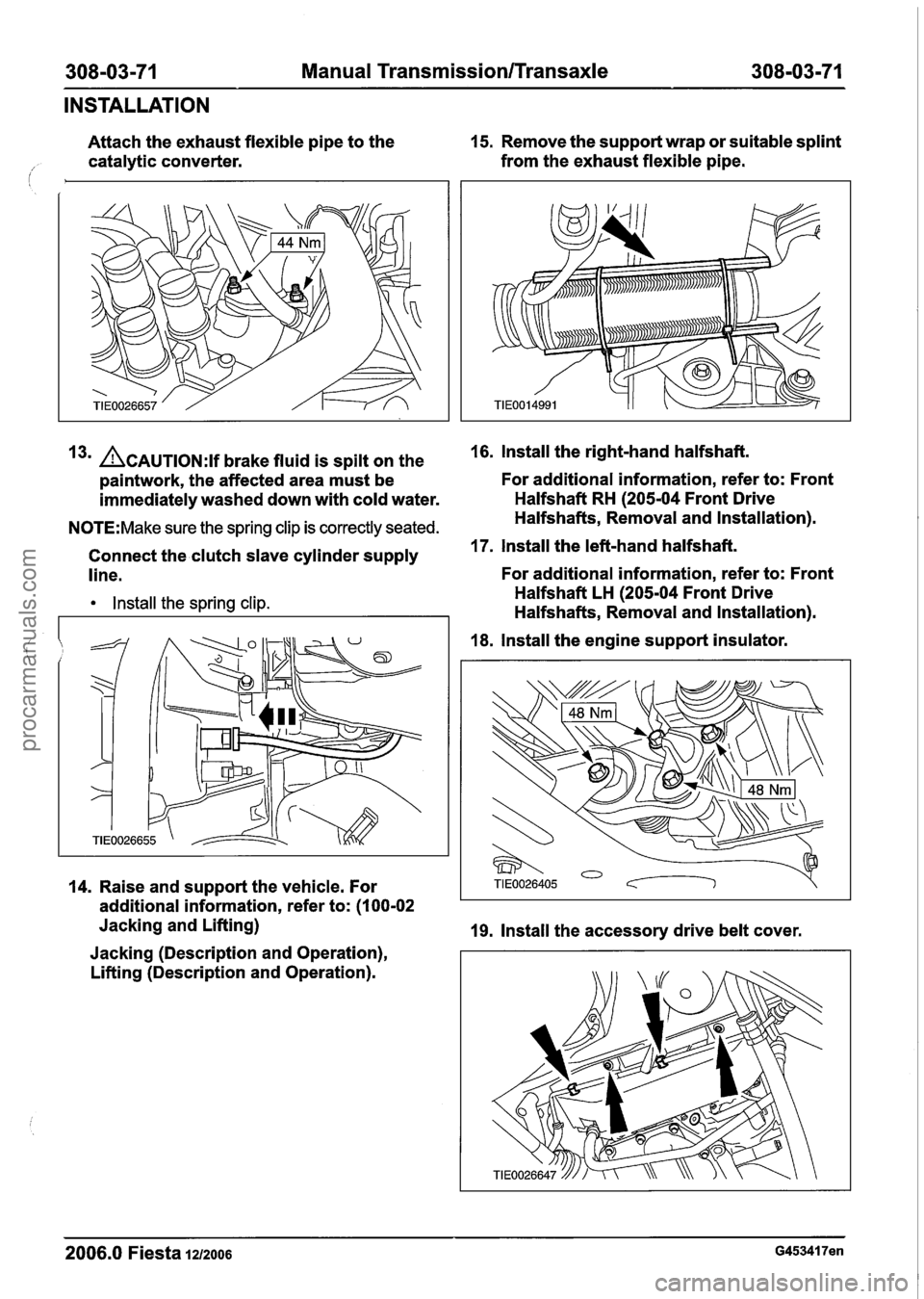

308-03-71 Manual Transmission/Transaxle 308-03-71
INSTALLATION
Attach the exhaust flexible pipe to the 15.
Remove the support wrap or suitable splint
catalytic converter. from
the exhaust flexible pipe.
i
3m ACAUTION:~~ brake fluid is spilt on the 16. lnstall the right-hand halfshaft.
paintwork, the affected area must be For additional information,
refer to: Front
immediately washed down with cold water. Halfshaft
RH (205-04 Front Drive
N0TE:Make sure the spring clip is correctly seated. Halfshafts, Removal and Installation).
Connect the clutch slave cylinder supply
17. lnstall the left-hand halfshaft.
line. For additional information,
refer to: Front
lnstall the spring clip. Halfshaft LH (205-04 Front Drive
Halfshafts, Removal and Installation).
18. lnstall the engine support insulator.
14. Raise and support the vehicle. For
additional information, refer to: (I
00-02
Jacking and Lifting)
19. Install the accessory drive belt cover.
Jacking (Description and Operation),
Lifting (Description and Operation).
2006.0 Fiesta 1212006 G453417en
procarmanuals.com

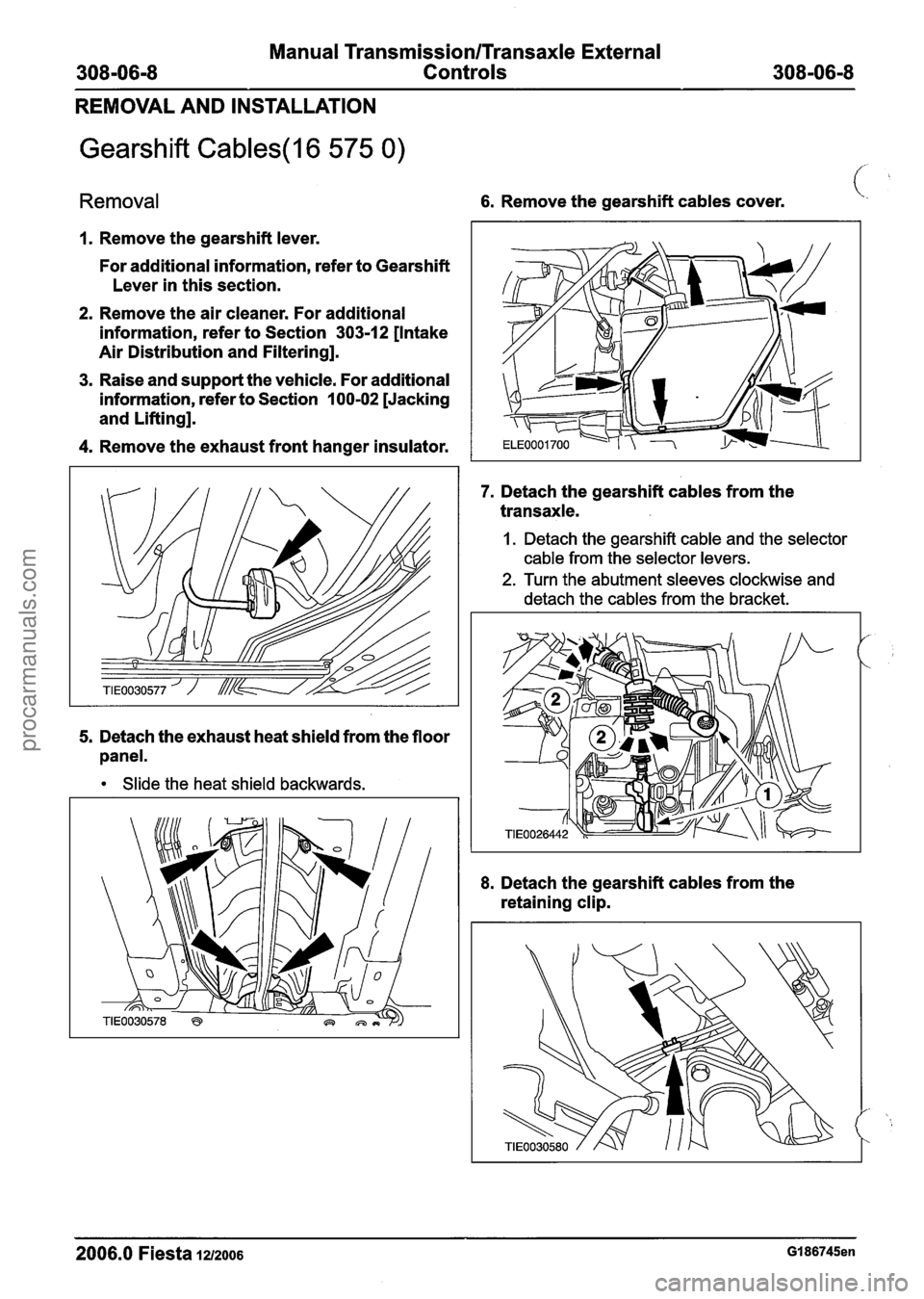

Manual Transmission/Transaxle External
308-06-8 Controls 308-06-8
REMOVAL AND INSTALLATION
Gearshift Cables(l6 575 0)
Removal 6. Remove the gearshift cables cover.
I. Remove the gearshift lever.
For additional information, refer to Gearshift
Lever in this section.
2. Remove the air cleaner. For additional
information, refer to Section
303-12 [Intake
Air Distribution and Filtering].
3. Raise and support the vehicle. For additional
information, refer to Section
100-02 [Jacking
and Lifting].
4. Remove the exhaust front hanger insulator.
5. Detach the exhaust heat shield from the floor
panel.
Slide the heat shield backwards.
7. Detach the gearshift cables from the
transaxle.
I. Detach the gearshift cable and the selector
cable from the selector levers.
2. Turn the abutment sleeves clockwise and
detach the cables from the bracket.
8. Detach the gearshift cables from the
retaining clip.
2006.0 Fiesta 1212006 GI 86745en
procarmanuals.com

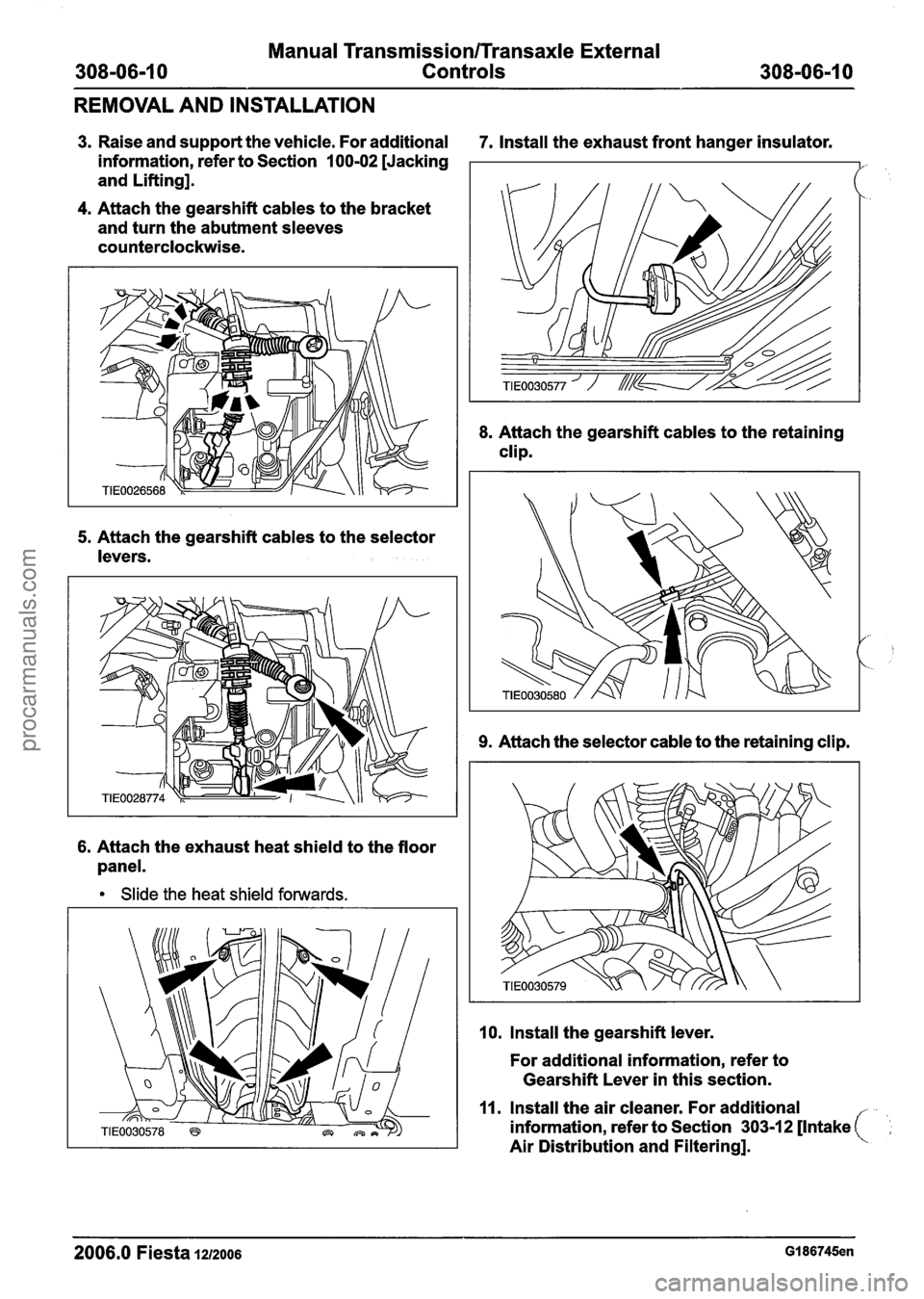

Manual Transmission/Transaxle External
308-06-1 0 Controls 308-06-1 0
REMOVAL AND INSTALLATION
3. Raise and support the vehicle. For additional 7. Install the exhaust front hanger insulator.
information, refer to Section
100-02 [Jacking
and Lifting].
4. Attach the gearshift cables to the bracket
and turn the abutment sleeves
counterclockwise.
6. Attach the exhaust heat shield to the floor
panel.
Slide the heat shield forwards. 8.
Attach
the gearshift cables to the retaining
clip.
9. Attach the selector cable to the retaining clip.
10. Install the gearshift lever.
For additional information, refer to
Gearshift Lever in this section.
11. Install the air cleaner. For additional
information, refer to Section
303-12 [Intake (
Air Distribution and Filtering].
2006.0 Fiesta 1212006 GI 86745en
