2007 CHRYSLER PACIFICA Owners Manual

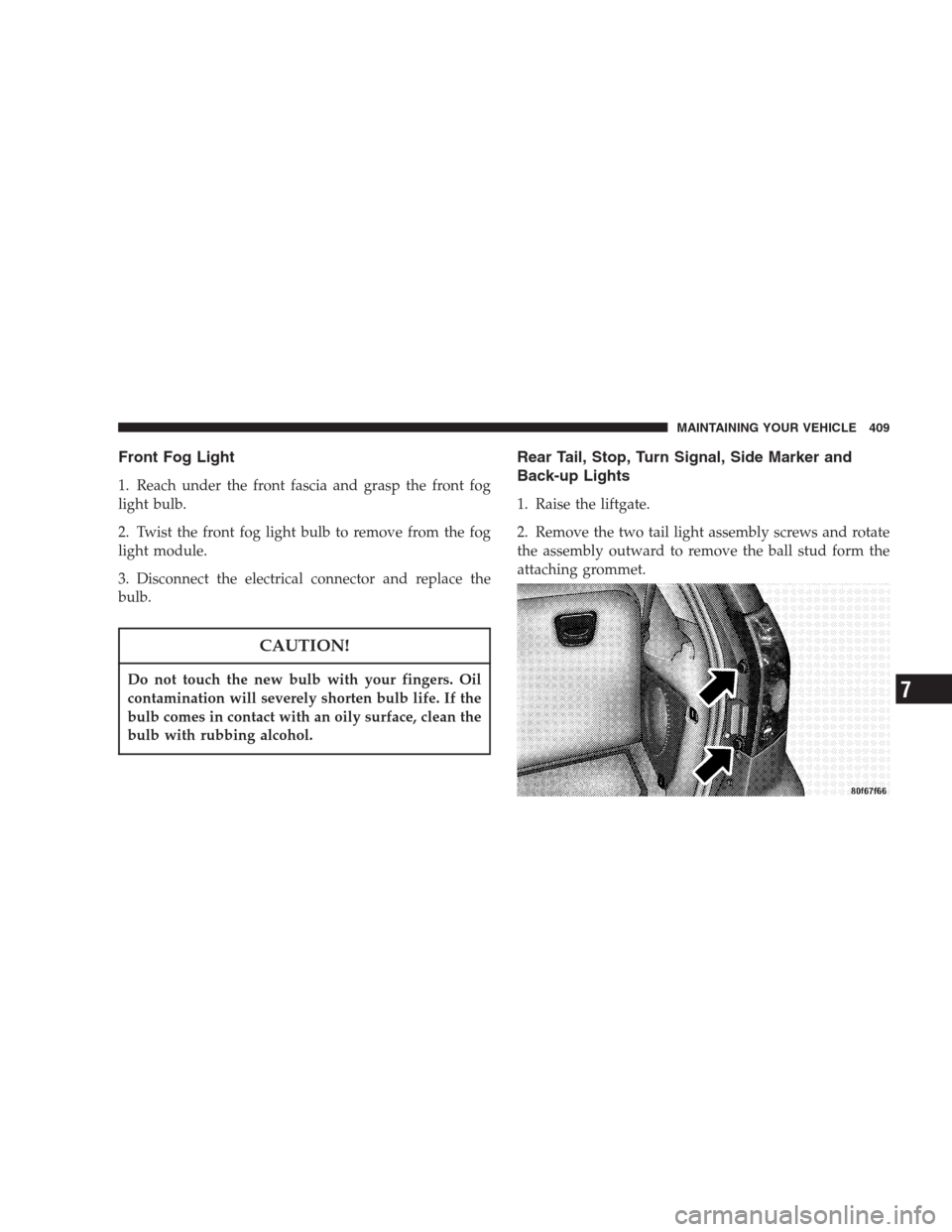

Front Fog Light
1. Reach under the front fascia and grasp the front fog
light bulb.
2. Twist the front fog light bulb to remove from the fog
light module.
3. Disconnect the electrical connector and replace the
bulb.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
Rear Tail, Stop, Turn Signal, Side Marker and
Back-up Lights
1. Raise the liftgate.
2. Remove the two tail light assembly screws and rotate
the assembly outward to remove the ball stud form the
attaching grommet.
MAINTAINING YOUR VEHICLE 409
7

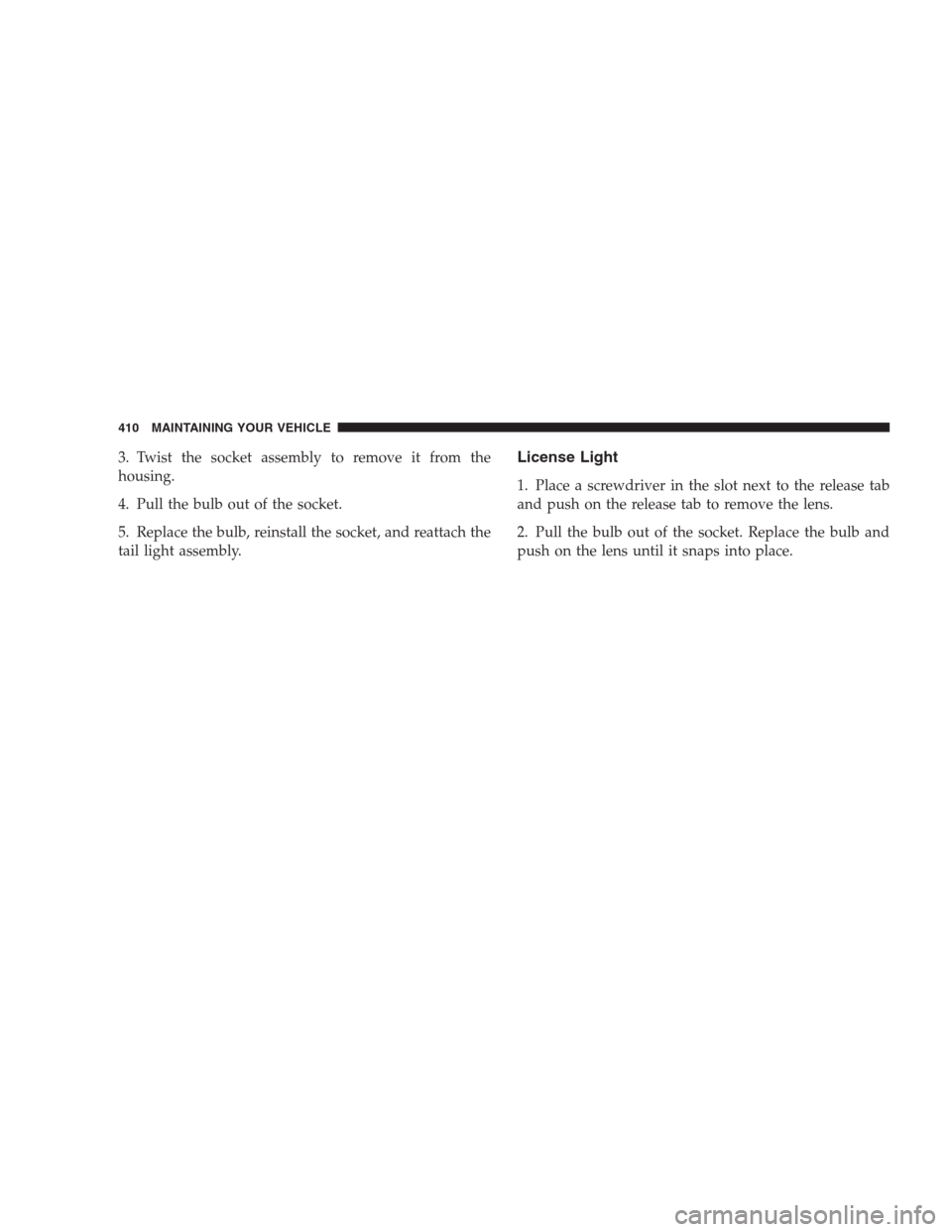

3. Twist the socket assembly to remove it from the
housing.
4. Pull the bulb out of the socket.
5. Replace the bulb, reinstall the socket, and reattach the
tail light assembly.License Light
1. Place a screwdriver in the slot next to the release tab
and push on the release tab to remove the lens.
2. Pull the bulb out of the socket. Replace the bulb and
push on the lens until it snaps into place.
410 MAINTAINING YOUR VEHICLE

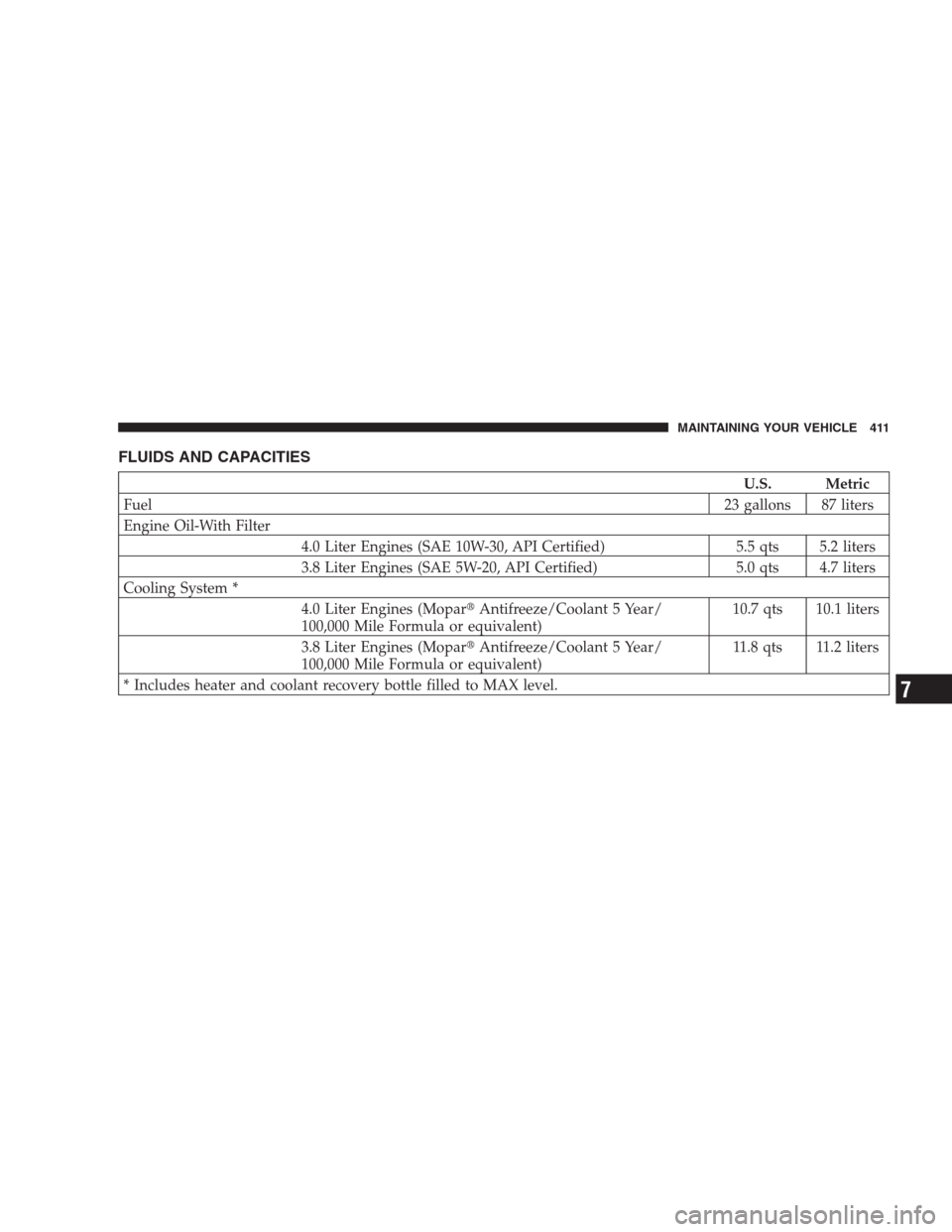

FLUIDS AND CAPACITIES
U.S. Metric
Fuel23 gallons 87 liters
Engine Oil-With Filter
4.0 Liter Engines (SAE 10W-30, API Certified) 5.5 qts 5.2 liters
3.8 Liter Engines (SAE 5W-20, API Certified) 5.0 qts 4.7 liters
Cooling System *
4.0 Liter Engines (MoparAntifreeze/Coolant 5 Year/
100,000 Mile Formula or equivalent)10.7 qts 10.1 liters
3.8 Liter Engines (MoparAntifreeze/Coolant 5 Year/
100,000 Mile Formula or equivalent)11.8 qts 11.2 liters
* Includes heater and coolant recovery bottle filled to MAX level.
MAINTAINING YOUR VEHICLE 411
7

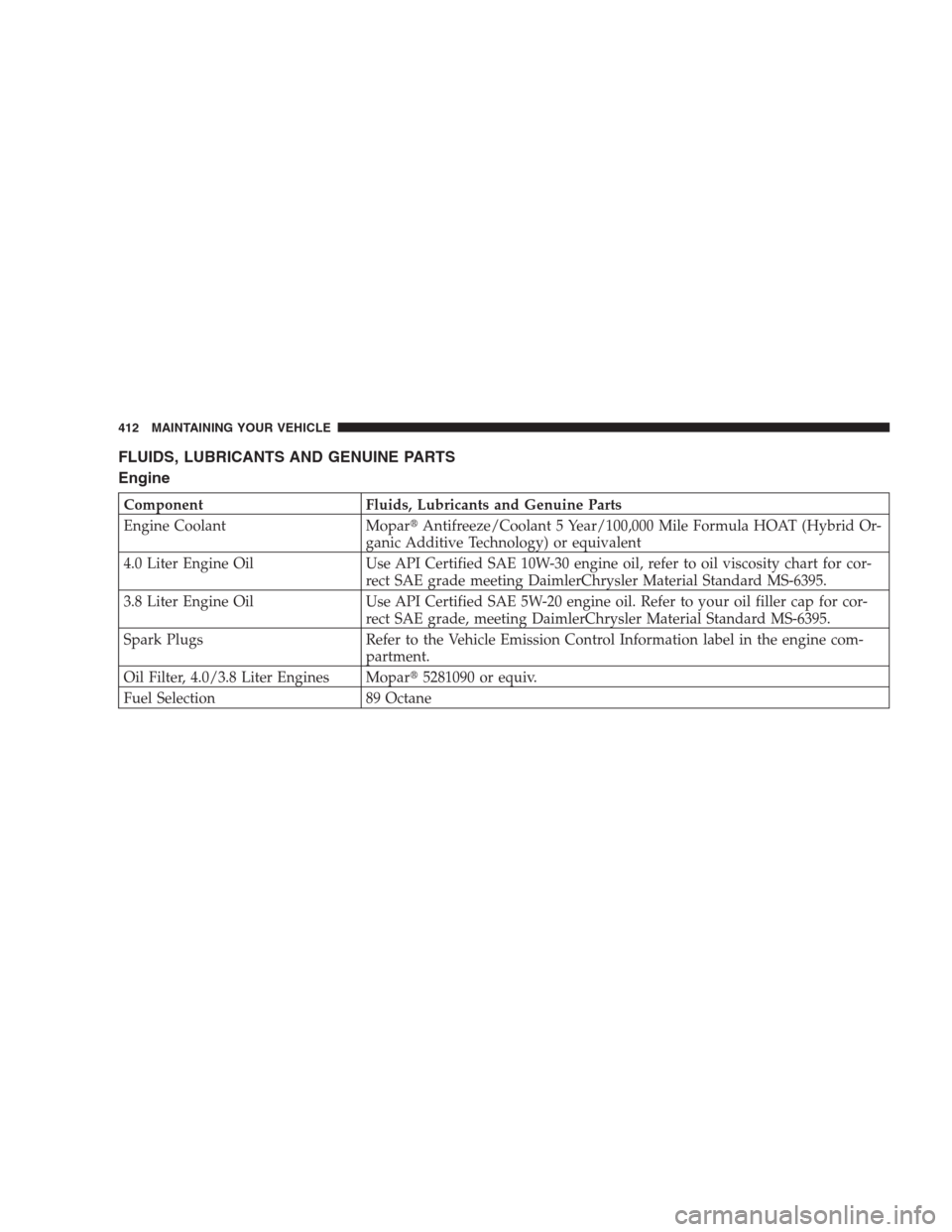

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
Component Fluids, Lubricants and Genuine Parts
Engine Coolant MoparAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid Or-
ganic Additive Technology) or equivalent
4.0 Liter Engine Oil Use API Certified SAE 10W-30 engine oil, refer to oil viscosity chart for cor-
rect SAE grade meeting DaimlerChrysler Material Standard MS-6395.
3.8 Liter Engine Oil Use API Certified SAE 5W-20 engine oil. Refer to your oil filler cap for cor-
rect SAE grade, meeting DaimlerChrysler Material Standard MS-6395.
Spark Plugs Refer to the Vehicle Emission Control Information label in the engine com-
partment.
Oil Filter, 4.0/3.8 Liter Engines Mopar5281090 or equiv.
Fuel Selection 89 Octane
412 MAINTAINING YOUR VEHICLE

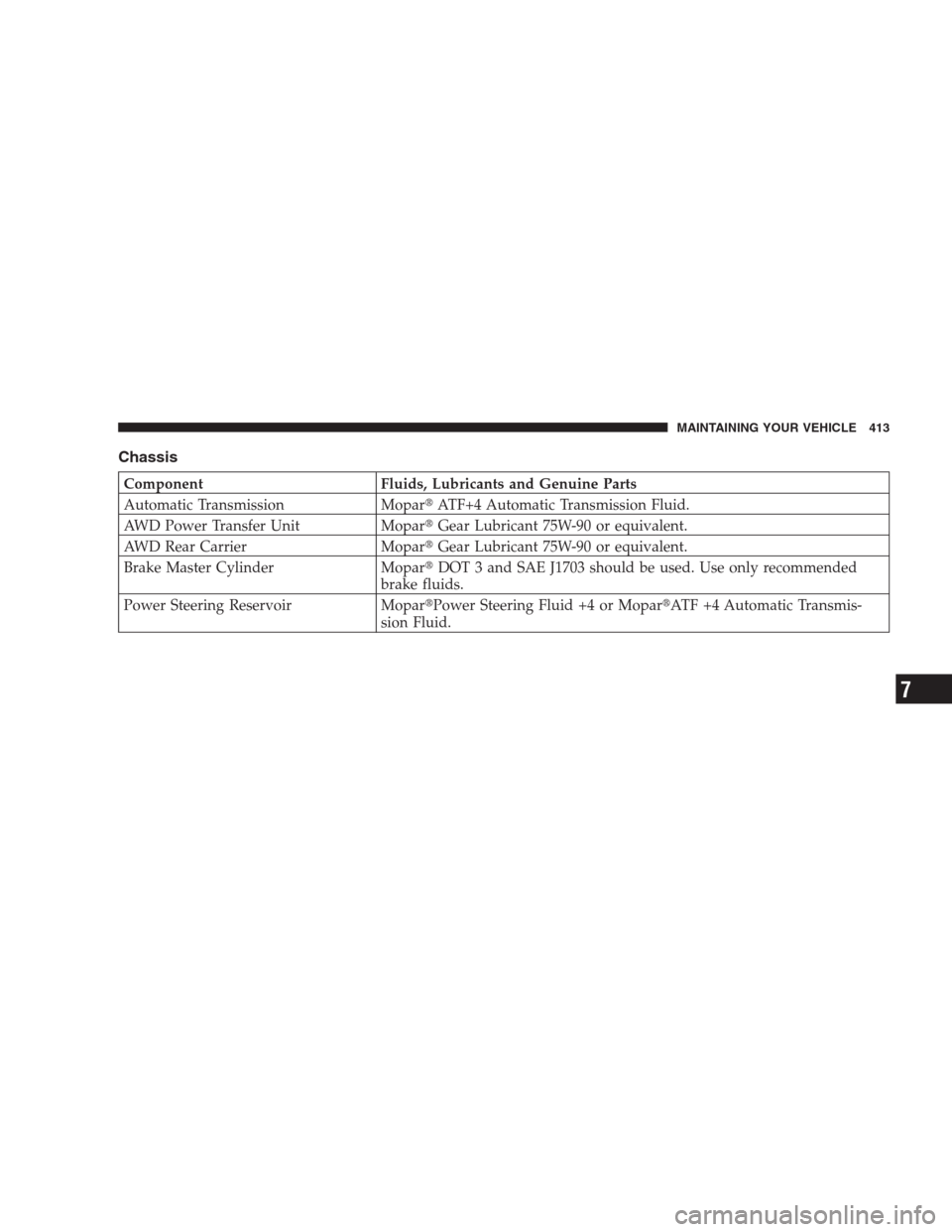

Chassis
Component Fluids, Lubricants and Genuine Parts
Automatic Transmission MoparATF+4 Automatic Transmission Fluid.
AWD Power Transfer Unit MoparGear Lubricant 75W-90 or equivalent.
AWD Rear Carrier MoparGear Lubricant 75W-90 or equivalent.
Brake Master Cylinder MoparDOT 3 and SAE J1703 should be used. Use only recommended
brake fluids.
Power Steering Reservoir MoparPower Steering Fluid +4 or MoparATF +4 Automatic Transmis-
sion Fluid.
MAINTAINING YOUR VEHICLE 413
7

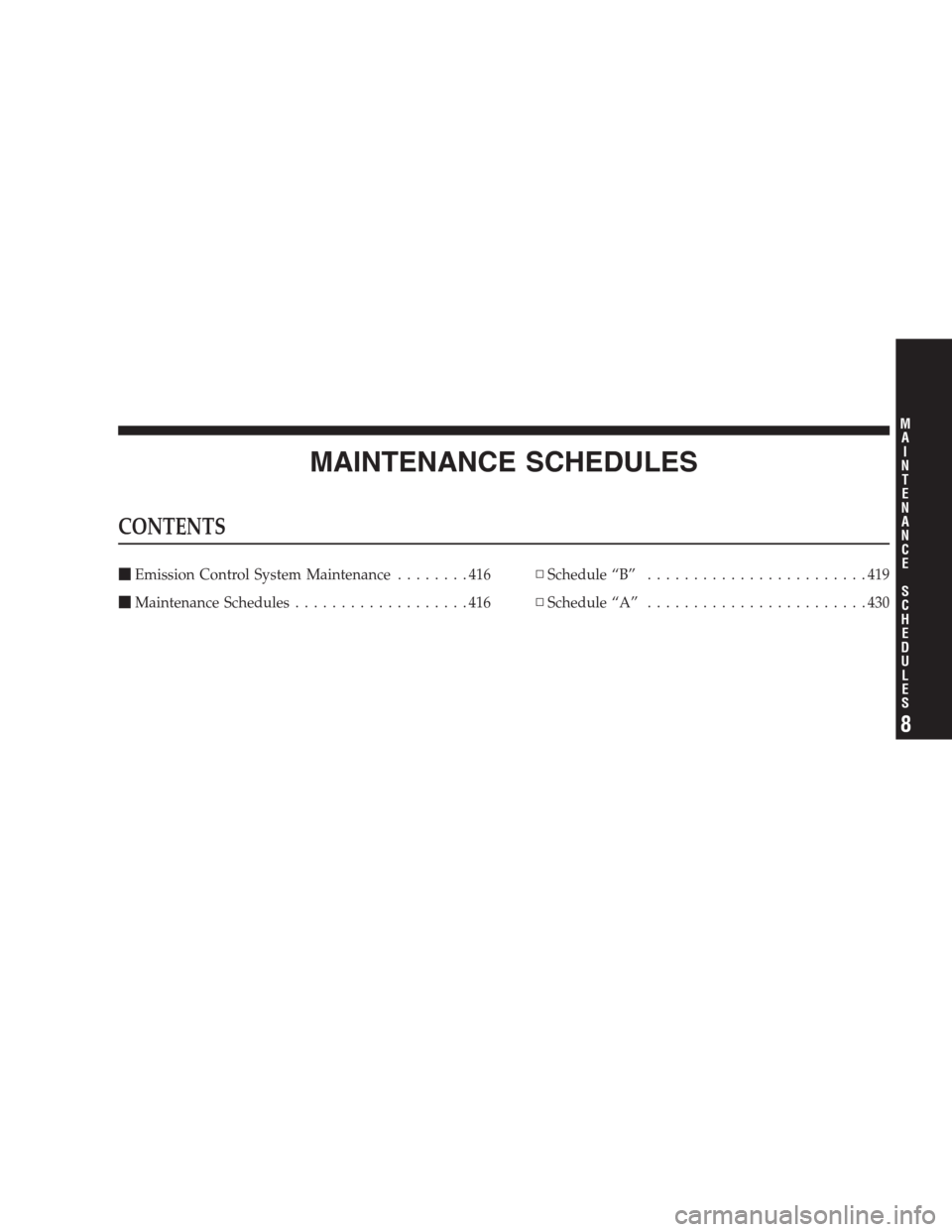

MAINTENANCE SCHEDULES
CONTENTS

Emission Control System Maintenance........416

Maintenance Schedules...................416▫Schedule “B”........................419
▫Schedule “A”........................430
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

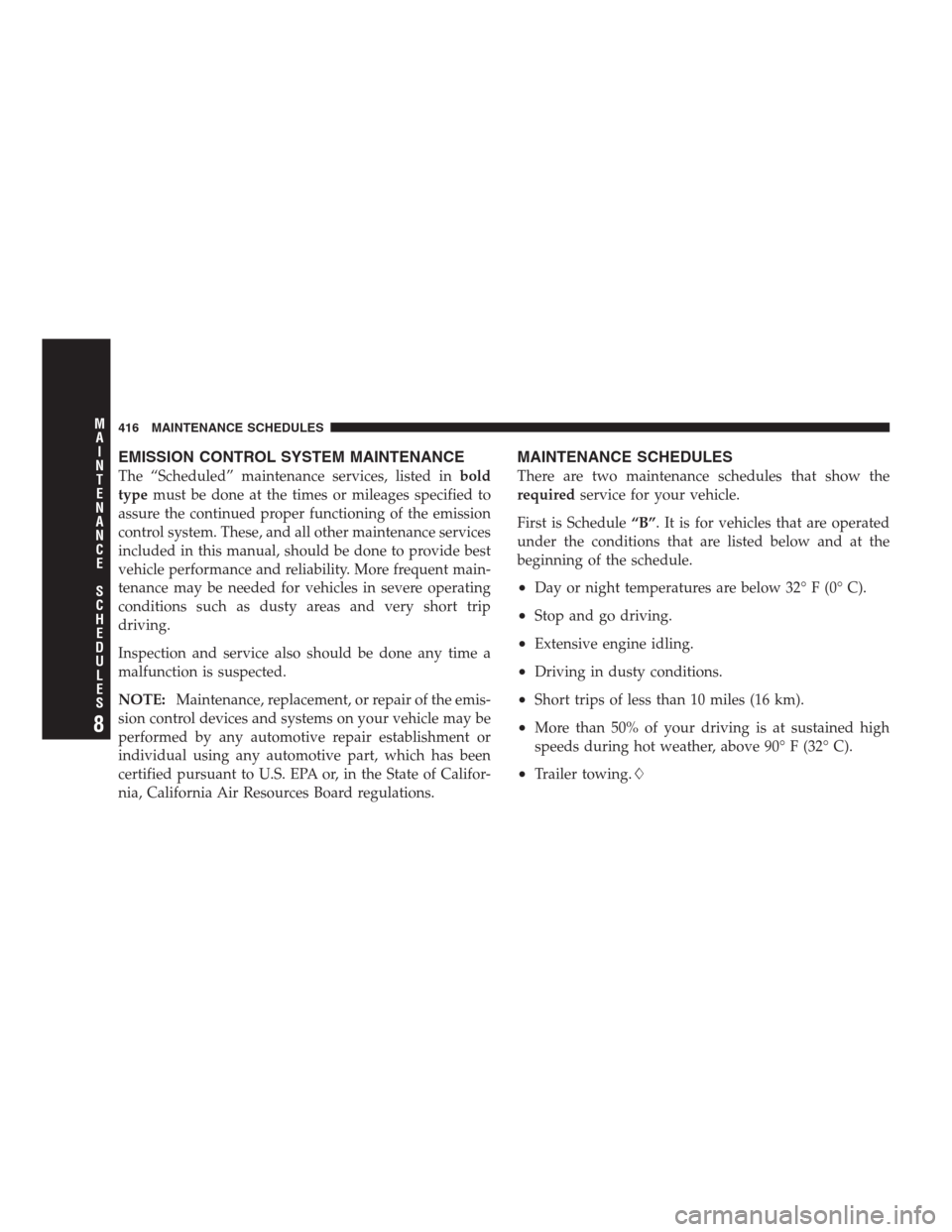

EMISSION CONTROL SYSTEM MAINTENANCE
The “Scheduled” maintenance services, listed inbold
typemust be done at the times or mileages specified to
assure the continued proper functioning of the emission
control system. These, and all other maintenance services
included in this manual, should be done to provide best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions such as dusty areas and very short trip
driving.
Inspection and service also should be done any time a
malfunction is suspected.
NOTE:Maintenance, replacement, or repair of the emis-
sion control devices and systems on your vehicle may be
performed by any automotive repair establishment or
individual using any automotive part, which has been
certified pursuant to U.S. EPA or, in the State of Califor-
nia, California Air Resources Board regulations.
MAINTENANCE SCHEDULES
There are two maintenance schedules that show the
requiredservice for your vehicle.
First is Schedule“B”. It is for vehicles that are operated
under the conditions that are listed below and at the
beginning of the schedule.
•Day or night temperatures are below 32° F (0° C).
•Stop and go driving.
•Extensive engine idling.
•Driving in dusty conditions.
•Short trips of less than 10 miles (16 km).
•More than 50% of your driving is at sustained high
speeds during hot weather, above 90° F (32° C).
•Trailer towing.
