2007 CHRYSLER PACIFICA Owners Manual

MAINTAINING YOUR VEHICLE
CONTENTS

4.0L Engines..........................364

3.8L Engines..........................365

Onboard Diagnostic System — OBD II........366
▫Loose Fuel Filler Cap Message............366

Emissions Inspection And Maintenance
Programs............................367

Replacement Parts......................368

Dealer Service.........................369

Maintenance Procedures..................369▫Engine Oil..........................369
▫Engine Oil Filter......................374
▫Drive Belts — Check Condition And Tension . . 374
▫Spark Plugs.........................374
▫Engine Air Cleaner Filter................374
▫Catalytic Converter....................375
▫Maintenance-Free Battery................376
▫Air Conditioner Maintenance.............378
▫Power Steering — Fluid Check............379
7

▫Front & Rear Suspension Ball Joints........380
▫Steering Shaft Seal....................380
▫Steering Linkage......................380
▫Drive Shaft Universal Joints..............380
▫Body Lubrication.....................381
▫Windshield Wiper Blades................381
▫Windshield And Rear Window Washers.....382
▫Exhaust System......................382
▫Cooling System.......................383
▫Hoses And Vacuum/Vapor Harnesses.......388
▫Brakes.............................389
▫Master Cylinder — Brake Fluid Level Check . . 390
▫Fuel System Hoses....................391▫Automatic Transmission................392
▫All Wheel Drive (AWD) — If Equipped.....395
▫Front And Rear Wheel Bearings...........396
▫Appearance Care And Protection From
Corrosion...........................396
▫Cleaning The Center Console Cup Holders . . . 401

Fuses (Integrated Power Module)...........402

Vehicle Storage........................405

Replacement Light Bulbs.................406

Bulb Replacement......................406
▫Standard Quad Headlights...............406
▫High Intensity Discharge Headlights (HID) —
If Equipped.........................407
362 MAINTAINING YOUR VEHICLE

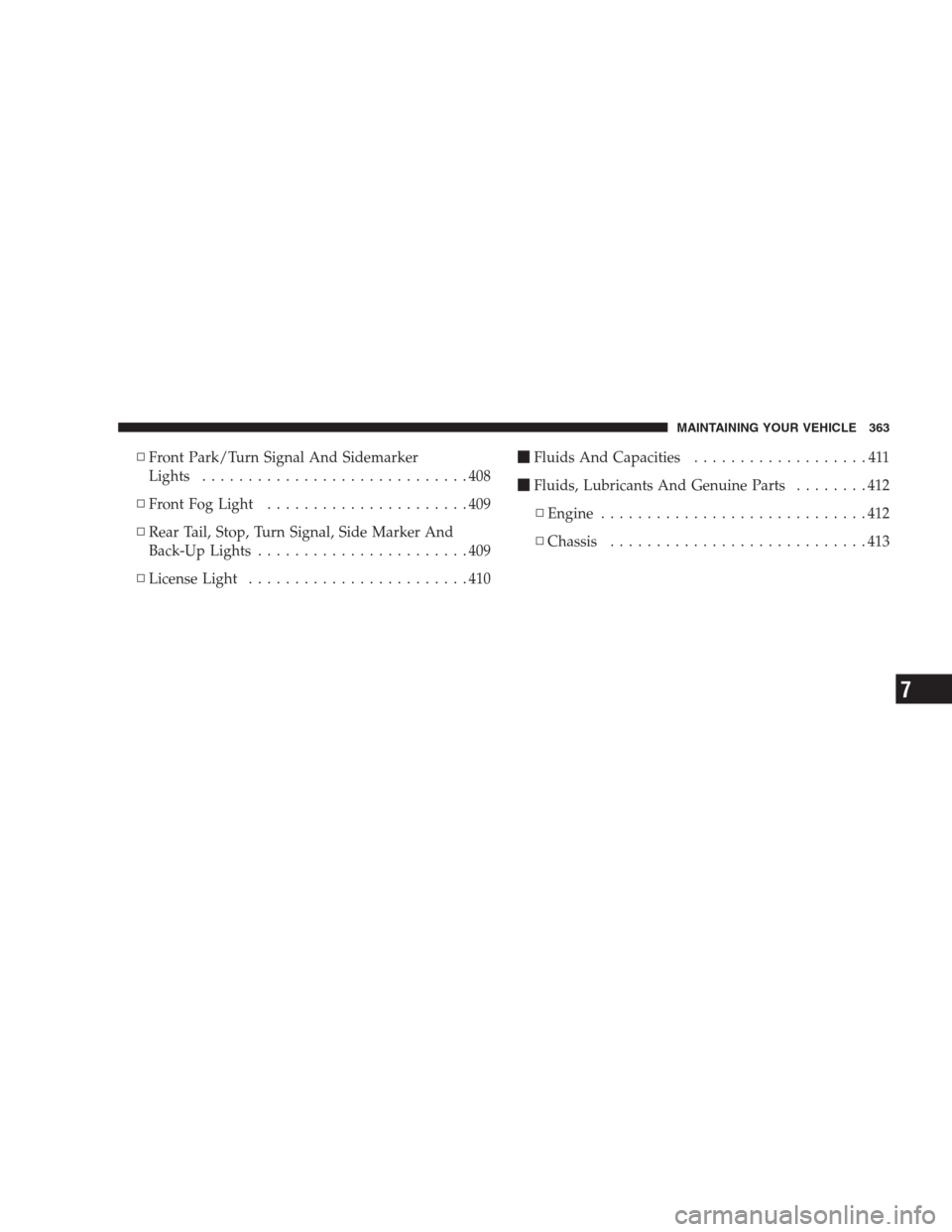

▫Front Park/Turn Signal And Sidemarker
Lights.............................408
▫Front Fog Light......................409
▫Rear Tail, Stop, Turn Signal, Side Marker And
Back-Up Lights.......................409
▫License Light........................410
Fluids And Capacities...................411

Fluids, Lubricants And Genuine Parts........412
▫Engine.............................412
▫Chassis............................413
MAINTAINING YOUR VEHICLE 363
7

4.0L ENGINES
Engine Compartment 4.0L Engine
364 MAINTAINING YOUR VEHICLE

3.8L ENGINES
Engine Compartment 3.8L Engines
MAINTAINING YOUR VEHICLE 365
7

ONBOARD DIAGNOSTIC SYSTEM — OBD II
Your vehicle is equipped with a sophisticated onboard
diagnostic system called OBD II. This system monitors
the performance of the emissions, engine, and automatic
transmission control systems. When these systems are
operating properly, your vehicle will provide excellent
performance and fuel economy, as well as engine emis-
sions well within current government regulations.
If any of these systems require service, the OBD II system
will turn on the “Malfunction Indicator Light.” It will
also store diagnostic codes and other information to
assist your service technician in making repairs. Al-
though your vehicle will usually be drivable and not
need towing, see your dealer for service as soon as
possible.CAUTION!
•Prolonged driving with the “Malfunction Indica-
tor Light” on could cause further damage to the
emission control system. It could also affect fuel
economy and driveability. The vehicle must be
serviced before any emissions tests can be per-
formed.
•If the “Malfunction Indicator Light” is flashing
while the engine is running, severe catalytic con-
verter damage and power loss will soon occur.
Immediate service is required.
Loose Fuel Filler Cap Message
After fuel is added, the vehicle diagnostic system can
determine if the fuel filler cap is loose, improperly
installed, or damaged. A loose fuel filler cap message will
be displayed in the instrument cluster. Tighten the gas
366 MAINTAINING YOUR VEHICLE

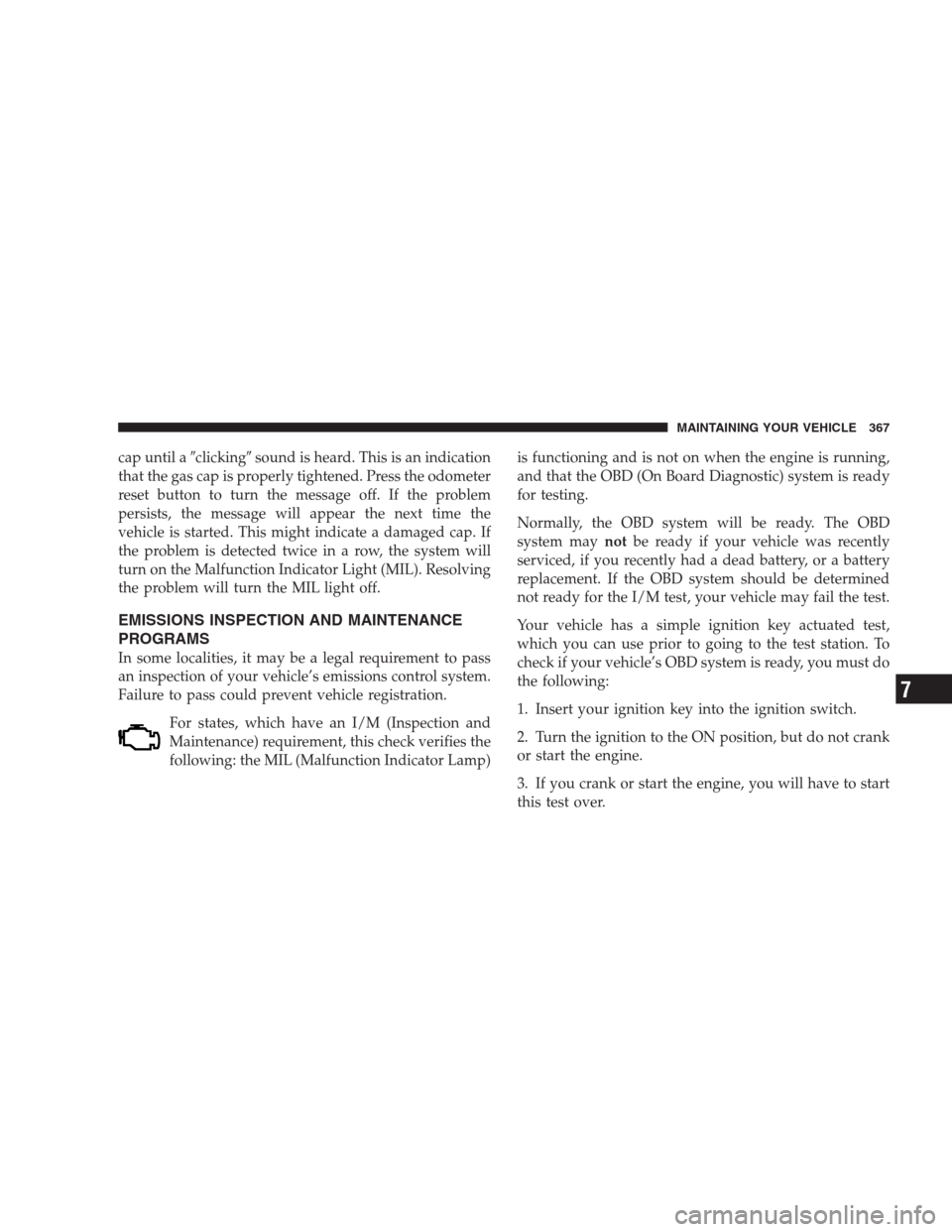

cap until aclickingsound is heard. This is an indication
that the gas cap is properly tightened. Press the odometer
reset button to turn the message off. If the problem
persists, the message will appear the next time the
vehicle is started. This might indicate a damaged cap. If
the problem is detected twice in a row, the system will
turn on the Malfunction Indicator Light (MIL). Resolving
the problem will turn the MIL light off.
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.
For states, which have an I/M (Inspection and
Maintenance) requirement, this check verifies the
following: the MIL (Malfunction Indicator Lamp)is functioning and is not on when the engine is running,
and that the OBD (On Board Diagnostic) system is ready
for testing.
Normally, the OBD system will be ready. The OBD
system maynotbe ready if your vehicle was recently
serviced, if you recently had a dead battery, or a battery
replacement. If the OBD system should be determined
not ready for the I/M test, your vehicle may fail the test.
Your vehicle has a simple ignition key actuated test,
which you can use prior to going to the test station. To
check if your vehicle’s OBD system is ready, you must do
the following:
1. Insert your ignition key into the ignition switch.
2. Turn the ignition to the ON position, but do not crank
or start the engine.
3. If you crank or start the engine, you will have to start
this test over.
MAINTAINING YOUR VEHICLE 367
7

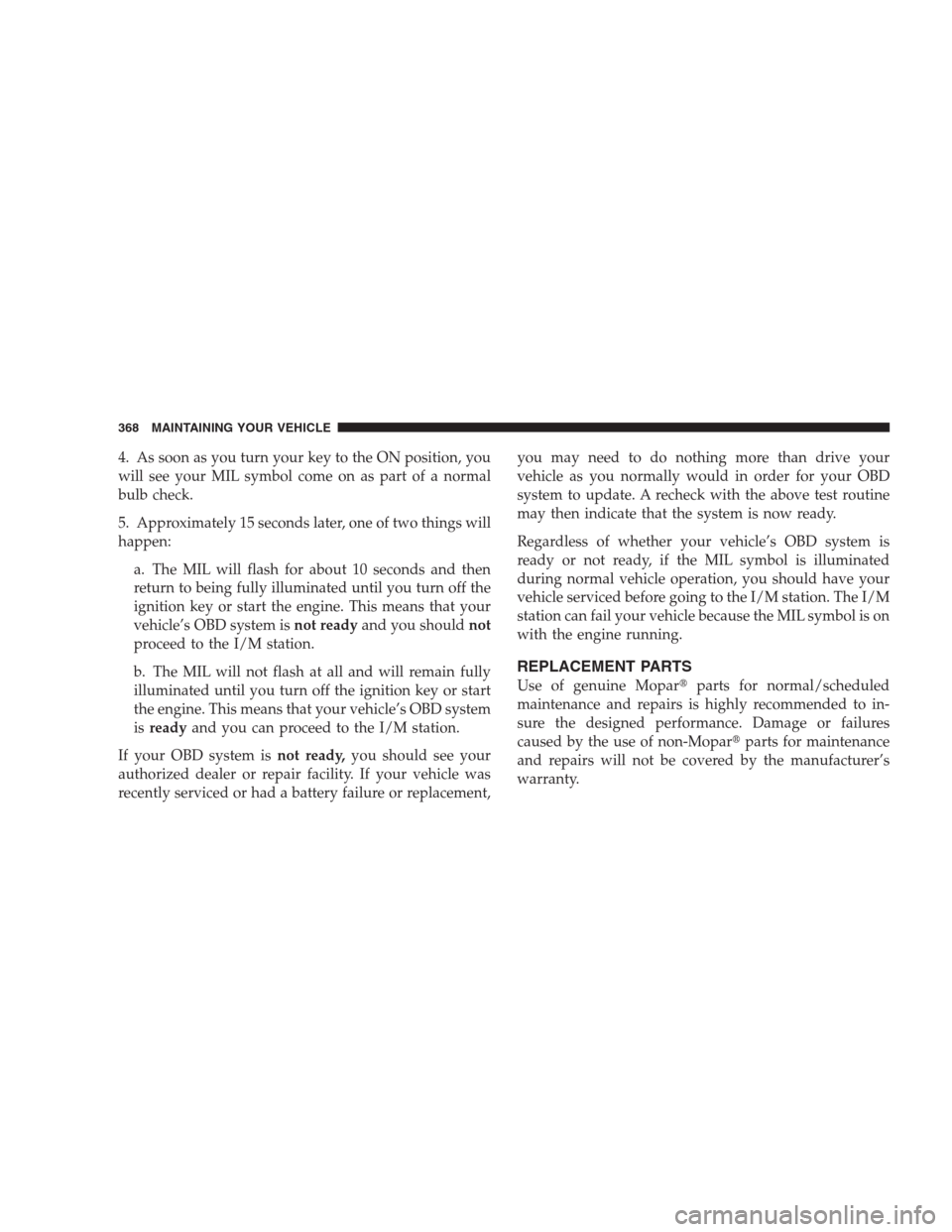

4. As soon as you turn your key to the ON position, you
will see your MIL symbol come on as part of a normal
bulb check.
5. Approximately 15 seconds later, one of two things will
happen:
a. The MIL will flash for about 10 seconds and then
return to being fully illuminated until you turn off the
ignition key or start the engine. This means that your
vehicle’s OBD system isnot readyand you shouldnot
proceed to the I/M station.
b. The MIL will not flash at all and will remain fully
illuminated until you turn off the ignition key or start
the engine. This means that your vehicle’s OBD system
isreadyand you can proceed to the I/M station.
If your OBD system isnot ready,you should see your
authorized dealer or repair facility. If your vehicle was
recently serviced or had a battery failure or replacement,you may need to do nothing more than drive your
vehicle as you normally would in order for your OBD
system to update. A recheck with the above test routine
may then indicate that the system is now ready.
Regardless of whether your vehicle’s OBD system is
ready or not ready, if the MIL symbol is illuminated
during normal vehicle operation, you should have your
vehicle serviced before going to the I/M station. The I/M
station can fail your vehicle because the MIL symbol is on
with the engine running.
REPLACEMENT PARTS
Use of genuine Moparparts for normal/scheduled
maintenance and repairs is highly recommended to in-
sure the designed performance. Damage or failures
caused by the use of non-Moparparts for maintenance
and repairs will not be covered by the manufacturer’s
warranty.
