2007 CHRYSLER PACIFICA Owners Manual

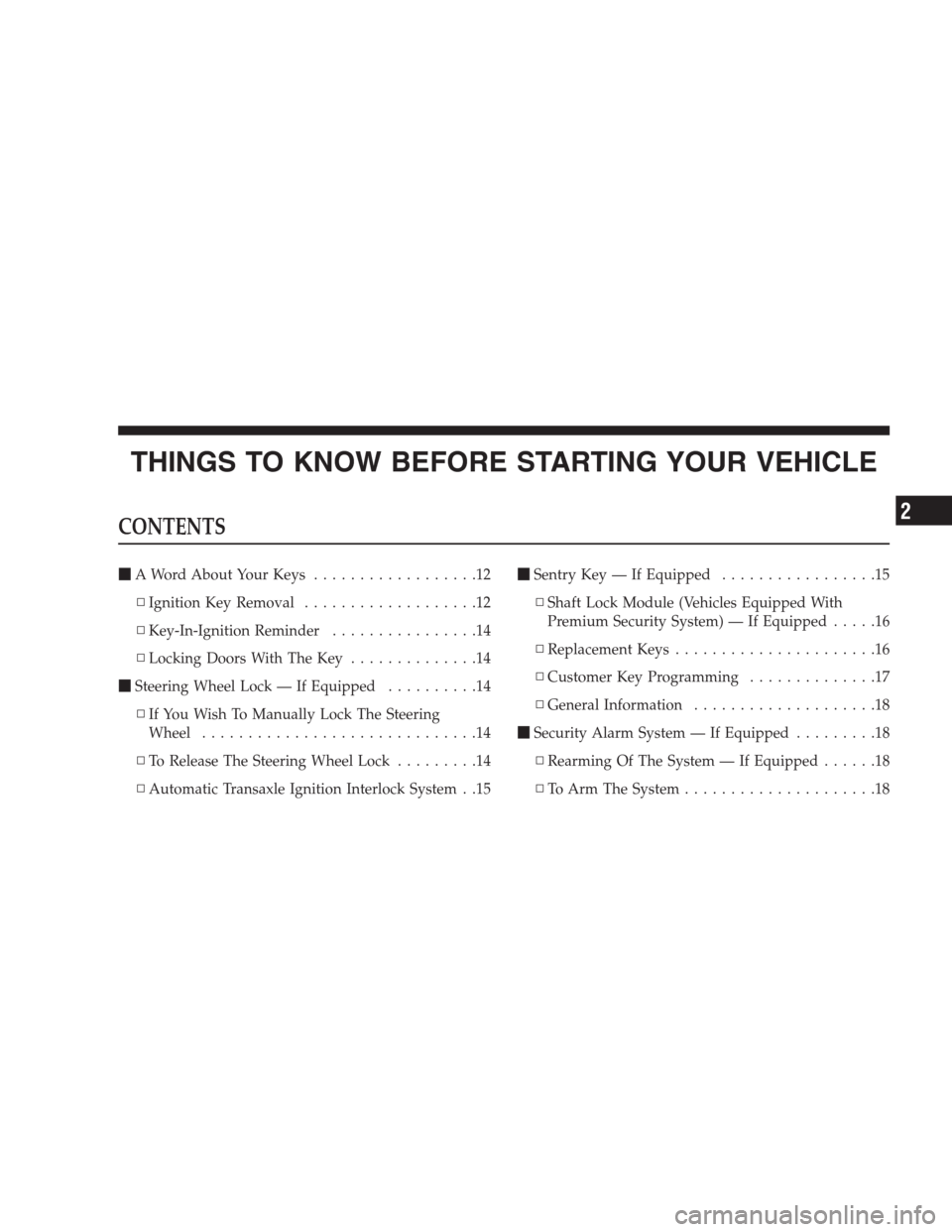

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS

A Word About Your Keys..................12
▫Ignition Key Removal...................12
▫Key-In-Ignition Reminder................14
▫Locking Doors With The Key..............14

Steering Wheel Lock — If Equipped..........14
▫If You Wish To Manually Lock The Steering
Wheel..............................14
▫To Release The Steering Wheel Lock.........14
▫Automatic Transaxle Ignition Interlock System . .15
Sentry Key — If Equipped.................15
▫Shaft Lock Module (Vehicles Equipped With
Premium Security System) — If Equipped.....16
▫Replacement Keys......................16
▫Customer Key Programming..............17
▫General Information....................18

Security Alarm System — If Equipped.........18
▫Rearming Of The System — If Equipped......18
▫To Arm The System.....................18
2

▫To Disarm The System...................19
▫Security System Manual Override...........19

Illuminated Entry System..................20

Remote Keyless Entry.....................20
▫To Unlock The Doors And Liftgate..........21
▫To Lock The Doors And Liftgate............22
▫To Open/Close Power Liftgate — If Equipped . .23
▫Flash Lights On Lock/Unlock.............23
▫Using The Panic Alarm..................24
▫Programming Additional Transmitters........25
▫Battery Replacement....................25

Door Locks............................27
▫Manual Door Locks.....................27▫Power Door Locks.....................28
▫Child Protection Door Lock...............31

Windows.............................33
▫Power Windows.......................33

Liftgate...............................35
▫Power Liftgate — If Equipped.............37

Occupant Restraints......................40
▫Lap/Shoulder Belts.....................41
▫Lap/Shoulder Belt Untwisting Procedure.....47
▫Seat Belt Pretensioners...................47
▫Enhanced Seat Belt Use Reminder System
(BeltAlert) — Driver Front Seat Only........48
▫Seat Belts And Pregnant Women............49
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

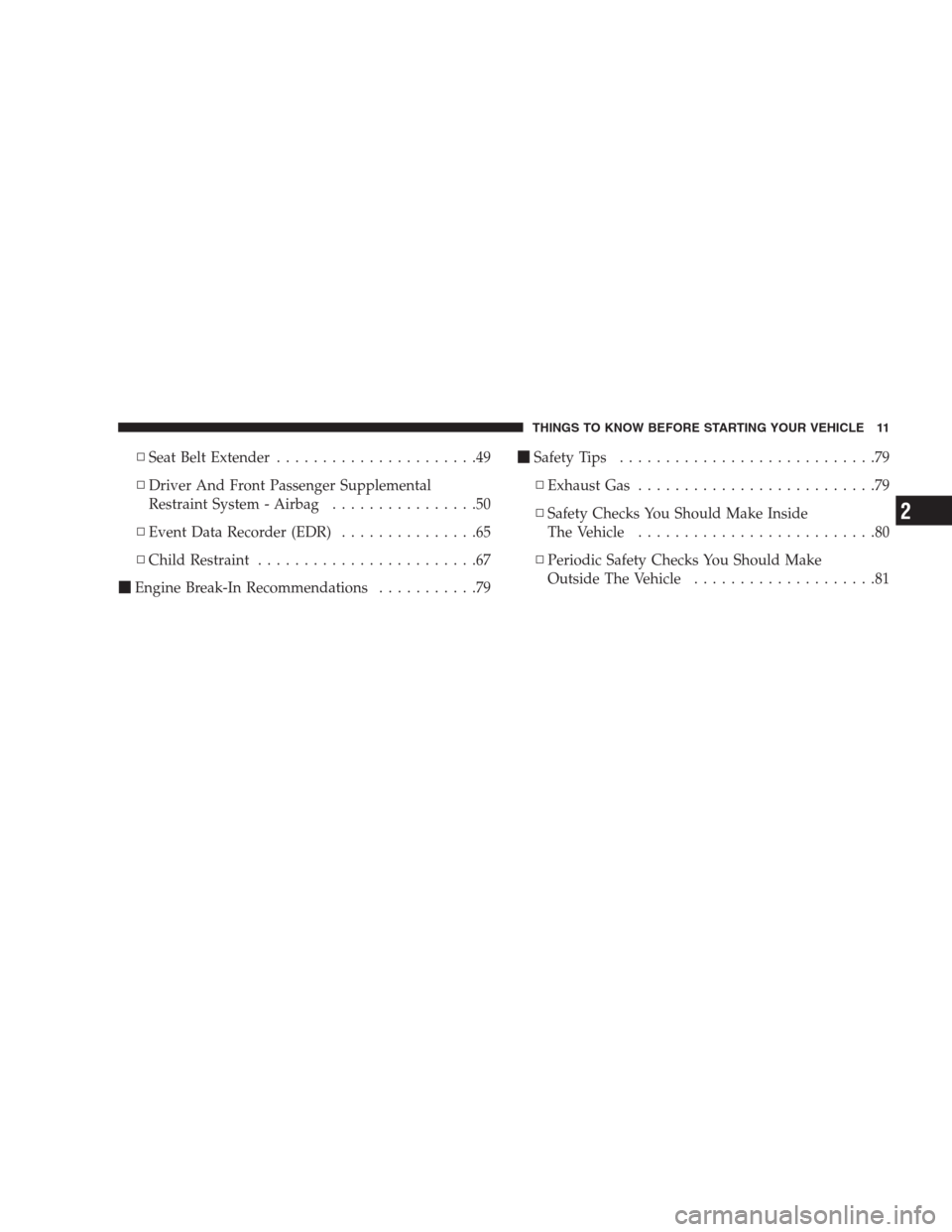

▫Seat Belt Extender......................49
▫Driver And Front Passenger Supplemental
Restraint System - Airbag................50
▫Event Data Recorder (EDR)...............65
▫Child Restraint........................67

Engine Break-In Recommendations...........79
Safety Tips............................79
▫Exhaust Gas..........................79
▫Safety Checks You Should Make Inside
The Vehicle..........................80
▫Periodic Safety Checks You Should Make
Outside The Vehicle....................81
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
2

A WORD ABOUT YOUR KEYS
The dealer that sold you your new vehicle has the key
code numbers for your vehicle locks. These numbers can
be used to order duplicate keys from your dealer. Ask
your dealer for these numbers and keep them in a safe
place.
Ignition Key Removal
Automatic Transaxle
Place the shift lever in PARK. Turn the ignition switch to
the ACC position, push the key and cylinder inward,
rotate the key to the LOCK position, and remove the key.
Three Button KeyIgnition Key Positions
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:If you try to remove the key before you place the
lever in PARK, the key may become trapped temporarily
in the ignition cylinder. If this occurs, rotate the key to the
right slightly, then remove the key as described. If a
malfunction occurs, the system will trap the key in the
ignition cylinder to warn you that this safety feature is
inoperable. The engine can be started and stopped but
the key cannot be removed until you obtain service.
NOTE:The power window switches, radio, power
outlets, and removable console (if equipped), will remain
active for up to 45 seconds after the ignition switch has
been turned off. Opening a vehicle front door will cancel
this feature.WARNING!
Never leave children alone in a vehicle. Leaving
children in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Don’t leave the keys in
the ignition. A child could operate power windows,
other controls, or move the vehicle.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
2

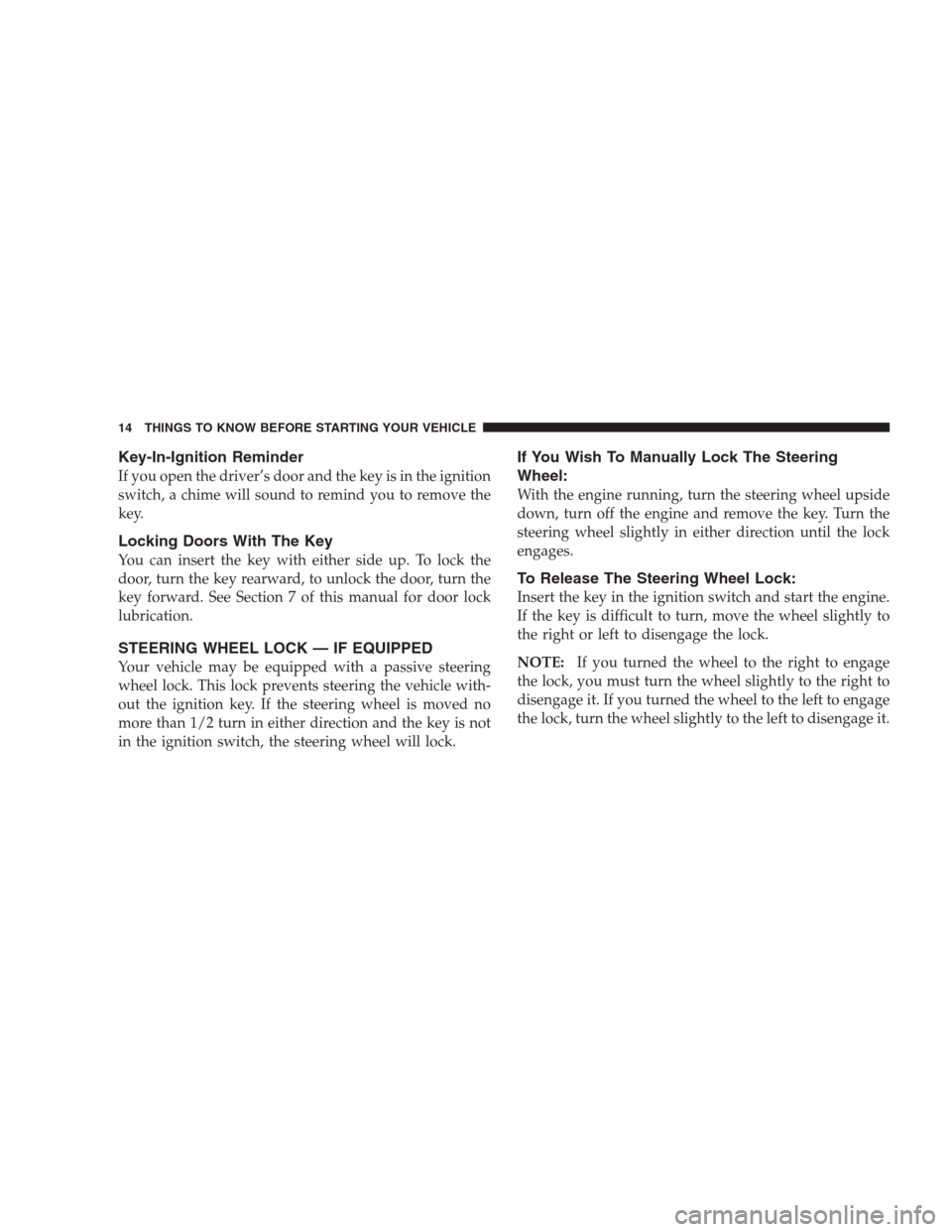

Key-In-Ignition Reminder
If you open the driver’s door and the key is in the ignition
switch, a chime will sound to remind you to remove the
key.
Locking Doors With The Key
You can insert the key with either side up. To lock the
door, turn the key rearward, to unlock the door, turn the
key forward. See Section 7 of this manual for door lock
lubrication.
STEERING WHEEL LOCK — IF EQUIPPED
Your vehicle may be equipped with a passive steering
wheel lock. This lock prevents steering the vehicle with-
out the ignition key. If the steering wheel is moved no
more than 1/2 turn in either direction and the key is not
in the ignition switch, the steering wheel will lock.
If You Wish To Manually Lock The Steering
Wheel:
With the engine running, turn the steering wheel upside
down, turn off the engine and remove the key. Turn the
steering wheel slightly in either direction until the lock
engages.
To Release The Steering Wheel Lock:
Insert the key in the ignition switch and start the engine.
If the key is difficult to turn, move the wheel slightly to
the right or left to disengage the lock.
NOTE:If you turned the wheel to the right to engage
the lock, you must turn the wheel slightly to the right to
disengage it. If you turned the wheel to the left to engage
the lock, turn the wheel slightly to the left to disengage it.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

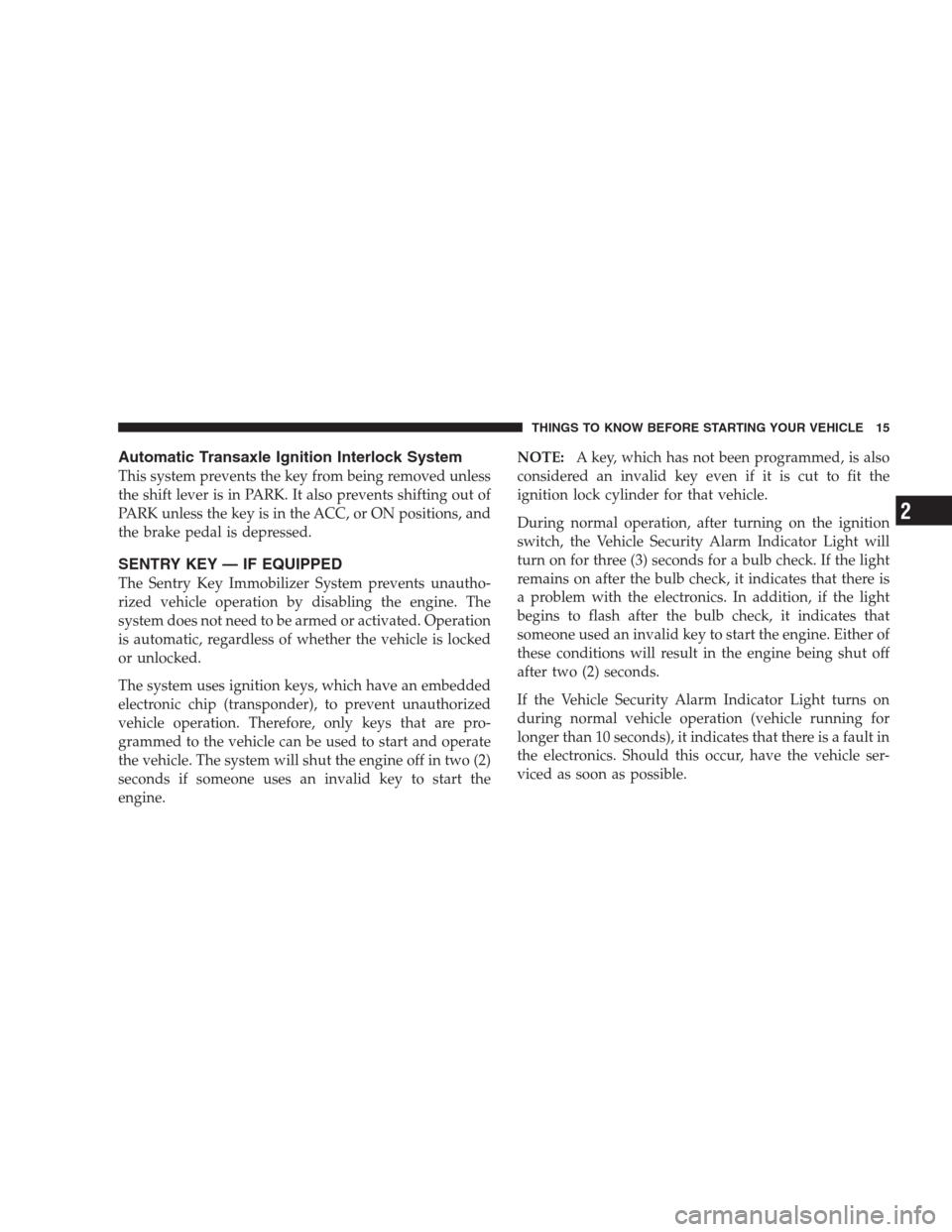

Automatic Transaxle Ignition Interlock System
This system prevents the key from being removed unless
the shift lever is in PARK. It also prevents shifting out of
PARK unless the key is in the ACC, or ON positions, and
the brake pedal is depressed.
SENTRY KEY — IF EQUIPPED
The Sentry Key Immobilizer System prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses ignition keys, which have an embedded
electronic chip (transponder), to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two (2)
seconds if someone uses an invalid key to start the
engine.NOTE:A key, which has not been programmed, is also
considered an invalid key even if it is cut to fit the
ignition lock cylinder for that vehicle.
During normal operation, after turning on the ignition
switch, the Vehicle Security Alarm Indicator Light will
turn on for three (3) seconds for a bulb check. If the light
remains on after the bulb check, it indicates that there is
a problem with the electronics. In addition, if the light
begins to flash after the bulb check, it indicates that
someone used an invalid key to start the engine. Either of
these conditions will result in the engine being shut off
after two (2) seconds.
If the Vehicle Security Alarm Indicator Light turns on
during normal vehicle operation (vehicle running for
longer than 10 seconds), it indicates that there is a fault in
the electronics. Should this occur, have the vehicle ser-
viced as soon as possible.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2

Shaft Lock Module (Vehicles Equipped with
Premium Security System) — If Equipped
The shaft lock module is located inside the steering
column. The module works in conjunction with the
Sentry Key to prevent the steering shaft from rotating if
someone inserts an invalid ignition key into the ignition
lock cylinder in the instrument panel.
NOTE:
•The Sentry Key Immobilizer System is not compatible
with remote starting systems. Use of these systems
may result in vehicle starting problems and loss of
security protection.
•Exxon/Mobil Speed Pass,™ additional Sentry Keys, or
any other transponder equipped components on the
same keychain will not cause a key-related (transpon-
der) fault unless the additional part is physically held
against the ignition key being used when starting thevehicle. Cell phones, pagers, or other RF electronics
will not cause interference with this system.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE:Only keys that have been programmed to the
vehicle electronics can be used to start the vehicle. Once
a Sentry Key has been programmed to a vehicle, it can
not be programmed to any other vehicle.
At the time of purchase, the original owner is provided
with a four digit PIN number. This number is required
for dealer replacement of keys. Duplication of keys may
be performed at an authorized dealer or by using the
Customer Key Programming procedure. This procedure
consists of programming a blank key to the vehicle
electronics. A blank key is one which has never been
programmed and needs to be cut.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
