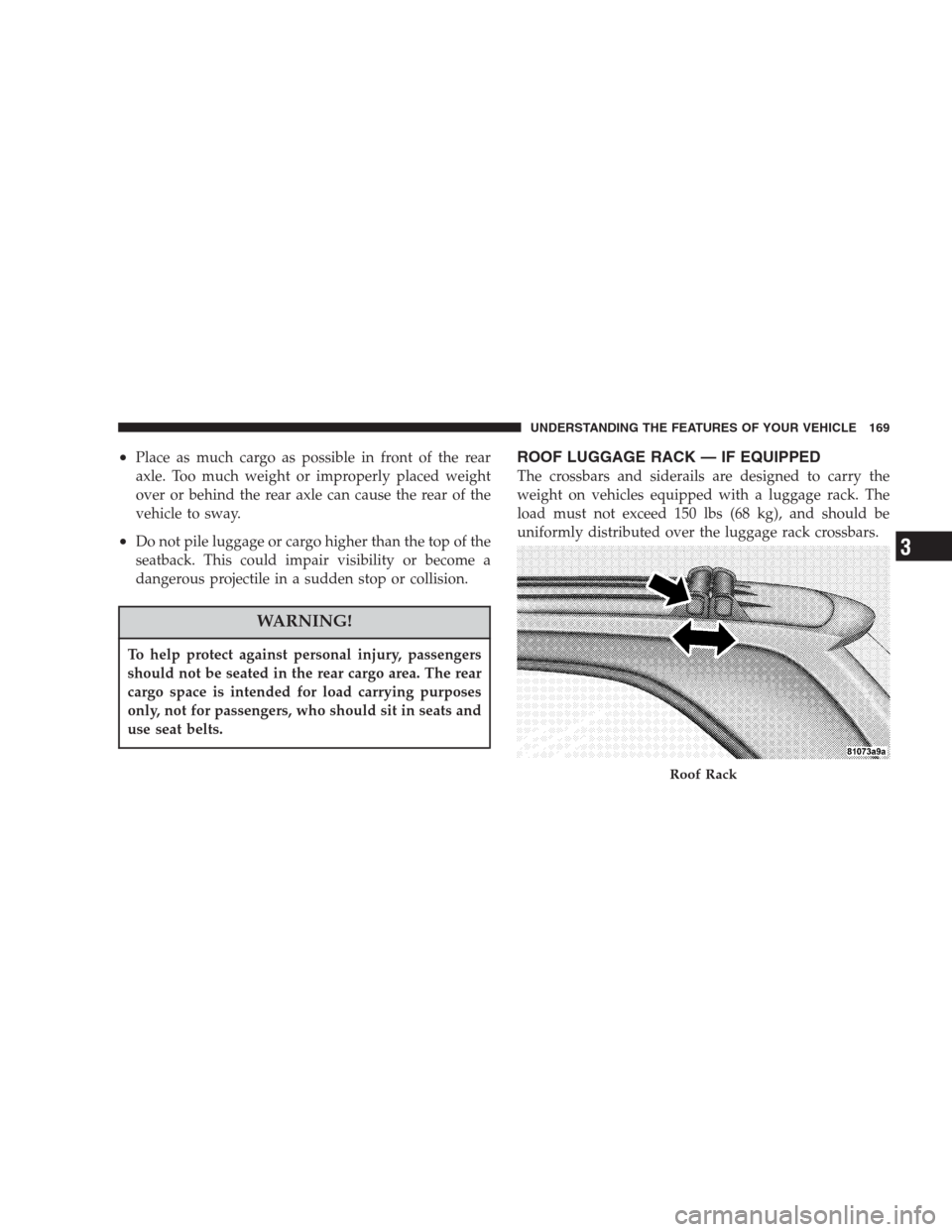

•Place as much cargo as possible in front of the rear
axle. Too much weight or improperly placed weight
over or behind the rear axle can cause the rear of the
vehicle to sway.
•Do not pile luggage or cargo higher than the top of the
seatback. This could impair visibility or become a
dangerous projectile in a sudden stop or collision.
WARNING!
To help protect against personal injury, passengers
should not be seated in the rear cargo area. The rear
cargo space is intended for load carrying purposes
only, not for passengers, who should sit in seats and
use seat belts.
ROOF LUGGAGE RACK — IF EQUIPPED
The crossbars and siderails are designed to carry the
weight on vehicles equipped with a luggage rack. The
load must not exceed 150 lbs (68 kg), and should be
uniformly distributed over the luggage rack crossbars.
Roof Rack
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 169
3

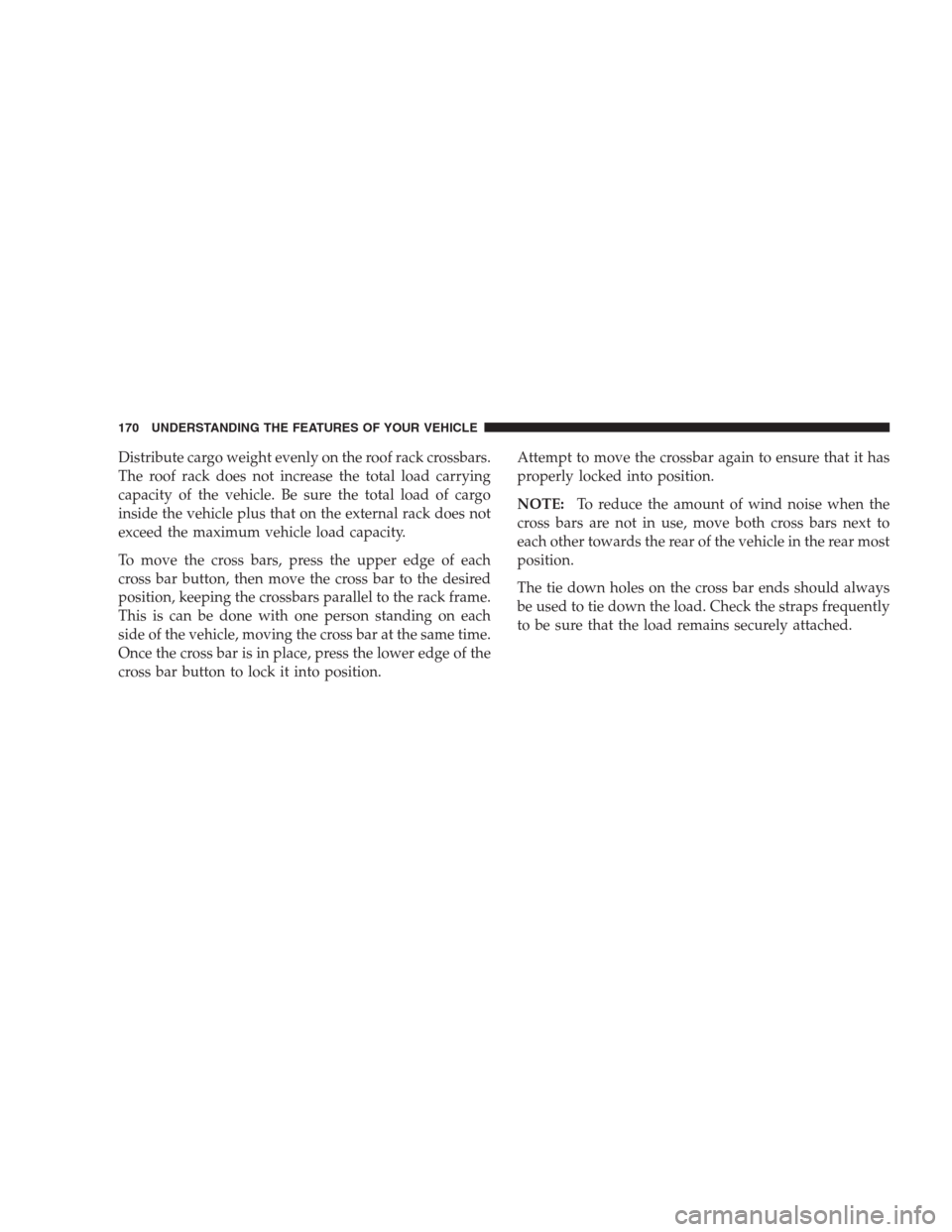

Distribute cargo weight evenly on the roof rack crossbars.
The roof rack does not increase the total load carrying
capacity of the vehicle. Be sure the total load of cargo
inside the vehicle plus that on the external rack does not
exceed the maximum vehicle load capacity.
To move the cross bars, press the upper edge of each
cross bar button, then move the cross bar to the desired
position, keeping the crossbars parallel to the rack frame.
This is can be done with one person standing on each
side of the vehicle, moving the cross bar at the same time.
Once the cross bar is in place, press the lower edge of the
cross bar button to lock it into position.Attempt to move the crossbar again to ensure that it has
properly locked into position.
NOTE:To reduce the amount of wind noise when the
cross bars are not in use, move both cross bars next to
each other towards the rear of the vehicle in the rear most
position.
The tie down holes on the cross bar ends should always
be used to tie down the load. Check the straps frequently
to be sure that the load remains securely attached.
170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

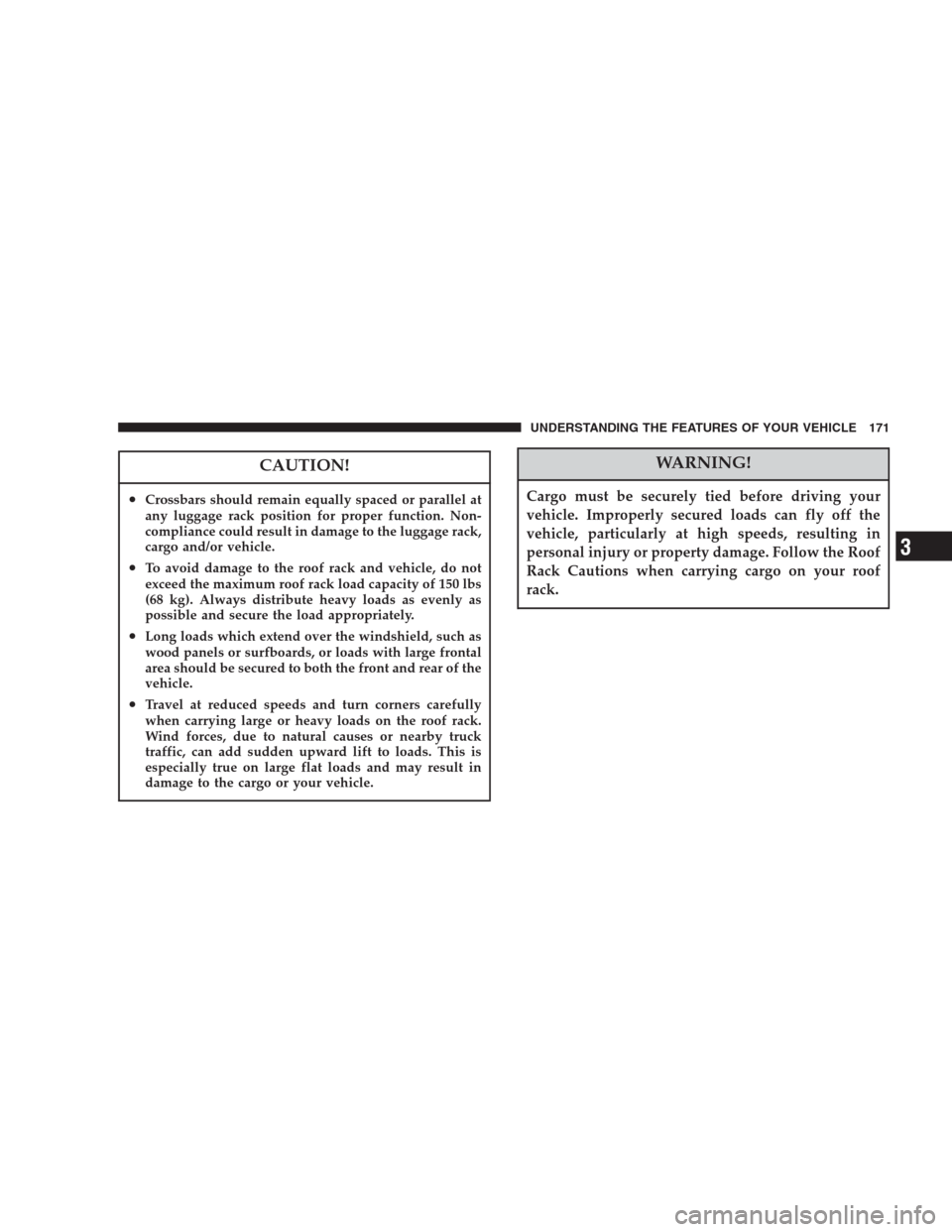

CAUTION!
•Crossbars should remain equally spaced or parallel at
any luggage rack position for proper function. Non-
compliance could result in damage to the luggage rack,
cargo and/or vehicle.
•To avoid damage to the roof rack and vehicle, do not
exceed the maximum roof rack load capacity of 150 lbs
(68 kg). Always distribute heavy loads as evenly as
possible and secure the load appropriately.
•Long loads which extend over the windshield, such as
wood panels or surfboards, or loads with large frontal
area should be secured to both the front and rear of the
vehicle.
•Travel at reduced speeds and turn corners carefully
when carrying large or heavy loads on the roof rack.
Wind forces, due to natural causes or nearby truck
traffic, can add sudden upward lift to loads. This is
especially true on large flat loads and may result in
damage to the cargo or your vehicle.
WARNING!
Cargo must be securely tied before driving your
vehicle. Improperly secured loads can fly off the
vehicle, particularly at high speeds, resulting in
personal injury or property damage. Follow the Roof
Rack Cautions when carrying cargo on your roof
rack.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 171
3

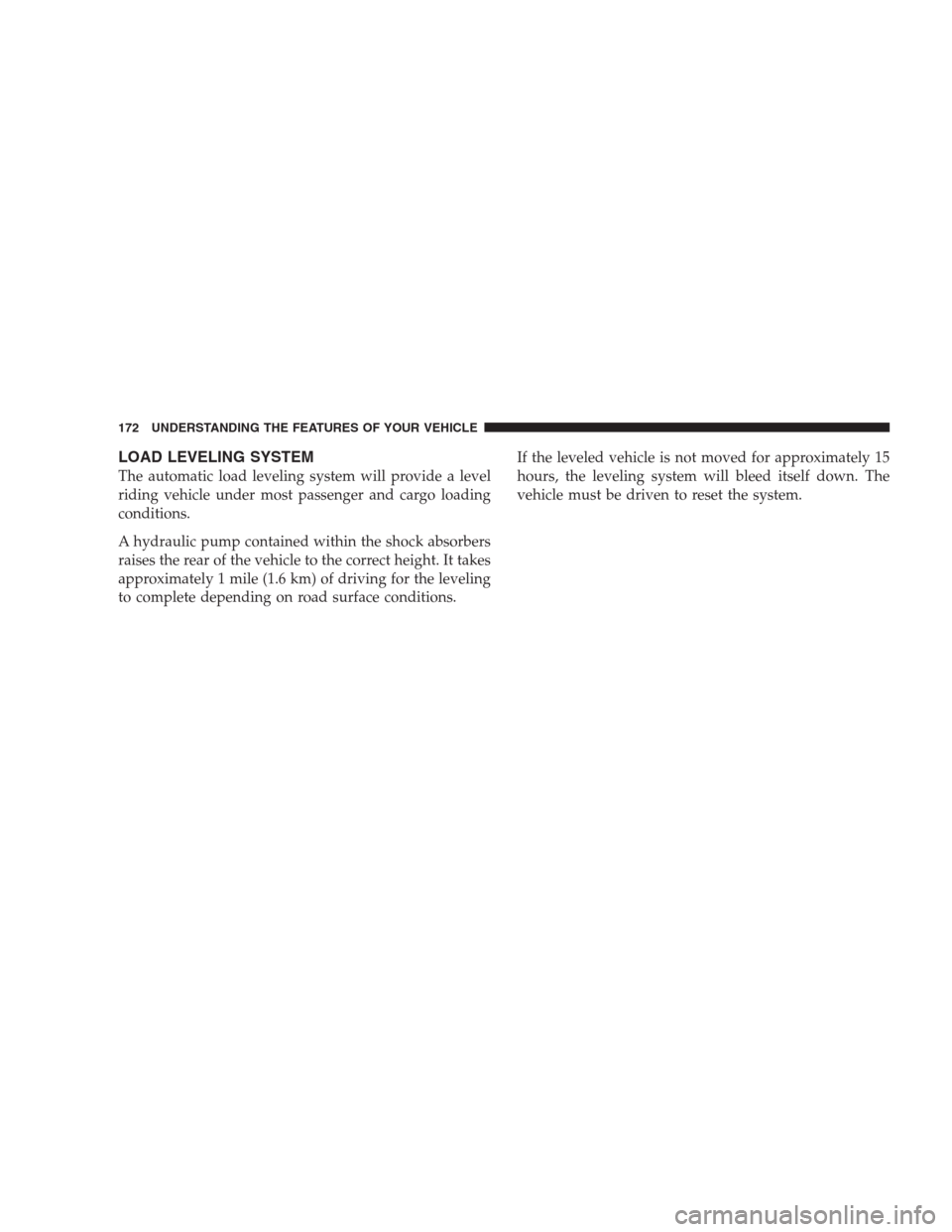

LOAD LEVELING SYSTEM
The automatic load leveling system will provide a level
riding vehicle under most passenger and cargo loading
conditions.
A hydraulic pump contained within the shock absorbers
raises the rear of the vehicle to the correct height. It takes
approximately 1 mile (1.6 km) of driving for the leveling
to complete depending on road surface conditions.If the leveled vehicle is not moved for approximately 15
hours, the leveling system will bleed itself down. The
vehicle must be driven to reset the system.
172 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

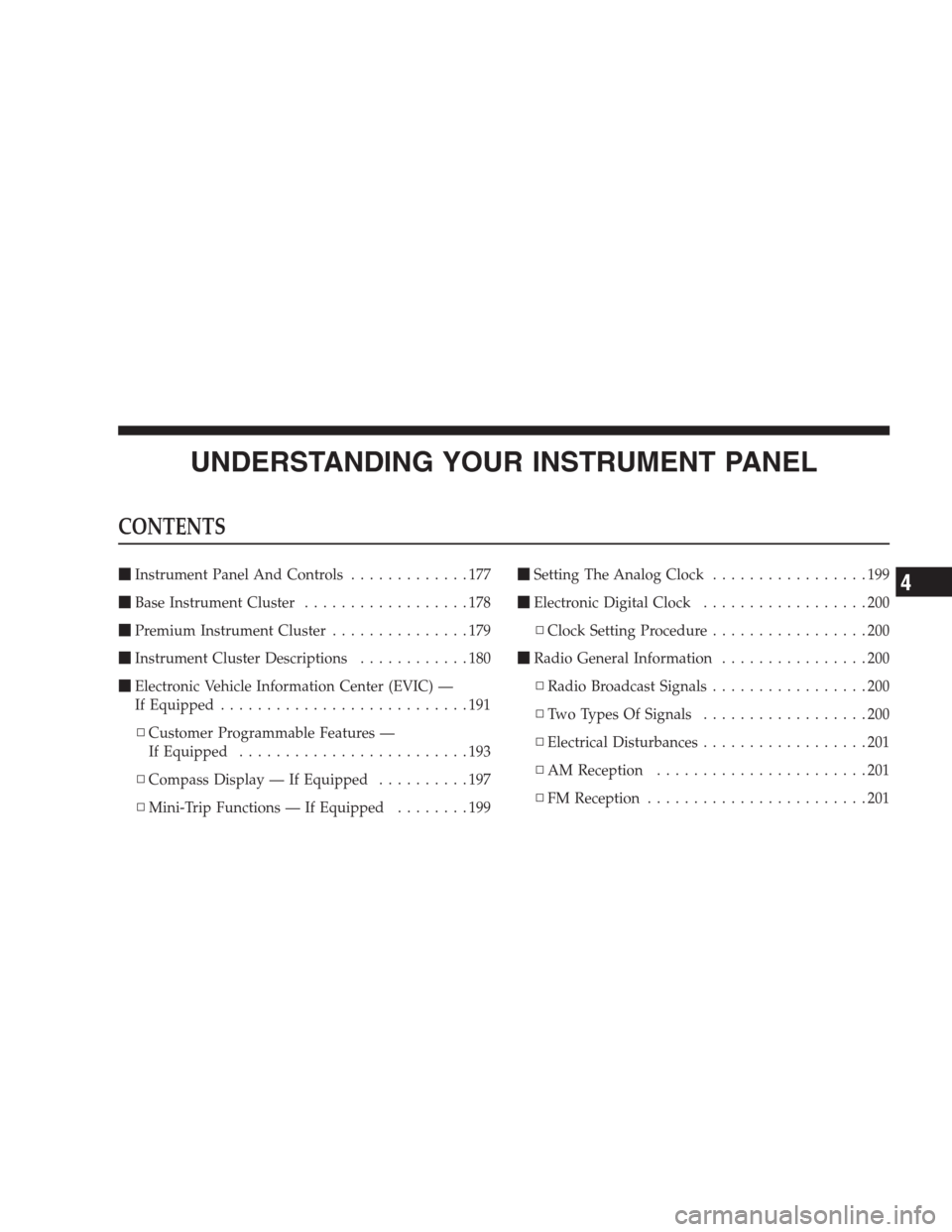

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS

Instrument Panel And Controls.............177

Base Instrument Cluster..................178

Premium Instrument Cluster...............179

Instrument Cluster Descriptions............180

Electronic Vehicle Information Center (EVIC) —
If Equipped...........................191
▫Customer Programmable Features —
If Equipped.........................193
▫Compass Display — If Equipped..........197
▫Mini-Trip Functions — If Equipped........199
Setting The Analog Clock.................199

Electronic Digital Clock..................200
▫Clock Setting Procedure.................200

Radio General Information................200
▫Radio Broadcast Signals.................200
▫Two Types Of Signals..................200
▫Electrical Disturbances..................201
▫AM Reception.......................201
▫FM Reception........................2014

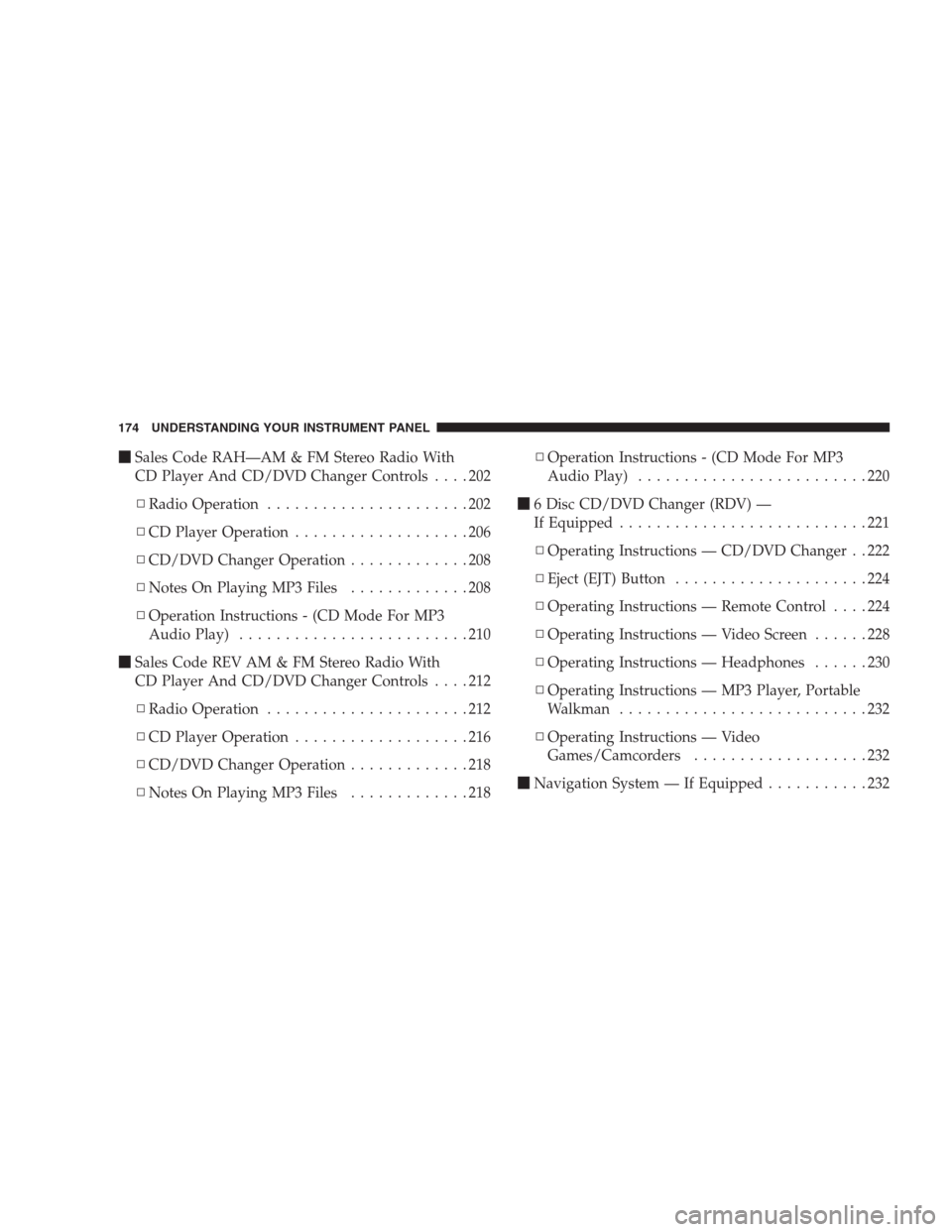

Sales Code RAH—AM & FM Stereo Radio With
CD Player And CD/DVD Changer Controls....202
▫Radio Operation......................202
▫CD Player Operation...................206
▫CD/DVD Changer Operation.............208
▫Notes On Playing MP3 Files.............208
▫Operation Instructions - (CD Mode For MP3
Audio Play).........................210

Sales Code REV AM & FM Stereo Radio With
CD Player And CD/DVD Changer Controls....212
▫Radio Operation......................212
▫CD Player Operation...................216
▫CD/DVD Changer Operation.............218
▫Notes On Playing MP3 Files.............218▫Operation Instructions - (CD Mode For MP3
Audio Play).........................220

6 Disc CD/DVD Changer (RDV) —
If Equipped...........................221
▫Operating Instructions — CD/DVD Changer . . 222
▫Eject (EJT) Button.....................224
▫Operating Instructions — Remote Control....224
▫Operating Instructions — Video Screen......228
▫Operating Instructions — Headphones......230
▫Operating Instructions — MP3 Player, Portable
Walkman...........................232
▫Operating Instructions — Video
Games/Camcorders...................232

Navigation System — If Equipped...........232
174 UNDERSTANDING YOUR INSTRUMENT PANEL

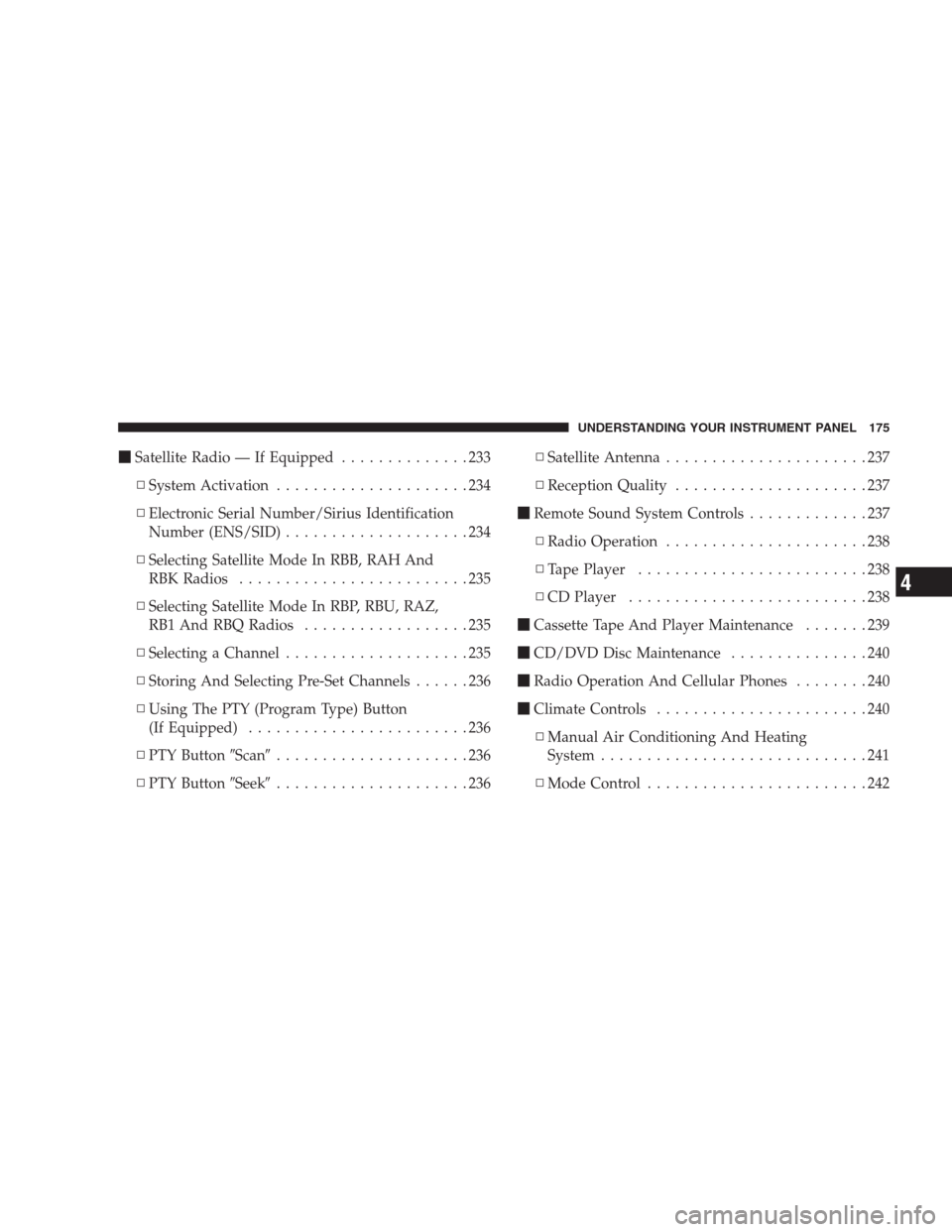

Satellite Radio — If Equipped..............233
▫System Activation.....................234
▫Electronic Serial Number/Sirius Identification
Number (ENS/SID)....................234
▫Selecting Satellite Mode In RBB, RAH And
RBK Radios.........................235
▫Selecting Satellite Mode In RBP, RBU, RAZ,
RB1 And RBQ Radios..................235
▫Selecting a Channel....................235
▫Storing And Selecting Pre-Set Channels......236
▫Using The PTY (Program Type) Button
(If Equipped)........................236
▫PTY ButtonScan.....................236
▫PTY ButtonSeek.....................236▫Satellite Antenna......................237
▫Reception Quality.....................237

Remote Sound System Controls.............237
▫Radio Operation......................238
▫Tape Player.........................238
▫CD Player..........................238

Cassette Tape And Player Maintenance.......239

CD/DVD Disc Maintenance...............240

Radio Operation And Cellular Phones........240

Climate Controls.......................240
▫Manual Air Conditioning And Heating
System.............................241
▫Mode Control........................242
UNDERSTANDING YOUR INSTRUMENT PANEL 175
4

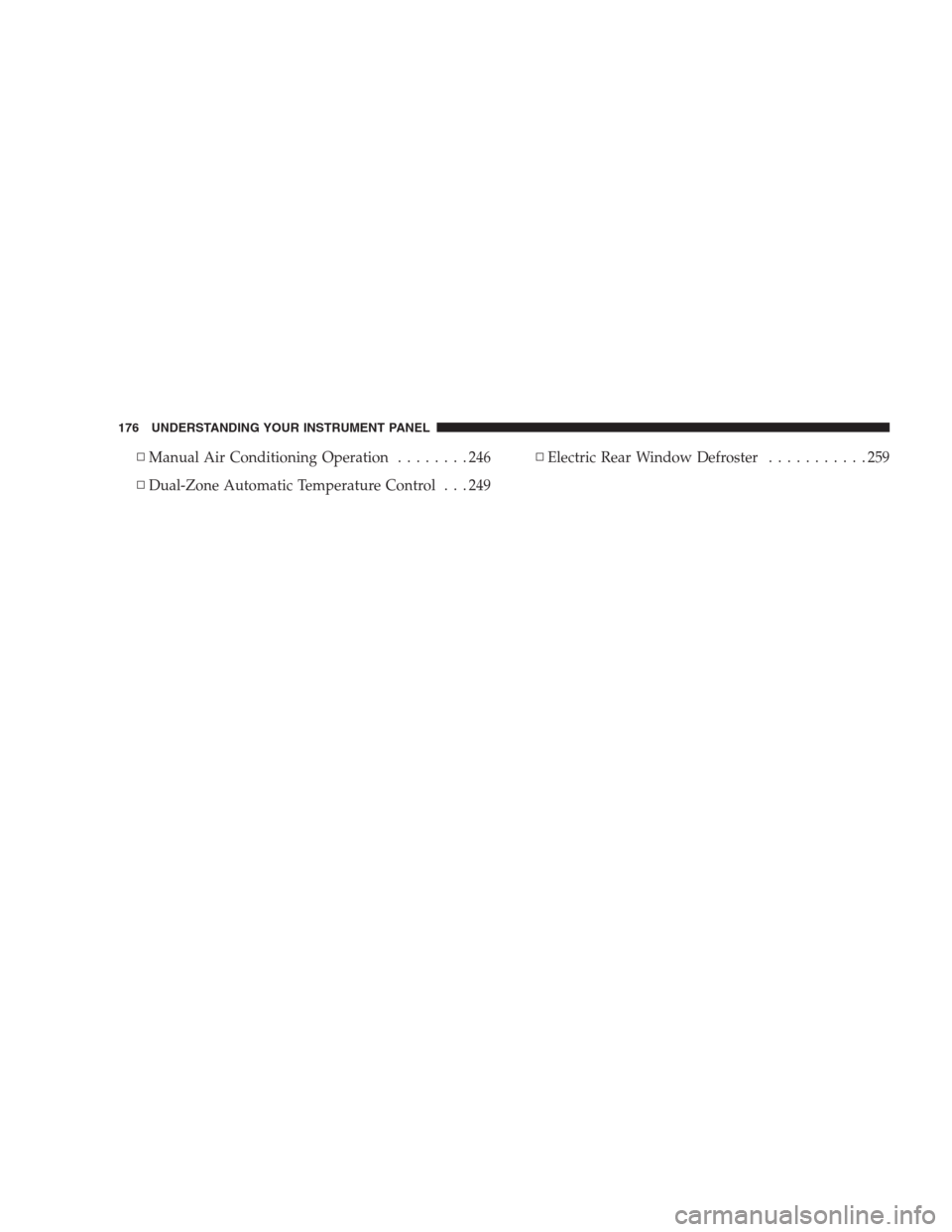

▫Manual Air Conditioning Operation........246
▫Dual-Zone Automatic Temperature Control . . . 249▫Electric Rear Window Defroster...........259
176 UNDERSTANDING YOUR INSTRUMENT PANEL
