2007 CHRYSLER PACIFICA Owners Manual

•Taxi, police, or delivery service (commercial ser-
vice).
•Off-road or desert operation.
NOTE:IfANYof these apply to you then change your
engine oil every 3,000 miles (5 000 km) or 3 months,
whichever comes first and follow schedule “B” of the
Maintenance Schedulessection of this manual.
NOTE:Most vehicles are operated under the conditions
listed for ScheduleB.
Second is Schedule“A”. It is for vehicles that are not
operated under any of the conditions listed under Sched-
uleB.
Use the schedule that best describes your driving condi-
tions. Where time and mileage are listed, follow the
interval that occurs first.NOTE:Under no circumstances should oil change in-
tervals exceed 6000 miles (10 000 km) or 6 months
whichever comes first.
CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.
At Each Stop for Fuel
•Check the engine oil level about 5 minutes after a fully
warmed engine is shut off. Checking the oil level while
the vehicle is on level ground will improve the accu-
racy of the oil level reading. Add oil only when the
level is at or below the ADD or MIN mark.
•Check the windshield washer solvent and add if
required.
MAINTENANCE SCHEDULES 417
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

Once a Month
•Check tire pressure and look for unusual wear or
damage.
•Inspect the battery and clean and tighten the terminals
as required.
•Check the fluid levels of coolant bottle, brake master
cylinder and transmission, add as needed.
•Check all lights and all other electrical items for correct
operation.At Each Oil Change
•Change the engine oil filter.
•Inspect the exhaust system.
•Inspect the brake hoses.
•Inspect the CV joints and front suspension compo-
nents.
•Check the automatic transmission fluid level.
•Check the coolant level, hoses, and clamps.
418 MAINTENANCE SCHEDULES
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

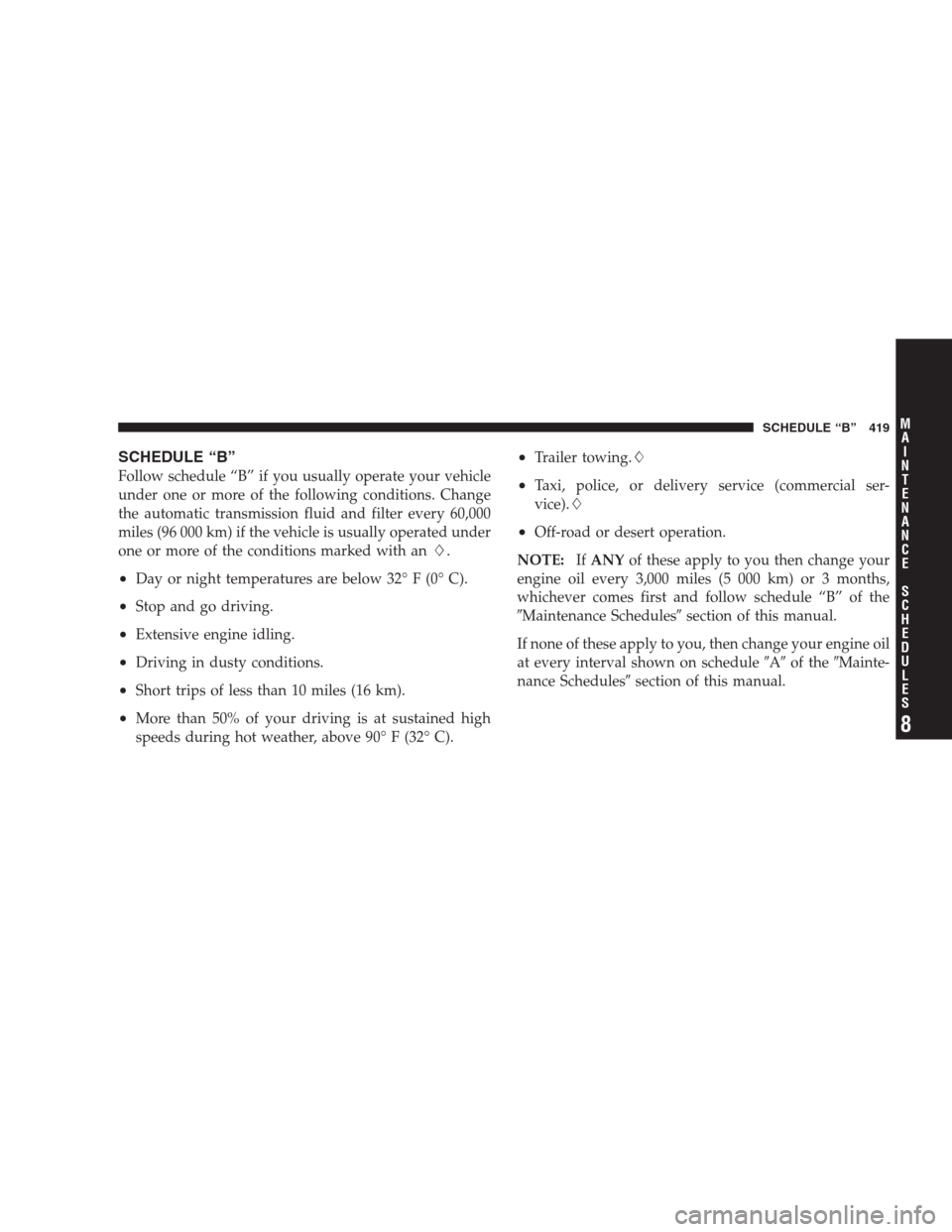

SCHEDULE “B”
Follow schedule “B” if you usually operate your vehicle
under one or more of the following conditions. Change
the automatic transmission fluid and filter every 60,000
miles (96 000 km) if the vehicle is usually operated under
one or more of the conditions marked with an.
•Day or night temperatures are below 32° F (0° C).
•Stop and go driving.
•Extensive engine idling.
•Driving in dusty conditions.
•Short trips of less than 10 miles (16 km).
•More than 50% of your driving is at sustained high
speeds during hot weather, above 90° F (32° C).
•Trailer towing.
•Taxi, police, or delivery service (commercial ser-
vice).
•Off-road or desert operation.
NOTE:IfANYof these apply to you then change your
engine oil every 3,000 miles (5 000 km) or 3 months,
whichever comes first and follow schedule “B” of the
Maintenance Schedulessection of this manual.
If none of these apply to you, then change your engine oil
at every interval shown on scheduleAof theMainte-
nance Schedulessection of this manual.
SCHEDULE “B” 419
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

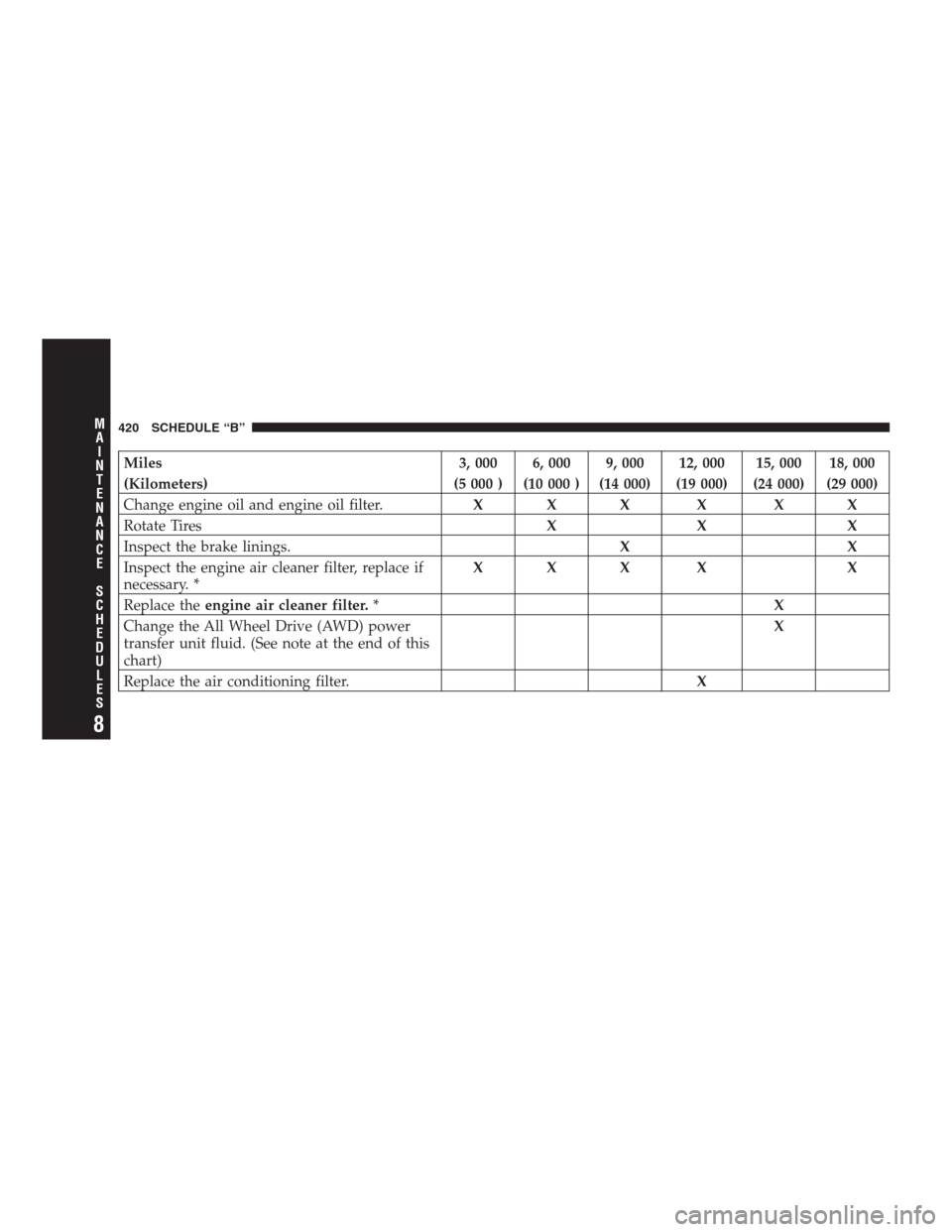

Miles 3, 000 6, 000 9, 000 12, 000 15, 000 18, 000
(Kilometers) (5 000 ) (10 000 ) (14 000) (19 000) (24 000) (29 000)
Change engine oil and engine oil filter.XXXXXX
Rotate TiresXXX
Inspect the brake linings.XX
Inspect the engine air cleaner filter, replace if
necessary. *XXX X X
Replace theengine air cleaner filter.*X
Change the All Wheel Drive (AWD) power
transfer unit fluid. (See note at the end of this
chart)X
Replace the air conditioning filter.X
420 SCHEDULE “B”
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

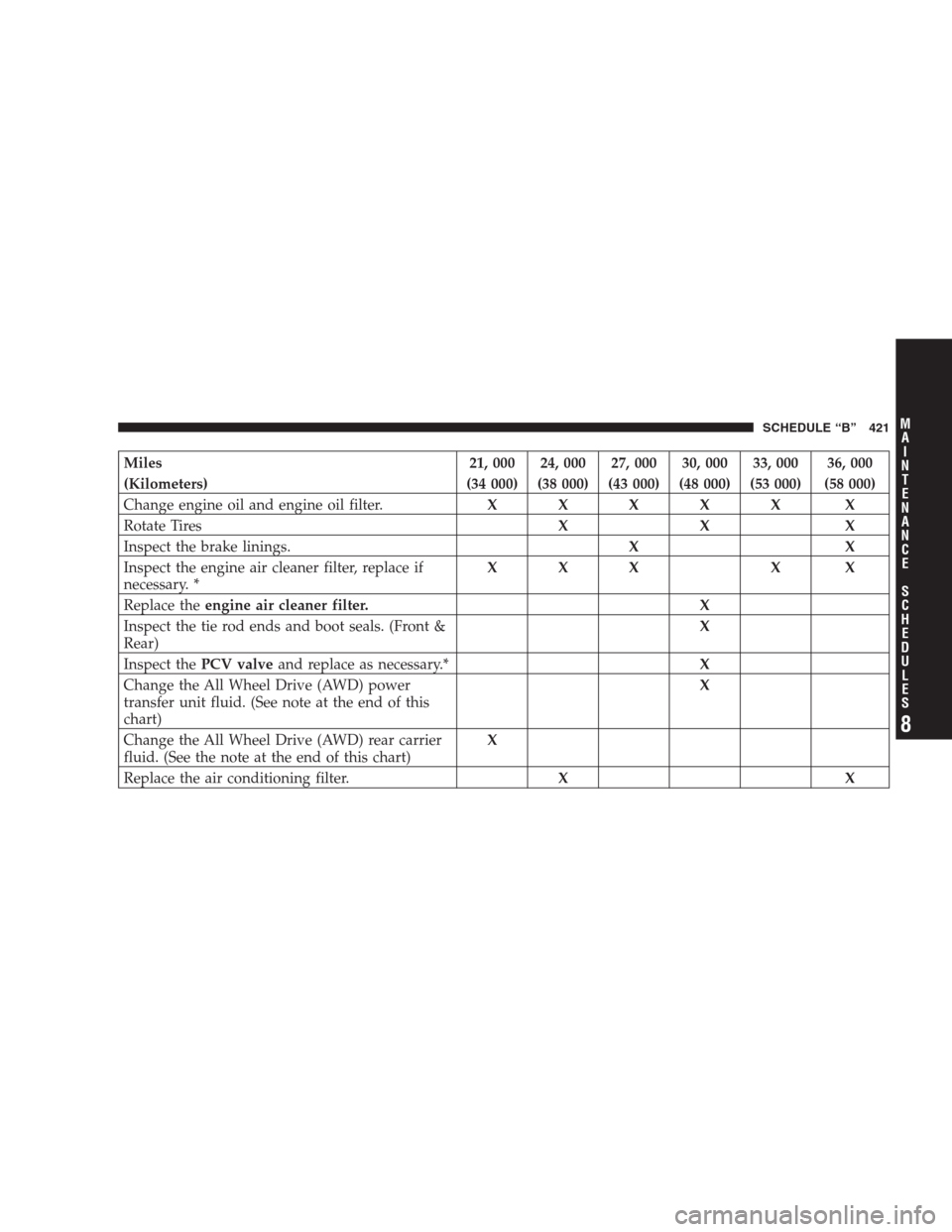

Miles 21, 000 24, 000 27, 000 30, 000 33, 000 36, 000
(Kilometers) (34 000) (38 000) (43 000) (48 000) (53 000) (58 000)
Change engine oil and engine oil filter.XXXXX X
Rotate TiresXX X
Inspect the brake linings.XX
Inspect the engine air cleaner filter, replace if
necessary. *XXX X X
Replace theengine air cleaner filter. X
Inspect the tie rod ends and boot seals. (Front &
Rear)X
Inspect thePCV valveand replace as necessary.*X
Change the All Wheel Drive (AWD) power
transfer unit fluid. (See note at the end of this
chart)X
Change the All Wheel Drive (AWD) rear carrier
fluid. (See the note at the end of this chart)X
Replace the air conditioning filter.XX
SCHEDULE “B” 421
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

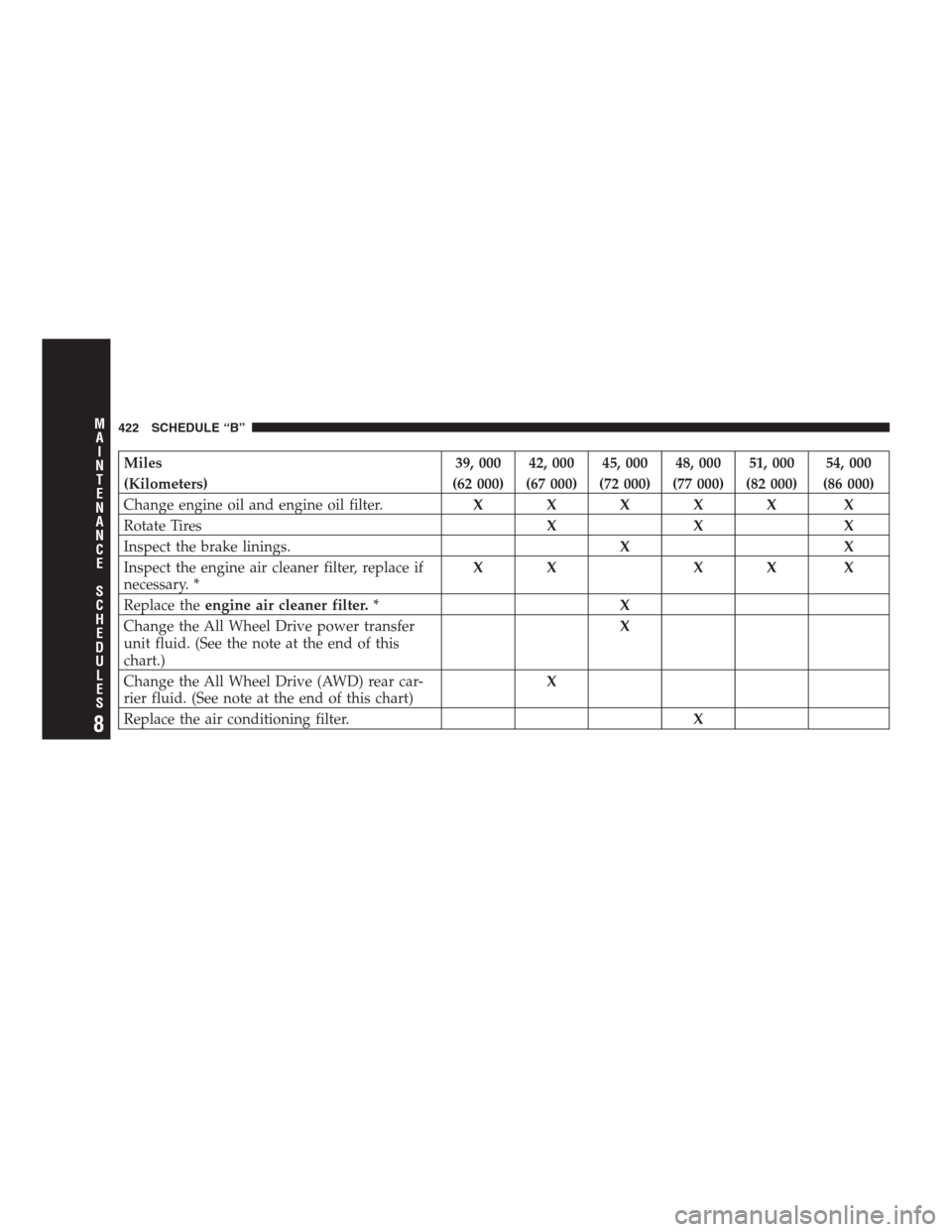

Miles 39, 000 42, 000 45, 000 48, 000 51, 000 54, 000
(Kilometers) (62 000) (67 000) (72 000) (77 000) (82 000) (86 000)
Change engine oil and engine oil filter.XXXXX X
Rotate TiresXX X
Inspect the brake linings.XX
Inspect the engine air cleaner filter, replace if
necessary. *XX XX X
Replace theengine air cleaner filter.*X
Change the All Wheel Drive power transfer
unit fluid. (See the note at the end of this
chart.)X
Change the All Wheel Drive (AWD) rear car-
rier fluid. (See note at the end of this chart)X
Replace the air conditioning filter.X
422 SCHEDULE “B”
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

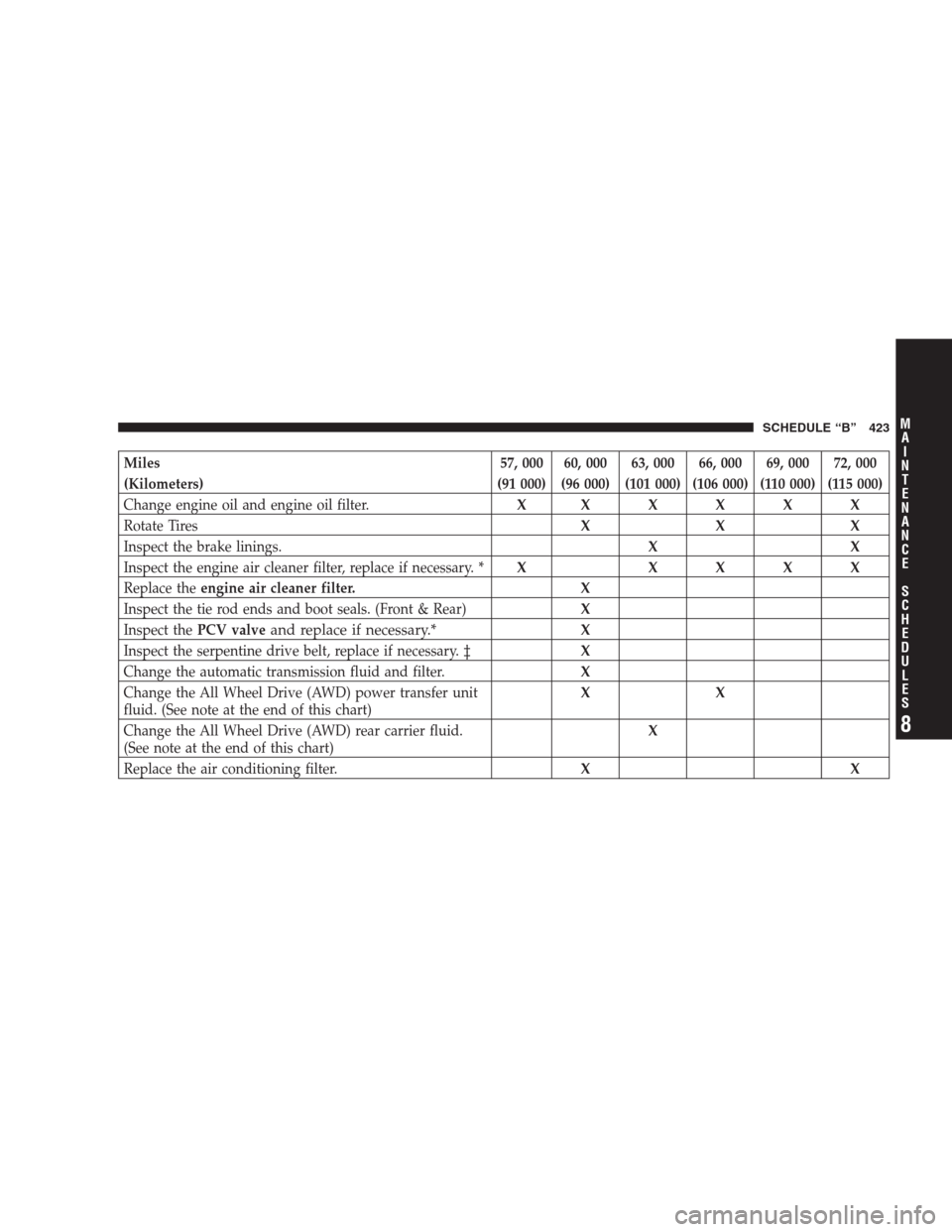

Miles 57, 000 60, 000 63, 000 66, 000 69, 000 72, 000
(Kilometers) (91 000) (96 000) (101 000) (106 000) (110 000) (115 000)
Change engine oil and engine oil filter.XXXXXX
Rotate TiresXXX
Inspect the brake linings.XX
Inspect the engine air cleaner filter, replace if necessary. *X XXXX
Replace theengine air cleaner filter. X
Inspect the tie rod ends and boot seals. (Front & Rear)X
Inspect thePCV valve
and replace if necessary.*X
Inspect the serpentine drive belt, replace if necessary. ‡X
Change the automatic transmission fluid and filter.X
Change the All Wheel Drive (AWD) power transfer unit
fluid. (See note at the end of this chart)XX
Change the All Wheel Drive (AWD) rear carrier fluid.
(See note at the end of this chart)X
Replace the air conditioning filter.XX
SCHEDULE “B” 423
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

Miles 75, 000 78, 000 81, 000 84, 000 87, 000 90, 000
(Kilometers) (120 000) (125 000) (130 000) (134 000) (139 000) (144 000)
Change engine oil and engine oil filter.XXXXXX
Rotate TiresXXX
Inspect the brake linings.XX
Inspect the engine air cleaner filter, replace if necessary. *XXXX
Replace theengine air cleaner filter X X
Replace thespark plugs. X
Inspect the tie rod ends and boot seals. (Front & Rear)X
Check thePCV valve
and replace if necessary. Not re-
quired if previously changed.*X
Inspect the serpentine drive belt, replace if necessary. ‡XX
Change the All Wheel Drive power transfer unit fluid.
(See the note at the end of this chart.)XX
Change the All Wheel Drive (AWD) rear carrier fluid.
(See note at the end of this chart)X
Replace the air conditioning filter.X
