2007 CHEVROLET CORVETTE display

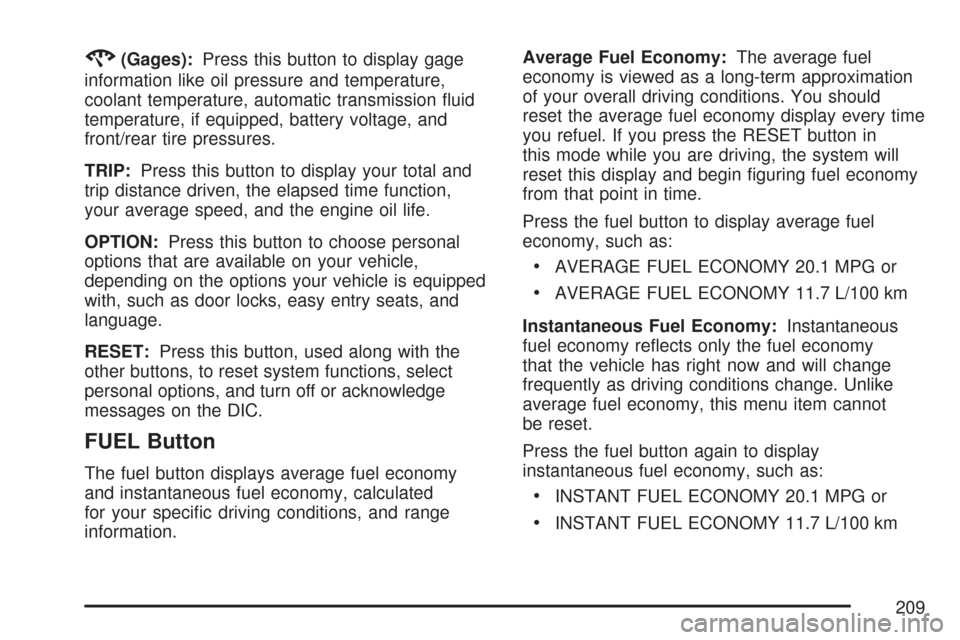

2(Gages):Press this button to display gage
information like oil pressure and temperature,
coolant temperature, automatic transmission uid
temperature, if equipped, battery voltage, and
front/rear tire pressures.
TRIP:Press this button to display your total and
trip distance driven, the elapsed time function,
your average speed, and the engine oil life.
OPTION:Press this button to choose personal
options that are available on your vehicle,
depending on the options your vehicle is equipped
with, such as door locks, easy entry seats, and
language.
RESET:Press this button, used along with the
other buttons, to reset system functions, select
personal options, and turn off or acknowledge
messages on the DIC.
FUEL Button
The fuel button displays average fuel economy
and instantaneous fuel economy, calculated
for your specic driving conditions, and range
information.Average Fuel Economy:The average fuel
economy is viewed as a long-term approximation
of your overall driving conditions. You should
reset the average fuel economy display every time
you refuel. If you press the RESET button in
this mode while you are driving, the system will
reset this display and begin guring fuel economy
from that point in time.
Press the fuel button to display average fuel
economy, such as:
AVERAGE FUEL ECONOMY 20.1 MPG or
AVERAGE FUEL ECONOMY 11.7 L/100 km
Instantaneous Fuel Economy:Instantaneous
fuel economy reects only the fuel economy
that the vehicle has right now and will change
frequently as driving conditions change. Unlike
average fuel economy, this menu item cannot
be reset.
Press the fuel button again to display
instantaneous fuel economy, such as:
INSTANT FUEL ECONOMY 20.1 MPG or
INSTANT FUEL ECONOMY 11.7 L/100 km
209

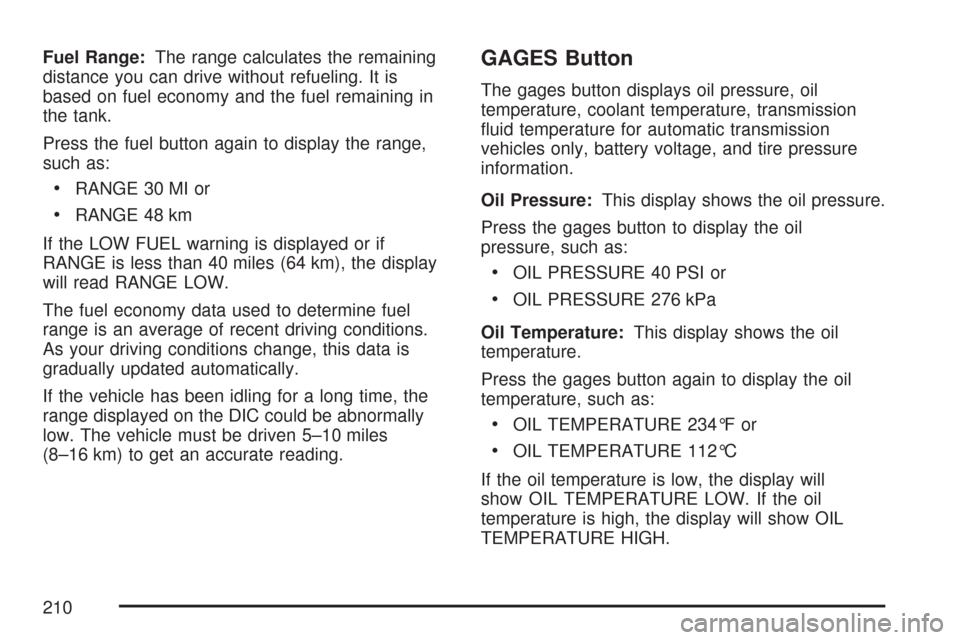

Fuel Range:The range calculates the remaining
distance you can drive without refueling. It is
based on fuel economy and the fuel remaining in
the tank.
Press the fuel button again to display the range,
such as:
RANGE 30 MI or
RANGE 48 km
If the LOW FUEL warning is displayed or if
RANGE is less than 40 miles (64 km), the display
will read RANGE LOW.
The fuel economy data used to determine fuel
range is an average of recent driving conditions.
As your driving conditions change, this data is
gradually updated automatically.
If the vehicle has been idling for a long time, the
range displayed on the DIC could be abnormally
low. The vehicle must be driven 5–10 miles
(8–16 km) to get an accurate reading.
GAGES Button
The gages button displays oil pressure, oil
temperature, coolant temperature, transmission
uid temperature for automatic transmission
vehicles only, battery voltage, and tire pressure
information.
Oil Pressure:This display shows the oil pressure.
Press the gages button to display the oil
pressure, such as:
OIL PRESSURE 40 PSI or
OIL PRESSURE 276 kPa
Oil Temperature:This display shows the oil
temperature.
Press the gages button again to display the oil
temperature, such as:
OIL TEMPERATURE 234°F or
OIL TEMPERATURE 112°C
If the oil temperature is low, the display will
show OIL TEMPERATURE LOW. If the oil
temperature is high, the display will show OIL
TEMPERATURE HIGH.
210

Coolant Temperature:This display shows the
engine coolant temperature.
Press the gages button again to display the
coolant temperature, such as:
COOLANT TEMPERATURE 123°F or
COOLANT TEMPERATURE 51°C
If the coolant temperature is low, the display will
show COOLANT TEMPERATURE LOW. If
the coolant temperature is high, the display will
show COOLANT TEMPERATURE HIGH.
Transmission Fluid Temperature:If you have
an automatic transmission vehicle, this display
shows the automatic transmission uid
temperature.
Press the gages button again to display the
automatic transmission uid temperature, such as:
TRANS FLUID TEMP 123°F or
TRANS FLUID TEMP 51°C
If the transmission uid temperature is low, the
display will show TRANS FLUID TEMP LOW. If the
transmission uid temperature is high, the
display will show TRANS FLUID TEMP HIGH.Battery Voltage:This display shows the current
battery voltage.
Press the gages button again to display the
battery voltage, such as:
BATTERY VOLTAGE 13.5 VOLTS
Tire Pressure:This display shows the tire
pressure for each tire.
Press the gages button again to display the tire
pressure for the front tires, such as:
FRONT TIRE PRESSURES L 34 PSI R 33 PSI
or
FRONT TIRE PRESSURES L 234 kPa
R 228 kPa
Press the gages button again to display the tire
pressure for the rear tires, such as:
REAR TIRE PRESSURES L 34 PSI R 33 PSI
or
REAR TIRE PRESSURES L 234 kPa
R 228 kPa
211

TRIP Button
The TRIP button displays the odometer, trip
distance, elapsed time, average speed, and oil life
remaining information.
Odometer:The odometer shows how far your
vehicle has been driven in either miles or
kilometers. Press the TRIP button to display
odometer readings, such as:
ODOMETER 12345 MI or
ODOMETER 20008 km
You can also display the odometer by turning on
the parking lamps.
Trip Odometers:There are two trip odometers.
Press the TRIP button to display TRIP
ODOMETER A readings and press the button
again to display TRIP ODOMETER B readings,
such as:
TRIP ODOMETER A 130.5 MI or
TRIP ODOMETER A 209.9 km
TRIP ODOMETER B 300.5 MI or
TRIP ODOMETER B 483.5 kmBoth of the trip odometers can be used
simultaneously. TRIP A could be used to track the
distance to a destination. TRIP B could be used
to track maintenance periods. The trip odometers
can be reset by pressing the RESET button on
the DIC.
There is also a miles since last ignition feature
that displays the number of miles (kilometers)
driven since you last started the vehicle. Press and
hold the RESET button for three seconds, then
release it. The miles (kilometers) since the
last ignition cycle will be set into the trip odometer.
Elapsed Timer:Press the TRIP button until
ELAPSED TIMER is displayed, such as
ELAPSED TIMER .00.
When the ignition is in on, the DIC can be used
as a stopwatch. The display can show hours,
minutes and seconds. The elapsed time indicator
will record up to 23 hours, 59 minutes and
59 seconds, then it will reset to zero and
continue counting. The display appears as
ELAPSED TIMER .00 in the elapsed time function.
212

You can start or stop the elapsed time by pressing
the RESET button. To reset the elapsed time to
zero, press the RESET button for three seconds
while the timer is displayed.
Pressing and holding the RESET button for at
least 10 seconds will reset the timer display to the
time since last ignition cycle.
Average Speed:Press the TRIP button until the
average speed is displayed, such as:
AVERAGE SPEED 62 MPH or
AVERAGE SPEED 100 km/h
Press and hold the RESET button to reset to
0.0 mph (km/h).
Engine Oil Life:Press the TRIP button until the
engine oil life is displayed, such as OIL LIFE
REMAINING 89%.
This is an estimate of the engine oil’s remaining
useful life. It will show 100% when the system
is reset after an oil change. It will alert you
to change your oil on a schedule consistent with
your driving conditions.When the remaining oil life is low, the system will
alert you with the message CHANGE ENGINE OIL.
Remember, you must reset the engine oil life
system yourself after each oil change. It will not
reset itself. To reset the system, seeEngine
Oil Life System on page 340. Be careful not to
reset the engine oil life system accidentally at any
time other than when the oil has just been
changed. It cannot be reset accurately until the
next oil change.
SeeScheduled Maintenance on page 433and
Engine Oil on page 333for more information.
OPTION Button
The OPTION button allows you to access the
PERSONAL OPTIONS menu and customize the
personalization settings on your vehicle. See
DIC Vehicle Personalization on page 234for more
information.
RESET Button
The RESET button, used along with other buttons,
will reset system functions and turn off or
acknowledge messages on the DIC.
213

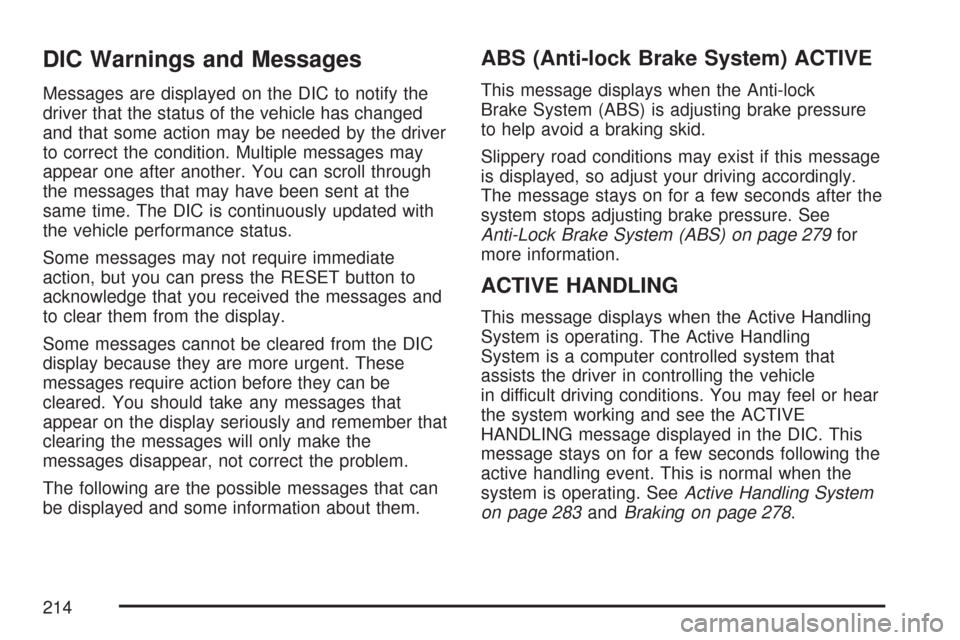

DIC Warnings and Messages
Messages are displayed on the DIC to notify the
driver that the status of the vehicle has changed
and that some action may be needed by the driver
to correct the condition. Multiple messages may
appear one after another. You can scroll through
the messages that may have been sent at the
same time. The DIC is continuously updated with
the vehicle performance status.
Some messages may not require immediate
action, but you can press the RESET button to
acknowledge that you received the messages and
to clear them from the display.
Some messages cannot be cleared from the DIC
display because they are more urgent. These
messages require action before they can be
cleared. You should take any messages that
appear on the display seriously and remember that
clearing the messages will only make the
messages disappear, not correct the problem.
The following are the possible messages that can
be displayed and some information about them.
ABS (Anti-lock Brake System) ACTIVE
This message displays when the Anti-lock
Brake System (ABS) is adjusting brake pressure
to help avoid a braking skid.
Slippery road conditions may exist if this message
is displayed, so adjust your driving accordingly.
The message stays on for a few seconds after the
system stops adjusting brake pressure. See
Anti-Lock Brake System (ABS) on page 279for
more information.
ACTIVE HANDLING
This message displays when the Active Handling
System is operating. The Active Handling
System is a computer controlled system that
assists the driver in controlling the vehicle
in difficult driving conditions. You may feel or hear
the system working and see the ACTIVE
HANDLING message displayed in the DIC. This
message stays on for a few seconds following the
active handling event. This is normal when the
system is operating. SeeActive Handling System
on page 283andBraking on page 278.
214

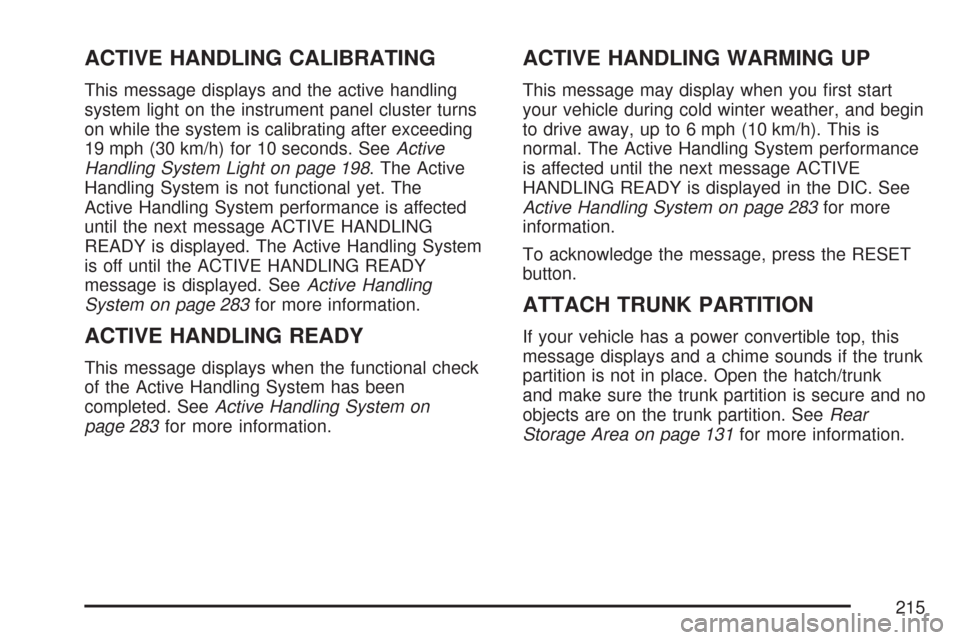

ACTIVE HANDLING CALIBRATING
This message displays and the active handling
system light on the instrument panel cluster turns
on while the system is calibrating after exceeding
19 mph (30 km/h) for 10 seconds. SeeActive
Handling System Light on page 198. The Active
Handling System is not functional yet. The
Active Handling System performance is affected
until the next message ACTIVE HANDLING
READY is displayed. The Active Handling System
is off until the ACTIVE HANDLING READY
message is displayed. SeeActive Handling
System on page 283for more information.
ACTIVE HANDLING READY
This message displays when the functional check
of the Active Handling System has been
completed. SeeActive Handling System on
page 283for more information.
ACTIVE HANDLING WARMING UP
This message may display when you rst start
your vehicle during cold winter weather, and begin
to drive away, up to 6 mph (10 km/h). This is
normal. The Active Handling System performance
is affected until the next message ACTIVE
HANDLING READY is displayed in the DIC. See
Active Handling System on page 283for more
information.
To acknowledge the message, press the RESET
button.
ATTACH TRUNK PARTITION
If your vehicle has a power convertible top, this
message displays and a chime sounds if the trunk
partition is not in place. Open the hatch/trunk
and make sure the trunk partition is secure and no
objects are on the trunk partition. SeeRear
Storage Area on page 131for more information.
215

BATTERY SAVER ACTIVE
This message displays when the vehicle has
detected that the battery voltage is dropping
beyond a reasonable point. The battery saver
system starts reducing certain features of the
vehicle that you may be able to notice. At the point
that features are disabled, this message is
displayed. It means that the vehicle is trying to save
the charge in the battery. Turn off unnecessary
accessories to allow the battery to recharge.
BUCKLE PASSENGER
This message reminds you to buckle the
passenger’s safety belt.
This message displays and a chime sounds when
the ignition is on, the driver’s safety belt is
buckled, the passenger’s safety belt is unbuckled
with the passenger airbag enabled, and the
vehicle is in motion. You should have the
passenger buckle their safety belt.The reminder will be repeated if the ignition is on,
the vehicle is in motion, the driver is buckled
and the passenger is still unbuckled, and
the passenger airbag is enabled. If the
passenger’s safety belt is already buckled, this
message and chime will not come on.
BUCKLE SEATBELT
This message reminds you to buckle the driver’s
safety belt.
This message displays and a chime sounds when
the ignition is on, the driver’s safety belt is
unbuckled, and the vehicle is in motion. You
should buckle your safety belt.
If the driver remains unbuckled when the ignition
is on and the vehicle is in motion, the reminder
will be repeated. If the driver’s safety belt is
already buckled, this message and chime will not
come on.
This message is an additional reminder to the
safety belt reminder light in the instrument panel
cluster. SeeSafety Belt Reminder Light on
page 190for more information.
216
