2007 CHEVROLET CORVETTE display

SERVICE AIR CONDITIONING
This message displays when the electronic sensors
that control the air conditioning and heating
systems are no longer working. Have the climate
control system serviced by your dealer if you notice
a drop in heating and air conditioning efficiency.
SERVICE ANTILOCK BRAKES
If this message displays while you are driving, stop
as soon as possible and turn the ignition off. Then
start the engine again to reset the system. If the
message stays on, or comes back on again while
you are driving, your vehicle is in need of service.
See your dealer. If the anti-lock brake system (ABS)
warning light is on and the regular brake system
warning light is not on, you still have brakes, but do
not have ABS. If the regular brake system warning
light is also on, you do not have ABS and there is a
problem with the brakes. SeeAnti-Lock Brake
System Warning Light on page 197andBrake
System Warning Light on page 196.
If this message is displayed, the Traction Control
System (TCS) and the Active Handling System
will also be disabled. The DIC will scroll three
messages: SERVICE ANTILOCK BRAKES,
SERVICE TRACTION SYSTEM, and SERVICEACTIVE HANDLING, and the instrument panel
cluster lights will come on along with a chime.
When the service message is displayed, the
computer controlled systems will not assist the
driver. Have the system repaired by your dealer as
soon as possible. Adjust your driving accordingly.
To acknowledge these messages, press the
RESET button.SERVICE CHARGING SYSTEM
If this message displays while you are driving,
there may be a problem with the electrical charging
system. It could mean that there is a loose or
broken drive belt or that there is another electrical
problem. Have your vehicle checked right away
by your dealer. Driving while this message is
on could drain the battery.
If you must drive a short distance with the
message on, be certain to turn off the vehicle’s
accessories, such as the radio and air conditioner.
Multiple chimes sound when this message is
displayed.
To acknowledge the message, press the RESET
button. The message reappears every 10 minutes
until this condition changes.
225

SERVICE ELECTRICAL SYSTEM
This message displays if an electrical problem has
occurred within the Powertrain Control Module
(PCM). Have your vehicle serviced by your dealer.
SERVICE FUEL SYSTEM
This message displays if the Powertrain Control
Module (PCM) has detected a problem within
the fuel system. Have your vehicle serviced
by your dealer. This message also displays when
the cluster is not getting fuel information from
the PCM.
SERVICE RIDE CONTROL
This message displays when the Selective Ride
Control system has detected a malfunction and
the system must be serviced. See your dealer.
If a fault is present in the Selective Ride Control
system which causes the shocks to be in their
full soft condition, the messages SERVICE RIDE
CONTROL, SHOCKS INOPERATIVE, and
MAXIMUM SPEED 80 MPH (129 km/h) will display
together. SeeSelective Ride Control on page 286
for more information.
SERVICE TIRE MONITOR
This message displays if a part on the Tire
Pressure Monitor (TPM) system is not working
properly. If you drive your vehicle while any of
the four sensors are missing or inoperable,
the warning comes on in about 30 minutes.
A sensor would be missing, for example, if you
put different wheels on your vehicle without
transferring the sensors. If the warning comes on
and stays on, there may be a problem with the
TPM. See your dealer.
SERVICE TRACTION SYSTEM
If this message displays when you are driving,
there is a problem with the Traction Control
System (TCS) and your vehicle is in need of
service. See your dealer. When this message is
displayed, the system will not limit wheel spin.
Adjust your driving accordingly.
The traction control system (TCS) warning light
on the instrument panel cluster will also turn
on and a chime will sound.
226

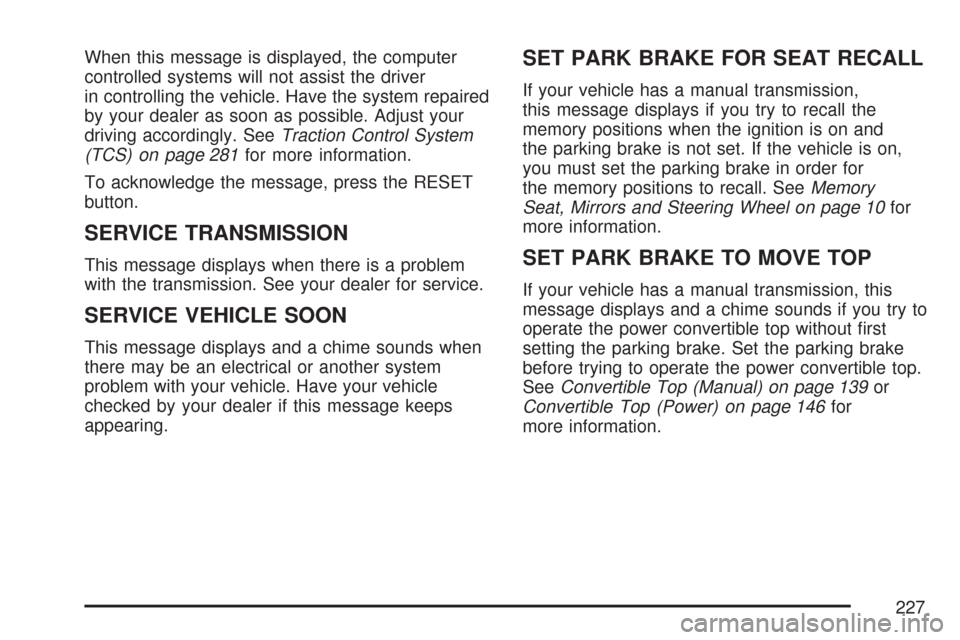

When this message is displayed, the computer
controlled systems will not assist the driver
in controlling the vehicle. Have the system repaired
by your dealer as soon as possible. Adjust your
driving accordingly. SeeTraction Control System
(TCS) on page 281for more information.
To acknowledge the message, press the RESET
button.
SERVICE TRANSMISSION
This message displays when there is a problem
with the transmission. See your dealer for service.
SERVICE VEHICLE SOON
This message displays and a chime sounds when
there may be an electrical or another system
problem with your vehicle. Have your vehicle
checked by your dealer if this message keeps
appearing.
SET PARK BRAKE FOR SEAT RECALL
If your vehicle has a manual transmission,
this message displays if you try to recall the
memory positions when the ignition is on and
the parking brake is not set. If the vehicle is on,
you must set the parking brake in order for
the memory positions to recall. SeeMemory
Seat, Mirrors and Steering Wheel on page 10for
more information.
SET PARK BRAKE TO MOVE TOP
If your vehicle has a manual transmission, this
message displays and a chime sounds if you try to
operate the power convertible top without rst
setting the parking brake. Set the parking brake
before trying to operate the power convertible top.
SeeConvertible Top (Manual) on page 139or
Convertible Top (Power) on page 146for
more information.
227

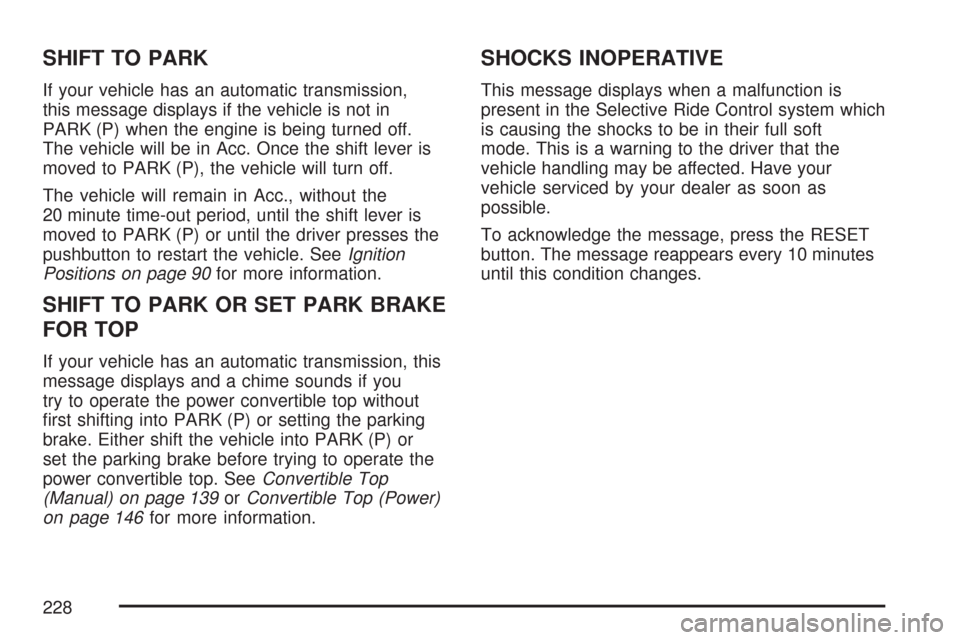

SHIFT TO PARK
If your vehicle has an automatic transmission,
this message displays if the vehicle is not in
PARK (P) when the engine is being turned off.
The vehicle will be in Acc. Once the shift lever is
moved to PARK (P), the vehicle will turn off.
The vehicle will remain in Acc., without the
20 minute time-out period, until the shift lever is
moved to PARK (P) or until the driver presses the
pushbutton to restart the vehicle. SeeIgnition
Positions on page 90for more information.
SHIFT TO PARK OR SET PARK BRAKE
FOR TOP
If your vehicle has an automatic transmission, this
message displays and a chime sounds if you
try to operate the power convertible top without
rst shifting into PARK (P) or setting the parking
brake. Either shift the vehicle into PARK (P) or
set the parking brake before trying to operate the
power convertible top. SeeConvertible Top
(Manual) on page 139orConvertible Top (Power)
on page 146for more information.
SHOCKS INOPERATIVE
This message displays when a malfunction is
present in the Selective Ride Control system which
is causing the shocks to be in their full soft
mode. This is a warning to the driver that the
vehicle handling may be affected. Have your
vehicle serviced by your dealer as soon as
possible.
To acknowledge the message, press the RESET
button. The message reappears every 10 minutes
until this condition changes.
228

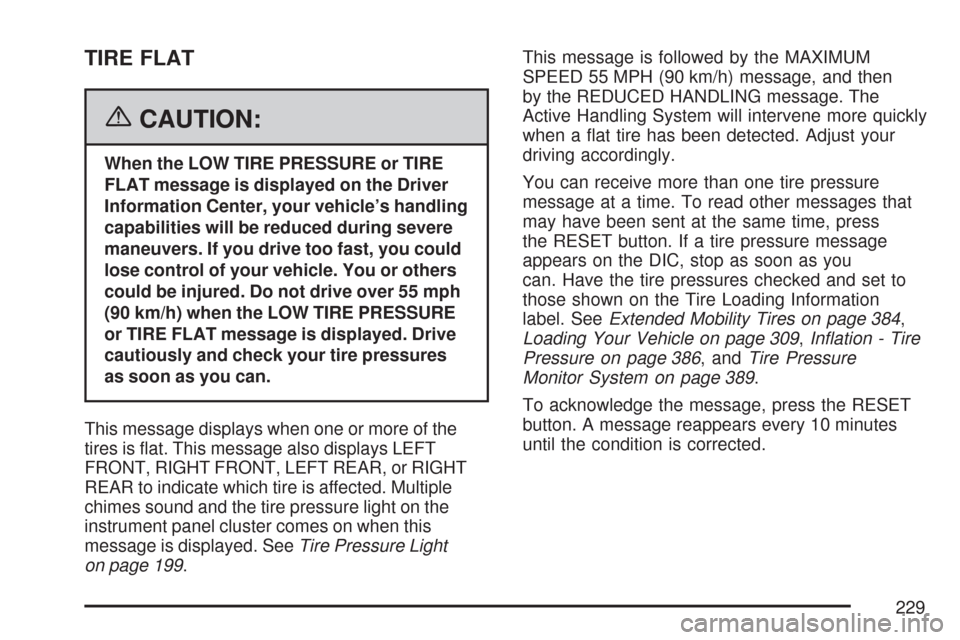

TIRE FLAT
{CAUTION:
When the LOW TIRE PRESSURE or TIRE
FLAT message is displayed on the Driver
Information Center, your vehicle’s handling
capabilities will be reduced during severe
maneuvers. If you drive too fast, you could
lose control of your vehicle. You or others
could be injured. Do not drive over 55 mph
(90 km/h) when the LOW TIRE PRESSURE
or TIRE FLAT message is displayed. Drive
cautiously and check your tire pressures
as soon as you can.
This message displays when one or more of the
tires is at. This message also displays LEFT
FRONT, RIGHT FRONT, LEFT REAR, or RIGHT
REAR to indicate which tire is affected. Multiple
chimes sound and the tire pressure light on the
instrument panel cluster comes on when this
message is displayed. SeeTire Pressure Light
on page 199.This message is followed by the MAXIMUM
SPEED 55 MPH (90 km/h) message, and then
by the REDUCED HANDLING message. The
Active Handling System will intervene more quickly
when a at tire has been detected. Adjust your
driving accordingly.
You can receive more than one tire pressure
message at a time. To read other messages that
may have been sent at the same time, press
the RESET button. If a tire pressure message
appears on the DIC, stop as soon as you
can. Have the tire pressures checked and set to
those shown on the Tire Loading Information
label. SeeExtended Mobility Tires on page 384,
Loading Your Vehicle on page 309,Ination - Tire
Pressure on page 386, andTire Pressure
Monitor System on page 389.
To acknowledge the message, press the RESET
button. A message reappears every 10 minutes
until the condition is corrected.
229

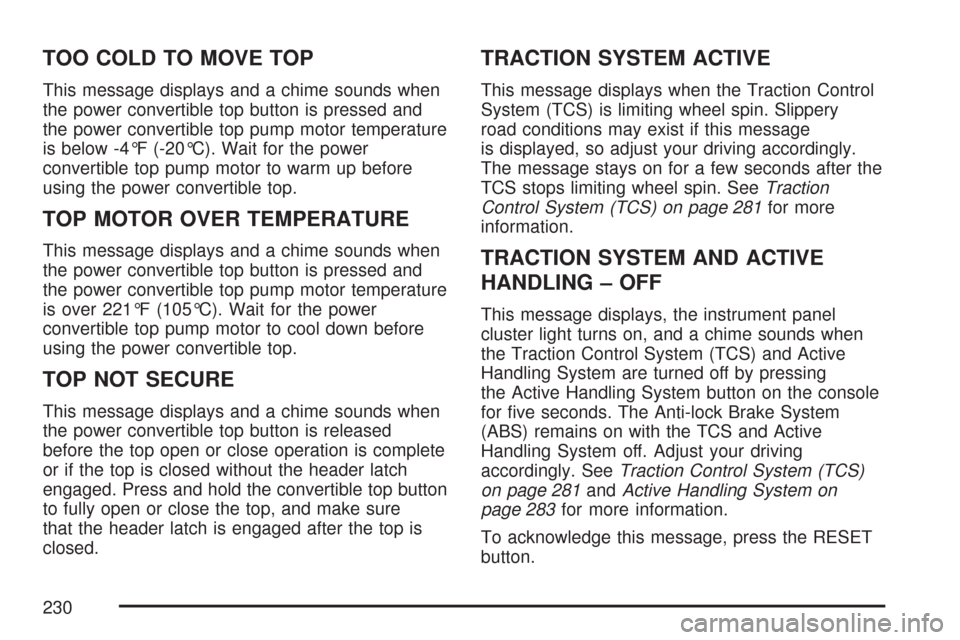

TOO COLD TO MOVE TOP
This message displays and a chime sounds when
the power convertible top button is pressed and
the power convertible top pump motor temperature
is below -4°F (-20°C). Wait for the power
convertible top pump motor to warm up before
using the power convertible top.
TOP MOTOR OVER TEMPERATURE
This message displays and a chime sounds when
the power convertible top button is pressed and
the power convertible top pump motor temperature
is over 221°F (105°C). Wait for the power
convertible top pump motor to cool down before
using the power convertible top.
TOP NOT SECURE
This message displays and a chime sounds when
the power convertible top button is released
before the top open or close operation is complete
or if the top is closed without the header latch
engaged. Press and hold the convertible top button
to fully open or close the top, and make sure
that the header latch is engaged after the top is
closed.
TRACTION SYSTEM ACTIVE
This message displays when the Traction Control
System (TCS) is limiting wheel spin. Slippery
road conditions may exist if this message
is displayed, so adjust your driving accordingly.
The message stays on for a few seconds after the
TCS stops limiting wheel spin. SeeTraction
Control System (TCS) on page 281for more
information.
TRACTION SYSTEM AND ACTIVE
HANDLING – OFF
This message displays, the instrument panel
cluster light turns on, and a chime sounds when
the Traction Control System (TCS) and Active
Handling System are turned off by pressing
the Active Handling System button on the console
for ve seconds. The Anti-lock Brake System
(ABS) remains on with the TCS and Active
Handling System off. Adjust your driving
accordingly. SeeTraction Control System (TCS)
on page 281andActive Handling System on
page 283for more information.
To acknowledge this message, press the RESET
button.
230

TRACTION SYSTEM AND ACTIVE
HANDLING – ON
If the Traction Control System (TCS) and Active
Handling System are off, this message displays
briey, the instrument panel cluster light turns off,
and a chime sounds when the TCS and Active
Handling System are turned on by briey pressing
the Active Handling System button on the
console. SeeTraction Control System (TCS) on
page 281andActive Handling System on
page 283for more information.
TRACTION SYSTEM – OFF
This message displays and stays on, a single,
quick tone sounds, and the traction control system
(TCS) warning light on the instrument panel
cluster turns on when the TCS is turned off by
pressing the Active Handling System button on the
console. SeeTraction Control System (TCS)
Warning Light on page 197. SeeTraction Control
System (TCS) on page 281for more information.
To acknowledge the message, press the
RESET button.
TRACTION SYSTEM – ON
This message displays and a single, quick tone
sounds when the Traction Control System (TCS) is
turned on by pressing the Active Handling System
button on the console. This message automatically
clears from the DIC display on its own. SeeTraction
Control System (TCS) on page 281for more
information.
TRANSMISSION HOT IDLE ENGINE
This message displays and four chimes sound
if the transmission uid temperature rises above
270°F (132°C) or rises rapidly. The transmission
may shift gears or apply the torque converter
clutch to reduce the uid temperature. Driving
aggressively or driving on long hills can cause the
transmission uid temperature to be higher than
normal. If this message appears, you may continue
to drive at a slower speed. Monitor the transmission
uid temperature and allow it to cool to at least
230°F (110°C). The transmission uid temperature
can be monitored with the gages button on the DIC.
SeeDIC Controls and Displays on page 208and
Automatic Transmission Fluid on page 345. Also
check the engine coolant temperature. If it is also
hot, seeEngine Overheating on page 350.
231

If this message is displayed during normal vehicle
operation on at roads, your vehicle may need
service. See your dealer for an inspection.
If driving in a performance or competitive manner,
the use of (S) Sport Automatic Mode or (S) Sport
Manual Paddle Shift gear selection is
recommended. SeeAutomatic Transmission
Operation on page 95for more information.
To acknowledge the message, press the RESET
button. The message reappears every 10 minutes
until this condition changes. If you do not press
the RESET button, the message remains on
the display until the condition changes.
TURN SIGNAL ON
This message displays and a chime sounds
if a turn signal is left on for three-quarters of
a mile (1.2 km). Move the turn signal/multifunction
lever to the off position.
To acknowledge this message, press the RESET
button.
UNLATCH HEADER TO MOVE TOP
This message displays and a chime sounds if you
try to lower the convertible top without rst unlocking
the top. Move the latch handle to unlock the
convertible top. SeeConvertible Top (Manual) on
page 139orConvertible Top (Power) on page 146.
Other Messages
Here are more messages that you can receive
on your Driver Information Center (DIC). To
acknowledge a message and read another
message that may have come on at the same
time, press the RESET button.
ACCESSORY MODE ON
BATTERY VOLTAGE HIGH
SeeVoltmeter Gage on page 194.
BATTERY VOLTAGE LOW
SeeVoltmeter Gage on page 194.
CHECK WASHER FLUID
SeeWindshield Washer Fluid on page 360.
CRUISE SET TO XXX MPH (XXX km/h)
SeeCruise Control on page 164.
232
