2007 CHEVROLET CORVETTE display

CHANGE ENGINE OIL
This message displays when the life of the engine
oil has expired. SeeScheduled Maintenance on
page 433. After an oil change, the engine oil
life system must be reset. See “Engine Oil Life”
underDIC Controls and Displays on page 208.
Also, seeEngine Oil on page 333andEngine Oil
Life System on page 340for more information.
CHECK BRAKE FLUID
This message displays, a chime sounds, and the
brake system warning light on the instrument
panel cluster turns on if the ignition is on to inform
the driver that the brake uid level is low. See
Brake System Warning Light on page 196. Have
the brake system serviced by your dealer as
soon as possible. SeeBrakes on page 361.
CHECK COOLANT LEVEL
This message displays when the engine coolant
level is low. Have the cooling system serviced
by your dealer as soon as possible. SeeEngine
Coolant on page 347.
CHECK GAS CAP
This message displays if the fuel cap has not
been fully tightened. Check the fuel cap to make
sure that it is on properly. Once tightened, it takes
at least one overnight park to reset or clear this
message. If both the CHECK GAS CAP message
and the malfunction indicator lamp in the
instrument panel cluster are on, you may need to
see your dealer for service. SeeMalfunction
Indicator Lamp on page 200for more information.
CHECK OIL LEVEL
This message displays and two chimes sound if
the oil level in the vehicle is low. Once the vehicle
senses a change in the engine oil level, the
light remains off.
If this message appears after starting the engine,
the engine oil level may be too low. You may
need to add oil. SeeEngine Overheating on
page 350.
To acknowledge the message, press the RESET
button. The message reappears every 10 minutes
until this condition changes.
217

CLOSE TRUNK TO MOVE TOP
This message displays and a chime sounds if the
trunk is open while you are trying to operate
the convertible top. Make sure the trunk is closed
before operating the convertible top. See
Convertible Top (Manual) on page 139or
Convertible Top (Power) on page 146.
COMPETITIVE DRIVING MODE
This message displays and a short chime sounds
when the Competitive Driving mode is selected.
The instrument panel cluster light will not be
on when the Competitive Driving mode is selected.
The Traction Control System (TCS) will not be
operating while in the Competitive Driving mode.
Adjust your driving accordingly. SeeRacing or
Other Competitive Driving on page 292for more
information.
COOLANT OVER TEMPERATURE
This message displays and a chime sounds if the
engine coolant exceeds 255°F (124°C). If you have
been operating your vehicle under normal driving
conditions, pull off the road, stop your vehicle, and
turn off the engine as soon as possible.
You can monitor the coolant temperature with the
gages button on the DIC or the engine coolant
temperature gage on the instrument panel cluster.
SeeEngine Overheating on page 350,DIC
Controls and Displays on page 208, andEngine
Coolant Temperature Gage on page 199.
To acknowledge the message, press the RESET
button. The message reappears and a chime
sounds every minute until this condition changes.
If you do not press the RESET button, the
message remains on until the condition changes.
CRUISE DISENGAGED
This message displays briey when you disengage
the cruise control system by stepping on the brake
on an automatic transmission vehicle or the clutch
on a manual transmission vehicle, or by turning off
the cruise control switch. SeeCruise Control on
page 164for more information.
218

ENGINE DRAG CONTROL ACTIVE
This message displays when engine drag control
is active. When driving in a lower gear in rainy,
snowy, or icy conditions and then letting up on the
accelerator or downshifting, the rear wheels
may begin to slip and this message displays. This
message stays on for a few seconds following
the engine drag control event.
ENGINE OVERHEATED – STOP
ENGINE
This message displays and a continuous chime
sounds when the engine has overheated. Stop and
turn the engine off immediately to avoid severe
engine damage. SeeEngine Overheating on
page 350.
ENGINE PROTECTION REDUCE
ENGINE RPM
This message displays if the engine oil
temperature exceeds 320°F (160°C). Check the
engine coolant temperature and engine oil level. If
the engine is too hot, seeEngine Overheating
on page 350. Your vehicle may need service, so
see your dealer.You can monitor the oil temperature with the
gages button on the DIC. SeeDIC Controls and
Displays on page 208.
Multiple chimes sound when this message is
displayed. This message remains displayed and
active until the issue is resolved.
HEADLAMPS SUGGESTED
This message displays if it is dark enough outside
and the headlamps and the Twilight Sentinel®
controls are off. This message informs the driver
that turning on the exterior lamps is recommended.
It has become dark enough outside to require
the headlamps and/or other exterior lamps.
HIGH TIRE PRESSURE
This message displays when one or more of the
tires is over-inated. This message also displays
LEFT FRONT, RIGHT FRONT, LEFT REAR, or
RIGHT REAR to indicate which tire is affected. You
can receive more than one tire pressure message
at a time. To read other messages that may have
been sent at the same time, press the RESET
button. If a tire pressure message appears on the
DIC, stop as soon as you can.
219

Have the tire pressures checked and set to those
shown on the Tire Loading Information label. See
Extended Mobility Tires on page 384,Loading Your
Vehicle on page 309,Ination - Tire Pressure on
page 386, andTire Pressure Monitor System on
page 389.
To acknowledge the message, press the RESET
button. A message reappears every 10 minutes
until the condition is corrected.
The DIC display also shows the tire pressure
values for the front and rear tires by pressing the
gages button. SeeDIC Controls and Displays
on page 208.
HOT ENGINE AIR CONDITIONING OFF
This message displays when the engine coolant
becomes hotter than the normal operating
temperature. To avoid added strain on a hot engine,
the air conditioning compressor is automatically
turned off. When the coolant temperature returns to
normal, the A/C operation automatically resumes.
You can continue to drive your vehicle. If this
message continues to appear, have the system
repaired by your dealer as soon as possible to
avoid compressor damage.
ICE POSSIBLE
This message displays when the outside air
temperature is cold enough to create icy road
conditions. Adjust your driving accordingly.
LOW FUEL
This message displays when the fuel tank is less
than 10 percent full and the display is turned
off. A multiple chime also sounds when this
message is displayed. Rell the fuel tank as soon
as possible. SeeFuel Gage on page 206.
LOW OIL PRESSURE
This message displays if low oil pressure levels
occur. If this message appears while the engine is
running, stop the engine and do not operate it
until the cause of low oil pressure is corrected.
Severe damage to the engine can result. A
multiple chime sounds when this message is
displayed. SeeEngine Oil on page 333.
220

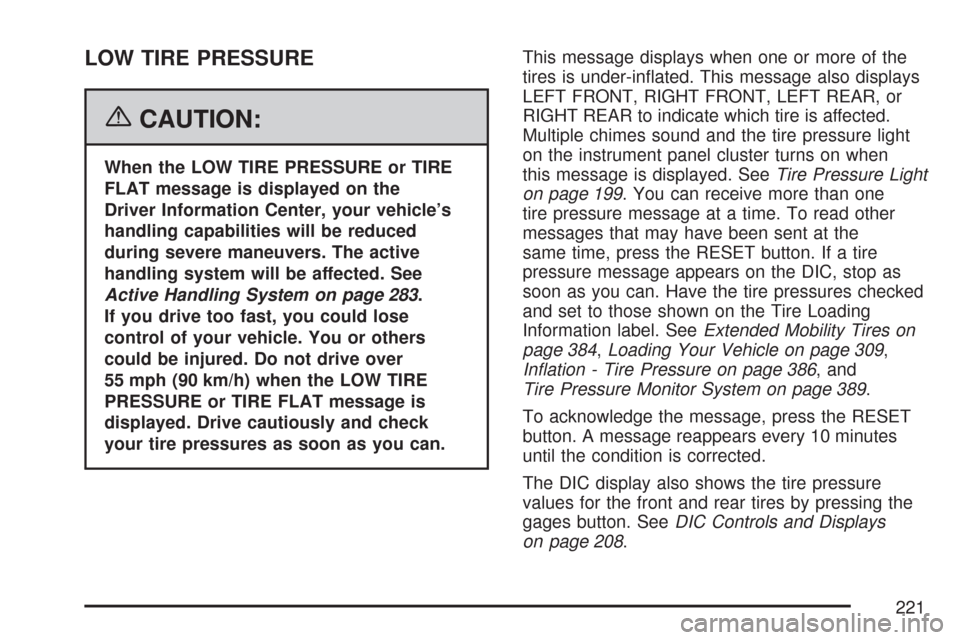

LOW TIRE PRESSURE
{CAUTION:
When the LOW TIRE PRESSURE or TIRE
FLAT message is displayed on the
Driver Information Center, your vehicle’s
handling capabilities will be reduced
during severe maneuvers. The active
handling system will be affected. See
Active Handling System on page 283.
If you drive too fast, you could lose
control of your vehicle. You or others
could be injured. Do not drive over
55 mph (90 km/h) when the LOW TIRE
PRESSURE or TIRE FLAT message is
displayed. Drive cautiously and check
your tire pressures as soon as you can.This message displays when one or more of the
tires is under-inated. This message also displays
LEFT FRONT, RIGHT FRONT, LEFT REAR, or
RIGHT REAR to indicate which tire is affected.
Multiple chimes sound and the tire pressure light
on the instrument panel cluster turns on when
this message is displayed. SeeTire Pressure Light
on page 199. You can receive more than one
tire pressure message at a time. To read other
messages that may have been sent at the
same time, press the RESET button. If a tire
pressure message appears on the DIC, stop as
soon as you can. Have the tire pressures checked
and set to those shown on the Tire Loading
Information label. SeeExtended Mobility Tires on
page 384,Loading Your Vehicle on page 309,
Ination - Tire Pressure on page 386, and
Tire Pressure Monitor System on page 389.
To acknowledge the message, press the RESET
button. A message reappears every 10 minutes
until the condition is corrected.
The DIC display also shows the tire pressure
values for the front and rear tires by pressing the
gages button. SeeDIC Controls and Displays
on page 208.
221

MAXIMUM SPEED 80 MPH (129 km/h)
This message displays when a malfunction is
present in the Selective Ride Control system. The
vehicle speed will be limited to a value determined
by the vehicle when the shock absorber system
has failed and the shocks are in their full soft
mode. Have your vehicle serviced by your dealer
as soon as possible.
To acknowledge the message, press the RESET
button. The message reappears every 10 minutes
until this condition changes.
NO FOBS DETECTED
This message displays if the vehicle does not
detect the presence of a keyless access transmitter
when you have attempted to start the vehicle
or a vehicle door has just closed. The following
conditions may cause this message to appear:
Driver-added equipment plugged into the
accessory power outlet on the center console
is causing interference. Examples of these
devices are cell phones and cell phone
chargers, two-way radios, power inverters, or
similar items. Try moving the keyless access
transmitter away from these devices when
starting the vehicle. In addition, PDA devices
and remote garage and gate openers may also
generate Electromagnetic Interference (EMI)
that may interfere with the keyless access
transmitter. Do not carry the keyless access
transmitter in the same pocket or bag as these
devices.
The vehicle is experiencing Electromagnetic
Interference (EMI). Some locations, such as
airports, automatic toll booths, and some gas
stations have EMI elds which may interfere
with the keyless access transmitter.
222

If moving the transmitter to different locations
within the vehicle does not help, place the
transmitter in the glove box transmitter pocket
with the buttons facing to the right and then
press the START button.
The vehicle’s battery voltage is low. The
battery voltage must be above 10 volts
for the keyless access transmitter to be
detected properly.
NO FOB - OFF OR RUN?
This message displays when the keyless access
transmitter is not detected inside the vehicle while
you are trying to turn the ignition off. Your vehicle
may be near a strong radio antenna signal causing
the keyless access system to be jammed. The
vehicle will remain in Acc. until OFF or START has
been pressed or ve minutes has expired. If you
turn the ignition off and you cannot nd the keyless
access transmitter, you will not be able to restart
the vehicle. The keyless access transmitter needs
to be inside of the vehicle in order for the vehicle to
start. SeeStarting the Engine on page 91for more
information.
OPTIONS UNAVAILABLE
This message displays for a few seconds if a
keyless access transmitter that is not labelled 1 or 2
is used and you try to personalize the features on
your vehicle by pressing the OPTION button.
The personalization system will not recognize
the transmitter and the DIC will not display the
current driver number or the menus used to set
personalizations. The personalization features will
then be set to the default states. SeeDIC Vehicle
Personalization on page 234for more information.
223

PRESS BRAKE TO START ENGINE
(Automatic Transmission Only)
This message displays if you try to start the
engine by pressing the keyless ignition start button
without having the brake pressed. The brake
needs to be pressed when starting the engine. See
Ignition Positions on page 90for more information.
REDUCED ENGINE POWER
If this message displays and the check engine
light comes on, a noticeable reduction in the
vehicle’s performance may occur. If the REDUCED
ENGINE POWER message is displayed, but
there is no reduction in performance, proceed to
your destination. The performance may be reduced
the next time the vehicle is driven.
The vehicle may be driven at a reduced speed
while the REDUCED ENGINE POWER message
is displayed, but acceleration and speed may
be reduced. Anytime the check engine light stays
on, the vehicle should be taken to your dealer
as soon as possible for diagnosis and repair. See
Malfunction Indicator Lamp on page 200for
more information.Multiple chimes sound when this message is
displayed.
To acknowledge the message, press the RESET
button. The message reappears every ve minutes
until this condition changes.
If the REDUCED ENGINE POWER message is
displayed in combination with the COOLANT
OVER TEMPERATURE message, seeEngine
Overheating on page 350.SERVICE ACTIVE HANDLING SYSTEM
This message displays if there is a problem
with the Active Handling System and your vehicle
needs service. The active handling system
light on the instrument panel cluster also turns on
and a chime sounds. See your dealer. When
this message is displayed, the system is not
working. Adjust your driving accordingly. See
Active Handling System on page 283for more
information.
224
