2007 CHEVROLET COLORADO Owners Manual

Surface Obstacles:Unseen or hidden obstacles
can be hazardous. A rock, log, hole, rut, or
bump can startle you if you are not prepared
for them. Often these obstacles are hidden
by grass, bushes, snow, or even the rise and
fall of the terrain itself. Here are some things
to consider:
Is the path ahead clear?
Will the surface texture change abruptly
up ahead?
Does the travel take you uphill or
downhill? There is more discussion of
these subjects later.
Will you have to stop suddenly or change
direction quickly?
When you drive over obstacles or rough
terrain, keep a rm grip on the steering wheel.
Ruts, troughs, or other surface features can
jerk the wheel out of your hands if you are
not prepared.When you drive over bumps, rocks, or other
obstacles, the wheels can leave the ground.
If this happens, even with one or two wheels,
you cannot control the vehicle as well or at all.
Because you will be on an unpaved surface,
it is especially important to avoid sudden
acceleration, sudden turns, or sudden braking.
In a way, off-road driving requires a different
kind of alertness from driving on paved roads
and highways. There are no road signs, posted
speed limits, or signal lights. You have to use
your own good judgment about what is safe and
what is not.
Drinking and driving can be very dangerous on any
road. And this is certainly true for off-road driving.
At the very time you need special alertness and
driving skills, your reexes, perceptions, and
judgment can be affected by even a small amount
of alcohol. You could have a serious — or even
fatal — accident if you drink and drive or ride with
a driver who has been drinking. SeeDrunken
Driving on page 247.
265

Driving on Off-Road Hills
Off-road driving often takes you up, down, or
across a hill. Driving safely on hills requires good
judgment and an understanding of what your
vehicle can and cannot do. There are some hills
that simply cannot be driven, no matter how
well built the vehicle.
{CAUTION:
Many hills are simply too steep for any
vehicle. If you drive up them, you will
stall. If you drive down them, you cannot
control your speed. If you drive across
them, you will roll over. You could be
seriously injured or killed. If you have
any doubt about the steepness, do not
drive the hill.
Approaching a Hill
When you approach a hill, you need to decide
if it is one of those hills that is just too steep
to climb, descend, or cross. Steepness can be
hard to judge. On a very small hill, for example,
there may be a smooth, constant incline with
only a small change in elevation where you can
easily see all the way to the top. On a large
hill, the incline may get steeper as you near the
top, but you may not see this because the crest
of the hill is hidden by bushes, grass, or shrubs.
Here are some other things to consider as
you approach a hill.
Is there a constant incline, or does the hill
get sharply steeper in places?
Is there good traction on the hillside, or will
the surface cause tire slipping?
Is there a straight path up or down the hill so
you will not have to make turning maneuvers?
Are there obstructions on the hill that can
block your path, such as boulders, trees,
logs, or ruts?
266

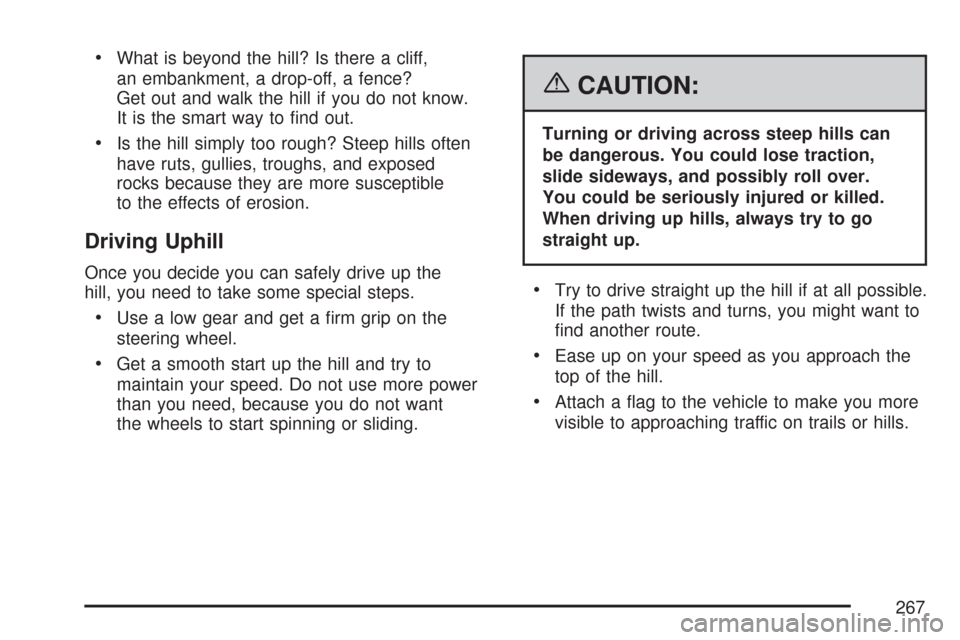

What is beyond the hill? Is there a cliff,
an embankment, a drop-off, a fence?
Get out and walk the hill if you do not know.
It is the smart way to nd out.
Is the hill simply too rough? Steep hills often
have ruts, gullies, troughs, and exposed
rocks because they are more susceptible
to the effects of erosion.
Driving Uphill
Once you decide you can safely drive up the
hill, you need to take some special steps.
Use a low gear and get a rm grip on the
steering wheel.
Get a smooth start up the hill and try to
maintain your speed. Do not use more power
than you need, because you do not want
the wheels to start spinning or sliding.
{CAUTION:
Turning or driving across steep hills can
be dangerous. You could lose traction,
slide sideways, and possibly roll over.
You could be seriously injured or killed.
When driving up hills, always try to go
straight up.
Try to drive straight up the hill if at all possible.
If the path twists and turns, you might want to
nd another route.
Ease up on your speed as you approach the
top of the hill.
Attach a ag to the vehicle to make you more
visible to approaching traffic on trails or hills.
267

Sound the horn as you approach the top
of the hill to let opposing traffic know you
are there.
Use your headlamps even during the day.
They make your vehicle more visible to
oncoming traffic.
{CAUTION:
Driving to the top (crest) of a hill at full
speed can cause an accident. There could
be a drop-off, embankment, cliff, or even
another vehicle. You could be seriously
injured or killed. As you near the top
of a hill, slow down and stay alert.
Q:What should I do if my vehicle stalls,
or is about to stall, and I cannot make
it up the hill?
A:If this happens, there are some things you
should do, and there are some things you
must not do. First, here is what youshoulddo:
Push the brake pedal to stop the vehicle
and keep it from rolling backwards. Also,
apply the parking brake.
If your engine is still running, shift the
transmission to REVERSE (R), release the
parking brake, and slowly back down the
hill in REVERSE (R).
If your engine has stopped running, you will
need to restart it. With the brake pedal
pressed and the parking brake still applied,
shift the transmission to PARK (P), or shift
to NEUTRAL if your vehicle has a manual
transmission, and restart the engine. Then,
shift to REVERSE (R), release the parking
brake, and slowly back down the hill as
straight as possible in REVERSE (R).
268

As you are backing down the hill, put your left
hand on the steering wheel at the 12 o’clock
position. This way, you will be able to tell if the
wheels are straight and maneuver as you
back down. It is best that you back down the
hill with the wheels straight rather than in
the left or right direction. Turning the wheel
too far to the left or right will increase the
possibility of a rollover.
Here are some things youmust notdo if you stall,
or are about to stall, when going up a hill.
Never attempt to prevent a stall by shifting
into NEUTRAL (N), or pressing the clutch
if your vehicle has a manual transmission,
to rev-up the engine and regain forward
momentum. This will not work. Your vehicle
will roll backwards very quickly and you
could go out of control.
Instead, apply the regular brake to stop
the vehicle. Then apply the parking brake.
Shift to REVERSE (R), release the parking
brake, and slowly back straight down.
Never attempt to turn around if you are about
to stall when going up a hill. If the hill is
steep enough to stall your vehicle, it is steep
enough to cause you to roll over if you
turn around. If you cannot make it up the
hill, you must back straight down the hill.
Q:Suppose, after stalling, I try to back
down the hill and decide I just cannot
do it. What should I do?
A:Set the parking brake, put the automatic
transmission in PARK (P), or the manual
transmission in FIRST (1), and turn off
the engine. Leave the vehicle and go get
some help. Exit on the uphill side and
stay clear of the path the vehicle would
take if it rolled downhill.
269

Driving Downhill
When off-roading takes you downhill, you will
want to consider a number of things:
How steep is the downhill? Will I be able
to maintain vehicle control?
What is the surface like? Smooth? Rough?
Slippery? Hard-packed dirt? Gravel?
Are there hidden surface obstacles? Ruts?
Logs? Boulders?
What is at the bottom of the hill? Is there a
hidden creek bank or even a river bottom
with large rocks?If you decide you can go down a hill safely, then
try to keep your vehicle headed straight down,
and use a low gear. This way, engine drag
can help the brakes and they will not have to
do all the work. Descend slowly, keeping
your vehicle under control at all times.
{CAUTION:
Heavy braking when going down a hill can
cause your brakes to overheat and fade.
This could cause loss of control and a
serious accident. Apply the brakes lightly
when descending a hill and use a low
gear to keep vehicle speed under control.
270

Q:Are there some things I should not do
when driving down a hill?
A:Yes! These are important because if you
ignore them you could lose control and
have a serious accident.
When driving downhill, avoid turns that take
you across the incline of the hill. A hill that
is not too steep to drive down may be
too steep to drive across. You could roll
over if you do not drive straight down.
Never go downhill with the transmission in
NEUTRAL (N), or with the clutch pedal
pressed down with a manual transmission.
This is called “free-wheeling.” The brakes will
have to do all the work and could overheat
and fade.
Q:Am I likely to stall when going downhill?
A:It is much more likely to happen going
uphill. But if it happens going downhill,
here is what to do.
1. Stop your vehicle by applying the regular
brakes. Apply the parking brake.
2. Shift to PARK (P), or to NEUTRAL with the
manual transmission, and, while still braking,
restart the engine.
3. Shift back to a low gear, release the parking
brake, and drive straight down.
4. If the engine will not start, get out and
get help.
271

Driving Across an Incline
Sooner or later, an off-road trail will probably
go across the incline of a hill. If this happens,
you have to decide whether to try to drive across
the incline. Here are some things to consider:
{CAUTION:
Driving across an incline that is too
steep will make your vehicle roll over.
You could be seriously injured or killed.
If you have any doubt about the
steepness of the incline, do not drive
across it. Find another route instead.
A hill that can be driven straight up or down
may be too steep to drive across. When you
go straight up or down a hill, the length of the
wheel base — the distance from the front
wheels to the rear wheels — reduces the
likelihood the vehicle will tumble end over end.But when you drive across an incline, the
much more narrow track width — the distance
between the left and right wheels — may not
prevent the vehicle from tilting and rolling over.
Also, driving across an incline puts more weight
on the downhill wheels. This could cause a
downhill slide or a rollover.
Surface conditions can be a problem when
you drive across a hill. Loose gravel, muddy
spots, or even wet grass can cause your
tires to slip sideways, downhill. If the vehicle
slips sideways, it can hit something that will
trip it — a rock, a rut, etc. — and roll over.
Hidden obstacles can make the steepness of
the incline even worse. If you drive across a
rock with the uphill wheels, or if the downhill
wheels drop into a rut or depression, your
vehicle can tilt even more.
For reasons like these, you need to decide
carefully whether to try to drive across an incline.
Just because the trail goes across the incline
does not mean you have to drive it. The last
vehicle to try it might have rolled over.
272
